Vivotek IP8173H Manuel utilisateur

Quick Installation Guide

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T:+886-2-82455282|F:+886-2-82455532|E:[email protected]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T: 408-773-8686|F: 408-773-8298|E: [email protected]

3MP • Compact Size • WDR Pro

All specications are subject to change without notice.

P/N:625021901G Rev. 1.1

IP8173H Mini-box

Network Camera

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

Dansk

Nederlands

Indonesia

VIVOTEK Netherlands B.V.

Busplein 36, 1315KV, Almere, The Netherlands

|T:+31 (0)36 5389 149|F:+31 (0)36 5389 111|E:[email protected]

Keep the Network Camera away

from water. If the Network Camera

becomes wet, power off immediately.

Refer to your user's manual for the

operating temperature.

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera in

high humidity environments.

Warning Before Installation

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

1Package Contents

IP8173H CS-mount Lens

Camera Stand

Quick Installation Guide

Warranty Card

Software CD

L-type Hex Key Wrench Screws Mount Bracket

EN - 2

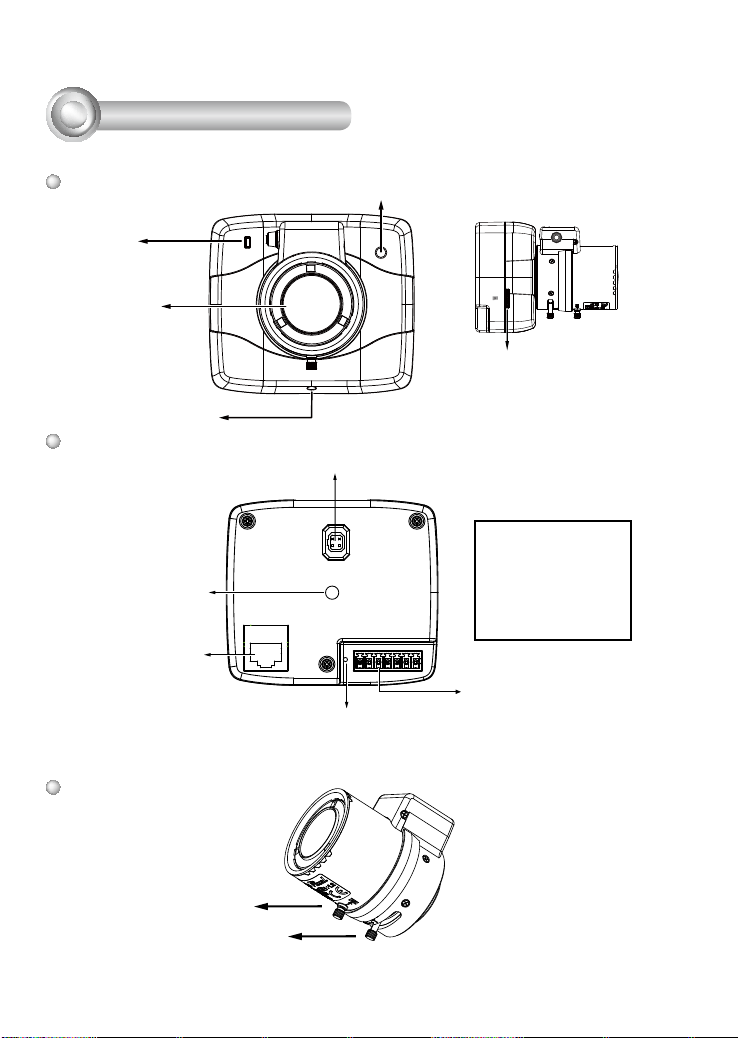

2Physical Description

Ethernet 10/100

RJ45 Socket

Recessed Reset Button

General I/O Terminal

Block

Front Panel

Rear Panel

Lens

Focus Controller

Zoom Controller

Status LED

MicroSD/SDHC/SDXC

Card Slot

Lens

Iris Control Cable Socket

Micro SD

1 2 3 4 5 6 7

GND

RS485_N

RS485_P

GND_AUDIO

MIC_IN

AUDIO_OUT

Mounting Hole

Mount ring

adjustment

Light Sensor

EN - 3

English

1. Mount the lens by turning it clockwise onto the camera mount until it stops.

2. Connect the iris control cable to the socket. Connect the iris control cable before

power-on. Otherwise, you will not be able to access the exposure related

settings.

3Mounting the Lens to the Camera

4Mounting the Camera to Stand

1. Use the holes on the camera stand to mark drill holes on the wall. Drill holes on your

preferred location.

2. Hammer in the included plastic anchors.

3. Install the camera stand to wall or ceiling

by driving screws through it.

4. Attach the camera to stand by turning

the stand and the fastening rings.

EN - 4

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a

non-PoE switch.

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

Non-PoE Switch

PoE Power Injector

(optional)

5Network Deployment

Power over Ethernet (PoE)

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via

a single Ethernet cable. Follow the below illustration to connect the Network Camera

to a PoE-enabled switch via Ethernet cable.

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE Switch

EN - 5

English

For further setup, please refer to the user’s manual on the software CD.

Ready to Use

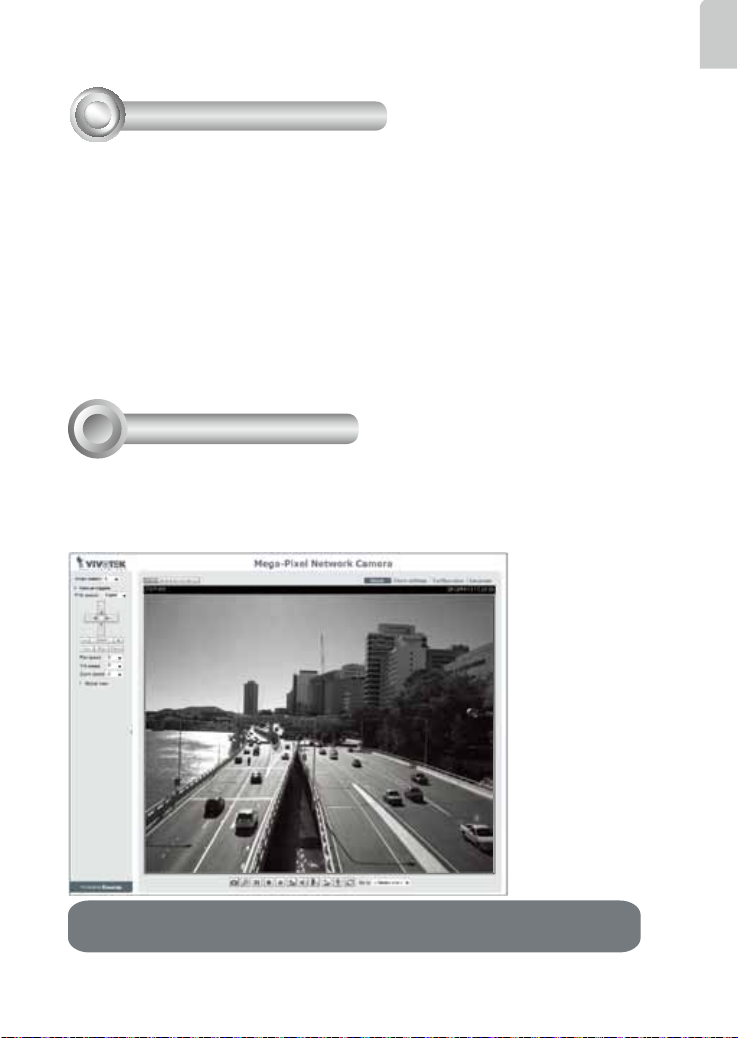

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the

32-channel recording software from the software CD in a deployment consisting of

multiple cameras. For its installation details, please refer to its related documents.

6Assigning an IP Address

1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network

is analyzed, please click on the "Next" button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC

address that matches the one printed on the camera label or the S/N number on the

package box label to open a browser management session with the Network Camera.

EN - 6

If you prefer other lens for your IP8173H, please notice the specications below.

1. If you select a different lens, the distance between the ange of the lens and the IR

cut lter on the camera should be smaller than 7.0mm. If the lens protrudes too much

from the bottom of the lens module, it may hit the IR Cut Filter, or result in out of focus

when adjusting the focus controller.

2. A vari-focal lens may protrude from the bottom of screw mount when tuning the focus

puller.

IR Cut

Filter

NOTE:

3. Unscrew the zoom controller to adjust the zoom factor. Upon completion, tighten the

zoom controller.

4. Unscrew the focus controller to adjust the focus range. Upon completion, tighten the

focus controller.

∞

Lens

protrudes from

the screw

mount

Screw mount

3. Use the included hex wrench to make adjustments to CS-mount ring only when you

experience compatibility issue with lens focal length.

EN - 7

English

1. Attach the bracket to the back of the camera by resting the foam pads on the top and

to the back of the camera. Secure the bracket by driving a hex socket screw.

Installed into Housing

2. Attach the T-bracket and the camera to the camera bracket. Place the camera lens in

the front as close as possible to the enclosure's tempered glass window. Secure the

installation by tightening the hex socket screw on top.

The camera can be installed into VIVOTEK's

housings, such as the AE-211/-232/-233/-234/-235

series.

Quick Installation Guide

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T:+886-2-82455282|F:+886-2-82455532|E:[email protected]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T: 408-773-8686|F: 408-773-8298|E: [email protected]

3MP • Compact Size • WDR Pro

All specications are subject to change without notice.

P/N:625021901G Rev. 1.1

IP8173H Mini-box

Network Camera

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

Dansk

Nederlands

Indonesia

VIVOTEK Netherlands B.V.

Busplein 36, 1315KV, Almere, The Netherlands

|T:+31 (0)36 5389 149|F:+31 (0)36 5389 111|E:[email protected]
