Vivo MOUNT-SPSB5 Manuel utilisateur

Soundbar Speaker TV Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

https://vivo-us.com/products/mount-spsb5

SKU: MOUNT-SPSB5

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

VESA mount type: Plate

Instruction Manual

TOOLS NEEDED

33 lbs

(15 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the installation, please

call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper

installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly

specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by

improper mounting, incorrect assembly or inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

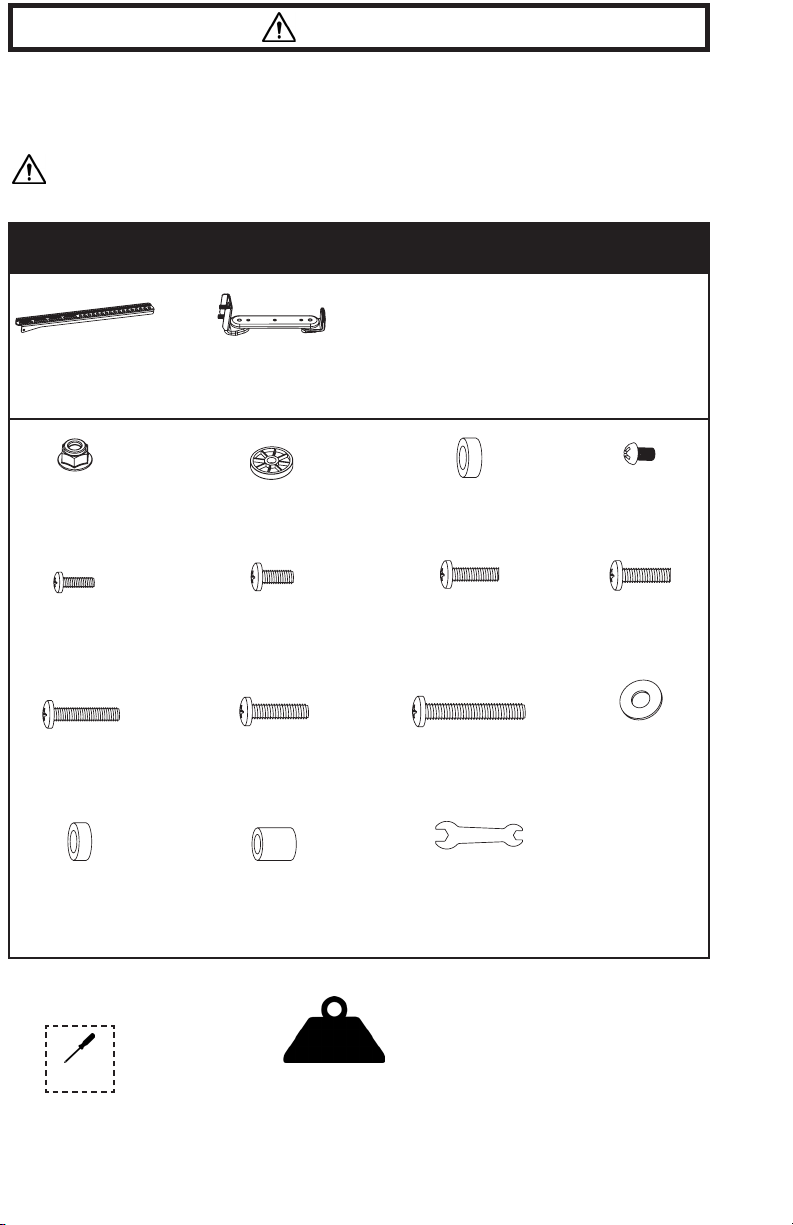

PACKAGE CONTENTS

A (x2)

VESA Bracket

B (x2)

Support Arm

S-B (x2)

40x6mm Pad

S-C (x4)

5mm Spacer

S-A (x4)

M8 Flange Nut

S-D (x4)

M6x10 Screw

M-A (x4)

M5x16

M-B (x4)

M6x16

M-C (x4)

M5x25

M-D (x4)

M6x25

M-E (x4)

M6x40

M-F (x4)

M8x40

M-G (x4)

M8x60

M-H (x4)

D5 Washer

M-I (x8)

5mm Spacer

M-J (x8)

15mm Spacer

T-A (x1)

Wrench

ASSEMBLY STEPS

STEP 1

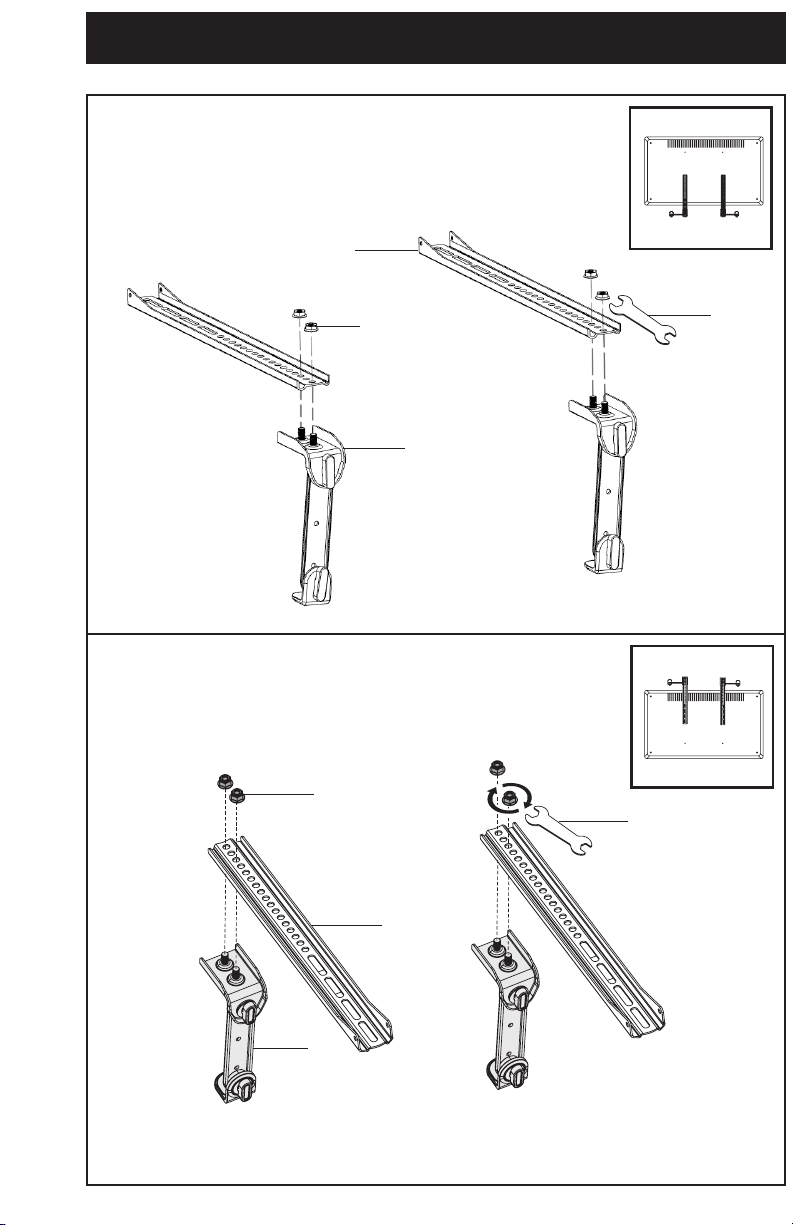

OPTION A: Under TV

Mount the Support Arms (B) to the first and third holes of the VESA Brackets

(A) using the M8 Flange Nuts (S-A). Tighten with the Wrench (T-A).

OPTION B: Over TV

Mount the Support Arms (B) to the first and third holes of the VESA Brackets

(A) using the M8 Flange Nuts (S-A). Tighten with the Wrench (T-A).

T-A

S-A

T-A

STEP 2

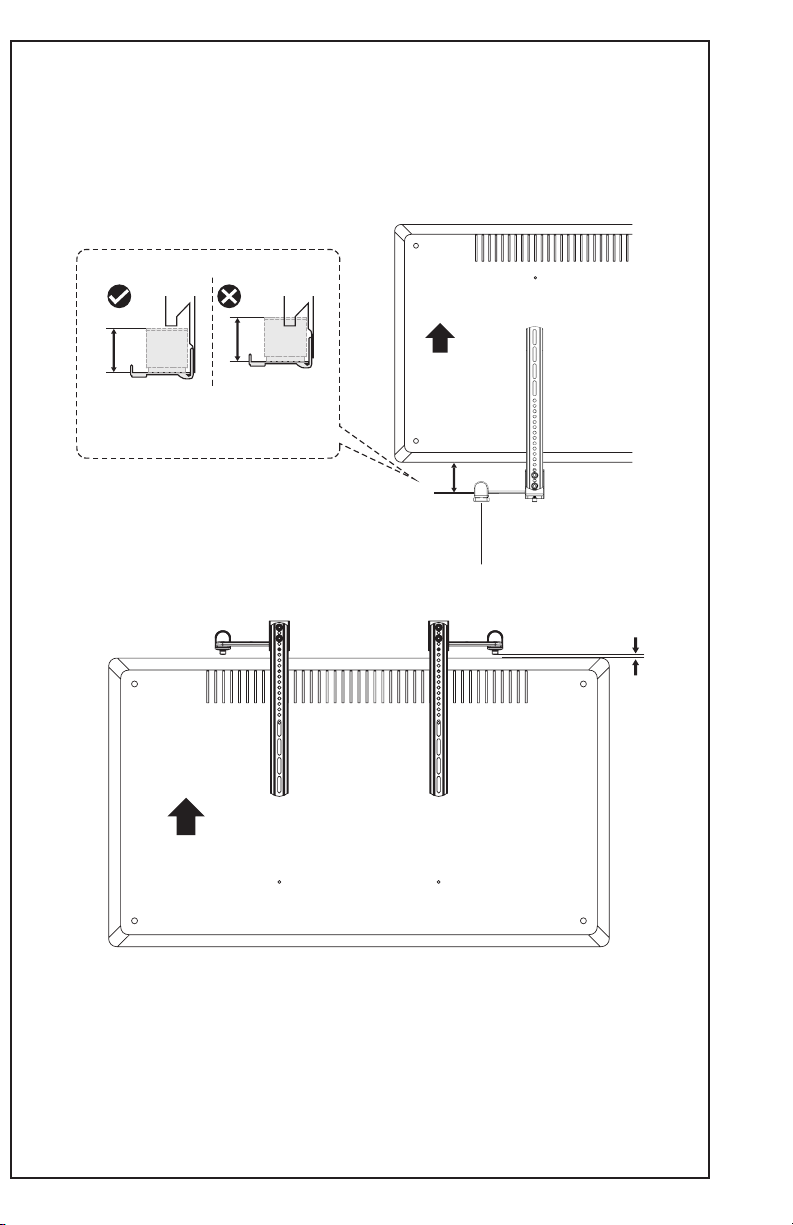

Determine the correct mounting height for the assembled brackets. For under TV mounting, ensure

the distance between the Support Arms (B) is equal to or greater than the height of the soundbar

to be installed. For over TV mounting, ensure the space between the support arm knobs is at least

5mm (0.2”) above the top edge of the TV.

TOP

No te : Me asur e th e sp eaker he ig ht b ef ore

insta llation . M ake su re t here i s am ple ro om

for th e sp eaker.

so un db ar

>5mm

TOP

STEP 2 (Continued)

OPTION A: Under TV

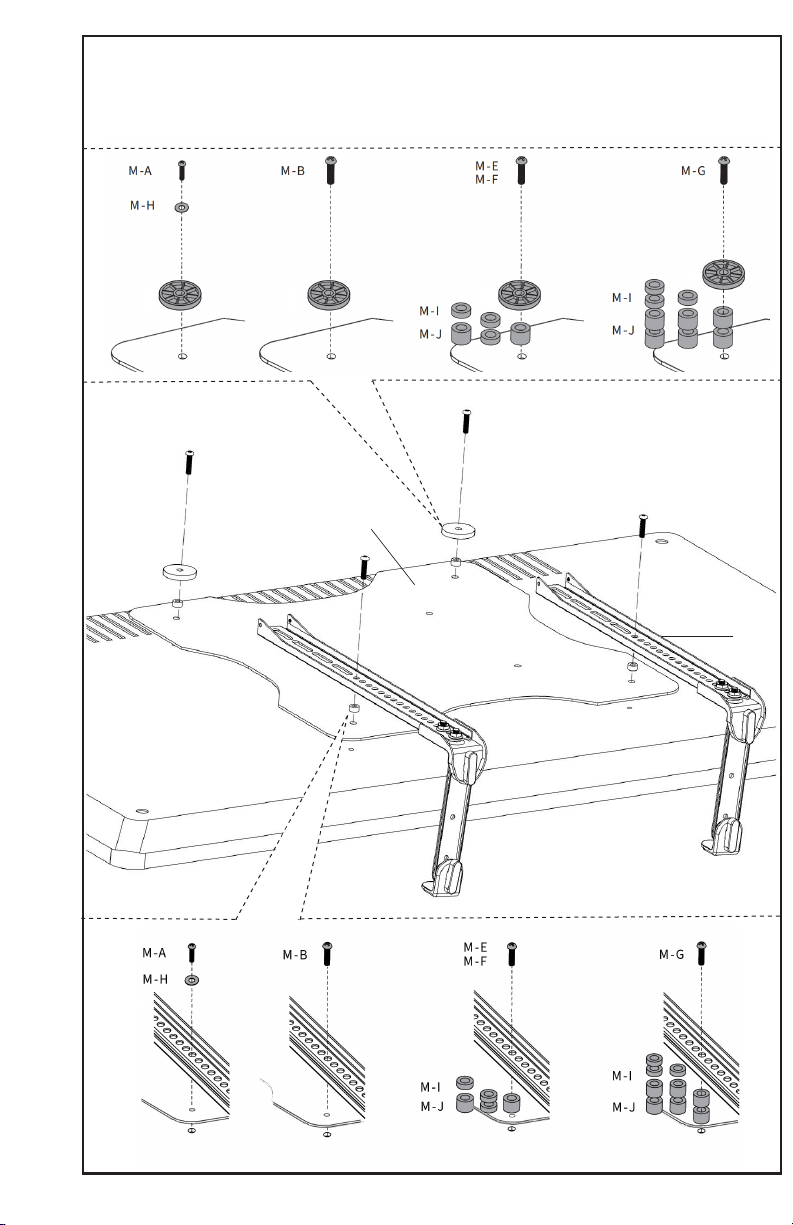

Install the VESA Brackets (A) and 40x6mm Pads (S-B) on the back of the TV with VESA plate from the

TV mount, and secure using Screws (M-A through M-G) of the correct size for your TV. Use D5 Washers

(M-H) and Spacers (M-I, M-J) if needed.

S-B S-B S-B

S-B

TV Mount

VESA Plate

STEP 2 (Continued)

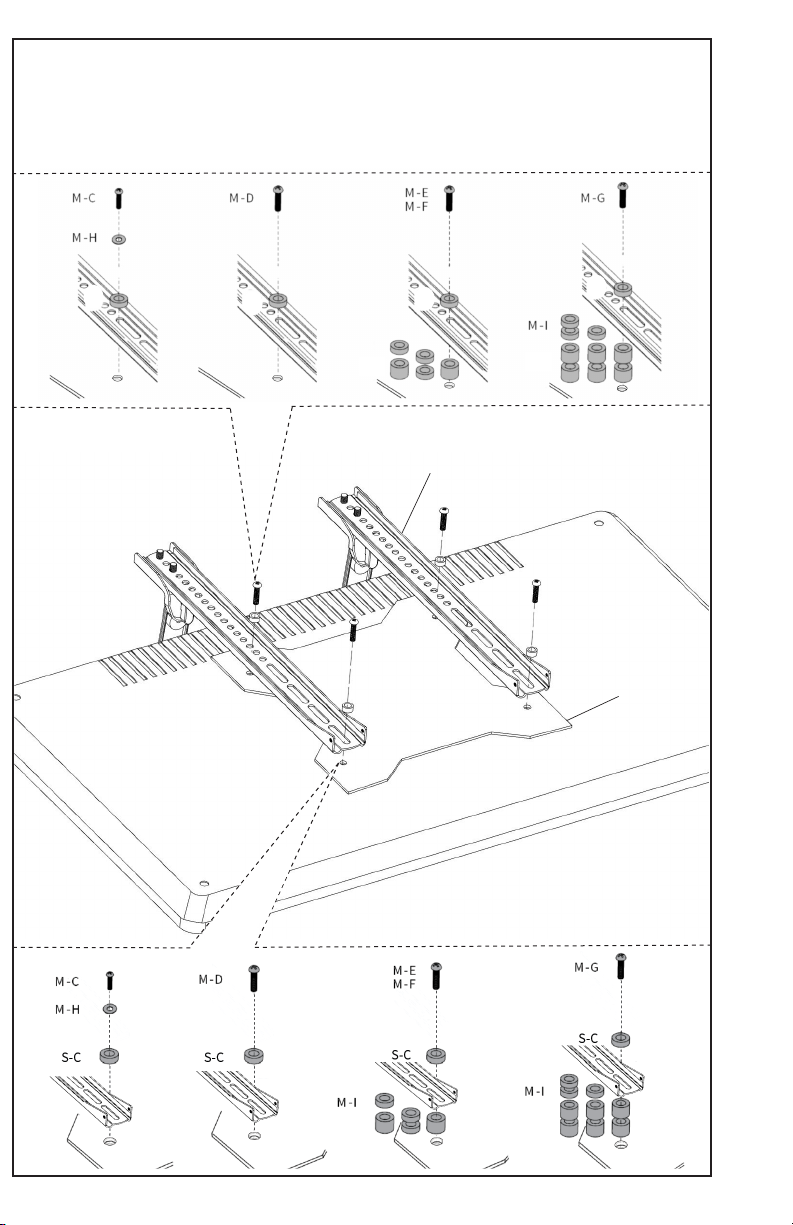

OPTION B: Over TV

Install the VESA Brackets (A) on the back of the TV with VESA plate from the TV mount, and secure

using Screws (M-A through M-G) of the correct size for your TV. Use D5 Washers (M-H) and Spacers

(M-I, M-J) if needed.

NOTE: To ensure the mount is installed securely, top mounting requires the use of all four TV

mounting holes as shown below.

S-C S-C S-C

S-C

M-I

M-J M-J

TV Mount

VESA Plate

M-J M-J

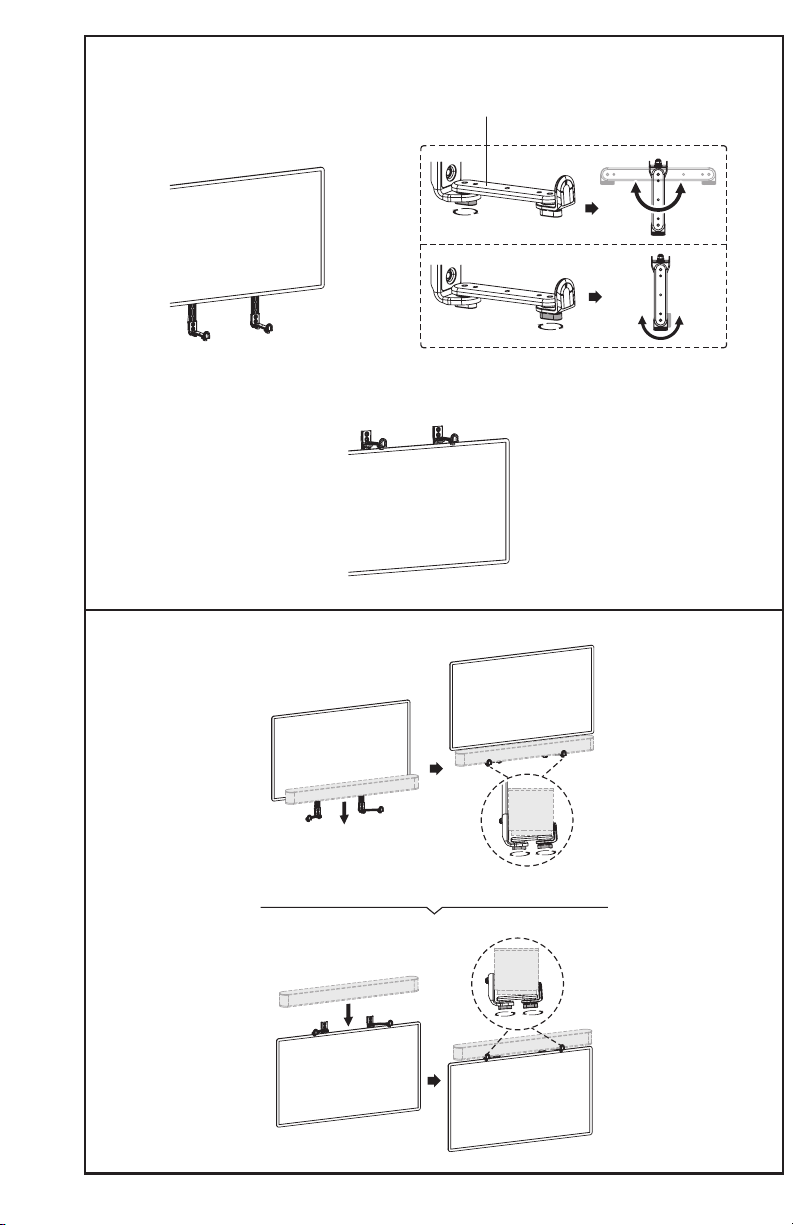

STEP 3

Loosen the knobs on the Support Arms (B). Place the soundbar on the Support Arms (B), adjust the

angle of the support arms to secure the soundbar, then retighten the knobs.

LAST UPDATED: 06/10/2021

REV1.2

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
