Vivo STAND-V101D Manuel utilisateur

Single Monitor Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v101d

SKU: STAND-V101D

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

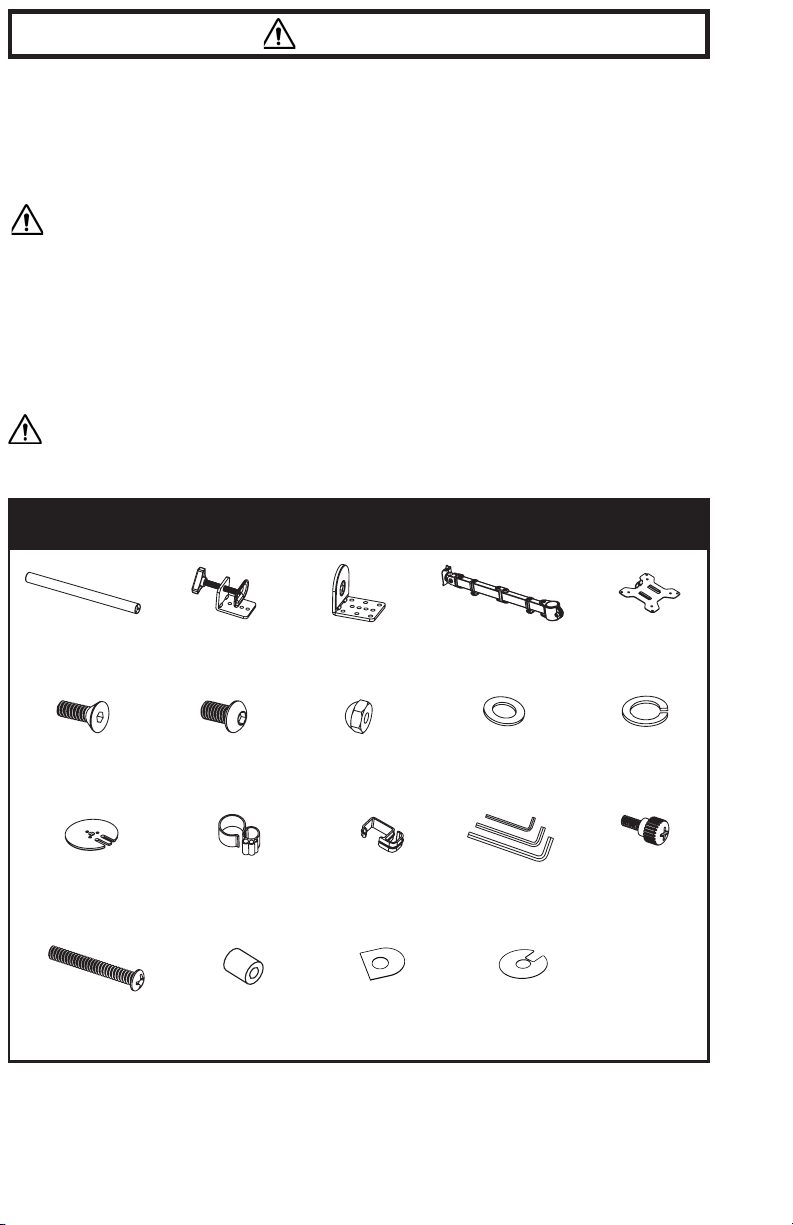

PACKAGE CONTENTS

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

A (x1)

Pole

B(x1)

Clamp

C(x1)

Clamp Brace

D(x1)

Swivel Arm

E(x1)

VESA Plate

F (x3)

M5x14

G(x2)

M8x12

H (x1)

Nut

I (x1)

M10 Washer

L1 (x1)

Wire Clip

M(x1)

Allen Key

J (x1)

Spring Washer

K (x1)

Grommet

Base Plate

P (x4)

M4 Spacer

N (x4)

M4x12

O (x4)

M4x30

Q1(x1)

So Pad

Q2 (x1)

So Pad

L2 (x2)

Wire Clip

ASSEMBLY STEPS

STEP 1

TOOLS NEEDED

Phillips

Screwdriver

22lbs

(9.98kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Drill

Option A: Desk Clamp Install

1. Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). See Figure 1.

2. Attach so pad (Q1) to the clamp brace (C) , see Figure 2.

3. Install the clamp (B) to the pole assembly according to the thickness of the desktop. The

thickness can be changed to 3 positions. Connect using x2 M8x12 bolts (G) and tighten using the

Allen key (M). Tighten the clamp to the desktop using the plastic knob. See Figure 3.

Option B: Grommet Install

1. If desk does not have an existing grommet

hole, drill a 3/8” (10mm) diameter hole at the

desired position through the mounting surface.

2. Completely disassemble clamp (B) into

individual parts. Set knob (B1) and clamp

plate (B2) aside for later use. The L bracket,

bolt, washer and bushing will not be used.

3. Install grommet base plate (K) to the pole (A)

using x3 M5x14 bolts (F). See Figure 4.

4. Attach so pad (Q2) to the grommet base plate

(K), see Figure 5.

5. Position pole (A) on the mounting surface

and secure using the clamp plate (B2), spring

washer (J), M10 washer (I) and knob (B1). See

Figure 6.

Figure 1 Figure 2

Figure 4

t2 Figure 5

Figure 4

t2 Figure 5

STEP 2

Install Swivel Arm (D) to the Pole (A). Fasten the bolt with supplied Allen Key (M). Attach the Wire Clip

(L1, L2) to the Pole (A) and Swivel Arm (D).

ML1

STEP 3

OPTION A: Flat Back Monitor

Attach VESA Plate (E) to monitor using bolts (N). Tighten all four bolts using phillips screwdriver.

OPTION B: Curved Back Monitor

Attach VESA Plate (E) to monitor using bolts (O) and spacers (P). Tighten all four bolts using phillips

screwdriver.

STEP 5

Tighten the bolt with the supplied Allen Key (M) to fix the tilt angle. Use the supplied Allen Key (M) to

make the necessary adjustments.

STEP 4

Slide the monitor onto the head of Swivel Arm (D). Install the security Nut (H). Make sure the security

nut is installed before you rotate the monitor.

Fix the tilt angle

STEP 6

Store allen keys (o) in wire clips (n1) for future adjustment.

LAST UPDATED: 09/17/2020

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
