Vivo MOUNT-PS5C Manuel utilisateur
2-in-1 (Wall & Desk) Mount Designed for PS5
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-ps5c
SKU: MOUNT-PS5C
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

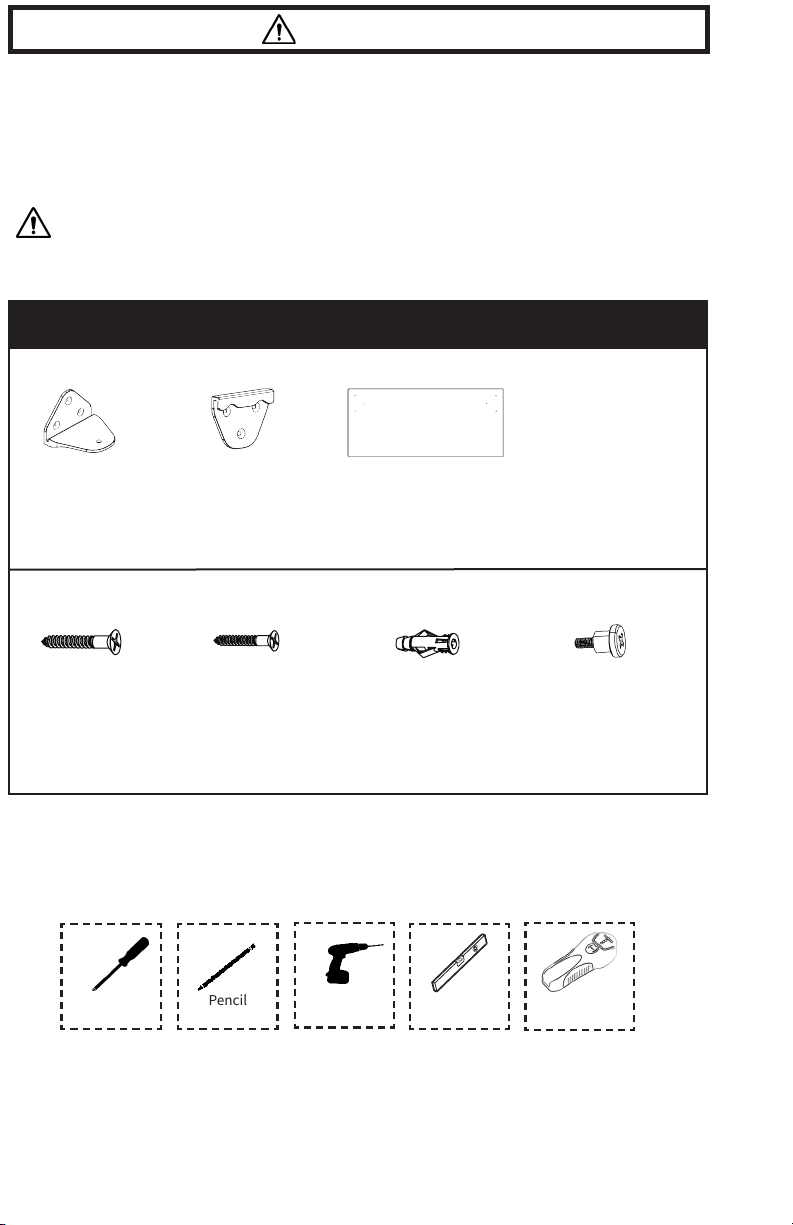

PACKAGE CONTENTS
WARNING!
M-A (x6)
ST5x30mm
Screw
M-B (x6)
ST5x16mm
Screw
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
M-C (x6)
Drywall Anchor
A (x1)
Base Bracket
B (x1)
Hook Bracket
C (x1)
Mounting Template
M-D (x1)
M3 Security Bolt
TOOLS NEEDED
Phillips
Screwdriver
Level
Drill
Pencil Stud
Finder
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
3
ASSEMBLY STEPS
STEP 1
OPTION B: Drywall Installation
Tape Mounting Template (C) against a wall at desired location and mark drilling locations
with a pencil. Use of a level and a stud finder is recommended.
Note: The Disc Edition can only be mounted with the front of the console facing le and
the back facing right. So, it is recommended to only mount on the le side of a TV for cable
managemnet purposes.
STEP 1 (Continued)
OPTION A: Stud Installation
Tape Mounting Template (C) against a wall at desired location and mark drilling locations
with a pencil. Use of a level and a stud finder is recommended. Up to 2 holes per bracket
can be used with a stud, one hole must be mounted with a drywall anchor.
Note: The Disc Edition can only be mounted with the front of the console facing le and
the back facing right. So, it is recommended to only mount on the le side of a TV for cable
managemnet purposes.
C
C
4
STEP 1 (Continued)
OPTION C: Under Desk Installation
Align Mounting Template (C) with the front edge of the desktop with the holes placed away
from the edge. Tape Mounting Template (C) against the underside of the desktop at desired
location and mark drilling locations with a pencil.
You must have at least 11” (27.9cm) of depth from the front edge of the desktop to ensure
the PS5 will fit without hitting any frame structure.
STEP 2
OPTION A: Stud Installation
Drill 1” (25mm) deep holes into the stud using a 3/32” (2.5mm) drill bit. Follow Step 2
Drywall Installation for the remaining mounting holes. Install Base Bracket (A) and Hook
Bracket (B) to the wall using ST5x30mm Screws (M-A) with a Phillips Screwdriver.
C
>11”
B
A
M-A
Reference STEP 2 Option
B for anchor installation
5
STEP 2 (Continued)
OPTION B: Drywall Installation
Using a 5/16” (8mm) bit, drill fully through the drywall. Insert the Drywall Anchors (M-C)
in the holes. Install Base Bracket (A) and Hook Bracket (B) to the wall using ST5x30mm
Screws (M-A) with a Phillips Screwdriver.
STEP 2 (Continued)
OPTION C: Under Desk Installation
Using a 3/32” (2.5mm) bit, drill 3/8” (10mm) deep holes into the desktop. Install Base
Bracket (A) and Hook Bracket (B) to the desk using ST5x16mm Screws (M-B) with a
Phillips Screwdriver.
Note: Base Bracket (A) must be placed on the le side when mounting under a desk.
B
A
M-A
M-C
B
A
M-B
6
STEP 3
OPTION A: Wall Installation
Slide the PS5, back first, onto the mount making sure the le panel is being grabbed by
both brackets. The panel will flex to provide a tight fit.
7
STEP 3 (Continued)
OPTION B: Under Desk Installation
Slide the PS5, back first, onto the mount making sure the panel is being grabbed by both
brackets and the base of the console is facing le towards Base Bracket (A). The panel will
flex to provide a tight fit.
STEP 4
Install M3 Security Bolt (M-D) to the base of the PS5 through Base Bracket (A).
A
A
M-D
LAST UPDATED: 10/21/2021
REV1
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
