Vivo MOUNT-SF01M Manuel utilisateur

Black Over/Under VESA Monitor Shelf

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-sf01m

SKU: MOUNT-SF01M

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do

not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly

or inappropriate use.

ASSEMBLY STEPS

STEP 1

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

Remove and set aside the Extension Plates from the VESA Bracket Set (B) using the Closed Wrench (T-A).

11lbs

(5kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

A (x1)

Shelf

B (x1)

VESA Bracket Set

T-A (x1)

Closed Wrench

T-B (x1)

Bubble Level

S-B(x2)

M6 Nut

S-A (x2)

M6 Carrige Bolt

M-C (x4)

M4 Spacer

M-A (x4)

M4x12 Screw

M-B (x4)

M4x30 Screw

T-A

Some hardware may not be used

Attach the VESA Bracket Set (B) to the Shelf (A) using M6 Carrige Bolts (S-A) and M6 Nuts (S-B).

Tighten with the Closed Wrench (T-A).

NOTE: The attachment location will depend on your monitors VESA pattern and mounting

orientation. This mount is compatible with 75mm, 100mm, and 200mm wide VESA pattrerns.

STEP 2

75mm

100mm

200mm

S-B

S-A

Option B: Over Monitor Mounting

Option A: Under Monitor Mounting

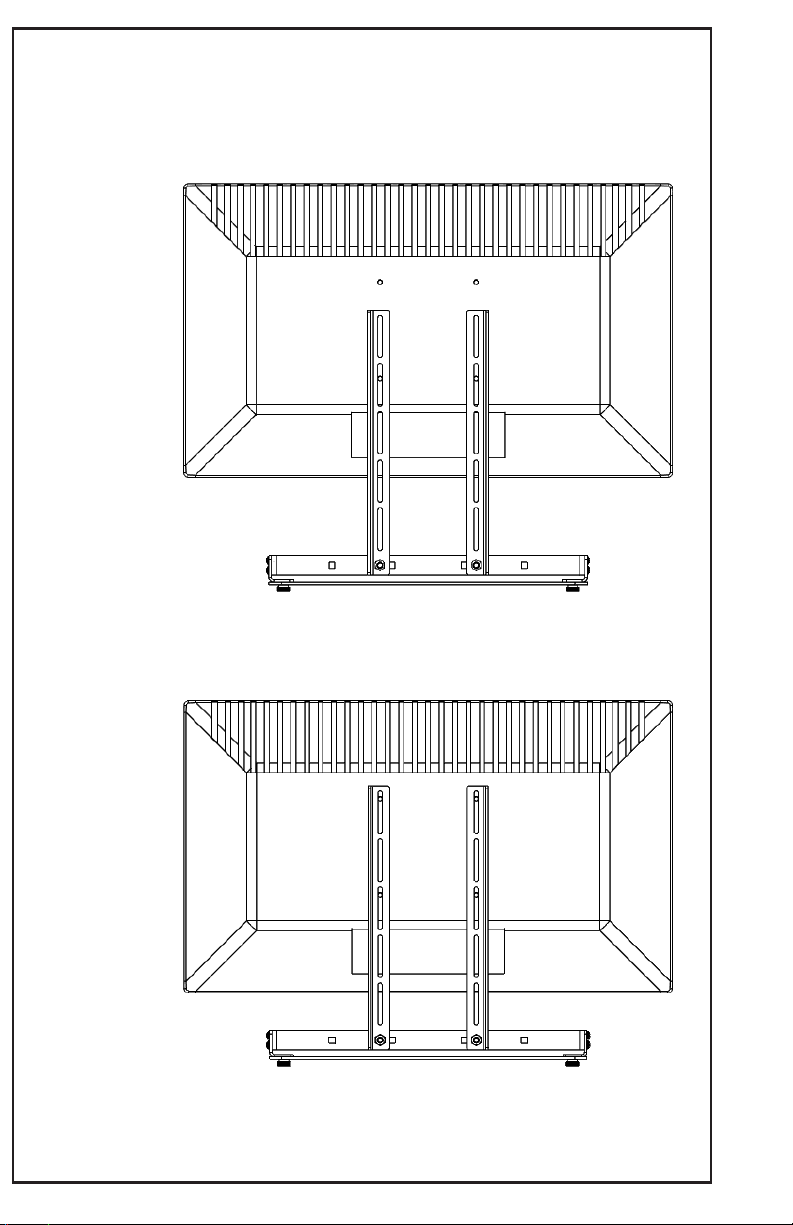

Determine if the extension plates are needed by aligning the VESA brackets with the VESA pattern

on the back of the monitor and positioning the shelf in desired orientation. If all four VESA holes are

within the slots then extension brakcets are not needed

STEP 3

Extension plates

are needed

Does not need

extension plates

If extension plates are needed, reattach the extension plates to the VESA Bracket Set (B) using the M4

nuts that were set aside earlier. Tighten with the Closed Wrench (T-A).

STEP 4

OPTION A: Under Monitor Mounting

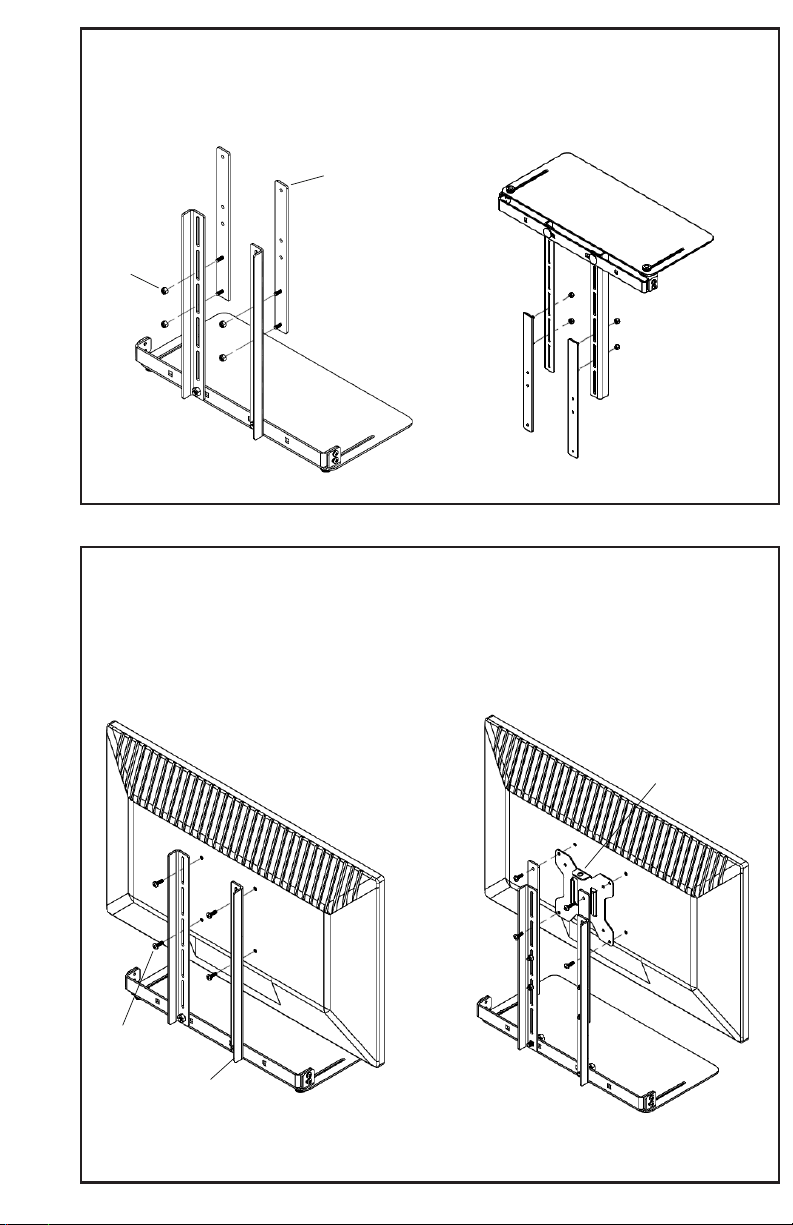

Attach VESA Bracket Set (B) using M4x12 Screws (M-A) and a phillips screwdriver. If needed, use

M4x30 Screws (M-B) and M4 Spacers (M-C) to oset monitor.

STEP 5

OPTION A: Under Monitor Mounting OPTION B: Over Monitor Mounting

Example with only VESA Brackets Example with VESA Brackets,

Extension Plates, and VESA Plate

M4 Nut

Extension Plate

M-A

Optional VESA plate

OPTION B: Over Monitor Mounting

Attach VESA Bracket Set (B) using M4x12 Screws (M-A) and a phillips screwdriver. If needed, use

M4x30 Screws (M-B) and M4 Spacers (M-C) to oset monitor.

STEP 5 (Cont.)

Use Bubble Level (T-B) if needed to level Shelf (A). Loosen VESA screws and independently adjust

each VESA bracket to level out the shelf then retighten screws.

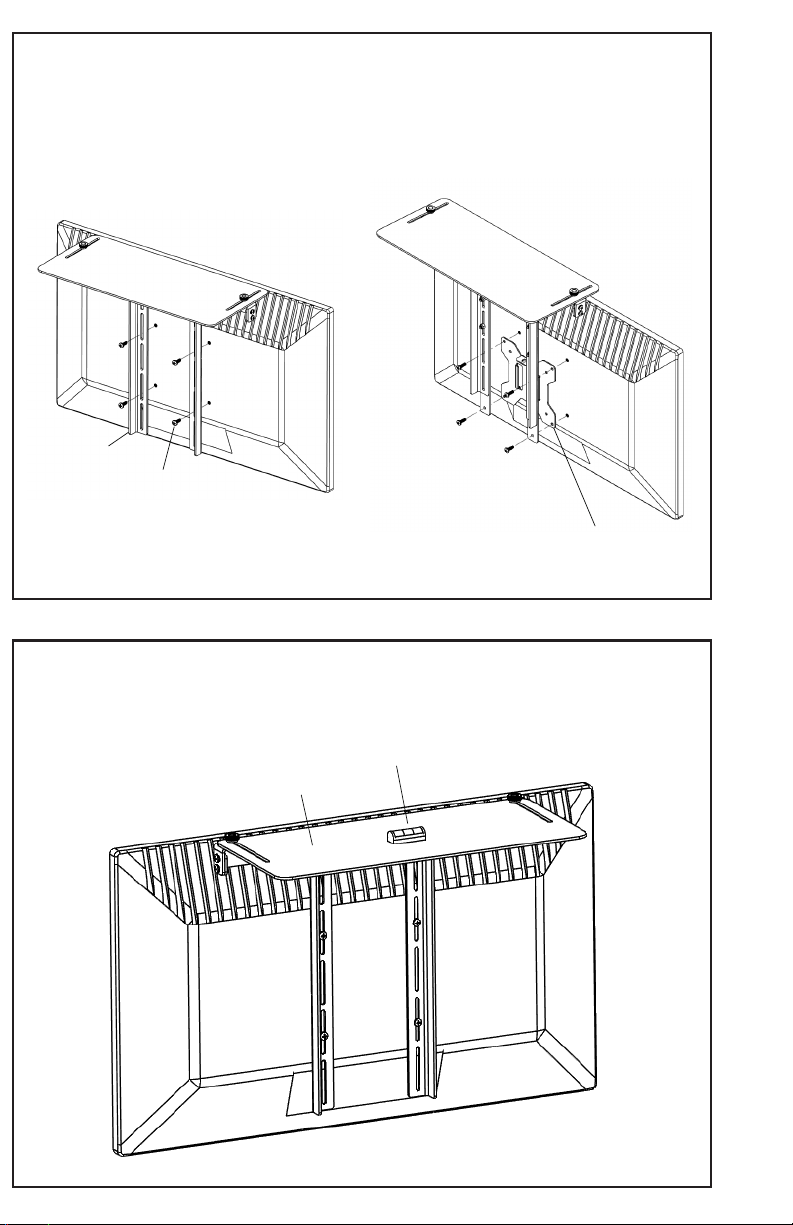

STEP 6

Example with only VESA Brackets Example with VESA Brackets,

Extension Plates, and VESA Plate

M-A

Optional VESA plate

T-B

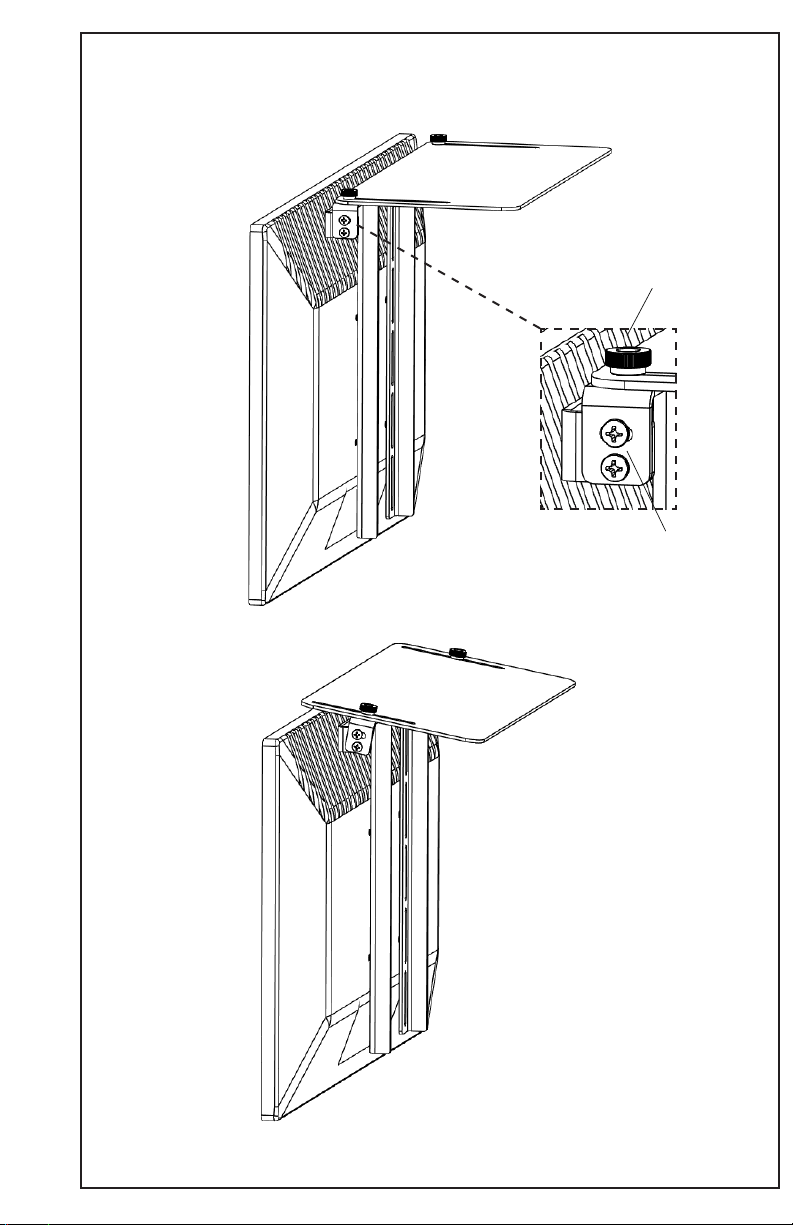

Loosen tilt screws to adjust the angle of the shelf and retighten with a phillips screwdriver. To adjust

shelf location, loosen both thumbscrews and slide the shelf along the slots and retighten.

STEP 7

Tilt Screws

Thumbscrew

LAST UPDATED: 07/01/2021

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
