Vivo PP-RD-102B Manuel utilisateur

Dark Gray 102" x 70" Cloth Room Divider

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/pp-rd-102b

SKU: PP-RD-102B

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual and do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or

inappropriate use.

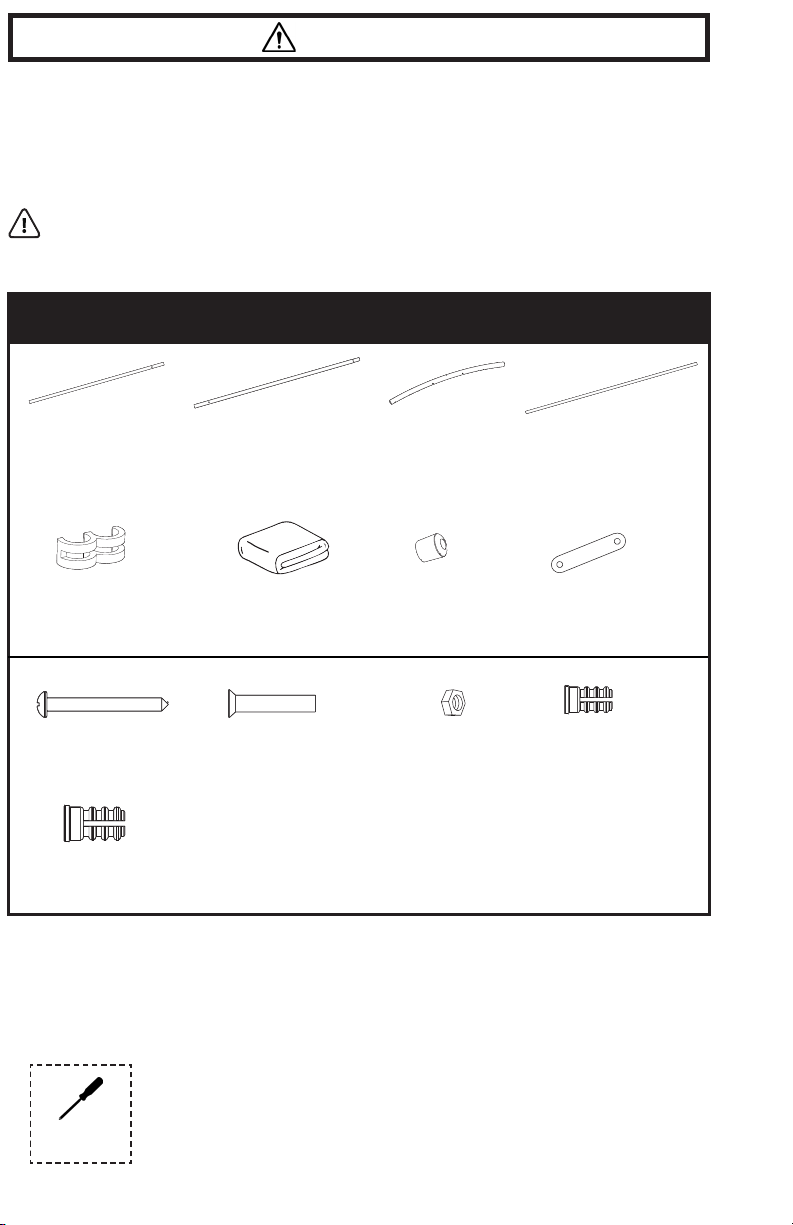

PACKAGE CONTENTS

WARNING!

A (x6)

Upper Vertical

Support

TOOLS NEEDED

Phillips

Screwdriver

B (x6)

Lower Vertical

Support

D (x6)

Crossbar

S-A (x16)

ST4x40mm Screw

S-C (x8)

M5 Nut

C (x4)

Foot

S-B (x8)

M5x25mm Screw

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

H (x8)

Brace

S-E (x4)

Large Insert

S-D (x12)

Small Insert

G (x16)

End Cap

F (x3)

Divider

E (x6)

Connector Clip

ASSEMBLY STEPS

STEP 1

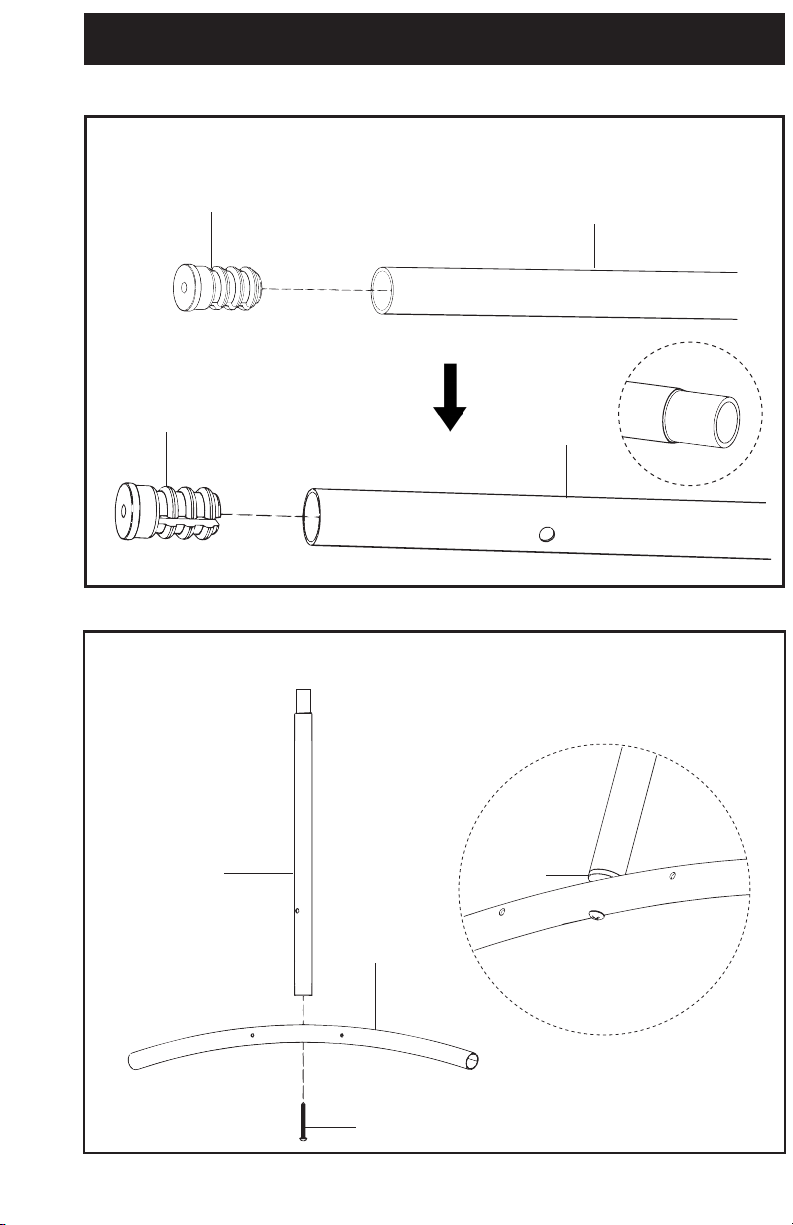

Press Small Inserts (S-D) into both ends of Crossbars (D). Press Large Inserts (S-E) into the bottoms of

x4 Lower Vertical Supports (B).

S-D

S-E

STEP 2

Assemble Feet (C) to Lower Vertical Supports (B) with the installed Large Inserts (S-E) using ST4x40mm

Screws (S-A) and a Phillips screwdriver.

S-A

Top of B

S-E

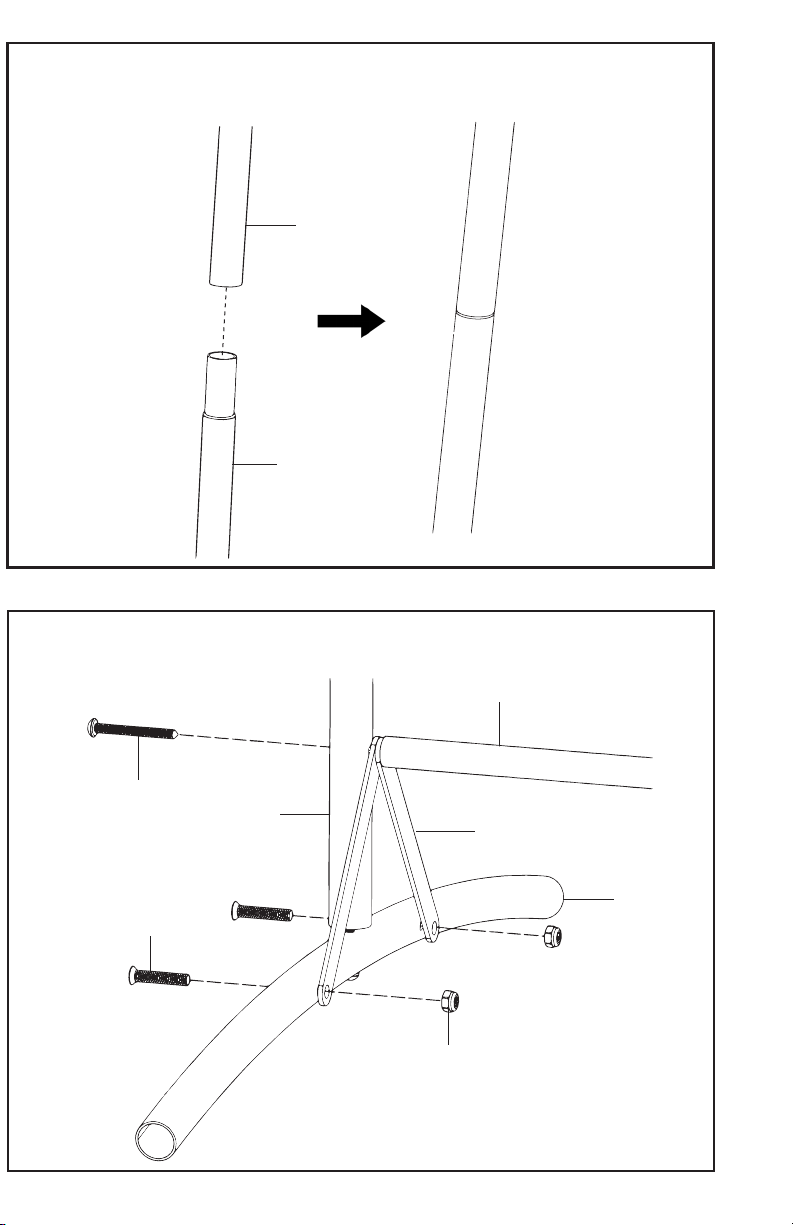

STEP 4

Assemble Braces (H) to Feet (C) using M5x25mm Screws (S-B) and M5 Nuts (S-C). Secure x2 Crossbar (D)

to x2 Lower Vertical Supports (B) using ST4x40mm Screw (S-A).

STEP 3

Slide Upper Vertical Supports (A) onto Lower Vertical Supports (B).

S-B

S-C

S-A

STEP 5

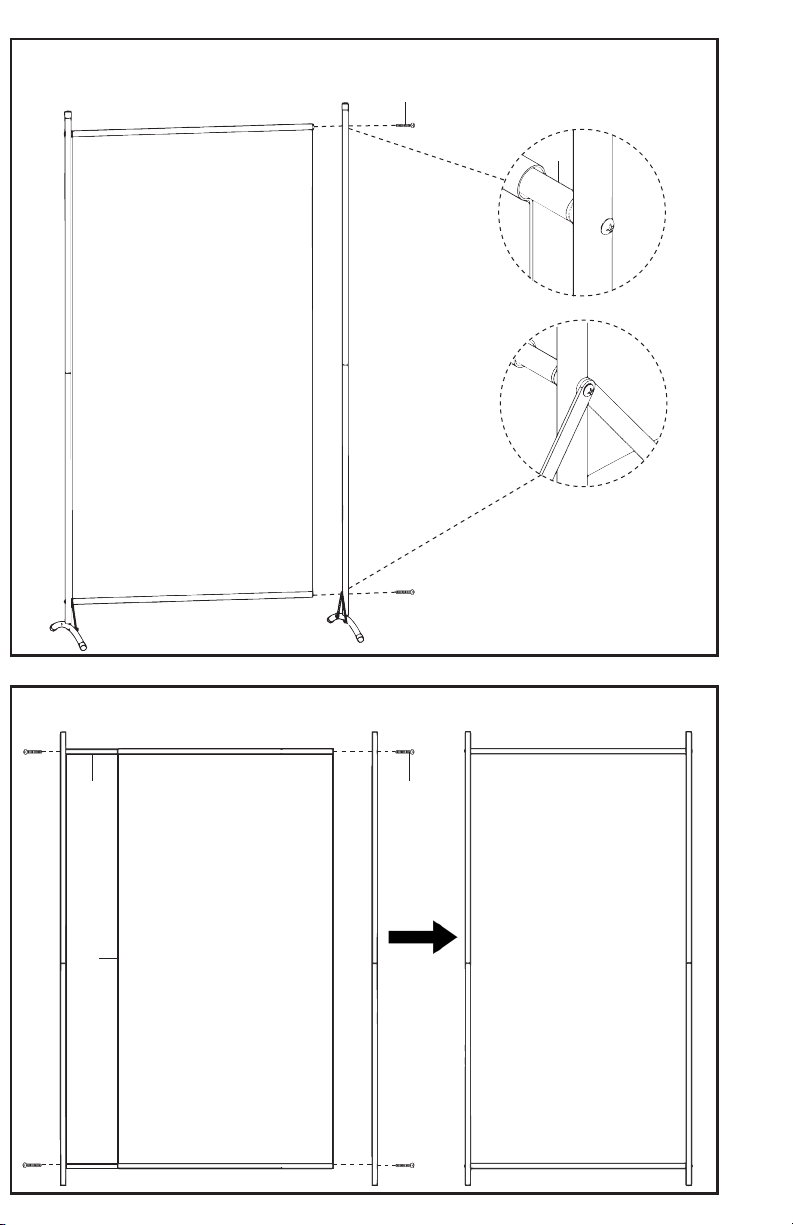

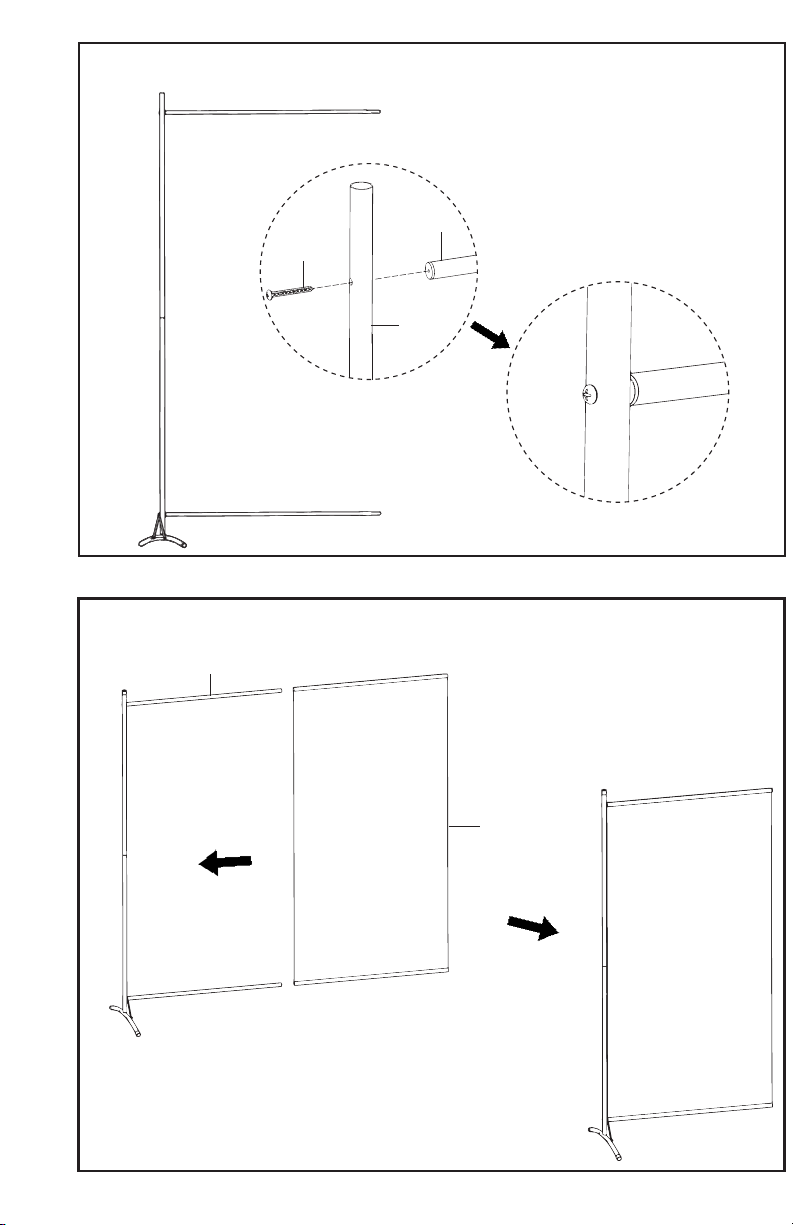

Assemble x2 Crossbars (D) to x2 Vertical Supports (A) using ST4x40mm Screw (S-A) and a Phillips

screwdriver.

S-A

STEP 6

Slide x2 Dividers (F) onto the Crossbars (D).

STEP 8

Secure the other upright assemblies to Crossbars (D) using ST4x40mm Screws (S-A) and a Phillips

screwdriver.

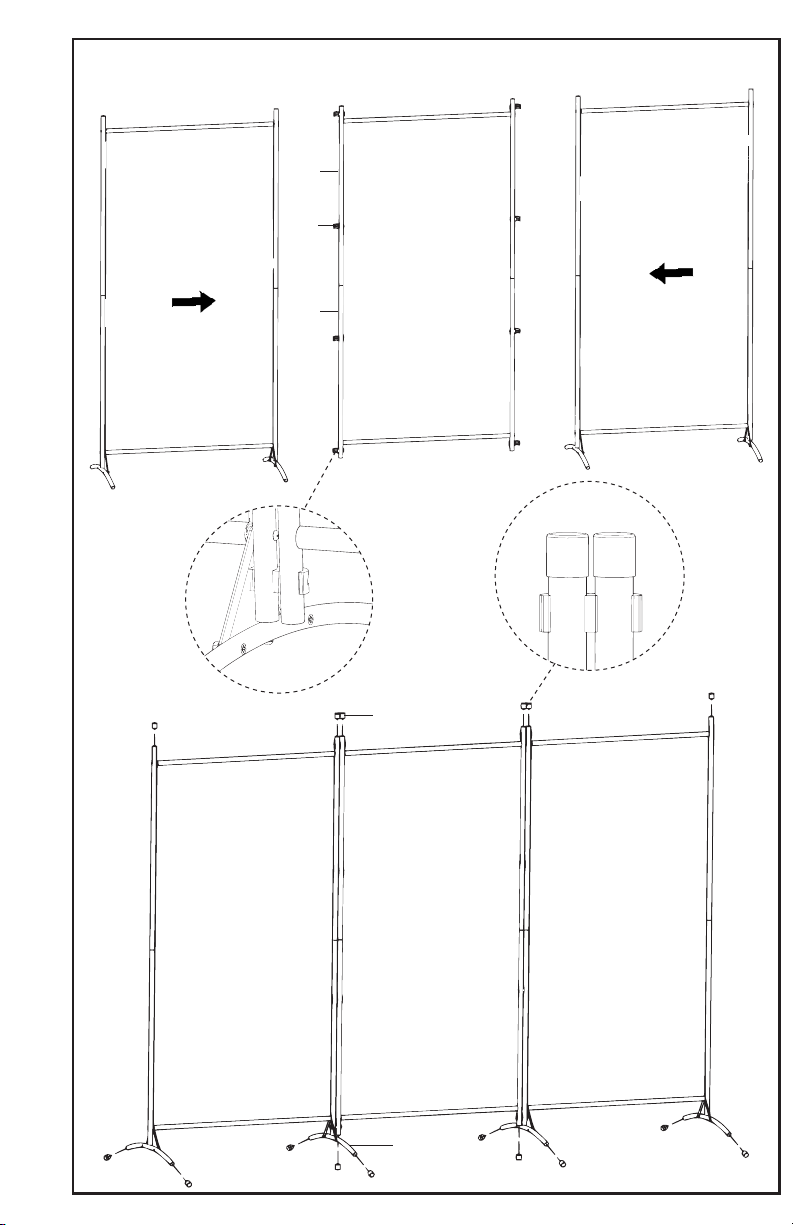

STEP 7

S-A

Assemble remaining Crossbars (D) and upright assemblies with Divider (F) using ST4x40mm Screws

(S-A) and a Phillips screwdriver.

S-A

Secure Connector Clips (E) to Upper Vertical Supports (A) and Lower Vertical Supports (B), then

assemble the panels together. Assemble End Caps (G) to Upper Vertical Supports (A), x2 Lower Veritcal

Supports (B)and Feet (C).

STEP 9

LAST UPDATED: 11/01/2022

REV1.1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
