Vivo MOUNT-VW01 Manuel utilisateur

TV Wall Mount 75x75mm to 200x200mm

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-vw01

SKU: MOUNT-VW01

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

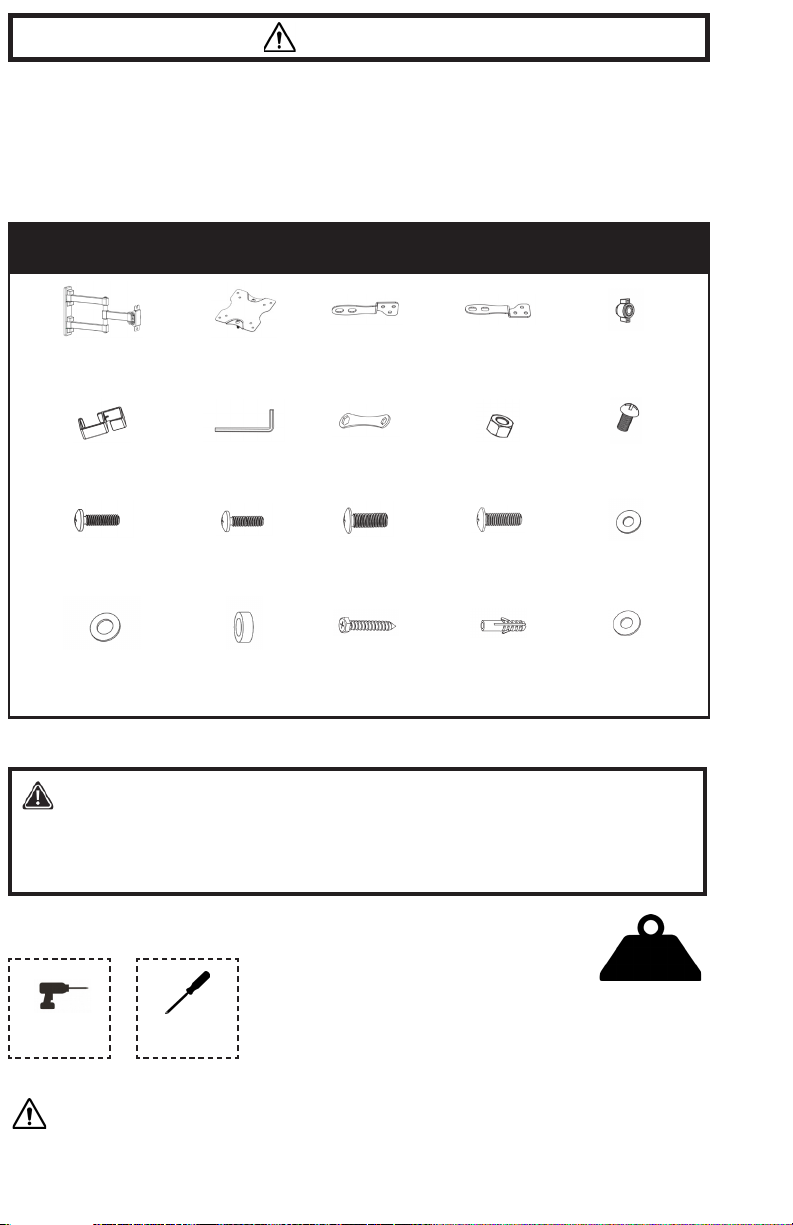

PACKAGE CONTENTS

TOOLS NEEDED 44lbs

(19.96kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

A (x1)

Mount

B(x1)

VESA Plate

C(x2)

VESA Adapter

M-F (x4)

D8 Washer

M-G x8)

Spacer

W-A (x3)

Bolt

M-E (x4)

D5 Washer

M-A (x4)

M4x14

M-B (x4)

M5x14

M-C (x4)

M6x14

M-D (x4)

M8x20

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

W-C (x3)

Washer

W-B (x3)

Anchor

Drill

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

D(x2)

VESA Adapter

E(x2)

Nut

F (x1)

Cable Clip

G(x1)

Allen Wrench

H(x1)

Wrench

I(x8)

Nut

J(x8)

Bolt

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

STEP 1

OPTION A: Wood Ceiling

Use mount (A) to mark mounting holes on wall where stud is located. Using a 3/16” bit, drill

approximately 2.2” into marked locations. Secure mount (A) to wall using bolts (W-A) and washers

(W-C).

OPTION B: Concrete Ceiling

Use mount (A) to mark mounting holes on wall. Using a 3/8” bit, drill approximately 2.4” into marked

locations. Secure mount (A) to wall using anchors (W-B) bolts (W-A) and washers (W-C).

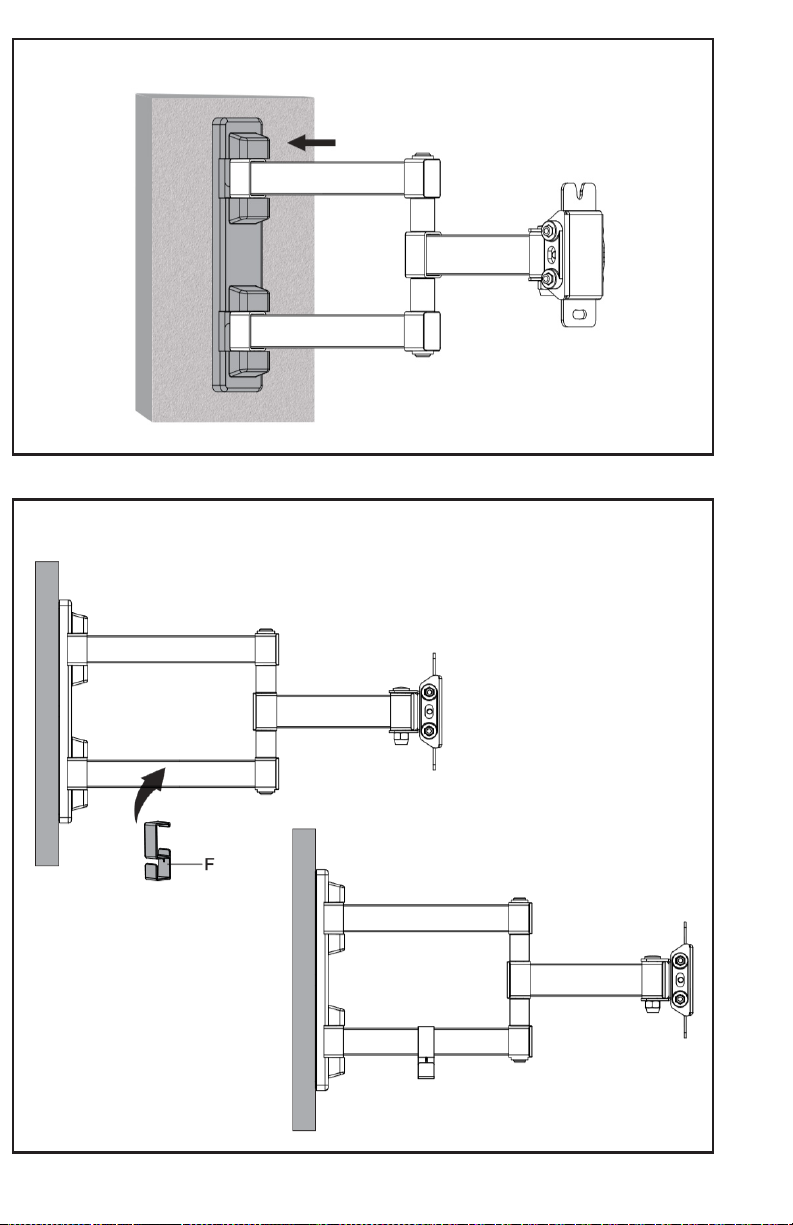

STEP 2

Attach plastic cover to mount (A).

STEP 3

Attach cable management clip (F) as shown in diagram.

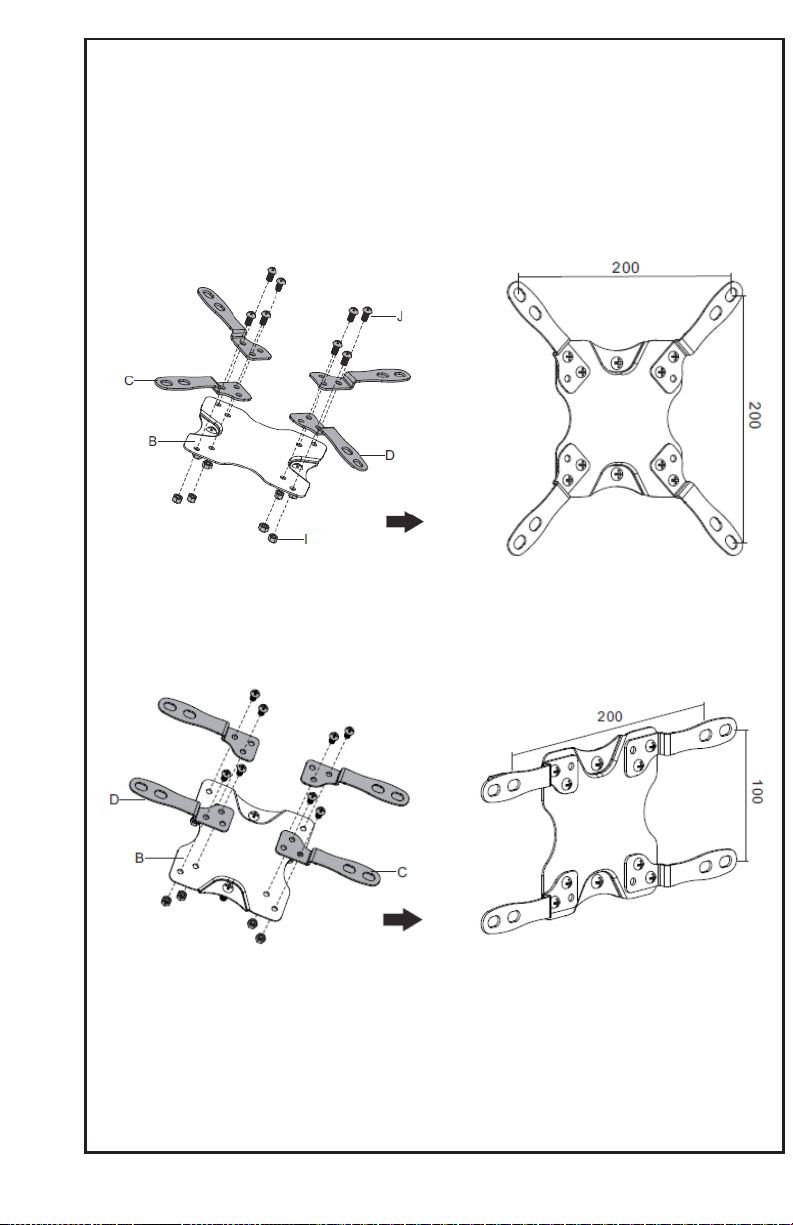

STEP 4

Mount VESA adapters (C) and (D) to VESA plate (B) using bolts (J) and nuts (I) in the appropriate

configuration to match your televisions mounting holes.

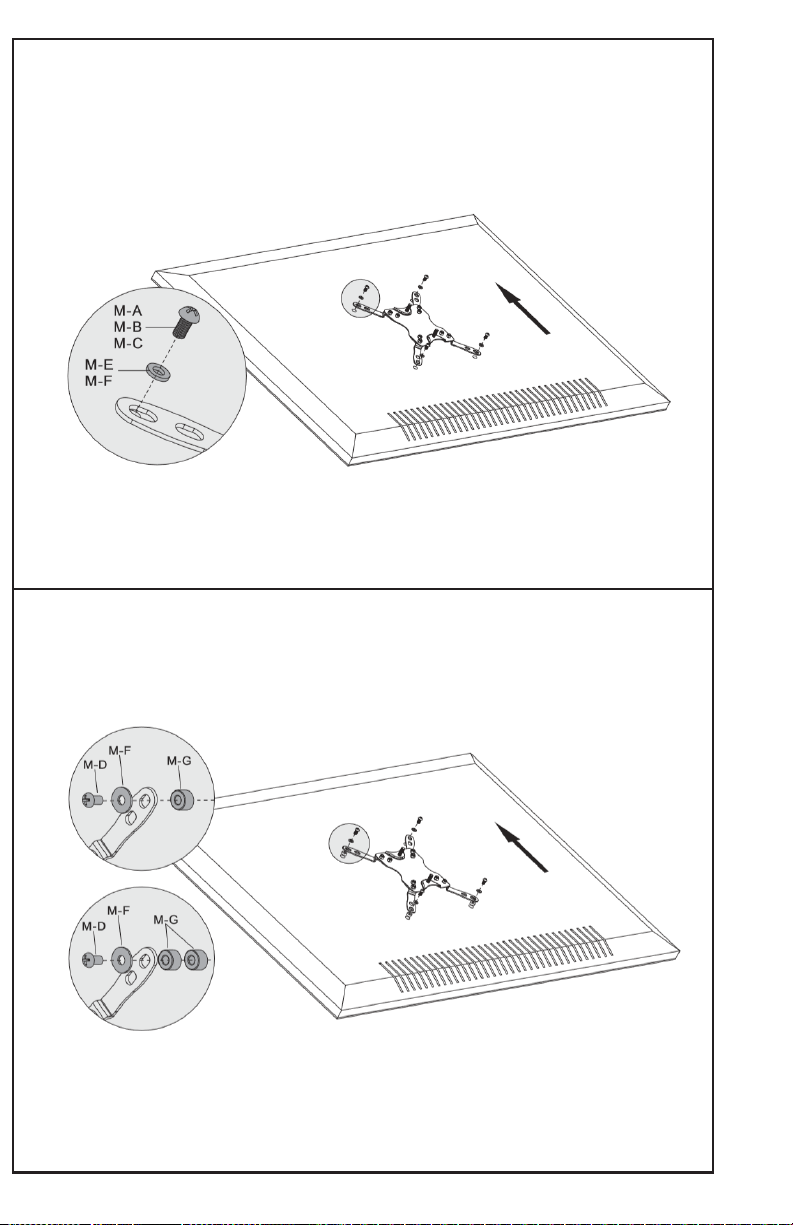

STEP 5

Aer placing TV on a flat surface, mount VESA

plate (B) to back using bolts (M-A, M-B, or M-C)

and washers (M-E or M-F).

If bolts are too long, spacers (M-G) may be required.

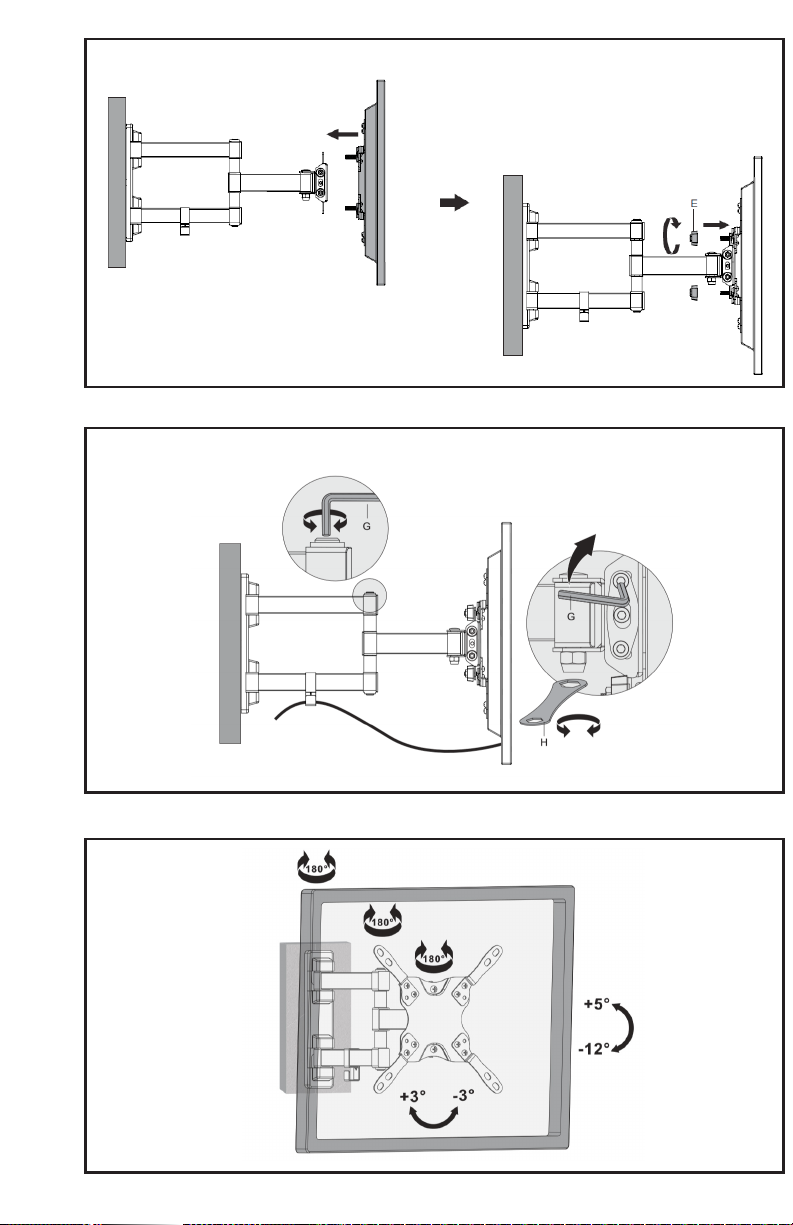

STEP 6

Attach TV to mount (A) using nuts (E) as shown in diagram.

STEP 7

Adjust mount (A) using allen wrench (G) and wrench (H).

Adjust as Desired

LAST UPDATED: 03/05/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
