Vivo STAND-SIT1DD Manuel utilisateur

Sit to Stand Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-sit1dd

[email protected]om www.vivo-us.com 1-800-371-5654

SKU: STAND-SIT1DD

2 3

ASSEMBLY STEPS

STEP 1

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

Phillips

Screwdriver

A (x1)

Base

B(x1)

Adjustable Arm

C(x1)

Smartphone

Tray

O (x1)

6mm Allen

Wrench

P(x1)

Grommet Base

Plate

N(x1)

4mm Allen

Wrench

J (x1)

Clamp

K (x1)

VESA Plate

L (x1)

Cable Clip

M (x1)

3mm Allen

Wrench

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

D(x1)

Keyboard

Tray

E(x1)

Lower Support

Arm

F (x1)

Upper Support

Arm

G(x1)

Rear Cover

H (x1)

Clamp Brace

I (x1)

Clamp Plate

R(x2)

Suppport Plate

Q(x2)

Carriage Bolt

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

M-A (x4)

M4x12

M-C (x4)

D5 Washer

M-B (x4)

M5x12

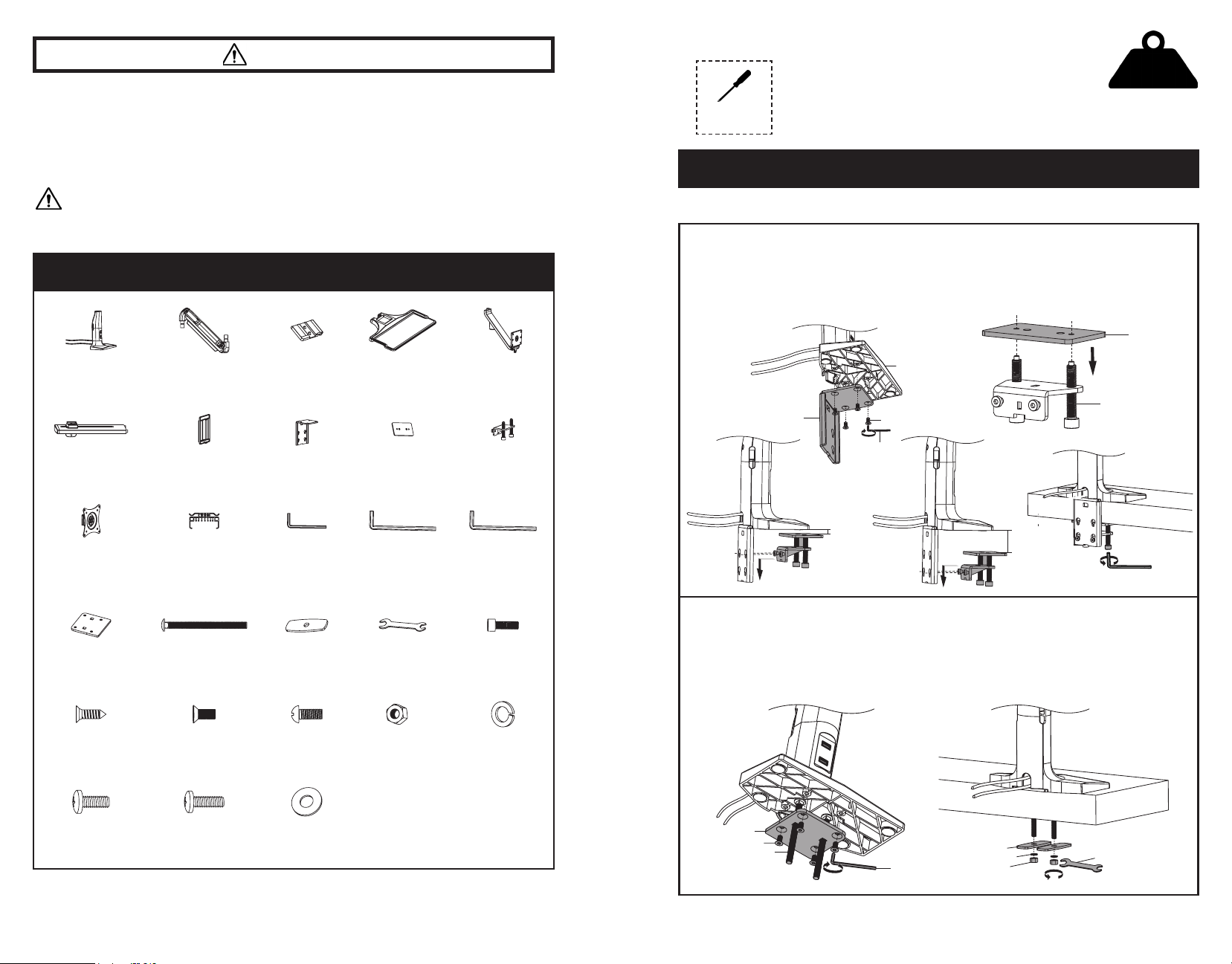

OPTION A: Clamp Installation

Attach clamp brace (H) to base (A) using M6x12 bolts (V), and tighten with 4mm Allen wrench (N).

Place clamp plate (I) on top of clamp (J). Install clamp (J) to upper holes of clamp brace (H) for a desk

thickness of 3/8” to 1-1/2” (10 - 40mm), or to lower holes for a desk thickness of 1-1/2” to 3-1/4” (40 -

84mm), and tighten with Allen wrench (P). Place assembled base on edge of desk and tighten clamp

bolts evenly with 6mm Allen wrench (O).

T (x2)

M8x25

S(x1)

Wrench

U(x6)

ST4.8x16

W(x2)

M5x10

V(x4)

M6x12

Y (x2)

D8 Washer

X(x2)

M8 Nut

OPTION B: Grommet Installation

Place carriage bolts (Q) into square holes in grommet base plate (P). Attach grommet base plate to

base (A) using M6x12 bolts (V), and tighten with 4mm Allen wrench (N). Place assembled base over

cable grommet hole in desktop, and tighten using support plates (R), lock washers (Y) and M8 nuts

(X), and tighten with crescent wrench (S). If a grommet hole isn’t present, drill a 3/8” (10mm) hole

through the desktop for each bolt.

10-40m m

40-84m m

VRYS

2.2 - 19.8lbs

(1 -9 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

4 5

STEP 2 STEP 6

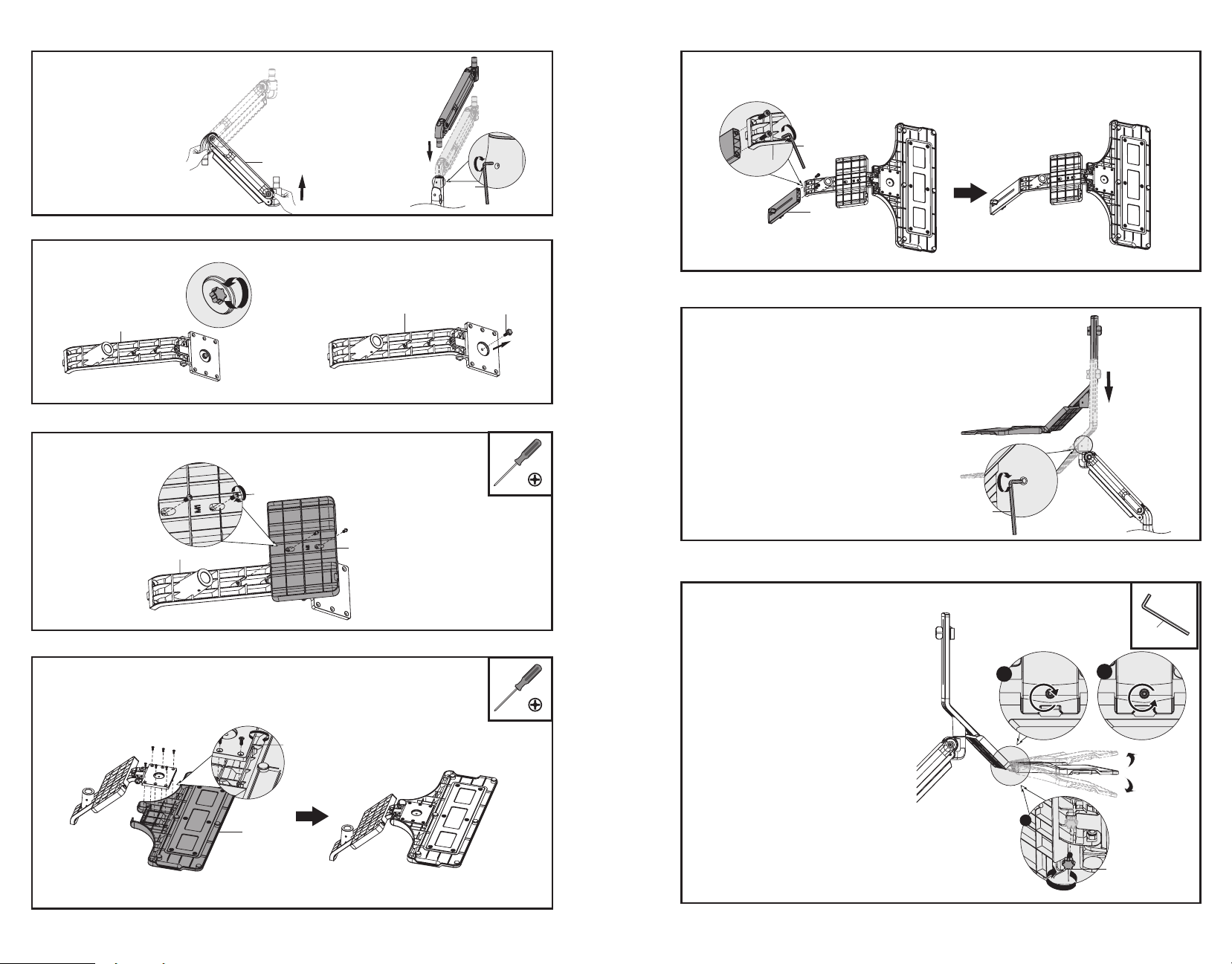

Mount upper support arm (F) to lower support arm using M8x25 bolts (T) and tighten with 6mm Allen

wrench (O).

Adjust keyboard tray tilt using the 4mm Allen

wrench (N). Turn the adjustment screw clockwise

to tilt up to position 1a, and counter-clockwise to

tilt down to position 1b. Install the knob (E2) to

lock the position.

STEP 8

STEP 5

Assemble keyboard tray (D) to lower support arm using ST4.8x16 screws (U).

Carefully extend the adjustable arm

(B) to the raised position as shown.

Insert the adjustable arm into the

socket of the base, then secure

using the 3mm Allen wrench (M).

STEP 3

Remove the knob from the lower support arm (E) to separate into lower support arm (E1) and knob

(E2).

STEP 4

Assemble smartphone tray (C) to lower support arm using M5x10 screws (W).

STEP 7

Place the support arm/tray assembly onto the upper

post of the adjustable arm, then secure using the

3mm Allen wrench (M).

6 7

STEP 9

STEP 10

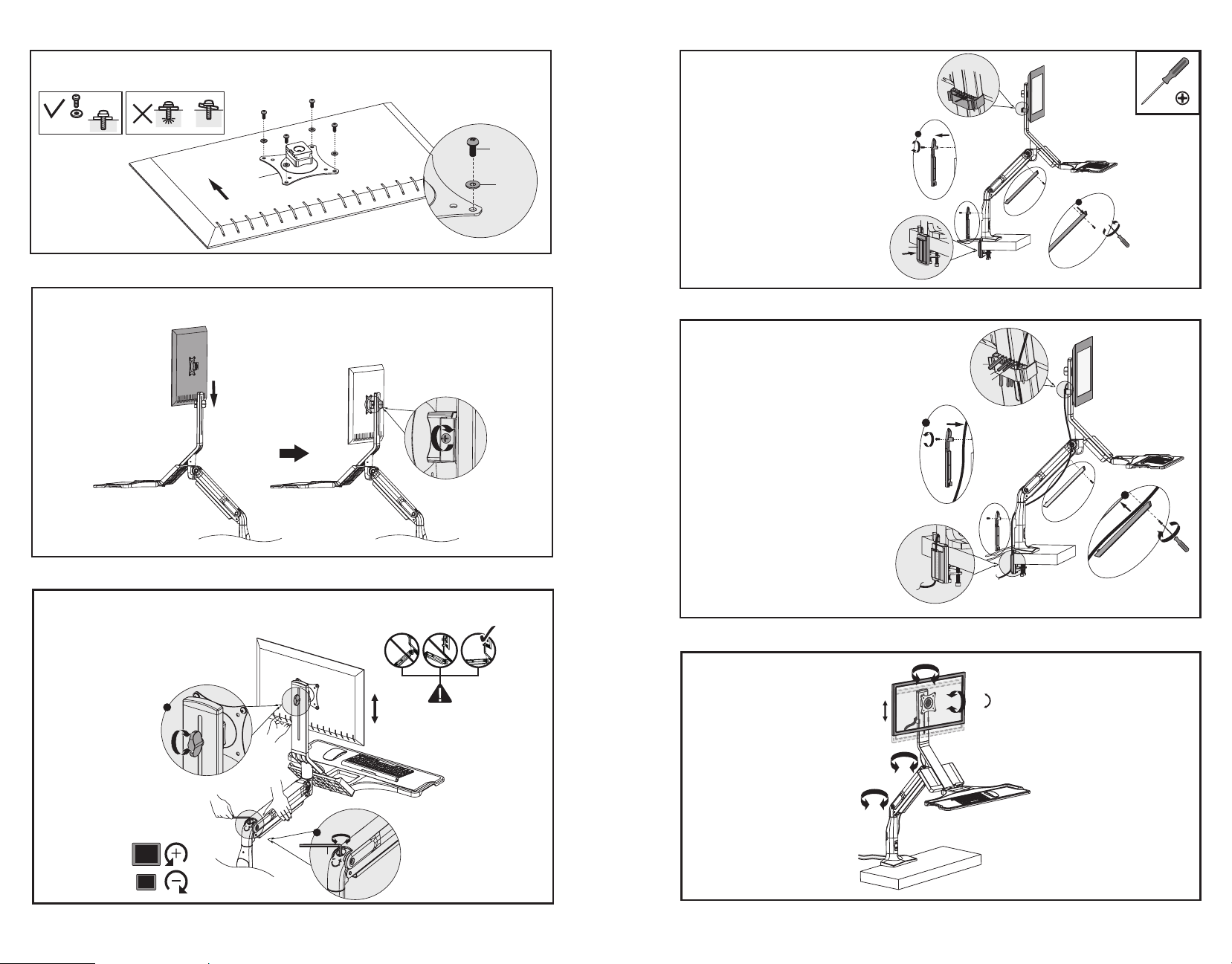

Place the monitor with VESA plate into the bracket on the upper support arm, then turn the screw on

the bracket to secure the monitor.

Install the VESA plate (K) to monitor using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C),

making sure the rounded edges of the rear bracket are facing up.

STEP 11

Loosen knob in back to adjust monitor height. To adjust gas spring support, turn the hex screw on

top of the rear joint using the 6mm Allen wrench (O). Counter-clockwise will increase support, and

clockwise will decrease support.

M- C

M- A

M- B

Adjust as Desired

STEP 12

Install rear cover (G) to clamp brace if the

clamp option was used. Install cable clip (L) to

back of upper support arm and remove cable

covers from base and adjustable arm.

STEP 13

Organize cables and reinstall cable covers to base

and adjustable arm.

+10°

-10°

±180°

±90°

±10°

Last Updated: 11/14/2018

If any parts are received damaged or defective, please contact us. We are happy to

replace parts to ensure you have a fully functioning product.

For more VIVO products, check out our website at:

www.vivo-us.com.

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]om www.vivo-us.com 1-800-371-5654
