3534.qxd 22.09.2004 15:22 Page 2

ÈÍÑÒÐÓÊÖÈß ÏÎ ÝÊÑÏËÓÀÒÀÖÈÈ

MANUAL INSTRUCTION

ÌÎÄÅËÜ VT 3534

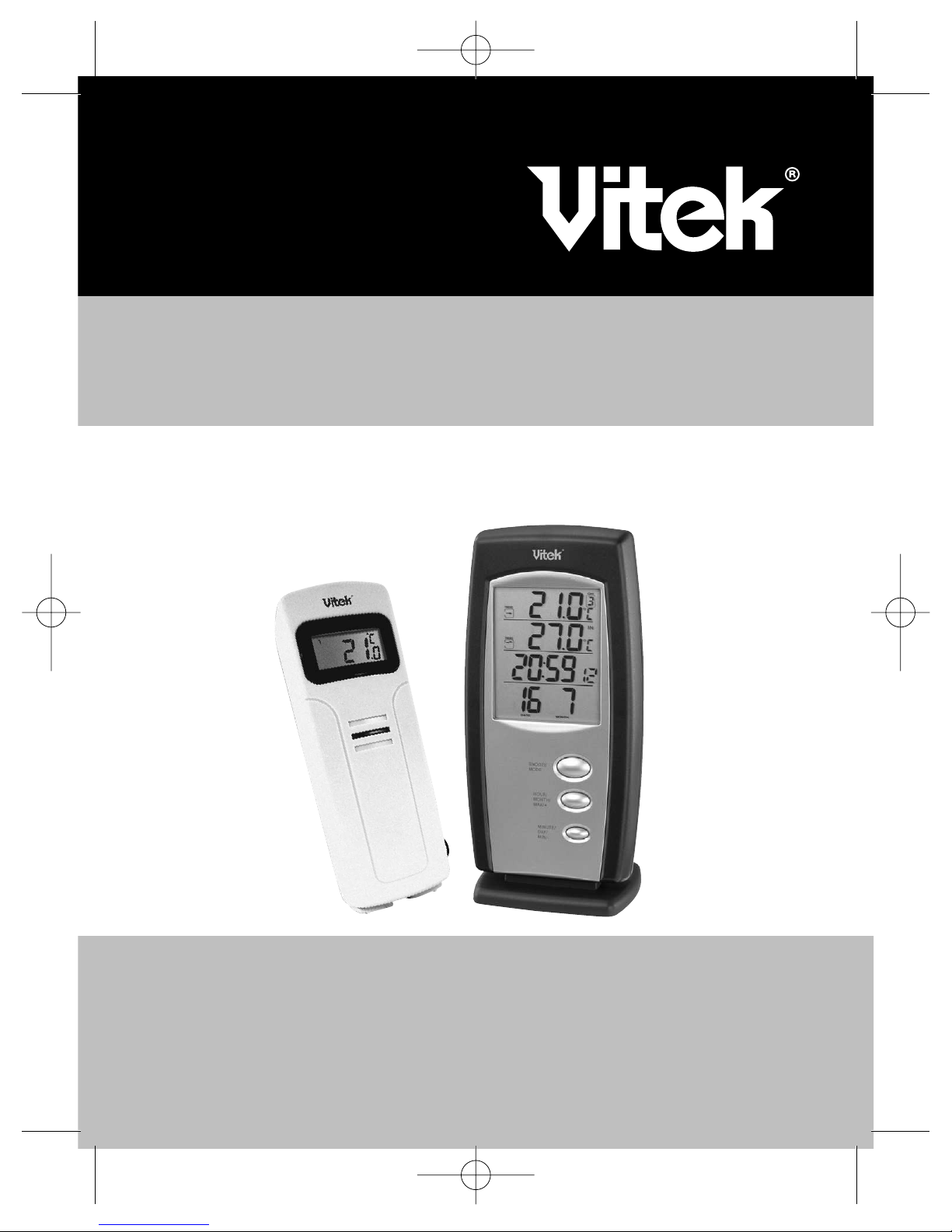

ALARM CLOCK / WIRELESS THERMO STATION

×ÀÑÛ ÁÓÄÈËÜÍÈÊ / ÁÅÑÏÐÎÂÎÄÍÀß ÒÅÐÌÎÑÒÀÍÖÈß

3534.qxd 22.09.2004 15:22 Page 3

OWNER’S MANUAL

Congratulations on your purchase of this alarm/clock/weather station set,

VT-3534. Please take the time to rea an un erstan this manual so you

can begin to enjoy the convenience an features this pro uct has to offer.

Remote Transmitter VT 3534

• rip-proof esign with LCD

• socket of external sensor probe

• temperature isplay in user-selectable °C or °F

• transmission range: up to 40 meters in open area

• battery type: 2 x AA size

ENGLISH

FEATURES

Main Display Unit:

• 12/ 24 hour clock an alarm

• local temperature isplay

• receives an isplays temperature

rea ings from up to 4 remote

transmitter via RF technology of

433MHz

• minimum an maximum tempera-

ture recor

• high/ low temperature alarm func-

tion

• temperature tren in icator

• user-selectable °C or °F

• backlight illumination

• battery type: 2 x AA

VT-3534

receiver

VT-3534

transmitter

3534.qxd 22.09.2004 15:22 Page 2

GETTING STARTED

1. CHANNEL/WEEKDAY - scrolls

through remote channels 1-4; scrolls

through week ay

2. ALARM/(C/F) - toggles between C

an F; 12 an 24 hour format, turns alarm

on/off; clears temperature alarm presets

3. SNOOZE/MODE - scrolls through

time, week ay, language, time zone,

alarm an temperature alarm set points

(high/low); activates alarm snooze

4. HOUR/MONTH/MAX/+ - scrolls

through hours, months an languages;

shows maximum temperature

5. MINUTE/DAY/MIN/ - scrolls

through minutes, ays an languages;

show minimum temperature

6. R - reset the receiver

7. SET: enter to House co e an Channel setting mo e

8. C/F: change between C or F, change channel an house co e

9. Battery compartment

10.Socket for external sensor probe.

11. Wall Mount Hol er & Table Stan

12. LCD isplay

ENGLISH

3534.qxd 22.09.2004 15:22 Page 3

SETTING UP

• Set up the transmitter(s) before set-

ting up the receiver

1. Remove battery cover an insert batteries

to start setup 2 AA size batteries (inclu e )

Insert batteries into compartment observing

proper polarity

2. HOUSE CODE will flash for 8 secon s

3. Select HOUSE CODE (1-15) by pressing

C/F an pressing SET to CHANNEL setting

If you have multiple transmitters for a single

receiver, set each transmitter

to the same House code

4. CHANNEL will flash for 8 secon s

5. Select CHANNEL (1-4) by pressing C/F

If you have multiple transmitters for a single receiver, set

each transmitter to a different Channel code

6. Humi ity & Temperature will alternatively isplay on LCD

screen

7. Select °C or °F of Temperature by pressing C/F

• Use a ifferent house co e if your weather station etects other signals

from neighboring sources

• Factory efault: house co e = 01 an channel = 01

1. Remove battery cover

2. 2 AA size batteries (inclu e )

3. Insert batteries into compartment,

observing proper polarity; replace cover

REPLACING BATTERIES: symbol on

receiver will appear when batteries nee to be change .

Transmitter: Lo bat will be isplaye

ENGLISH

SETTING UP TRANSMITTER(S)

SETTING UP RECEIVER

3534.qxd 22.09.2004 15:22 Page 4

CLOCK/DATE/LANGUAGE SETTING

Clock Setting:

i. Press an hol MODE for 3 secon s to enter the clock setting mo e

(the Clock isplay will flash)

ii. Press HOUR to set the hour an MINUTE to set the minute

iii. Press ALARM/(C/F) uring clock setting, to change between 12 an 24

hour isplay.

Date Setting:

iV. Press MODE or enter the ate setting

V. Press MONTH to set the month, press DAY to set the ay an press

WEEKDAY to set the week ay

Language Setting:

Vi. Press MODE or enter the language setting

Vii.Press +or to select the language for isplaying ay of the week:

-“ ” German

-“ ” English

-“ ” French

“ ” Italian

Time Zone Setting:

Viii. Press MODE or enter the time zone setting

iX. Press +or set the value

X. Press MODE or complete the setting

ENGLISH

3534.qxd 22.09.2004 15:22 Page 5

ALARM SETTING

i. Select Alarm 1 ( 1) or Alarm 2 ( 2) by pressing MODE

ii. Press HOUR to set the hour an MINUTE to set the minute

iii. Press ALARM/(C/F) to enable or isable

the alarm function

• The alarm clock is last for 2 minutes an will

be repeate 5 minutes later when

MODE/SNOOZE key is presse .

SETUP

Automatic Learn Function:

1. Learn function executes automatically an runs for approximately 3 min-

utes when batteries are first installe in the receiver.

2. Within these 3 minutes, receiver picks up the temperature & humi ity sig-

nals from remote transmitter an isplays the rea ings.

Manual Learn (Searching for Remote Signals):

If a new remote transmitter is a e or if signal is lost (out oor isplay blink-

ing), learn function must be execute again.

1. Press & hol CHANNEL for 3 secon s to

start.

2. Beep soun in icates that learn function

has starte .

3. Channel symbol will flash an unit will beep

as each remote sensor is etecte .

4. Temperature rea ings of remote transmitter

isplays on the receiver.

ENGLISH

3534.qxd 22.09.2004 15:22 Page 6

WEATHER DISPLAY

Check Local Temperature

*Local temperature isplays instantly after batteries

are inserte .

Local temperature and humidity readings will alternate

display on the receiver.

Check Remote Temperature

A. Press CHANNEL to toggle between Channel 1, 2, 3 an 4.

Temperature rea ings will alternate isplay on the receiver.

C or F Temperature Display

B. Toggle between °C an °F by pressing ALARM/(C/F) in clock mo e.

Min and Max Temperature

C. Press MAX in Clock mo e to isplay minimum

temperature recor

D. Press MIN again in Clock mo e to isplay maxi-

mum temperature recor

TEMPERATURE ALARM

The temperature alarm function allows you to have an

alarm soun if the temperature rises above or rops

below a particular set point.

Local Temperature Alarm

1. Select local temperature alarm mo e using SNOOZE/MODE

The symbol will isplay.

2. Press ALARM/(C/F) to set high temperature alarm ( ),

low temperature alarm ( ) or isable alarm function (blank)

3. Press +/to set temperature value

4. Press MODE again to finish setting

Remote Temperature Alarm

1. Select local temperature alarm mo e using SNOOZE/MODE

The symbol will isplay.

2. Select channel (1, 2, 3, 4 or local) using CHANNEL

3. Press ALARM/(C/F) to set high temperature alarm ( ), low temperature

alarm ( ) or isable alarm function (blank)

4. Press +/to set temperature value

5. Press MODE again to finish setting

*When alarm soun s, the soun ing channel is isplaye ,

an or flashes to in icate whether it is the high or low temper-

ature alarm. Press any button to shut off alarm.

ENGLISH

3534.qxd 22.09.2004 15:22 Page 7

DIFFERENT CLOCK DISPLAY MODE

There are 3 ifferent mo es to isplay 2 Time, Date an Month isplay by

pressing MODE:

COUNTDOWN TIMER FUNCTION

1. Select count own timer mo e using

MODE/SNOOZE The symbol will isplay

2. Press HOUR to set hour, press MINUTE to

set minute, an press WEEKDAY to the secon

3. Press ALARM(C/F) to start the count own function

*Press ALARM(C/F) to stop the count own function; press

ALARM(C/F) again to restore the pre-set time; press ALARM(C/F) one

more to start the count own function

BACKLIGHT

This Weather Station is equippe with Backlight function.

Pressing any key will turn on the backlight function.

To save energy, you can select to Turn Off the backlight by executing the

following steps:

1. Press MODE key for 3 secon s

2. Press MODE key twice

3. Press CHANNEL key to enable / isable this feature.

ENGLISH

3534.qxd 22.09.2004 15:22 Page 8
