Vitek VTC-TNT4FL-2 Manuel utilisateur

VITEK

VTC-TNT4FL-2

Transcendent Series 4

MegaPixel Indoor/Outdoor IP

Fixed Turret Camera

FEATURES

• 1/2.7” 4.0 Megapixel CMOS Image Sensor

• Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 ×

1080), 720P (1280 × 720), D1, CIF, 480 × 240

• 2.8mm Fixed Iris Lens

• Matrix IR with up to 100’ IR Range

• Digital Wide Dynamic Range (D-WDR)

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D-DNR) Noise Reduction

• Built-in Mic*

• Region Intrusion Detection, Scene Change Detection, Line Crossing, Object

Removal, Video Blur Detection

• H.265, H.264 Compression

• MicroSD Card Slot for Local Recording (Up to 128GB)

• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps

• ONVIF Compliant

• IP67 Weather Resistance

• Optional Junction Boxes (VT-TJB08, VT-TJB01), Wall Mounts (VT-TWMT-3,

VT-TWMT-A1), Pendant Mounts (VT-TPDMT-A1 [reqs. VT-TJB08],

VT-TPDM-2 [reqs. VT-TJB01] Available

[for other mount options, see page 9]

• 12VDC & PoE (Power over Ethernet) Operation

• 2-Year Warranty

*Please research local, state and federal laws regarding the implementation of audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

NDAA

COMPLIANT

2 3

Network Cable & Power Connections

First connect the Waterproof Cap to an Ethernet patch cable, then

connect the cameras ethernet adaptor. If not powering the camera

with PoE, also connect the power Cable to an approved 12VDC

power supply.

Overview

Components and Accessories

Camera

Quick Guide

Screws

Allen Key

Drill Template

Rubber Plug

Waterproof Cap

Ethernet connector

Mounting base

Micro SD card slot

Reset

Power connector

Microphone

Fixed screw

DC12V

Weather Resistant Security Cap

Weather Resistant Network Coupler

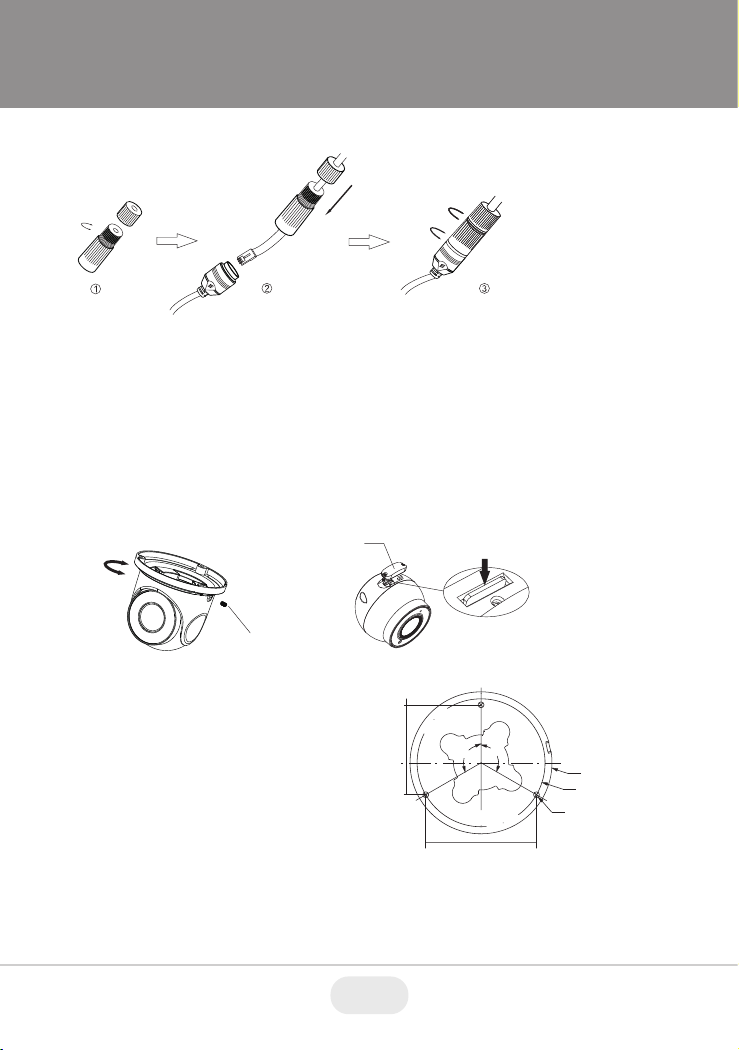

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera.

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template

2. Route the cables and connect the power & video cables, using the

rubber plug to fill the gap of the mounting base, then secure the

mounting base to the ceiling or wall with screws (see fig. 2 on next

page).

∅

∅3.84”

∅.17”

1.92”

120° 120°

.96”

3.22”

4.25”

MicroSD Card Installation: Remove the bottom of the cover from the

camera, insert card and replace the cover (be sure it is even).

Cover Insert a micro SD card

Fixed Screw

4 5

Lock Screw

3. Loosen the lock screws,

then adjust the camera

to obtain the optimium

viewing angle. Confirm

the correct viewing

angle with a monitor.

Next, tighten the lock

screw to secure the

viewing angle adjust-

ments.

Fig. 2

Rubber Plug

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

6 7

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan the

QR code on the front page of this quick guide and download

the complete manual.

8 9

Image Sensor, Size

Resolution

Min. Illumination

Lens

Day / Night

IR LEDs / IR Distance

Video Compression

Main-Stream

Sub-Stream

Third Stream

Bit Rate

Bit Rate Type

Other Camera Features

Wide Dynamic Range (WDR)

Digital Noise Reduction (DNR)

Image Setting

Analytics

Smart Alarm

Region of Interest (ROI)

Network

Audio

Storage

Remote Viewing

Supported Browsers

Connection Protocol

Resistance

Power Input

Power Consumpt. (12VDC)

Power Consumpt. (PoE)

Working Environment

Weight, Dimensions: Dia × H

1/2.7” 4.0 Megapixel CMOS Image Sensor

4MP(2560 × 1440), 3MP(2304 × 1296), 1080P(1920 × 1080), 720P(1280 × 720), D1, CIF, 480 × 240

0.011 lux @F1.2, AGC ON; 0 lux with IR, 0.04 lux @ F2.2, AGC ON; 0 lux with IR

2.8mm Fixed Iris Lens

True Day/Night by ICR

1 Matrix / 100’

H.265 / H.264

60Hz: 4MP/3MP/1080P (1~30fps), 50Hz : 4MP/3MP/1080P (1~25fps)

60Hz : 720P(1~15fps)/D1 /CIF (1~30fps), 50Hz: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps)

60Hz : D1/CIF/480x240 (1~30fps), 50Hz: D1/CIF/480x240 (1~25fps)

64Kbps ~ 12Mbps

VBR / CBR

BLC, HLC, Defog

D-WDR (Digital Wide Dynamic Range)

XD-DNR (2D-DNR & 3D-DNR)

Saturation, Brightness, Chroma, Contrast, WDR, Noise reduction

Object Removal, Scene Change, Video Blur Detection, Intrusion and Line Crossing

Motion Alarm, SD Card Error, SD Card Full

Each ROI to be Configured Separately

RJ45

Built-in Mic*

MicroSD Card Slot (128GB)

CMS / Web Browser / Mobile (iOS/Android)

Microsoft Internet Explorer

ONVIF

IP67 Weather Rating

12VDC / PoE

150mA (LEDs Off) / 320mA (LEDs On)

< 5W

-22° ~140° / < 95% Humidity

16.58 oz. / 1.04 lbs. / 460g, 3.77” x 4.25” (95.7 × 108mm)

VTC-TNT4FL-2 Detailed Specifications

*Please research local, state and federal laws regarding the implementation of audio

surveillance.

OPTIONAL MOUNTS FOR

VTC-TNT4FL-2

VT-TWMT3

Optional Wall

Mount

VT-TJB01

Optional

Junction Box

VT-TJB08

Optional

Junction Box

VT-TPDMT-A1

Transcendent

Universal 10”

Pendant Mount.

Reqs. VT-TJB08

VT-TWMT-A1

Transcendent

Wall Mount. Reqs.

VT-TJB08

VT-TPLMT

Transcendent

Universal Pole

Mount - Ivory,

reqs. VT-TJB08

VT-TCNMT

Transcendent

Universal Corner

Mount - Ivory,

reqs. VT-TJB08

8.46”

6.43”

8.46”

8.47”

5.10”

6.10”

2.93”

1.46”

6.28”

2.50”

1.46”

5.83”

VT-TPDM-2

Transcendent

Universal 10”

Pendant Mount.

Reqs. VT-TJB01
