Vitek VTC-C2BTS1 Manuel utilisateur

FEATURES:

• 1/2.7” Progressive Scan CMOS Sensor

• 2.1 MegaPixel with Full 1080p TVI Output

• Small scale design to fit in 5” dome enclosures such as the Pelco® DF5

Housing

• Sensitivity of 0.08 Lux

• 2D-DNR Digital Noise Reduction

• True Day/Night by ICR (Infrared Cut Removal)

• Built-in Motion Detection with a 24x16 Grid

• Privacy Mask function with programmable mask areas

• 12VDC / 24VAC Dual Voltage Operation

• Lenses Sold Separately

VTC-C2BTS1

2.1MP Premium TVI Compact

Box Camera

VITEK

Safety Precaution

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

2 3

Safety Precaution

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

Never open the device such as boards.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

Contents

Safety Precaution

p.02~03

Contents

p.04

Features

p.05

Composition

p.06

Dimensions

p.06

Part Names

p.07

Installation Instructions

p.08~09

Operating Instructions

p.10~19

Specifications

p.20

4 5

Features

Key Features

• 1/2.7” CMOS Sensor

• Full-HD 2Mega pixel HD-TVI CAMERA, 1920x1080(30p)

• TVI Video Transmission Distance over Coax.; 500M (RG59, 75Ω)

*depending on cable condition and characteristics

• Automatically removable IR Cut filter by Dual filter switcher

• CS mount supported (Option: C-mount adaptor)

• Sensitivity of 0.08 Lux (AGC 3)

• Improved noise reduction 2DNR

• LSC (Lens Shading Compensation)

• Motion detection, Privacy mask, BLC/HLC, Flickerless, H/V/HV Flip

• UTC control through HD-TVI DVR (Pelco-C)

• Back focus Flange

• Built-in OSD MENU

• Reverse polarity protection circuit

• Isolated power supply against ground loop problem

• Power: AC24V/DC12V

L- Wrench:

1.5mm (1pc)

Dust Protection

Cap (1pc)

Operating

Instruction

Compact Box Camera

1.73”

2.09”

1.89”

Ø1.81”

2.38”

2.89”

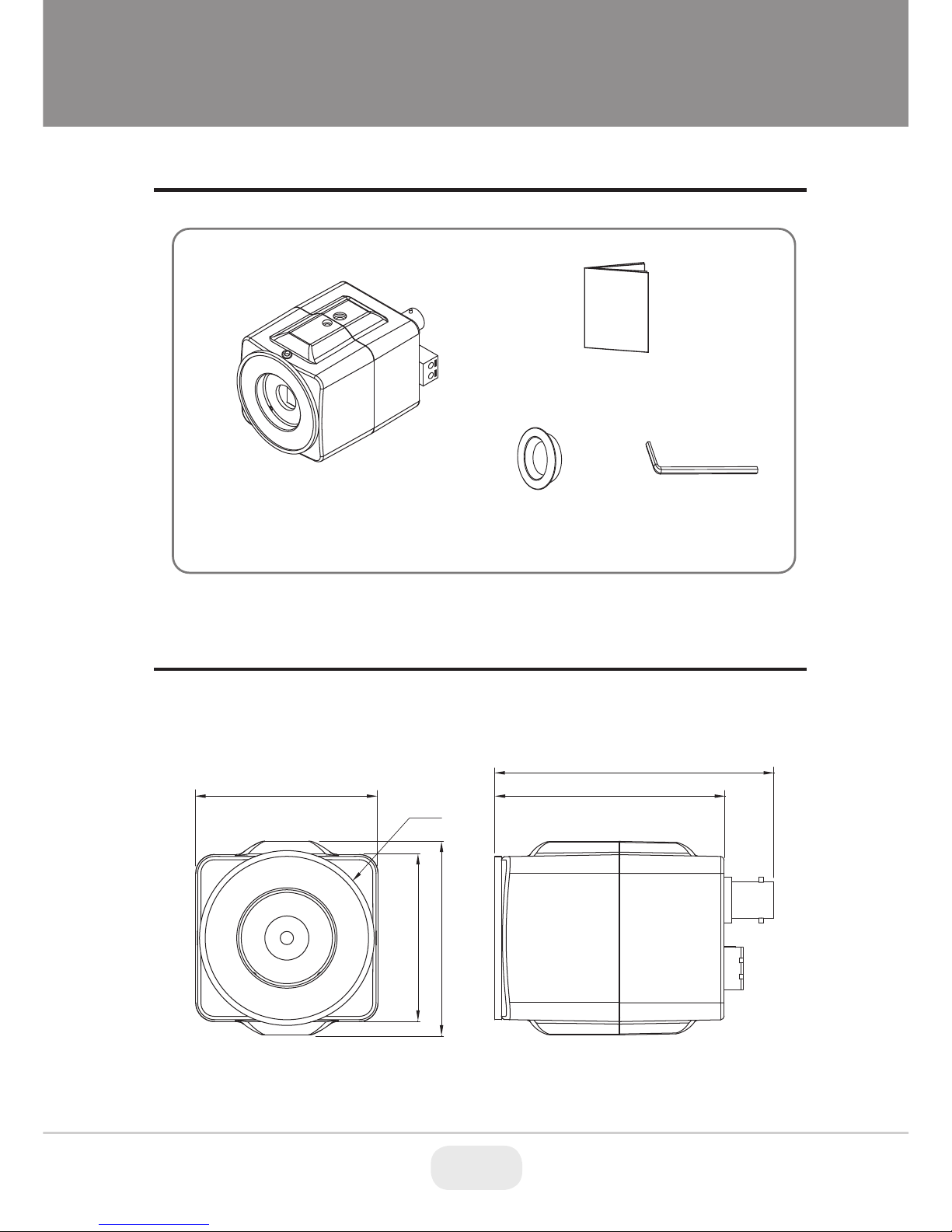

Dimensions

Composition

6 7

Part Names

L-Wrench

Dust

Protection Cap

No.

DC Iris

Damp(-)

Damp(+)

Drive(+)

GND

Flange Lock screw

Front Case

Rear Case

Back focus

adjusting Flange

Mount Holes

(Top / Bottom)

REAR VIEW

Lens Connector

for Auto Iris lenses

① Video out connector(BNC)

② Power input terminal

③OSD Control Joy stick

④ DC Auto Iris Lens connector

④

③

①

②

PIN 1PIN 3

PIN 2PIN 4

Installation Instructions

CAUTION

Installation Instructions

• Make sure the power is removed before installation

1. Remove the dust protection cap from the lens mount.

2. Screw the lens onto the camera firmly.

3. Plug the lens plug into the lens connector on the rear of camera case.

4. Mount the camera to the wall or ceiling with a corresponding mounting bracket

through the camera mount holes (1/4” thread insert) on its top or bottom

• Follow this order for applying power.

First connect the low voltage cable (DC12V or AC24V), then plug the AC adapter

into AC outlet to avoid damage from the surge voltage with no load.

• Care should be taken the cable is NOT damaged, kinked or exposed in

hazardous areas.

• Do not expose the camera lens directly to a strong light source such as the sun or

spot light.

Setting the back focus adjustment

For easier and better adjustment, this camera provides FOCUS ADJUST menu

which helps with focusing the camera.

When enabling FOCUS ASSIST menu, follow the procedure to get the best back

focus adjustment.

1. Set the lens for the zoom position to WIDE and the focus position to INFINITE(∞).

2. Point at an object 30' away

3. Adjust ’Back focus adjusting Flange’ until the optimum focus is achieved.

4. Set the lens for zoom position to TELE and adjust the lens focus for best focus.

5. Set the lens for zoom position to WIDE again, check if the focus adjustment

is the best. If not, re-adjust ‘Back focus Flange’ slightly.

6. After setting, tighten the ‘Flange lock screw’ with L-wrench supplied.

Start up

When the camera is powered properly, it starts up with initializing the internal

parameters.

8 9

Installation Instructions

Using OSD Controller

Setup menu can be accessed and controlled by OSD control joy stick on the

rear of the camera unit.

Five commands are available with the joy stick.

The design of rear panel could be different according to the camera models.

Description of the joystick operation

1) SET Key (●) : Access to the menu or enter the setting.

To enter the main menu, press the Set Key down for about 1.5sec

2) UP/DOWN Key (▲/▼) : Choose the desired sub-menu and to move

the cursor up or down.

3) LEFT/RIGHT Key (◄/►) : Set up the value of the selected menu.

Use to adjust the desired menu selection and to move the cursor left

or right.

Operating Instructions

OSD menu Startup

• EXIT : Enters ‘EXIT’ menu.

• RETURN : Returns to the previous menu.

Press the ‘OSD menu SET key’ down to access the setup menu mode.

MAIN MENU

>1. VIDEO OUT

2. DAY / NIGHT

3. AWB

4. AE

5. SPECIAL

6. EFFECT

7. SYSTEM

8. EXIT

OSD menu Table

MAIN MENU SUB MENU CONFIGURATION

VIDEO OUT

DAY/NIGHT

AWB

FRAME RATE

RETURN

MODE

30 / 25

1~63

1~60 SEC

COLOR

B&W

AUTO

USER

AUTO

EXT

D TO N

N TO D

DELAY TIME

RETURN

IN/OUT DOOR

RETURN

RED GAIN

GREEN GAIN

IN, OUT

1~255

10 11
