Vitek VTC-IRE24F Manuel utilisateur

VITEK

• 1/3” High Resolution CCD

• 700 TV Lines of Resolution (960H)

• E-WDR by Adaptive Tone Reproduction

• 24 Dynamic Infrared LEDs with up to 65’ Range

• 0.003 Lux / 0 Lux with IR LEDs On

• IR Corrected 3.6mm Fixed Iris Lens

• 2DNR Noise Reduction

• Motion Detection, Privacy Masking & Highlight Masking

• OSD (On Screen Display) menu and Camera ID

• IP-67 Rated Water Resistance

• Cable Feed Through Mount for tamper resistance

• 12 VDC Operation

VTC-IRE24F

Day/Night 960H Infrared

Bullet Camera

CAUTION:

To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.

Only operate this apparatus from the type of power source indicated on the label.

The company shall not be liable for any damages arising out of any improper use, even if we

have been advised of the possibility of such damages.

PACKAGE CONTENTS

CONNECTION

1 x VTC-IRE24F Camera

1 x Mounting Bracket

1 x User Manual

1 x Hex Wrench

1 x Mounting Screws/Anchors Pack

1 x Mounting Template

1. Connect the camera video output to the monitor video input with a 75Ω coaxial

cable.

2. DC12V Input Terminal

Connect the power connector of the camera to a 12V DC regulated power supply.

NOTE: Please use the correct power adaptor, DC12V (regulated), to operate this

unit. The tolerance of this unit is DC12V ± 10%. Over the maximum DC12V power

input will damage the video output connector (VIDEO OUT).

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

The lightning ﬂ ash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of sufﬁ cient magnitude to constitute

a risk of electric shock to persons.

This exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

VTC-BRE24F / VTC-IRE24F

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of non-insulated

dangerous voltage within the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (servicing) instructions

in the literature accompanying the appliance.

This installation should be made by a qualified service person and should conform to all local codes.

VTC-BRE24F / VTC-IRE24F

Contents

1. EXPOSURE

2. DAY & NIGHT

3. WHITE BAL

4. MONITOR

5. IMAGE

6. DNR

7. MOTION

8. SYSTEM

9. EXIT

VTC-BRE24F / VTC-IRE24F

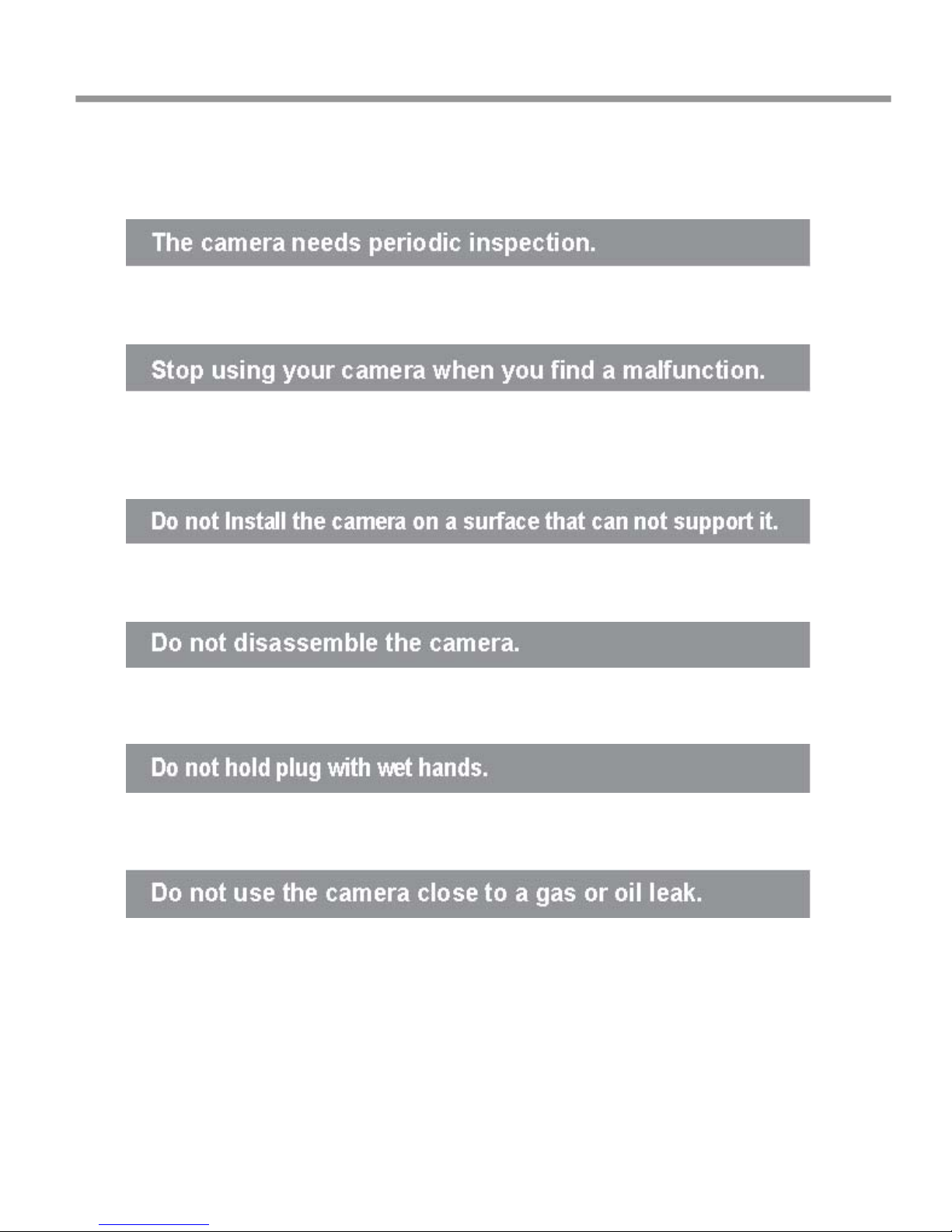

Warning

Contact an authorized technician for inspection.

If you use your camera around smoke or unusual heat for a long time, fire may

be caused.

Unless the surface is suitable, it could cause falling or other hazards.

It may result in fire, electric shock or other hazards.

It could cause an electric shock.

may result in fire or other hazards.

VTC-BRE24F / VTC-IRE24F

[OSD Menu]

EXPOSURE

ALC / ELC

DAY / NIGHT

DAY / NIGHT / AUTO / EXTERNAL / CDS

WHITE BAL

MANUAL / PUSH / ATW

MONITOR

GAMMA / CHROMA / SHARPNESS / SHADING / PED.LV


BACK LIGHT / CONTRAST / POSI/NEGA / H-MIRROR /

PRIVACY

DNR

LOW / MIDDLE / HIGH / OFF

MOTION

ON / OFF

SYSTEM

CAM TITLE / CAM ID / ID DISP / SYNC / BAUDRATE /

LANGUAGE / SPECIAL

EXIT

SAVE / MANUAL / INITIAL / RESTORE

How to use OSD button(Tact Switch) in OSD control board or OSD cable

Press : enter into OSD menu and save settings at EXIT.

Push UP / DOWN : select function wish to activate.

Push LEFT / RIGHT : adjust level / value and mode of sub-menu

OSD Main Menu

VTC-BRE24F / VTC-IRE24F

MAIN MENU

DEFAULT

DESCRIPTION

EXPOSURE

Select Lens type according to mounted

/ built-in lens.

* ELC : Electronical Iris Lens

(Manual Iris Lens / Fixed Focal Lens).

* ALC: Auto Iris Lens(DC)

DAY&NIGHT

* AUTO: DAY or NIGHT is decided

automatically by light level coming through

lens.

* DAY: Color video output

* NIGHT: B/W video output regardless of

light level

* EXT: Day(Color) or Night(B/W) is decided by

external light sensor or LED control board

All IR LED cameras should set EXT.

* CDS: Not used

WHITE BAL

ATW

* ATW (Auto Tracking White Balance)

* MANUAL: Adjust White Balance with

fixed values of BLUE and RED

* PUSH: White Balance is performed when

enter button of OSD is pressed

MONITOR

* Set GAMMA, CHROMA, SHARPNESS,

SHADING & PED. LEVEL of Monitor


* BACK LIGH: Select HLC or BLC and adjust it.

* Select CONTRAST ON or OFF

* POSI / NEGA: Select Posi or Nega image.

* H-MIRROR: Select MIRROR ON or OFF

* PRIVACY: Set PRIVACY ON or OFF

DNR

OFF

Set DNR level, LOW or MIDDLE or HIGH

MOTION

OFF

Select MOTION ON or OFF

SYSTEM

Set CAM TITLE, CAM ID, ID DISP, SYNC,

BAUDRATE, LANGUAGE and SPECIAL

EXIT

SAVE, MANUAL, INITIAL, RESTORE

VTC-BRE24F / VTC-IRE24F

1. EXPOSURE

Select lens type in accordance with mounted/built-in lens.

* ALC : Auto Iris Lens

* ELC : Electronic Iris Lens

(Fixed Focal Lens / Manual Iris Vari-focal Lens)

EXPOSURE

(ALC / ELC)

DEFAULT

DESCRIPTION

BRIGHTNESS

Adjust the brightness level of screen when the

environment is extremely bright or dark.

SHUTTER

AUTO

Adjustable shutter speed. This is useful when

the light condition is changing quickly

* Set AUTO, 1/50 ~ 1/120K

FLK

OFF

Select FLICKERLESS ON or OFF. In the FLK

ON, sensitivity will be reduced under low light

AGC

Setting AGC level, 0 ~ 20. The higher gain

level, brighter picture with more noise.

2. DAY & NIGHT

DAY &

NIGHT

DEFAULT

DESCRIPTION

DAY &

NIGHT

IR LED

CAMERA : EXT

NONE IR

CAMERA :

AUTO

* AUTO: Camera decide DAY or NIGHT by

himself through incoming light level.

ICR is also moving DAY or NIGHT (ICR

Version).

* DAY: Camera works as a regular color

camera.

ICR is inserted to cut IR spectrum from light

(ICR built-in Camera)

VTC-BRE24F / VTC-IRE24F

DAY &

NIGHT

DEFAULT

DESCRIPTION

DAY &

NIGHT

* NIGHT: Camera works as a regular B/W camera.

ICR move to pass IR spectrum.

* CDS : Not used

* EXT : DAY or NIGHT is decided by external

signal(included CDS sensor) built in camera.

All of IR LED Cameras must be set to EXT.

2-1. AUTO

Usually cameras with no IR LED is set AUTO. But IR LED cameras should set

EXT.

AUTO

DEFAULT

DESCRIPTION

AGC THRS

* Setting threshold level to switch from to DAY <-->

NIGHT.

AGC

MARGIN

* Setting threshold margin to switch from to DAY

<--> NIGHT.

* If AGC margin is too small, may occur switching

D <--> N repeatly. Recommend more than 10

D/N DELAY

3SEC

* Dwell time before switch D <--> N after check

light level. * DELAY can avoid unnecessary

switching by short term light.

* To make right switch D <--> N, camera should

retain the present environment for longer than

DELAY(DWELL TIME).

B/W BURST

OFF

* Select BURST ON or OFF

SMART IR

* Not used (Camera with no IR LED set Auto and

no need SMART IR)

VTC-BRE24F / VTC-IRE24F
