Vitek VTC-IRM5H-2713 Manuel utilisateur

FEATURES:

• 1/2.8” 2 MegaPixel Sony® STARVIS CMOS Sensor

• 2 MegaPixel Coax Based Camera (1920 × 1080 @ 30/25fps)

• 5 × 850nm High power LEDs with up to 130’ IR Range

• Video output EX-SDI1.0,2.0 / HD-SDI / TVI mode / AHD mode / CVI mode

or CVBS Selectable

• f=2.7~13.5mm F 1.6, 5 MegaPixel Motorized Zoom Lens [VTC-IRM5H-2713]

• f=5.0~50mm F 1.6, 5 MegaPixel Motorized Zoom Lens [VTC-IRM5H-550]

• Automatically Removable IR Cut Filter with Dual Filter Switch

• True WDR (Wide Dynamic Range) @30/25fps

• ROI (Region of Interest) WDR

• Improved Noise Reduction with XD-DNR

• Motion Detection, Privacy Mask, DeFog, Sens-up(~x32), ROI-WDR, D-WDR,

Sharpness, DeBlur, Mirror / Flip, Backlight / Highlight Compensation, Smart IR,

Anti-Saturation, Title Set

• OSD Menu & Video Sub-out for Easy Installation and Maintenance

• 1500’ HD-Analog Transmission Distance over Coax (Depending on Cable

Characteristics and Integrity)

• COC [Control over Coax] Through HD-TVI (Pelco-C®) or AHD

• One-Touch 3-Axis Locking Bracket, Easy Installation Pad

• AC24V/DC12V

• IP68, Aluminum Cast, Dual window, One-Touch 3-Axis Locking Bracket, Easy

Installation Pad

• 3-Year Warranty

VTC-IRM5H-2713

VTC-IRM5H-550

Virtuoso Series 2 MegaPixel

Multi-Format Auto Focus

WDR Bullet Camera

QUICK START GUIDE

VITEK

COAX

Safety Precaution

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFERSERVICING TO QUALIFIEDSERVICE PERSONNEL.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user tothe presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely tocause harmful

interference in which case the user will be required tocorrect the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of atypical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

2 3

Safety Precaution

NOTICE

The images used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

Composition

Dimensions

Video Sub-out

Cable (1pc)

Mounting

Template

Operating

Instruction

Torque Wrench:

3mm (1pc)

Camera

Easy

Bracket

Mounting Screw:

4 x 30mm (4pcs)

Plastic Anchor:

6 x 30mm (4pcs)

Assembly Screw:

4 x 15mm (4pcs)

10.51” / 267mm

4.26” / 108mm

3.44” / 87.30mm

3.94” / 100mm

3.41” / 86.40mm

2.99” / 75.90mm

3.15” / 80mm

7.48” / 190mm

4 5

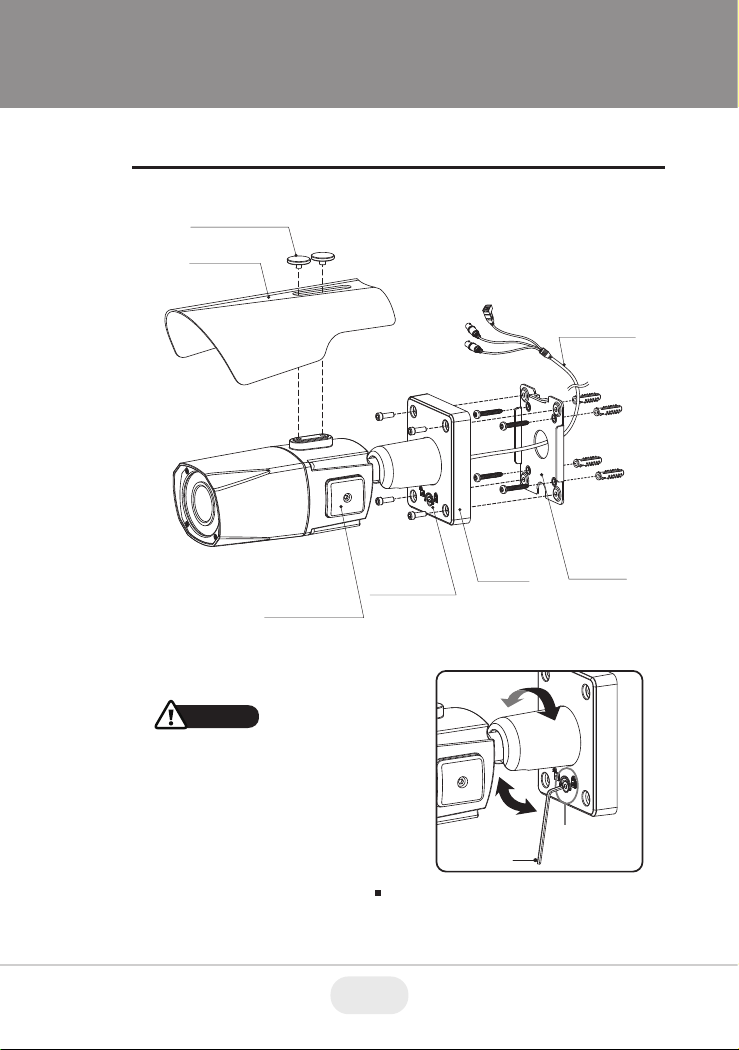

Part Names

Adjustment of viewing angle with a bracket

Torque

wrench

Lock/Unlock

Screw

•Extreme care should be taken NOT to

scratch the window in front of lens.

•Care should be taken the cable is NOT

to be damaged, kinked or exposed in

the hazardous area.

• Do not expose the camera directly to

a strong light source such as the sun

or spot light.

CAUTION

Power/Video

Cable

Sunshield

Sunshield Bold

Easy

Bracket

OSD Setup

Control Cover

Bracket

Lock/Unlock

Screw

Installation Instructions

Torque Wrench

Assembly Screw

: 4x15mm

Mounting Screw

: 4x30mm

1. Locate the mounting template at the installation position and drill the ceiling or

wall if needed. ( *The easy bracket can not be installed on the ceiling)

2. Place the easy bracket on pre-drilled position and fix it through using mounting

screws (4x30mm). Skip this step when an easy bracket is not installed.

3. Route the Power cable to the connecting place.

Hook up the camera bracket with the easy bracket as illustrated below.

4. Fix the camera bracket through using assembly screws (4x15mm).

5. Set the camera’s viewing angle.

6. Put the sunshield to the camera unit and tighten the sunshield-bolts.

REAR VIEW

Cable exit

6 7

Installation Instructions

Pan & Tilt adjustments

1) Pan limit:

Pan is limited to +/- 90°.

3) Inclination limit

(Horizontal image alignment):

Inclination limited to +/-90° max.

2) Tilt limit:

Tilt is limited to 0°(2°) min ~ 90° max.

for wall(ceiling) installation respectively

with reference to the wall(ceiling) when

the inclination of camera module is 0°,

that is, the image is aligned horizontally.

90° 90°

• Unlock the screw on the camera bracket through using the torque wrench supplied

• Set the camera’s viewing angle then lock the screw on the bracket.

88°90°

±90°

•on the wall • on the ceiling

Installation Instructions

Installation and commissioning Instructions

• Make sure the power is removed before the installation.

• Follow the order for applying power.

First, connect the low voltage (AC24V or DC12V), then plug the AC adapter to

AC outlets to avoid an improper reset from power jitter and a damage from the

surge voltage when no load.

Power Supply Connections

Camera can work with either AC24V or DC12V, dual voltage power. Primary

and secondary grounds are completely isolated to avoid the possible ground-loop

problems

※SDI OUTPUT

(Yellow)

ANALOG OUTPUT

(Black)

POWER

(AC24V/DC12V)

AC(-) :

AC24V/GND

AC(+) :

AC24V/DC12V

(+)

(-)

※Please use the cable as provided with camera. If camera cable is cut

and re-wired, the transmission distance of video can be reduced.

Especially SDI cable should not be cut because it requires detailed

wiring job and affects the transmission distance.

8 9

NOTES

DETAILED SPECIFICATIONS

Imaging Sensor 1/2.8” 2 MegaPixel Sony STARVIS CMOS® Sensor

Effective Pixels 1920(H) x 1080(V) x 30p

Scan Frequency 30Hz(V), 22.5Khz(H) Progressive

Video Format HD: 16:9, 1080p@30fps / CVBS: 16:9 (NTSC)

Video Output Digital: EX-SDI 1.0/ 2.0/ 2.1, HD-SDI, HD-Analog: TVI mode, AHD mode, SD-Analog: CVBS

Synchronization Internal

Min. Illumination Color: 0.08 Lux, B/W: 0.005 Lux (LED Off)

S/N Ratio More than 50dB (AGC Off)

Lens VTC-IR5H-2713 f=2.7~13.5mm F 1.6, 5MP Mtrzd Zoom Lens, VTC-IR5H-550 f=5.0~50mm F 1.6, 5MP Mtrzd Zoom Lens

IR LEDs / Range 5pcs x 850nm High power LEDs - 150’

Exposure Brightness / Shutter / Sens-up / AGC

Focus Auto / Zoom Push / Manual

Day / Night True Day / Night by dual filter switch, EXT / AUTO / COLOR / B&W

White Balance AUTO / AUTOext / MANUAL / PRESET

WDR True WDR by Dual Scan Images at 30fps/25fps

ROI WDR YES

DNR XD-DNR (2D-DNR / 3D-DNR)

D-Zoom N/A

Image Orientation Mirror / Flip / Rotate / Normal

Special Features POI (Point Of Interest) Zoom, Smart Motion Zoom, Preset Zoom, Home Position

Functions ROI-WDR, D-WDR, Motion Detection, Privacy Mask, Defog, Sens-up(~x32), Sharpness, Mirror/Flip, BLC/HLC,

Ingress Protection IP-68 Weather Resistance Rating

Remote Control COC by HD-TVI (Pelco-C®) or AHD

OSD Language English, Korean, Japanese, Chinese, German

Video Output VBS 1Vp-p ± 10%, 75Ω

Installation Temp. -4°F~122°F (-20°C ~ +50°C)

Installation Humidity 20%RH ~ 80%RH

Operating Temp. -22°F~122°F (-30°C ~ +50°C)

Operating Humidity 20%RH ~ 80%RH

Power Input AC24V/DC12V

Power Consumption (12VDC) 370mA (IR Off) / 750mA (IR On)

Power Consumption (24VAC) 185mA (IR Off) / 375mA (IR On)

Power Features Circuit protection against faulty connection in power polarity, and isolated power supply protects against ground

Housing Aluminum Cast, Dual window, One-Touch 3-Axis Locking Bracket, Easy Installation Pad

Dimensions 4.25” W x 3.94 H x 10.51 L (108 x 100 x 267mm)

Weight (w/ Bracket) 2.98lbs (1.35kg)

10 11
