VITEK

VTC-TNT4RFAD-2

Transcendent Series 4 MegaPixel

Indoor/Outdoor WDR IP Active

Deterrence Fixed Turret Camera

QUICK START GUIDE

FEATURES:

• 1/3” 4.0 Megapixel CMOS Image Sensor

• Up to 30fps live view @ 4 MegaPixel (2592x1520)

• 2.8mm Fixed Iris Lens

• Alternate Flashing Red + Blue Warning Lights & User-Defined Warning / Command Voice Import

• Matrix IR with up to 165’ IR Range

• True Wide Dynamic Range (120dB)

• True Mechanical Day/Night function by ICR

• Triple Streaming: H.265+, H.264+ & MJPEG Compression

• XD-DNR (3D & 2D-DNR) Noise Reduction

• Backlight Compensation, Highlight Compensation, DeFog, Hardware Reset, ROI

• Advanced Analytics: Line Crossing Detection, Region Intrusion, Entrance / Exiting Detection

[All by Human / Vehicle Classification], Abnormal Video Signal Detection (Scene Change,

Video Cast & Video Blur)

• 1 Ch. Audio In + Built-in Mic + Built-in Speaker*

• 1 Ch. Alarm In + 1 Ch. Alarm Out

• Built-in MicroSD Card Slot for Local Recording (up to 256GB)

• Smart Alarm: Motion Det., Sensor Alarm, SD Card Error / Full, IP Address Conflict, Cable

Connection

• IP66 Weather Resistance

• Optional Junction Boxes (VT-TJB01, VT-TJB021), Wall Mounts (VT-TWM03, VT-TWMT-4)

and Pendant Mounts (VT-TPDM-2 [reqs. VT-TJB01], VT-TPDM-3 [reqs. VT-TJB021])

See other mounting options on page 9

• 12VDC & PoE (Power over Ethernet) Operation

*Please research local, state and federal laws regarding the implementation of audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

ACTIVE

DETERRENCE

2 3

Components and Accessories

Overview

First connect the Weather Resistant Cap to an Ethernet patch cable,

then connect the cameras ethernet adaptor. If not powering the

camera with PoE, also connect the power Cable to an approved

12VDC Power Supply.

Camera

Quick Guide

Screws

Drill Template

Plastic Plugs + Rubber Plug

Network Coupler

Weather Resistant Security Cap

Installation

Before beginning installation, make sure that the wall or ceiling is strong

enough to withstand 3 times the weight of the camera. The mounting

steps are as follows:

1. Attach the drill template to the

place where you want to install

the camera, then drill 3 screw

holes and 1 cable hole (if you

want to route the cables through

the mounting base) according to

the drill template (see below).

First Install a MicroSD Card as

Demonstrated in Diagram at Right

Connecting Alarm Input / Output

2.35”

1.17”

4.08”

.18”

5.15”

4.71”

4 5

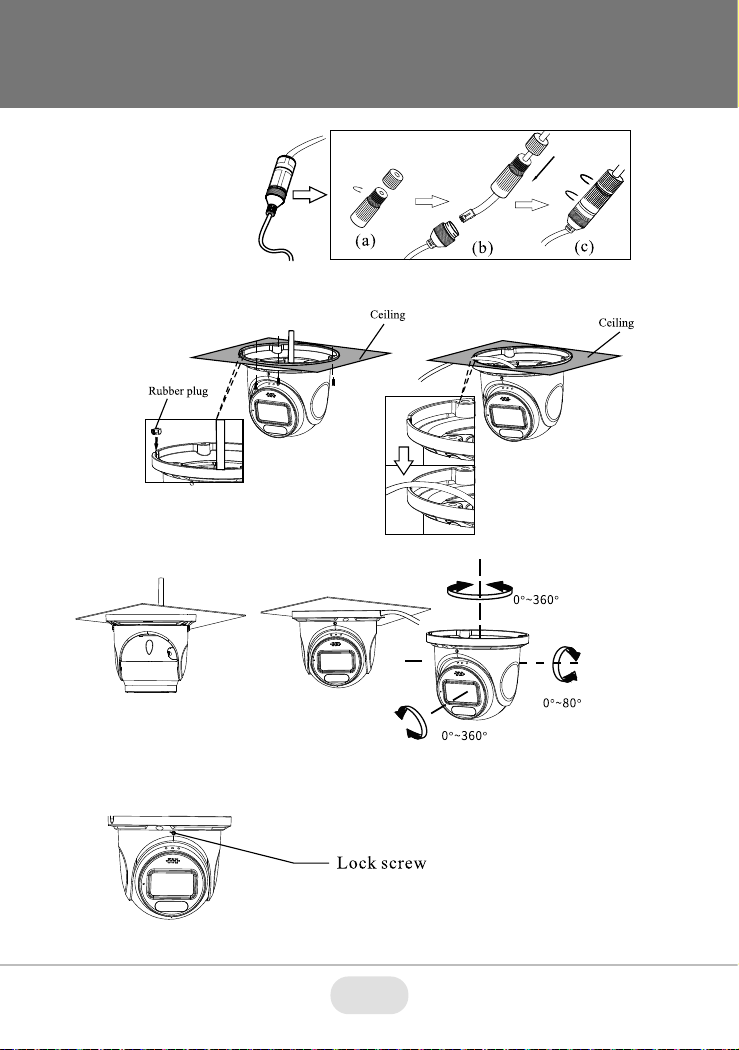

2. Route and connect

relevant cables.

4. Loosen the fixed ring to adjust

the viewing angle of the camera.

Preview the camera’s image on a

monitor.

5. Tighten the lock screw to finish the installation.

3. Attach the mounting base to the wall with

the provided screw

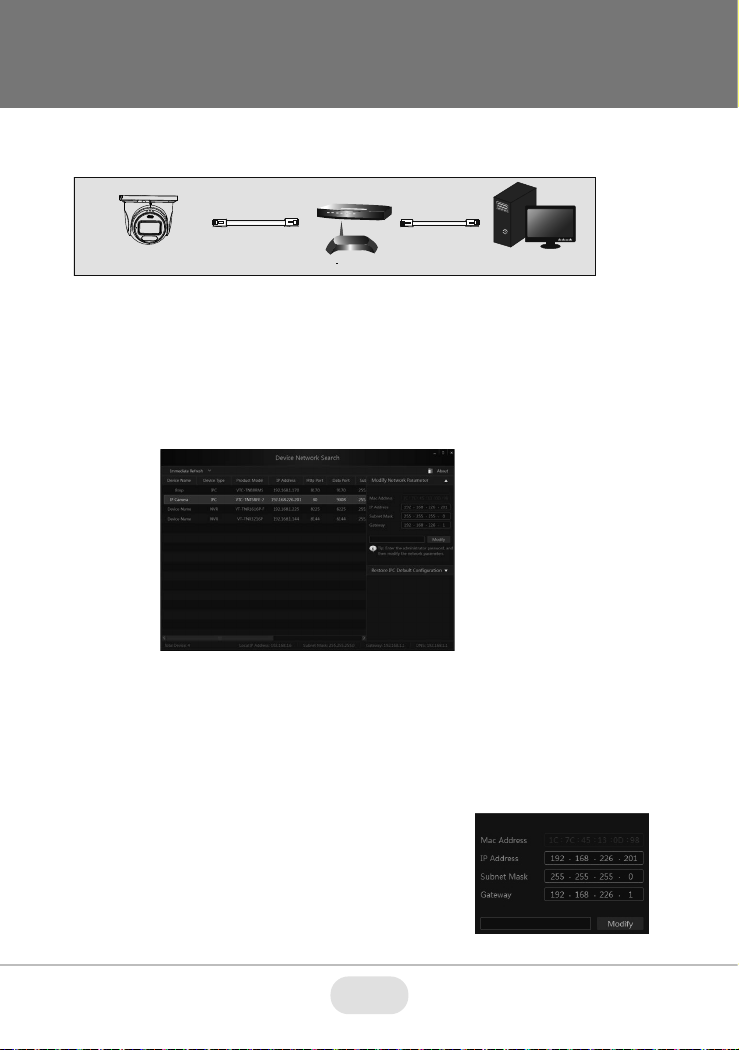

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

N et wor k C a bl e N etwor k C a bl e

Switch

R outer C omputer

6 7

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

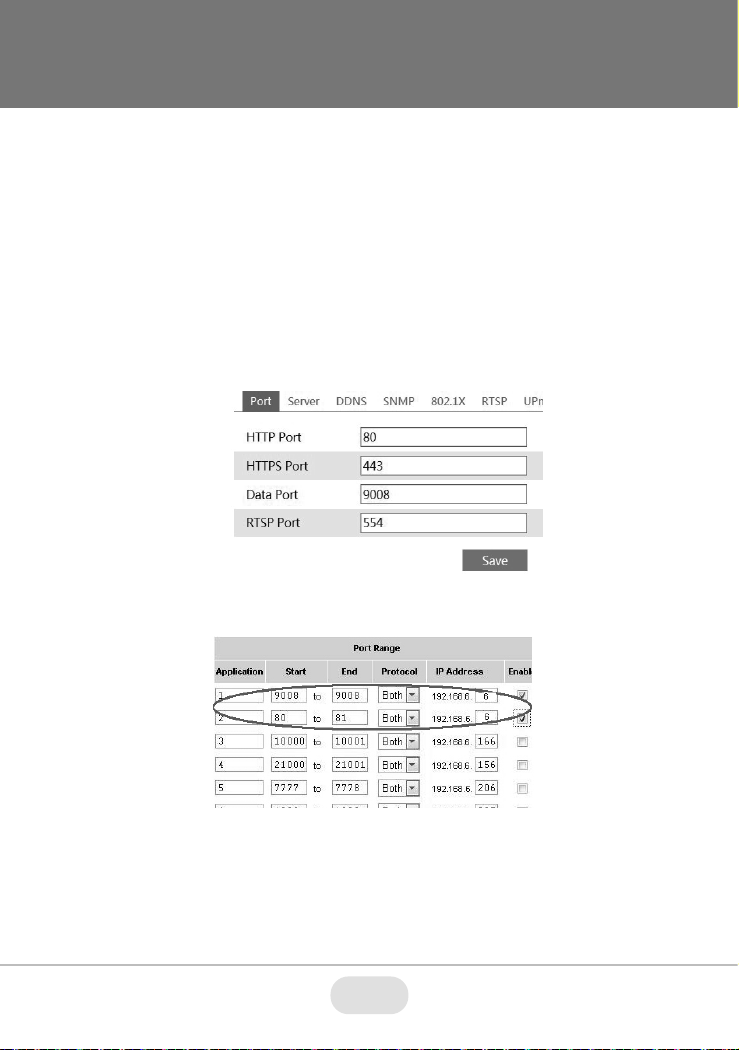

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan

the QR code on the front page of this quick guide and

download the complete manual.

8 9

Image Sensor

Image Size

Resolution

Min. Illumination

Lens

Day / Night

Night Vision / Range

Video Compression

Audio Compression

Main-Stream

Sub, Third Streams

Bit Rate / Type

Wide Dynamic Range

Other Features

Digital Noise Reduction

Image Setting

Advanced Analytics

Smart Alarm

Region of Interest (ROI)

Audio

Alarm

Sound and Light Warning

Local Storage

Remote Viewing

Supported Browsers

Connection Protocol

Ingress Protection

Power Input

Pwr Consumption (PoE), (12VDC)

Working Environment

Weight (NET, GROSS)

Dimensions (Dia × H)

1/3” 4.0 Megapixel Progressive Scan CMOS

4 MegaPixel (2592 × 1520)

4MP(2592×1520), 3MP(2304×1296), 1080P, 720P, D1, CIF(480 × 240)

[email protected],AGC ON, 0 lux with LED ON

2.8mm Fixed Iris Lens - M12 Lens Mount

True Day / Night by ICR

MATRIX / Up to 165’

H.265+ / H.265 / H.264+ / H.264 / MJPEG [Triple Streaming]

G.711A / G.711U

4MP/2K/3MP/1080P / 720P (60Hz: 1 ~ 30fps, 50Hz: 1~25fps)

720P/D1/CIF(60Hz:1~30fps/50Hz:1~25fps), D1/CIF/480x240(60Hz:1~30fps/50Hz:1~25fps)

64 Kbps ~ 8 Mbps / VBR, CBR

120dB Super WDR

Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset

XD-DNR (3D-DNR & 2D-DNR)

ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software/browser

Line Crossing Detection, Region Intrusion, Entrance / Exiting Detection [All by Human / Vehicle

Classification], Abnormal Video Signal Detection (Scene Change, Video Cast & Video Blur)

Motion Detection, SD Card Error, SD Card Full

Each ROI to be Configured Separately

1 Ch. Audio In + Built-in Mic + Built-in SPEAKER*

1 Ch. Alarm Input, 1 Ch. Alarm Output

YES: Alternating Red and Blue Flashing Lights + Speaker with User-Defined Warning Voice Import

Built-in MicroSD Card Slot (up to 256GB)

CMS / Web Browser / Mobile (iOS/Android)

IE or Edge in IE mode

ONVIF

IP66

12VDC / PoE

<12.5W, 550mA (LEDs Off) / 1100mA (LEDs On)

-22° ~140°F (-30°~60°C) / < 95% Humidity

22.93 oz. / 1.43 lbs. / 650g, 28.22 oz / 1.76 lbs / 800g

4.29” × 5.12” (109 × 130mm)

VTC-TNT4RFAD-2 Detailed Specifications

*Please research local, state and federal laws regarding the implementation of audio

surveillance.

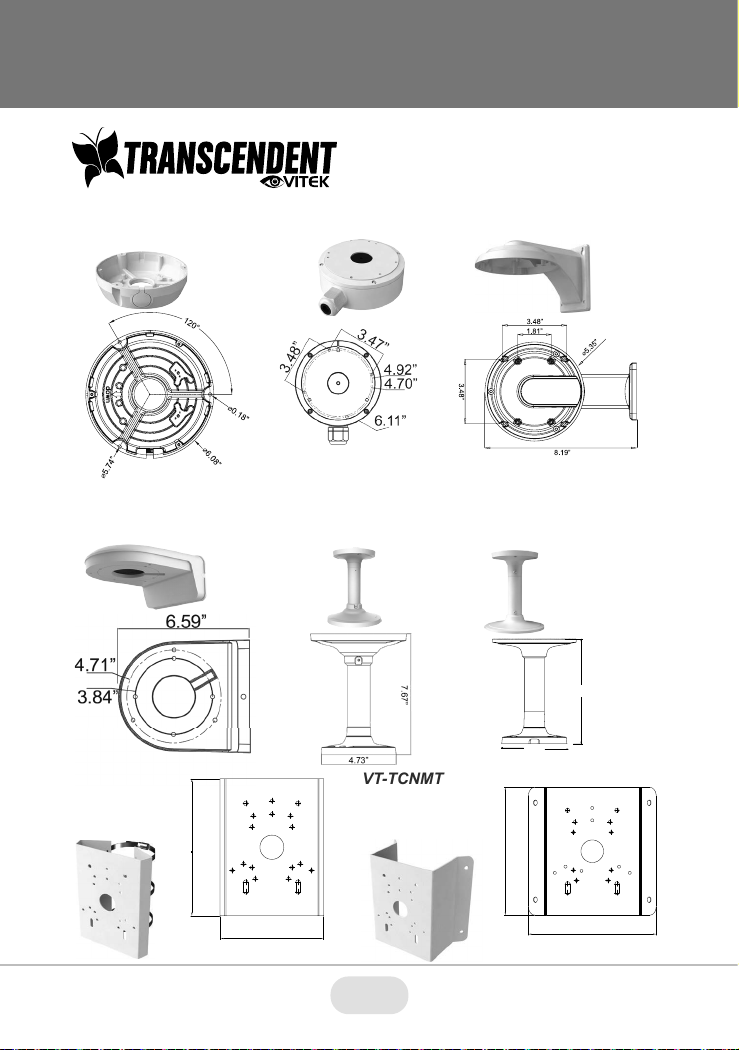

OPTIONAL ACCESSORIES

AND RELATED PRODUCTS

FOR VTC-TNT4RFAD-2

VT-TJB01

Optional Junction Box

VT-TWM03

Optional Wall Mount

VT-TPDM-2

Pendant Mount -

requires VT-TJB01

VT-TJB021

Optional Junction Box

VT-TPDM-3

Pendant Mount -

requires VT-TJB021

VT-TWMT-4

Optional Wall Mount

VT-TPLMT

Transcendent

Universal Pole

Mount Adapter

VT-TCNMT

Transcendent

Universal Corner

Mount Adapter

8.46”

6.43”

8.46”

8.47”

7.65”

4.73”

10 11
