VITEK

FEATURES:

• 1/2.9” Sony® CMOS

• 2.1 MegaPixel With full 1080p/720p HD-SDI Output (SMPTE 292M)

• MegaPixel IR Corrected 3-9mm (VTC-HOCRAZ39) /9-22mm (VTC-HOCRAZ922)

Varifocal Lens

• Mechanical IR Cut Filter (True Day/Night)

• 16:9 Video format

• On-board Intelligence (OBI Technology) delivers Auto-Focus-Zoom by tracking

motion, then optically zooming in to that area of the frame

• Fully programmable advanced WDR

• Two (2) High Power 850nm IR LEDs with up to 80’ foot range

• Integrated Cooling Fan

• Advanced OSD Functions: Motion Activated Pointing Zoom, Defog, Dynamic IR,

BLC/HLC, Motion Deblur, Pixel Defect Compensation, Title Set, Mirror, Flip

• 100% Pure Digital Transmission of video data

• Up to 700’ HD Transmission Range (Depending on cable

characteristics and integrity)

• Heavy Duty IP68 rated weather/vandal resistant aluminum

construction

• 12VDC / 24VAC Dual Voltage Operation

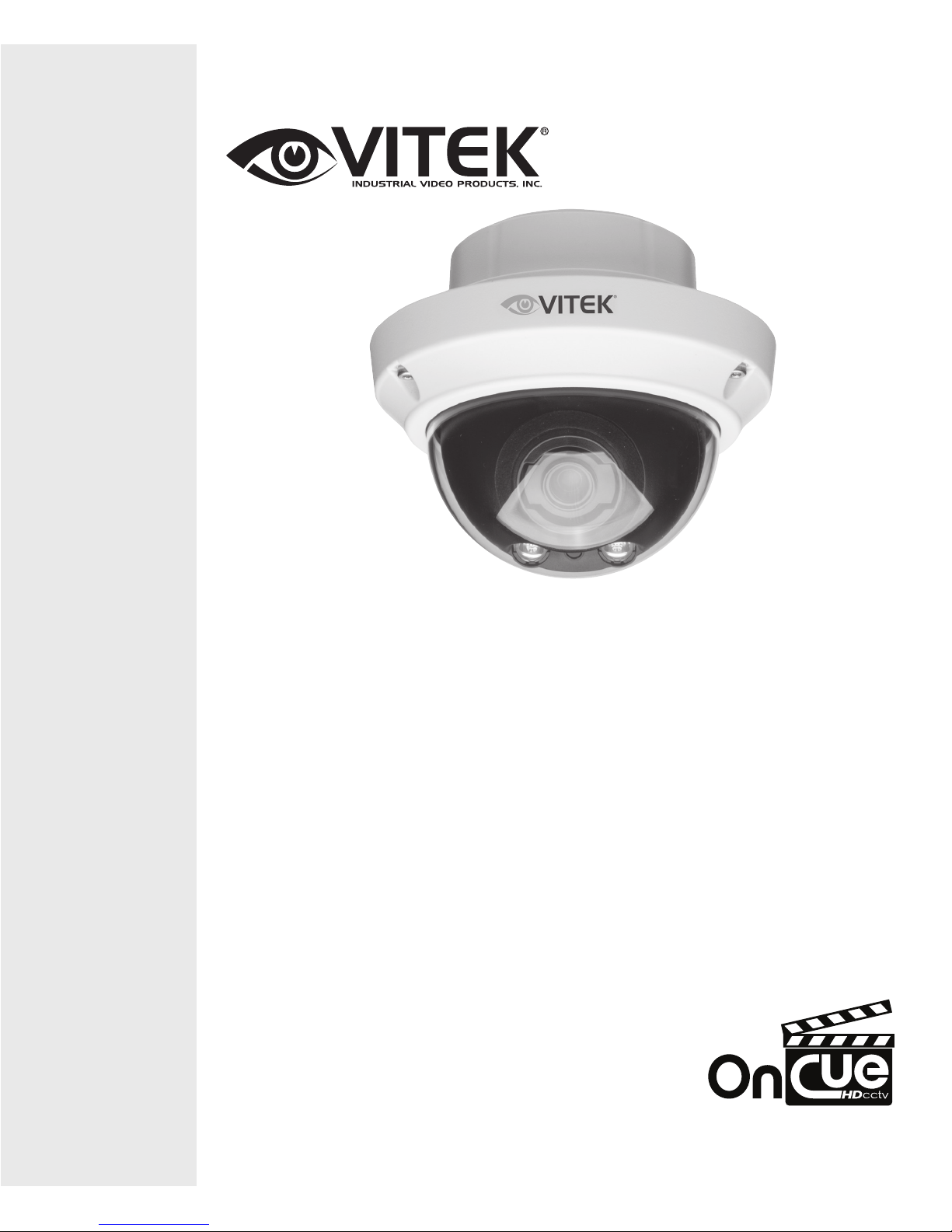

VTC-HOCRAZ39/922

2.1MP HD-SDI Compact Indoor/Outdoor

WDR True Day/Night Dome Camera

Safety Precaution

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment . This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user’s authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons .

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Safety Precaution

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

The camera should never be operated in water.

Avoid installing in areas where shock or vibration may occur.

Pay attention to safety when installing the connection cable and observe that the

cable is not subjected to heavy leads, kinks or damage and no moisture can get in.

This can lead to damage to the camera and void the warranty.

Optional Dome Mounts to Suit any Application!

Contents

Safety Precaution

Contents

Features

Dimensions

Part Names

Installation Instructions

Operating Instructions

Specifications

p. 02 - 03

p. 04

p. 05 - 06

p. 02- 03

p. 07

p. 09

p. 09 - 11

p. 12 - 25

p. 26

Optional Dome Mounts

Package Includes

p. 28

Warranty

Features

¥ Full HD, 2Mega Pixel HD-SDI CAMERA, 1920x1080(30p/25p)

¥ True WDR(Wide Dynamic Range)

¥ VTD-HOCRAZ39: f=3~9mm, F1.2~F2.1 Day&Night zoom lens

(Optical 3x Auto focus zoom / Digital 32x zoom)

VTD-HOCRAZ922: f=9~22mm, F1.6~F2.3 Day&Night zoom lens

(Optical 2.4x Auto focus zoom / Digital 32x zoom)

¥ Focusing Status Indicator on Screen

- ★(Blue) Focusing in process

- ★(White) Focusing Completed

¥ Smart Motion Zoom in combining with Pointing Zoom.

¥ Motion Detect, Privacy Mask, Defog, Sens-up(x32), BLC/HLC, HV Flip,

D-Zoom(1.1x~8x), LSC(Lens Shade Compensation), Motion Deblur

Pixel Compensation

¥ ID / TITLE / ZOOM RATIO DISPLAY

¥ Top performance at low light sensitivity (Sens-up On)

¥ OSD menu & Video sub-out for easy installation & maintenance.

¥ Circuit protection against faulty connection in power polarity

¥ Isolated power supply against ground loop problem

¥ Remote control via RS-485 (Pelco-D/P)

¥ 2 High power LEDs

¥ Flush / Surface mount selectable

¥ Hard Coated Polycarbonate Clear bubble dome

¥ Built-in 3-Axis Gimbal

¥ Built-in cooling Fan & Heating function

¥ IP68 / IK10 Protection

Key Features

M.A.P. - Motion Activated Pointing Zoom which enables the flexible zooming at any area.

Improved Noise reduction with the enhanced 3D-NR

Dual Filter Switching

Selectable Scale down image to 720p mode

Enhanced light Sensitivity by DSS technology

This camera realizes the natural and crisp image as you see the scene in front

of you by adopting Auto Focus Full HD(1920x1080p) camera module.

Features

General Description

Package Includes

Torque Wrench: 3mm (1pc)

Mounting Screw:

4 x 30mm (4pcs)

Plastic Anchor:

6 x 30mm (4pcs)

Mounting Template

HD-SDI Dome Camera General Operation

Instructions

Complete Installation and

Operation Instructions on CD

Video Sub-Out Cable (1pc)

• With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can Accept Infared light

• 24VAC/12VDC dual power design,

- Offers the ﬂexibility of Installation

- Ensures the reliability

Dimensions

5.5

3.9

4.7

PCD 4.7

4.0

5.5

3-0.17

2.7

4.7

1.5

3.2

(unit: inches)

See Optional Dome Mounts

(pg. 3)

Part Names

BUBBLE DOME

3-AXIS GIMBAL

(Option)

DOME COVER

SAFTY WIRE

FLUSH MOUNT

ZOOM LENS

SURFACE MOUNT

(Option)

OSD CONTROL

JOY STICK

POWER AND VIDEO CABLE

CONDUIT SPACER

CONDUIT HOLE CAP

Installation Instructions

Assembly Screw

(4x14mm)

Torque Wrench

Assembly Screw

(4x12mm)

Mounting Screw

(4x30mm)

1. Locate the mounting template at the installation position and drill the ceiling

or wall if needed.

2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench

supplied.

4. Set the cameras viewing angle.

- Route the Power cable to the connecting place.

AFlush mount type

A. Flush mount type:

B. Surface mount type (Option):

BSurface mount type

5. Replace the dome cover to the dome base unit and tighten the assembly screws.

- Place the surface mount on pre-drilled position and attach using mounting

screws (4x30mm). Assemble the cable conduit, otherwise tighten a conduit hole

cap.

- Route the Power cable to the connecting place.

- Afﬁx the dome base unit to the surface mount using the assembly screws

(4x14mm). Before attaching the dome base make sure the assembly holes are

aligned with the surface mount assembly holes.

See Optional Dome Mounts (pg. 3)

Flush Mount Installation

requires a Flush Mount

Decorator Plate (See

pg. 3)

See Optional Dome Mounts (pg. 3)

Assembly Screw

(4x14mm)

Torque Wrench

Assembly Screw

(4x12mm)

Mounting Screw

(4x30mm)

AFlush mount type BSurface mount type

Flush Mount Installation

requires a Flush Mount

Decorator Plate

(See pg. 3)

Flush Mount

Decorator Plate

- Place the dome base unit on pre-drilled position and attach using mount-

ing screws (4x30mm).

Installation Instructions

CAUTION

15…

90…

Limit of pan & tilt

1) Pan limit:

Pan is limited to +/- 165°. Do NOT force the gimbal over the limit, this will

prevent internal damage.

2) Tilt limit:

Tilt is limited to 15° min ~ 90° max. with reference to the ceiling when the

inclination of camera module is 0°, that is, the image is aligned horizontally.

3) Inclination limit (Horizontal image alignment):

Inclination limited to +/-60° max.

• Extreme care should be taken NOT to scratch the bubble dome surface while

installing or adjusting the camera.

• Care should be taken that the cable is NOT damaged, kinked or exposed in

a hazardous area.

• Tighten the dome cover mounting screws so that there is NO gap between Lens

hood and clear bubble to avoid IR reﬂection
