Vitek VTC-IRE30 Manuel utilisateur

VITEK

VTC-IRE30/2810

Day/Night IR Bullet Camera

with 100’ Range

• High Density 1/3” Sony EX-VIEW CCD & Effio-E DSP

• 700 TV Lines of Resolution

• Advanced IR Optimizer helps reduce over saturation of IR illuminated video without

engaging the Image Signal Processor chip

• E-WDR by Adaptive Tone Reproduction

• 30 850nm Infrared LEDs with up to 100’ Range

• 0.003 Lux (F1.2 @ 40IRE) / 0 Lux with IR LEDs On

• IR Corrected 2.8-10mm Varifocal DC Auto Iris IR Lens

• 2DNR Noise Reduction

• Motion Detection, Privacy Masking & Highlight Masking

• OSD (On Screen Display) menu and Camera ID

• IP-66 Rated Water Resistance

• Heavy Duty Mount with Cable Feed Through

• 24VAC/12VDC Dual Voltage

VTC-IRE30/2810

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying the unit.

This symbol is intended to alert the user to the presence of

uninsulated "dangerous voltage" within the product's enclosure that

may be of sufficient magnitude to constitute a risk of electric shock.

Warning (NTSC version) -- This equipment has been tested and found to comply with the limits for a

Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial environment.

This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation

of this equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at their own expense.

Caution -- Any changes or modifications in construction of this device that are not approved by the party

responsible for compliance could void the user's authority to operate the equipment.

Notice -- The images used in this manual are processed to help comprehension

and may differ from the actual video of the camera.

WARNING

NEVER USE THIS CAMERA IN WATER.

WARNING

Caution

To prevent electric shocks

and risk of fire hazards, do

NOT use other than specified

power source.

!!!!!!!VTC%IRE30/2810!

Table of contents

1. Safety Instructions and Notes….......................................................................................................

2. General Descriptions............................................................................……………………………...

3. Supplied Items......................................................................................……………………………...

4. Part names…………………………….…...................................................…………………………...

5. Installation Instructions......................................................................................……………………...

6. Setup Menu ……………............................................................................…………………………...

7. Specifications ……………………………………………….....................................................................

8. Dimensional Drawings ……………………………………………............................................................

VTC-IRE30/2810

1. Safety Instructions and Notes

• Please read these safety and operating instructions before putting the camera into operation.

• Keep the manual in a safe place for later reference.

• Pay attention to safety when laying the connection cable and observe that the cable is not subjected to

heavy loads, kinks, damage or moisture.

• Never open the device to expose boards or lenses.

The warranty becomes void if repairs are undertaken by unauthorized persons.

• Only authorized service centers may perform maintenance or repairs.

• Use only a mild detergent to clean the housing.

• Keep the window surface clean of dirt or dust, which may reflect infrared light into the lens at night.

• The camera should never be operated beyond the technical specifications. This can lead to destruction.

2. General Descriptions

This camera is an ultra clear resolution camera that realizes over 700TVL resolution and a crisp color

reproduction with Sony 960H EX-view CCD and Effio-E image signal processor.

Effio-E digital imaging system:

• Delivers crystal clear images with over 700TVL resolution that accurately captures every aspect of

any scene

• Color signal processing provides optimum balance between luminance and chroma signals for

high color reproducibility, even for the detail scene which contains very high spatial frequency

• Incorporates 2-D noise reduction signal processing

24VAC/12VDC dual power design:

• Offers flexibility of installation

• Ensures reliability

Main features:

• High Density 1/3" Sony EX-view CCD (960H)

• Resolution 700 Horizontal Lines

• E-WDR by ATR (Adaptive Tone Reproduction)

• 2-D noise reduction

• Motion Detection

• Privacy Mask function

• OSD menu and camera ID

• Switches to B/W and able to accept the infrared spectrum at night mode

• Very low noise and superior picture quality

• Sensitivity of 0.003Lux (F1.2@40IRE)

• Automatic White Balance (ATW)

• Support C/CS mount DC Drive auto iris lens

• Supply voltage: 24Vac/12Vdc Dual voltage

!!!!!!!VTC%IRE30/2810!

3. Supplied Items

①1 x Weatherproof D & N Bullet Camera

②3 x Mounting screws

③3 x anchors

④1 x 2.5mm L-Wrench

⑤1 x Installation and Operating Instructions

4. Part names

4.1 External (Below model is only used for understanding. Color or Design can be different.)

4.2 Internal

②

③

④

ⓐ

ⓔ

ⓓ

ⓒ

ⓑ

ⓐGlass Window

ⓑSunshield

ⓒThumb screw for Sunshield

ⓓLens/IR LED Access Cover

ⓔCamera Body

ⓕMount Rotation Adjustment

ⓖMount Tilt Adjustment

ⓗMount Pan Adjustment

ⓘMounting bracket

ⓙRubber gasket

ⓚ

ⓛ

ⓜ

ⓝ

ⓚ

Infrared LEDs (X30)

ⓛLens Hood

ⓜOSD board

ⓝFocus Ring

ⓞZoom Knob

ⓕ

ⓖ

ⓗ

ⓘ

ⓙ

ⓞ

VTC-IRE30/2810

5. Installation Instructions

•Make sure the power is not applied before the installation.

•Once the camera is installed, you may first connect the low voltage (AC24V or DC12V) wire to the

camera power connector, then plug the AC adapter to the AC outlets to avoid an improper reset from

power jitter and possible damage from voltage surge.

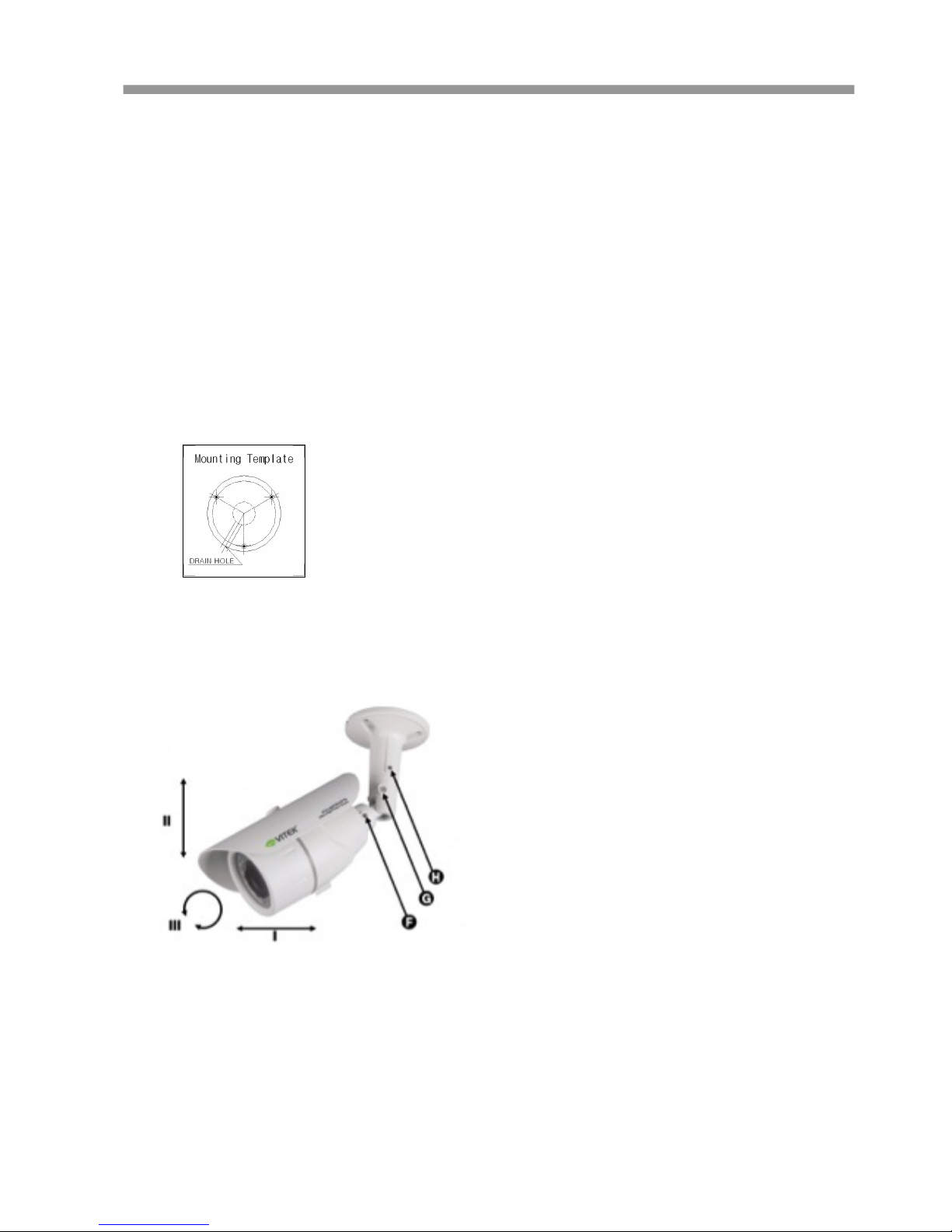

5.1 Mounting the Camera

1) Drill 3 holes into the wall or ceiling using the supplied template

2) Insert the supplied anchors into the drilled holes

3) Route the power/ video cable through the camera mount.

4) Match foot mount holes to the drilled holes

5) Affix the mounting bracket by using supplied screws

6) Adjust the camera direction as below steps.

Direction I: Adjust the camera direction with

ⓗscrew for Pan-direction.

Direction II: Adjust the camera direction with

ⓖscrew for Tilt-direction.

Direction III: Adjust the camera direction with

ⓕscrew for rolling.

!!!!!!!VTC%IRE30/2810!

5.2 Setup of ZOOM and FOCUS

• Adjust zoom and focus in order.

1) Open ⓓFront cover for adjustment.

2) Place the separated ⓓFront cover on the safe place from water & dust.

3) Turn ⓞZoom knob counter clockwise a little to unlock the knob.

4) Move ⓞZoom knob to fit the zoom. (Wide Tele)

5) Turn ⓞZoom knob clockwise a little to lock the knob.

6) Using thumb and index finger, turn ⓝFocus ring to fit the focus. (Far Near)

7) Close and tighten ⓓFront cover. (See CAUTION below)

3) & 5)

4) & 6)

* IMPORTANT TIP for good focus adjustment

Step 1. Turn Iris Level adjustment VR clockwise to max position.

Step 2. Set ELC switch to ON at DIP switches.

Step 3. Adjust zoom knob and focus ring of lens.

Step 4. Set ELC switch to OFF at DIP switches.

Step 5. Adjust Iris Level VR to get the proper video level.

ⓝ

Focus Ring

ⓞZoom Knob

CAUTION

When assembling ⓓ

Front cover, be sure

that ⓙRubber sealing is not protrusive.

If ⓓ

Front cover is tightened excessively,

sealing may not be ensured.

ⓓFront cover

VTC-IRE30/2810

5.3 Sunshield

Camera can be protected from the strong sun light by its own Sun shield.

Sunshield must be tightened enough to the body to avoid detaching of it by the wind.

5.4 Power connector

The VTC-IRE30/2810 can operate on either 24AC or 12VDC, dual voltage power.

Polarity free connection is acceptable, but follow the indication if possible.

6. SETUP Menu

6.1 In the menu

Setup menu can be accessed and controlled by OSD control joy stick on the side of the camera.

Five commands are available with the joy stick.

In the menu, use ▲,▼to move menu, ◀,▶to change the settings and press ●to select or enter.

The FACTORY DEFAULT in this manual may NOT be the same as the default values

set by the

FACTORY due to feature improvements or customer requirements.

To enter the menu, press ●.

When the sunshield is fixed on camera body, usually

ⓒ

Fix screw for Sunshield is located in center of

screw hole.

Adjust the sunshield back or forth according to the

wide or tele position of the lens.

If shades by the sunshield are seen on the image,

reverse the sunshield direction backside to front.

Joy stick

VIDEO

SUB-OUT

connector

SYMBOL descriptions for joystick operation;

1. ▲,▼,◀,▶- Denotes the direction of

Joystick lever operation.

2. ●- Denotes pressing down on the

Joystick lever

!!!!!!!VTC%IRE30/2810!

6.2 MAIN menu

Follow the chart below for submenu settings.

MAIN menu-1

Default

Descriptions

SHUTTER

/AGC

AUTO

Sets the parameters related to the shutter mode and AGC for AUTO and

MANUAL settings. See '6.3 SHUTTER/AGC menu' for details.

LENS AUTO

Selects the lens type, AUTO or MANUAL. AUTO supports DC auto-iris lens

only. See '6.4 LENS menu' for details.

DAY/NIGHT

EXT1

(w/ IR

LED)

AUTO

(w/o IR

LED)

Can set DAY/NIGHT to AUTO, COLOR, BW, EXT1 and EXT2.

AUTO –

Must be used only for a camera with NO IR LEDs

Camera switches DAY from/to NIGHT automatically along with the

amount of light through the lens..

BURST, DELAY CNT, DAY

!NIGHT, NIGHT!DAY can be set.

See ‘DAY/NIGHT menu’ for details.

COLOR – DAY/NIGHT is disabled and forces to DAY mode only.

BW – DAY/NIGHT is disabled and forces to NIGHT mode only.

Camera switches its IR cut filter out and outputs BW video.

EXT1 –

Must be used only for a camera equipped with IR LEDs

DAY/NIGHT is switched by the external light sensor.

EXT2 – NEVER USE this mode.

PICT ADJUST

Sets MIRROR, BRIGHTNESS, CONTRAST, SHARPNESS, HUE or GAIN.

See '6.6 PICT ADJUST menu' for details.

WHITE BAL ATW

Sets ATW, PUSH, USER1, USER2, ANTI CR, MANUAL or PUSH LOCK.

See '6.7 WHITE BAL menu' for details.

ATR OFF

Sets ON/OFF for enabling/disabling ATR (Adaptive Tone Reproduction)

compensation for the better dynamic range (E-WDR) of the image.

See '6.8 ATR menu' to adjust the dynamic ranges.

BACKLIGHT OFF

Selects BACKLIGHT mode out of OFF, HLC or BLC. Areas and gains for

HLC and BLC are factory preset and not user adjustable.

Moves to MAIN menu-2.

EXIT

Exits the setup menu. To save the changes, move cursor to 'SAVE ALL'

and press ●button before exiting the setup menu

SAVE ALL

Saves all parameters by pressing ●button when cursor is on 'SAVE ALL'

MAIN Menu-1

MAIN Menu-2

6.2.1 MAIN menu-1

VTC-IRE30/2810

6.2.1 MAIN menu-2

6.3 SHUTTER/AGC menu

This menu shows how to control/select SHUTTER, AUTO IRIS and AGC to get the optimum image for

high luminance and the low luminance according to the scene.

For example, to reduce the “wash out” and extend the dynamic range for a highlighted scene, you will

use SHUTTER+AUTO IRIS in outdoor daylight. This mode may show color rolling or video level

hunting problems in a certain lighting condition such as fluorescent lights.

For Flickerless mode which reduces flicker by NTSC cameras under 50Hz light or PAL camera under

60Hz light, MAIN>SHUTTER/AGC>MANUAL>SHUTTER must be set to 1/100(NTSC), 1/120(PAL)

and MAIN>SHUTTER/AGC>AUTO>MODE to AUTO IRIS. Normal shutter speed with an auto iris lens

should be set to 1/60(NTSC) and 1/50(PAL) for the optimum sensitivity.

This is a complicated menu so please proceed with care when handling the Shutter.

To enter SHUTTER/AGC menu, press ●button at MAIN menu-1>SHUTTER/AGC.

MAIN menu-2

Default

Descriptions

NR -

Sets the noise reduction parameters for NR MODE and Y LEVEL,

C LEVEL. See '6.10 NR menu' for details.

MOTION DET

OFF

Sets ON/OFF for enabling/disabling MOTION DET.

See '6.11 MOTION DET menu' for the parameter settings.

PRIVACY OFF

Sets ON/OFF for enabling/disabling PRIVACY.

See '6.12 PRIVACY menu' for the parameter settings.

LANGUAGE

ENGLISH

Selects the language out of 7 languages.

CAMERA ID OFF

Sets ON/OFF for enabling/disabling of ID display.

Factory default ID is Software version of camera.

User programmed camera ID will be lost and restored with Factory default

ID by CAMERA RESET. See '6.13 ID menu' for editing ID.

CAMERA

RESET

Restores FACTORY DEFAULT.

To save the restored parameters, move cursor to 'SAVE ALL' and press

●button before exiting the setup menu.

BACK

Returns to MAIN menu-1.

EXIT

Exits the setup menu.

To save the changes, move cursor to 'SAVE ALL' and press ●button

before exiting the setup menu

SAVE ALL

Saves all settings by pressing ●button when cursor is on 'SAVEALL'

Autres manuels pour VTC-IRE30

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vitek Caméra de sécurité

Vitek

Vitek VTC-TNT4RMS Manuel utilisateur

Vitek

Vitek Transcendent VTC-TNB2LPR Manuel utilisateur

Vitek

Vitek VTD-TND30R3V2 Manuel utilisateur

Vitek

Vitek Transcendent VTC-THB2RFS Manuel utilisateur

Vitek

Vitek VTC-IRLED24H Manuel utilisateur

Vitek

Vitek VTC-IRV30/2810 Manuel utilisateur

Vitek

Vitek TRANSCENDENT VT-SMKC2T Manuel utilisateur

Vitek

Vitek VTC-IRH70 Manuel utilisateur

Vitek

Vitek VTD-A4F Manuel utilisateur

Vitek

Vitek TRANSCENDENT VTD-TND5RME Manuel utilisateur

Vitek

Vitek Mighty VTD-MVP2810WDR Manuel utilisateur

Vitek

Vitek Transcendent VTC-TNB5RMEA Manuel utilisateur

Vitek

Vitek VT-IR1C/24 Manuel utilisateur

Vitek

Vitek XPRESS SERIES Manuel utilisateur

Vitek

Vitek VT-PTZ220NP Manuel utilisateur

Vitek

Vitek VTD-T4D6HR2MD Manuel utilisateur

Vitek

Vitek Mighty DomeColor Dome Camera Series Manuel utilisateur

Vitek

Vitek VTD-TTAD24R2F Manuel utilisateur

Vitek

Vitek VTC-C770/WDR Manuel utilisateur

Vitek

Vitek VTD-IR2811DN Manuel utilisateur

Vitek

Vitek VTC-EB15B Manuel utilisateur

Vitek

Vitek Transcendent 3 Series Manuel utilisateur

Vitek

Vitek Transcendent VTC-TNT8FADW-2 Manuel utilisateur

Vitek

Vitek Transcendent Series Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Lumens

Lumens VC-A50PNW Manuel utilisateur
