QUICK START GUIDE
VTC-TNB4MADW
Transcendent Knight Guard Active
Deterrence 4MP Advanced A.I.
Motorized AF Bullet Camera
FEATURES:
• 1/3.0” 4.0 MegaPixel CMOS Image Sensor
• Full Color at Night Camera with Active Deterrence
• Up to 30fps @ 4MP (2592 × 1520)
• 2.8~12mm Motorized AF Lens
• White Light + Matrix IR (130’ Range)
• GEN IV Advanced Analytics including Face Detection
• Integrated Audio + Speaker*
• MicroSD Card Slot (256GB)
• IP66 Weather Resistance
• 12VDC + PoE Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
TRANSCENDENT NETWORK INTEGRATED
AUDIO
4 MEGAPIXEL MOTORIZED AF
LENS
WHITE LIG HT +
IR ILLUMINATION
GEN. IV
ANALYTICS
2 3
Components and Accessories
Cable Connections
Overview
First connect the Weather Resistant Cap to an Ethernet patch cable,
then connect the cameras ethernet adaptor. If not powering the
camera with PoE, also connect the power Cable to an approved
12VDC Power Supply.
Camera
Quick Guide
Screws
Drill Template
Plastic Plugs
Network Coupler
Weather Resistant Security Cap
1. Ethernet Connector
2. Audio Input Connector
3. Audio Output Connector
4. Alarm Input / Output
5. Power Connector
6. Speaker
7. Lock Ring
8. Mounting Base
9. MicroSD Card Slot
10. Reset
3
Installation
Before beginning installation, make sure that the wall or ceiling is strong
enough to withstand 3 times the weight of the camera. The mounting
steps are as follows:
1. Attach the drill template to the
place where you want to install the
camera, then drill screw holes and
1 cable hole (if you want to route
the cables through the mounting
base) according to the drill
template (see below).
First Install a MicroSD Card as
Demonstrated in Diagram at Right
1.89” / 48mm
1.89” /
48mm 0.18” /
4.6m
Weather Resistant Network Coupler
1. Loosen the nut from the Weather Resistant Network Coupler,
2. Run ethernet cable through coupler, then attach a RJ-45 connector.
3. Tighten the nut and coupler for a weather resistant seal.
1. Ethernet Connector
2. Audio Input Connector
3. Audio Output Connector
4. Alarm Input / Output
5. Power Connector
6. Speaker
7. Lock Ring
8. Mounting Base
9. MicroSD Card Slot
10. Reset
4 5
2. Route and connect relevant cables using
the Weather Resistant Network Coupler
instructions provided on the previous page.
3. Attach the mounting base to
the wall with the provided screws.
4. Loosen the locking ring to
adjust the viewing angle of the
camera. Preview the camera’s
image on a monitor.
5. Tighten the locking ring to finish
the installation.
Ground Wire
Connection
Locking ring
5
LAN Configuration
MENU
IP Camera
Network Cable Network Cable
Switch
Router Computer
The camera can be accessed on the local network either using the
IP-Tool or directly in a web browser.
Accessing the Camera Using the IP-Tool
1. Make sure the camera and PC are connected to the LAN.
2. Locate the IP-Tool installer at www.
vitekcctv.com/Downloads/Soft-
ware/Transcendent-IPTool.zip
, then install on the PC. Open
the installed application.
3. Modify the IP address. The default IP address is 192.168.226.201.
Click the information of the camera listed in the above table to show
the network information on the right side. Modify the IP address and
gateway of the camera and make sure its network address is in the
same local network segment as the computer’s. Please modify the
IP address of your device according to the practical situation.
For example, the IP address of your computer
is 192.168.13.4. So the IP address of the
camera should be changed to 192.168.13.X.
After modifying, please input the password
of the administrator and click “Modify” button
to modify the setting.
** Default admin password: “123456".
6 7
4. Double-click the IP address and then the system will pop up the
web browser to connect IP-CAM. Edge in IE mode / IE browser
will download the Active X. control. After downloading, a login
window will pop up as shown below:
Input the user name and password to log in.
Default user name: admin / Default password: 123456.
Directly Access Through a Web Browser
The default network settings are as shown below:
IP address: 192.168.226.201 HTTP: 80
Subnet Mask: 255.255.255.0 Data Port: 9008
Gateway: 192.168.226.1
You may use the above default settings when you log in the camera for
the first time.
1. Manually set the IP address of the PC. The network segment should
be the same as the default settings of IP-CAM. Open the network
and share center. Click “Local Area Connection” to pop up the
following window.
Select “Properties” and then select Internet protocol according to the
actual situation (for example: IPV4). Next, click “Properties” button to
set the network of the PC.
6 7
2. Open Edge in IE mode / IE browser and input the default address
of IP-CAM and confirm. Edge in IE mode / IE browser will
download an Active X control.
3. After downloading the Active X control, the login box appears.
4. Input the default username and password and then enter to view.
WAN Configuration
Access the camera by the router or virtual server for example.
1. Make sure the camera is connected to the LAN; Then log into the
menu to set up the port number.
the IP address.
4. Open the web browser and input its WAN IP and HTTP port to
access the IP-CAM.
3. Go to the router’s management interface through IE browser to
forward the IP address and port of IP-CAM in the “Virtual Server”.
8 9

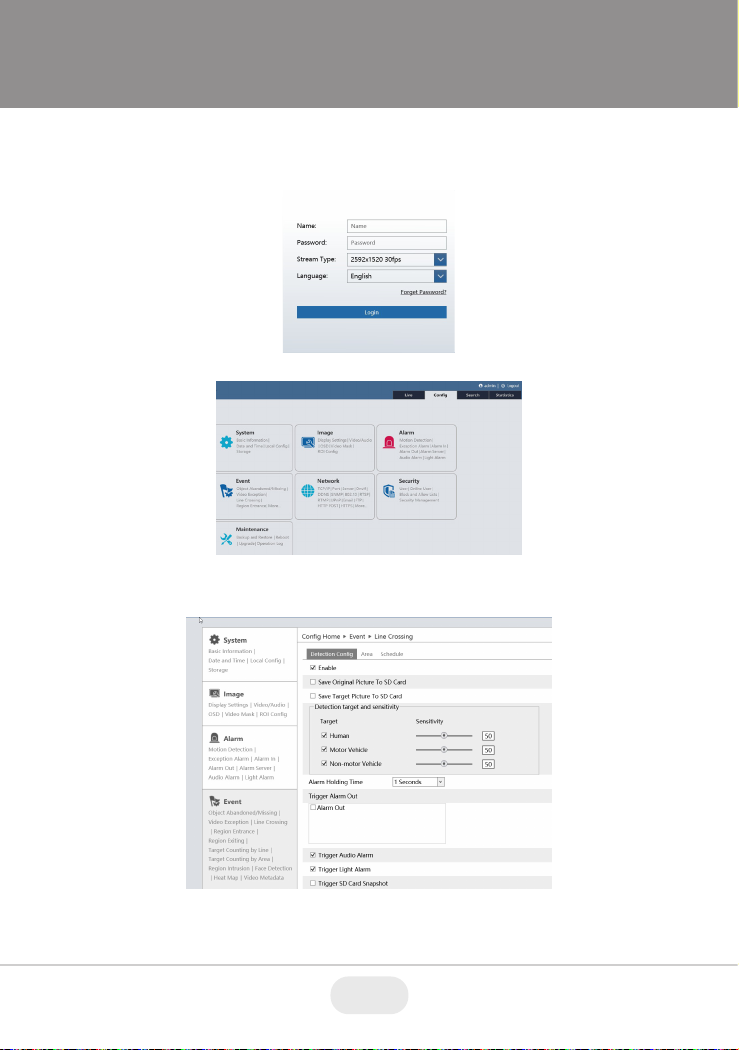

How to Set Up Audio / Light Alert on Event
1. Log into camera. Default username is admin and password is 123456.
2. Click on Cong Tab.
3. Under Event click on event that will trigger audio and / or light. Line crossing as
an example.
4. Enable line crossing. Also enable “Trigger Audio Alarm”, and also “Trigger Light
Alarm”, and then click “Save” at bottom of screen.
9
5. Click on “Area” at top and then click on “Draw Area”, then left click and hold to
draw the line. After the line is in the image, select which direction trips the event,
A>B, A<B or A><B, then click “Save”.
6. After the line crossing is set, click on “Audio Alarm” under Alarm. Enable audio
alarm and then select language, Voice (prerecorded warnings), Warning Times
(per event), Volume and then click “Save”.
10 11
7. If you want to customize the voice, you can choose “Customize”. Click “Browse”
under Upload Audio to choose the audio le you want to upload and then enter the
audio name. Finally, click “Upload” to upload the audio le. Note that the format of
the audio le must meet the requirement (see Tips), or it will not be uploaded. After
you upload the audio le, you can select the audio name from the audio list and
click “Listen” to listen to it. Click “Delete” to delete the audio.
*You can also record your own voice in the above interface and then upload.
