Vitek Transcendent VTD-TND4FLN-2 Manuel utilisateur

VITEK

VTD-TND4FLN-2

Transcendent Series

4 MegaPixel Fixed IP WDR

Vandal Dome Camera

QUICK START GUIDE

FEATURES:

• 1/3” 4.0 Megapixel CMOS Image Sensor

• Up to 30fps @ 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P

(1280 × 720), D1, CIF, 480 × 240

• 2.8mm Fixed Iris Lens

• Matrix IR with up to 100’ IR Range

• True 120dB Wide Dynamic Range

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D-DNR) Noise Reduction

• Built-in Mic*

• Programmable Analytics: Region Intrusion Detection, Object Removal / Missing, Scene

Change Detection, Line Crossing, Video Blur, Video Cast Detection

• Compression - Main stream: H.265+ / H.265 / H.264+ / H.264

Compression - Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

• MicroSD Card Slot for Local Recording (Up to 256GB)

• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps

• ONVIF Compliant

• IP67 Weather Resistance + IK10 Impact

• Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3), Pendant Mount (VT-TPDM-1

[reqs. VT-TJB03A]) and In-Ceiling Semi Flush Mount(VT-TFMT-S) Available

• 12VDC & PoE (Power over Ethernet) Operation

*Please research local, state and federal lawsregarding the implementation of audio

surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

2 3

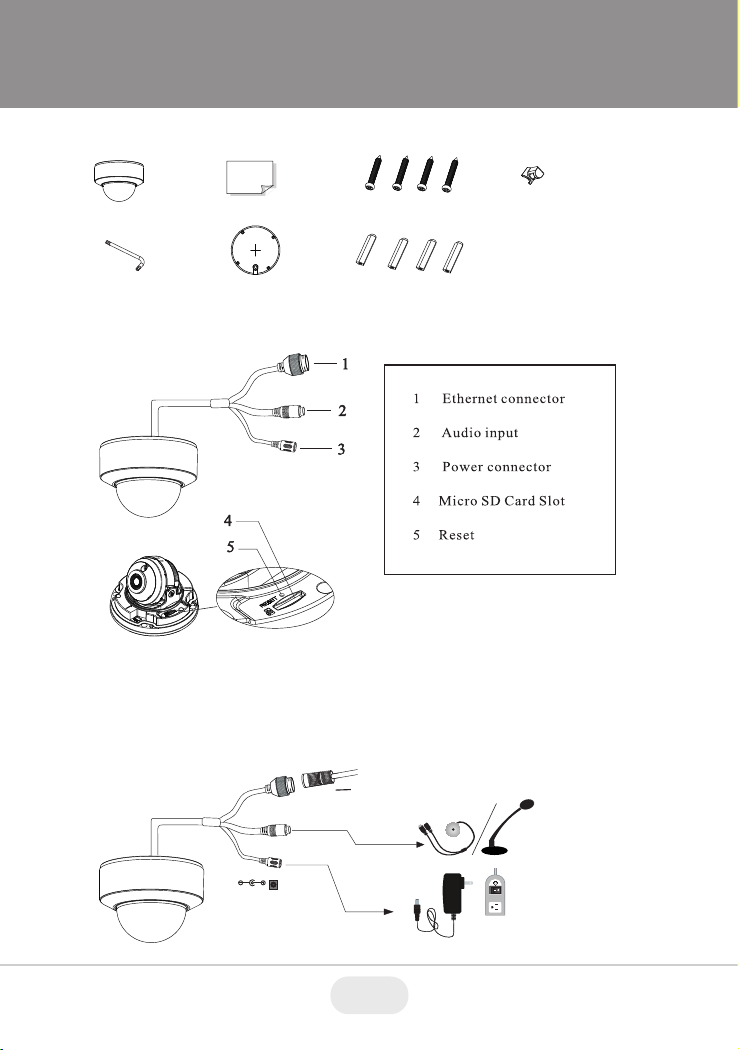

Components and Accessories

Cable Connections

Overview

First connect the weather resistant cap to an ethernet patch cable,

then connect the cameras ethernet adaptor. If not powering the

camera with PoE, also connect the power Cable to an approved

12VDC power supply.

Camera Quick

start

guide

Plastic

plug

×4

Drill

template

Rubber plug

Screwdriver

4 tapping screws PA 4×2

DC12V

Weather Resistant Security Cap

Weather Resistant Network Coupler

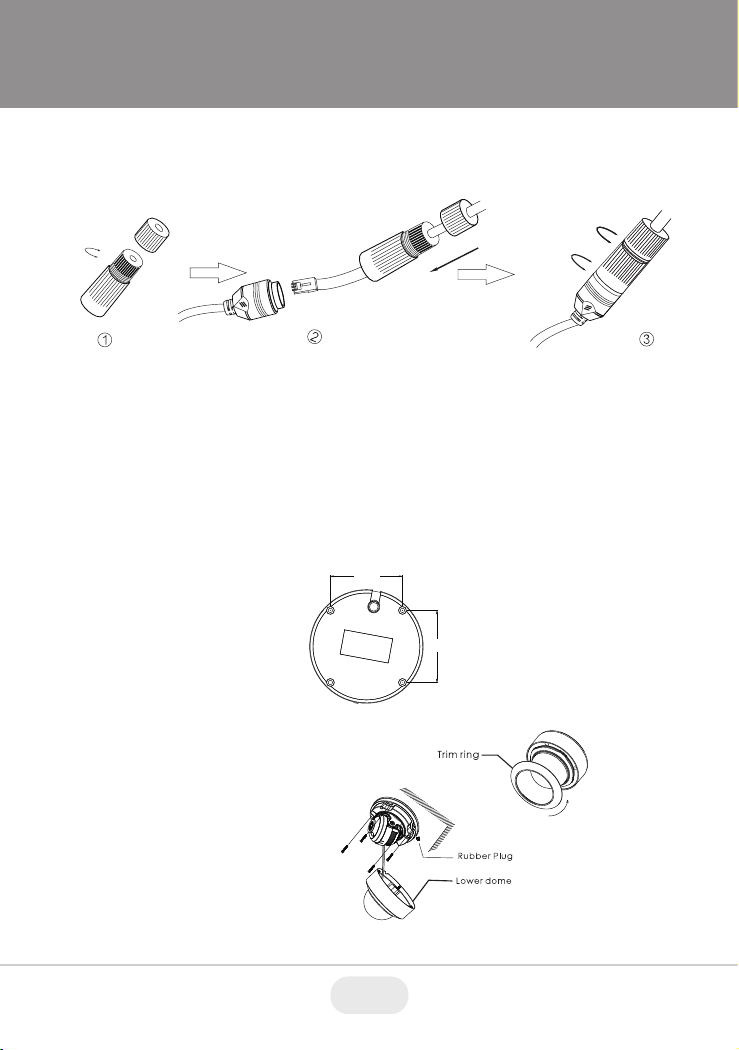

1. Loosen the nut from the Weather Resistant Network Coupler.

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

2. Loosen the screws to open

the lower dome and then

loosen the lock screw to

remove the mounting base.

1. Attach the drill template to

the place where you want to

install the camera, then drill

the screw holes and 1 cable

hole according to the drill

template.

2.92”

1A. Rotate the trim ring counterclockwise to remove.

Weather Resistant Network Coupler

1. Loosen the nut from the Weather Resistant Network Coupler.

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

2. Loosen the screws to open

the lower dome and then

loosen the lock screw to

remove the mounting base.

1. Attach the drill template to

the place where you want to

install the camera, then drill

the screw holes and 1 cable

hole according to the drill

template.

2.92”

1A. Rotate the trim ring counterclockwise to remove.

4 5

5. Install the lower dome on the camera with the included screws,

then put the trim ring back on the lower dome and rotate clockwise

until it locks.

4. Before adjusting the three-axis camera mount, preview the

camera on a monitor, then adjust as necessary achieve the

optimum viewing angle.

Rotation 0°~355°

Pan 0°~355°

Tilt 0°~67 °

3. Route the cables and

connect the power & video

cables, use the rubber plug

to fill the gap of the mounting

base, then secure the

mounting base to the ceiling

or wall with screws.

5. Install the lower dome on the camera with the included screws,

then put the trim ring back on the lower dome and rotate clockwise

until it locks.

4. Before adjusting the three-axis camera mount, preview the

camera on a monitor, then adjust as necessary achieve the

optimum viewing angle.

Rotation 0°~355°

Pan 0°~355°

Tilt 0°~67 °

3. Route the cables and

connect the power & video

cables, use the rubber plug

to fill the gap of the mounting

base, then secure the

mounting base to the ceiling

or wall with screws.

5. Install the lower dome on the camera with the included screws,

then put the trim ring back on the lower dome and rotate clockwise

until it locks.

4. Before adjusting the three-axis camera mount, preview the

camera on a monitor, then adjust as necessary achieve the

optimum viewing angle.

Rotation 0°~355°

Pan 0°~355°

Tilt 0°~67 °

3. Route the cables and

connect the power & video

cables, use the rubber plug

to fill the gap of the mounting

base, then secure the

mounting base to the ceiling

or wall with screws.

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

6 7

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan

the QR code on the front page of this quick guide and

download the complete manual.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan

the QR code on the front page of this quick guide and

download the complete manual.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan

the QR code on the front page of this quick guide and

download the complete manual.

8 9

Image Sensor, Size

Resolution

Min. Illumination

Lens

Day / Night

IR LEDs / IR Distance

Video Compression

Main-Stream

Sub-Stream

Bit Rate

Bit Rate Type

BLC Control

Wide Dynamic Range (WDR)

Digital Noise Reduction (DNR)

Image Setting

Analytics

Smart Alarm

Region of Interest (ROI)

Network

Audio

Storage

Remote Viewing

Reset

Supported Browsers

Connection Protocol

Ingress Protection / Impact Resistance

Power Input

Power Consumpt. (12VDC)

Power Consumpt. (PoE)

Working Environment

Weight Net (Shipping)

Dimensions (H × Dia)

1/3” 4.0 Megapixel CMOS Image Sensor

4MP(2560 × 1440), 3MP(2304 × 1296), 1080P(1920 × 1080), 720P(1280 × 720), D1, CIF, 480 × 240

0.005 lux @F1.6, AGC ON; 0 lux with IR

2.8mm Fixed Iris Lens

True Day/Night by ICR

1 Matrix / 100’

Main stream: H.265+ / H.265 / H.264+ / H.264, Sub: H.265+ / H.265 / H.264+ / H.264 / MJPEG

60Hz: 4MP/3MP/1080P (1~30fps), 50Hz : 4MP/3MP/1080P (1~25fps)

60Hz : 720P(1~30fps)/D1/CIF (1~30fps), 50Hz: 720P/D1/CIF (1~25fps)

64Kbps ~ 8Mbps

VBR / CBR

Backlight & Highlight Compensation

True WDR (120dB)

XD-DNR (2D-DNR & 3D-DNR)

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness,

Noise Reduction, etc., Adjustable Through Client Software or Web Browser

Region Intrusion Detection, Object Removal, Scene Change Detection, Line Crossing, Video Blur, Video Cast Detection

Motion Alarm, SD Card Error, SD Card Full

Each ROI to be Configured Separately

RJ45

1 Ch. Audio In + Built-in Mic*

MicroSD Card Slot (256GB)

CMS / Web Browser / Mobile (iOS/Android)

YES

Internet Explorer (IE) - Plug-in Required, Edge in IE Mode

ONVIF

IP67 Weather Rating + IK10

12VDC / PoE

150mA (LEDs Off) / 400mA (LEDs On)

< 5W

-22°~140°F (-30°~60°C) / Humidity: Less than 95 % non-condensing

22.58oz / 1.41lb / 640g (28.22oz / 1.65lb / 800g)

3.46 × 4.69” [87.8 × 119mm]

VTD-TND4FLN-2 Detailed Specifications

*Please research local, state and federal laws regarding the implementation of audio

surveillance.

OPTIONAL ACCESSORIES

AND RELATED PRODUCTS

FOR VTD-TND4FLN-2

VT-TJB03A

Optional Junction Box

VT-TFMT-S

Optional Semi-Flush

VT-TPDM-1

Optional Pendant Mount

- reqs. VT-TJB03A

VT-TWMT3

Optional Wall Mount

5.10”

6.10”

2.93”

4.64“

VT-TPLMT

Transcendent Universal Pole

Mount - reqs.

VT-TJB03A

VT-TCNMT

Transcendent Universal

Corner Mount - reqs.

VT-TJB03A

8.46”

6.43”

8.46”

8.47”

8.27”

3.17”

8.27”

3.17”

10 11

OPTIONAL ACCESSORIES AND

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Lumens

Lumens VC-A50PNW Manuel utilisateur
