QUICK START GUIDE

FEATURES:

• 1/3” 4.0 Megapixel CMOS Image Sensor

• NDAA Compliant

• Up to 30fps live view @ 4 MegaPixel (2592x1520)

• 2.8~12mm Motorized Varifocal Lens

• Matrix IR (up to 165’ IR Range)

• True Wide Dynamic Range

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D-DNR) Noise Reduction

• Gen. IV Advanced Analytics: Regional Entrance / Exit Detection, Line

Crossing, Target Counting [All by Human / Motor Vehicle Classification]

Face Detection, Object Abandoned / Missing, Heat Map, Video Blur, Video

Color Cast Detection, Abnormal Video

• H.265+/H.265/H.264+/H.264/MJPEG

• 1 Ch. Audio In*

• Remote Viewing via CMS, Internet Explorer, iOS & Android Apps

• ONVIF Compliant

• MicroSD Card Slot for Local Recording (256GB)

• IP67 Weather Resistance

• Wall Mount Included & Junction Boxes (VT-TJB08) Available

(see pg. 9 for additional mounting options)

• 12VDC & PoE (Power over Ethernet) Operation

*Please research local, state and federal laws regarding the implementation of audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

Also Available in Charcoal,

VTC-TNB4RMA4B

2 3

Components and Accessories

Overview

Connect the Weather Resistant Cap to an Ethernet patch cable.

Connect the cameras ethernet adaptor. If not powering the camera

with PoE, also connect the power Cable to an approved 12VDC

Power supply.

Camera Quick start guide

Drill template

Rubber plug

4 tapping screws PA 4×2

Secur ity cap

DC12V

1 Fixed Ring

2Mounting Base

Network connector*

Audio Input

5Power connector*

6Micro SD card slot

7Reset

8 Sunshield

Allen Key Plastic plug × 4

Weather Resistant Network Coupler

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

MicroSD Card Installation: Remove the bottom of the cover from the

camera, insert card and replace the cover (be sure it is even).

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Insert a micro

SD card

Cover

4 5

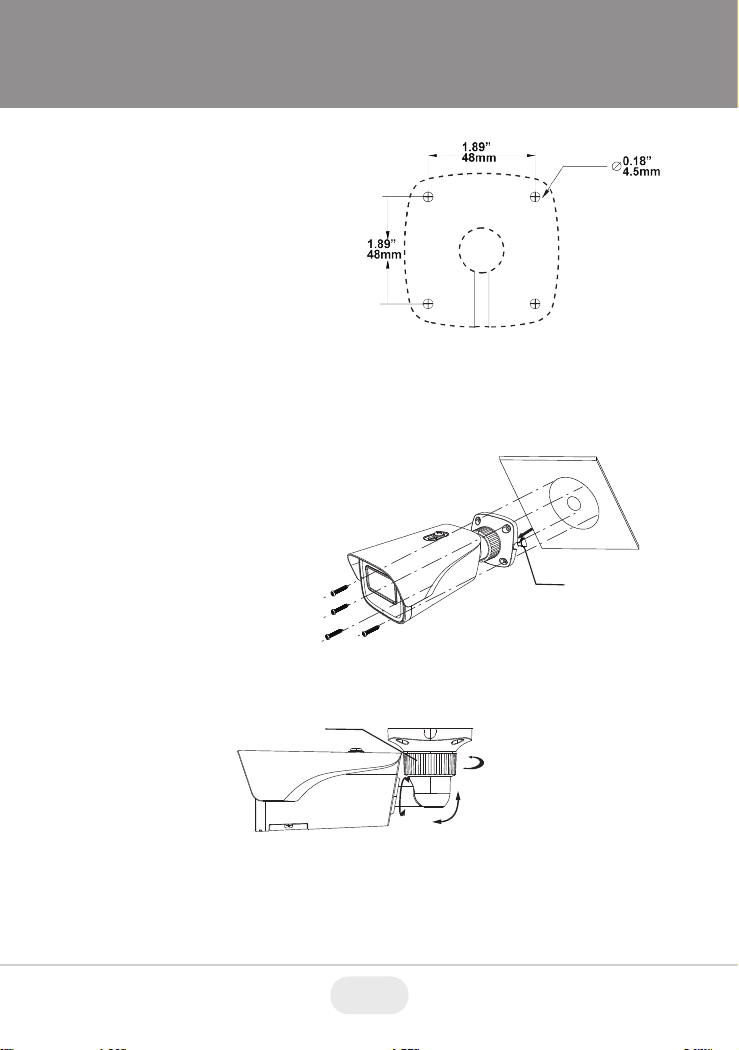

1. Attach the drill template to

the place where you want to

install the camera, then drill

3 screw holes and 1 cable

hole (if routing the cables

through the mounting base)

according to the drill

template

2. Route the cables and connect the power & video cables, use the

rubber plug to fill the gap of the mounting base, then secure the

mounting base to the ceiling or wall with screws.

Rubber plug

3. Loosen the mount lock to adjust the pan and tilt, then tighten the

mount lock to secure the viewing angle adjustments.

4. Carefully remove the protective film from the lens to complete the

installation.

90° Tilt

360° Rotation

360° Pan

Fixed Ring

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

6 7

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

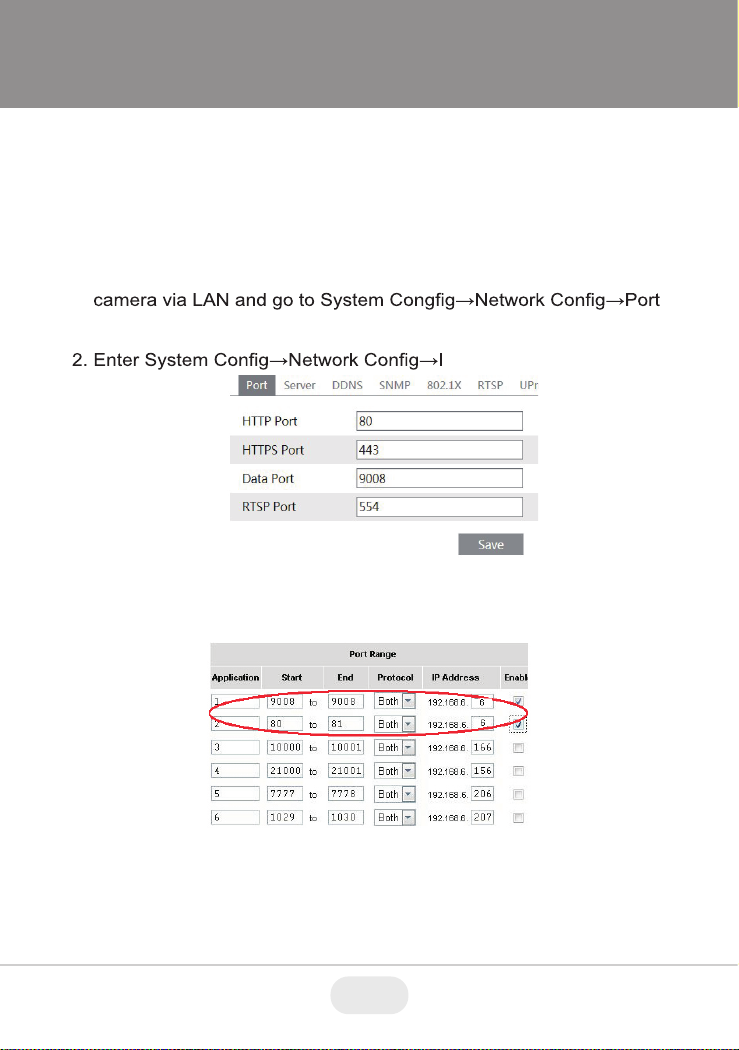

1. Make sure the camera is connected to the LAN; Then log into the

menu to set up the port number.

P Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan the

QR code on the front page of this quick guide and download

the complete manual.

8 9

Image Sensor

Image Size

Resolution

Min. Illumination

Lens

Day / Night

IR LEDs / IR Distance

Video Compression

Audio Compression

Main-Stream

Bit Rate / Type

Wide Dynamic Range (WDR)

Digital Noise Reduction (DNR)

Quality

Image Setting

Gen. IV Advanced Analytics

Smart Alarm

Region of Interest (ROI)

Network

Audio

Local Storage

Remote Viewing

Supported Browsers

Connection Protocol

Weather Protection

Power Input

Power Consumption 12VDC / POE

Working Environment

Weight / Dimensions L × W × H

1/3” 4.0 Megapixel CMOS Image Sensor

4 MegaPixel (2592 × 1520)

4 MP(2592 × 1520) / 3 MP(2304 × 1296) / 1080P(1920 × 1080)

/ 720P(1280 × 720) / D1 / CIF(480 × 240)

0.005 [email protected], AGC ON; 0 lux with IR

Motorized 2.8-12mm

True Day/Night by ICR

2 Matrix / 165’

H.265+ / H.265 / H.264+ / H.264 / MJPEG

G.711A / G.711U

1~30fps: 4MP, 3MP, 1080P, 720P, D1, CIF, 480x240

64Kbps ~ 8Mbps

120dB Super WDR

XD-DNR (2D-DNR & 3D-DNR)

VBR (Five Levels of Adjustment) / CBR (Adjustable)

Saturation, Brightness, Contrast, WDR, Noise Reduction

Regional Entrance / Exit Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification]

Face Detection, Object Abandoned / Missing, Heat Map, Video Blur, Video Color Cast Detection, Abnormal Video

Motion Alarm / SD Card Error / SD Card Full

Each ROI to be Configured Separately

RJ45

1 Ch. Audio In*

MicroSD Card Slot (Up to 256GB)

CMS / Web Browser / Mobile (iOS/Android)

IE, Edge, Chrome and Safari (no plug-in required)

ONVIF

IP67 Weather Rating

12VDC / PoE

350mA (LEDs Off), 750mA (LEDs On) / 9W

-22° ~140° / < 95% Humidity

22.93 oz. / 1.43 lbs. / 650g, 8.68” × 3.15” × 2.78” (220.5 × 80.1 × 70.5mm)

VTC-TNB4RMA4 Detailed Specifications

*Please research local, state and federal laws regarding the implementation of audio

surveillance.

VT-TPLMT

Transcendent Universal

Pole Mount (reqs. VT-TJB08)

VT-TCNMT

Transcendent Universal

Corner Mount (reqs. VT-TJB08)

OPTIONAL ACCESSORIES

AND RELATED PRODUCTS

FOR VTC-TNB4RMA4

VT-TJB08

Optional Junction Box

8.46”

6.43”

8.46”

8.47”

10 11
