Vinotemp 100WC Manuel utilisateur

Wood Wine Cellar

Owner’s Manual

Model: For General Use

TABLE OF CONTENTS

Welcome...............................................................................2

Important Safety Information…..........................................3

Features Description…………………………….……………4

Installation Instruction………………………………………..6

Cellar Inspection……………………………………………………..6

Cellar Location…………………………………………………….…6

Level Adjusting………………………………………………………6

Electrical Cord……………………………………………………….6

Winemate Installation……………………………………………….7

Cellar Assembly……………………………………………………..8

Use and Temperature Control………………………………9

Bottle Load……………………………………………………………9

Temperature Setting………………………………………………..10

Normal Sounds……………………………………………………...11

Maintenance…………………………………………………..12

Troubleshooting……………………………………………13

Customer Support……………………………………………14

Warranty……………………………………………………….15

Welcome

Nov. 2006

Dear Vinotemp Customers,

Thank you for purchasing our wood wine cellars. Our goal at Vinotemp is to

produce the finest quality wine cellars in the industry.

Each of us here at Vinotemp plays an important role in the development of your

wine cellar. Your unit has been made for you based on the information we have

received. We hope you enjoy your wine cellar for many years to come.

We thank you for your business. We hope that your experience with us is

pleasurable and that we help you enjoy one of the greatest pleasures in life,

collecting and drinking wine.

Sincerely yours,

India Hynes

President

Vinotemp International Corp.

17621 S. Susana Rd.

Rancho Dominguez

California 90221

U. S. A.

Thank you for choosing a Vinotemp wine cellar.

Please enter the complete model and serial numbers in the space provided:

Model_________________________________________________________

Serial No.______________________________________________________

Attach your purchase receipt to this owner’s manual.

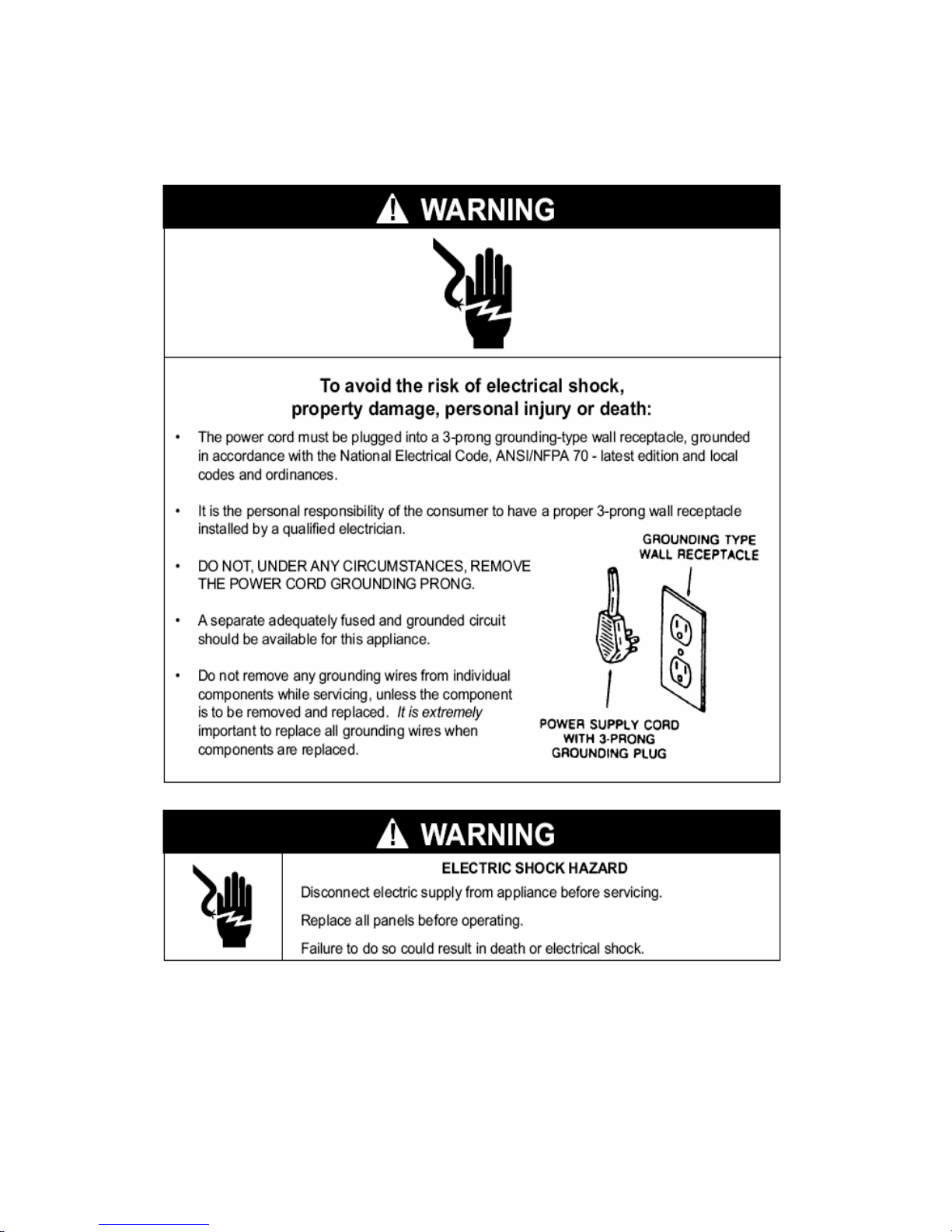

Important Safety Information

•DO NOT PLUG IN THE CELLAR UNTIL 24 HOURS AFTER

DELIVERY.

•DO NOT USE A GROUND FAULT INTERRUPTER (GFI).

•A DEDICATED 15 AMPCIRCUIT IS HIGHLY RECOMMENDED.

•KEEP CHILDREN OUT OF ENTERING THE WINE CELLAR.

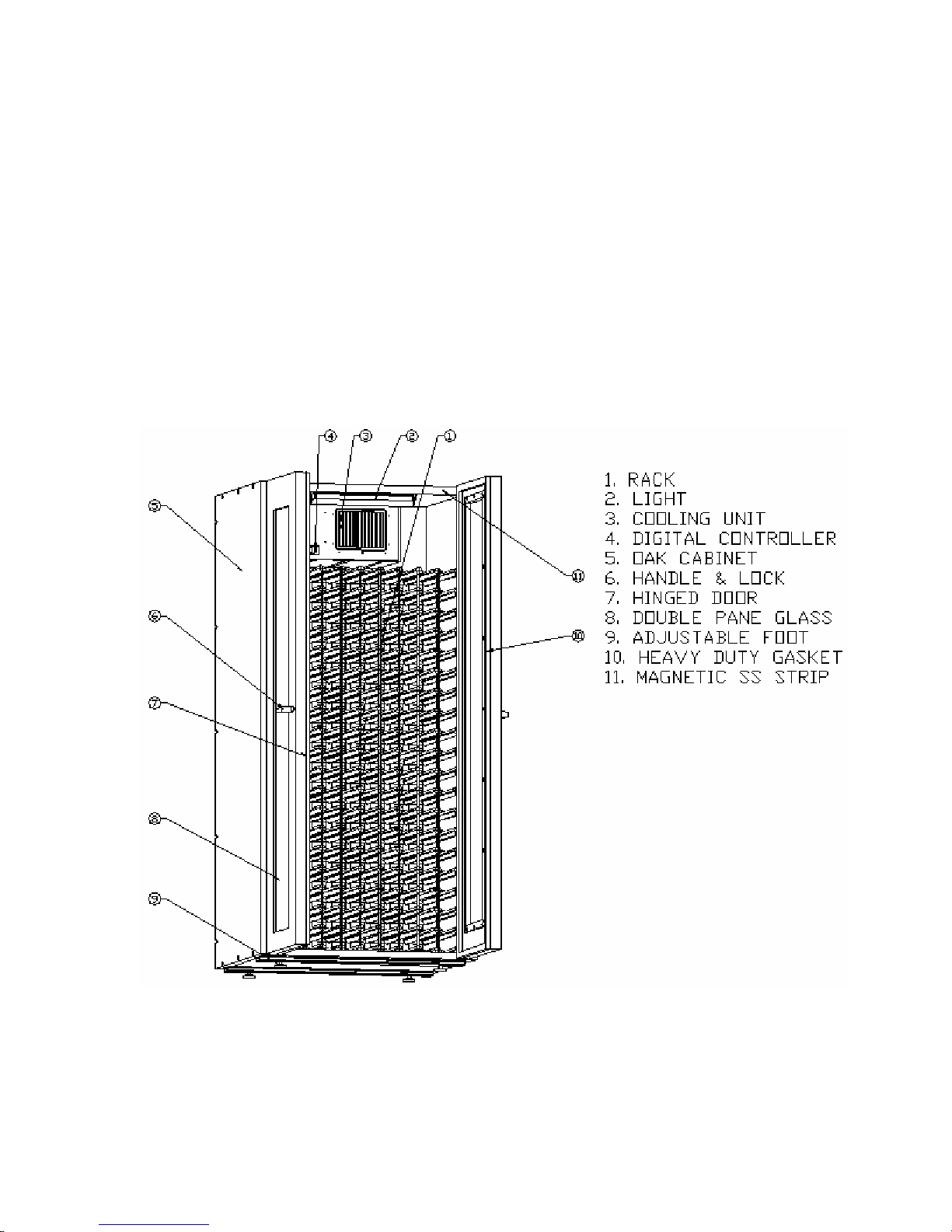

Feature Description

•Vinotemp wood wine cellar is designed and used to provide a stable

temperature between 52~62 °F at a normal environment.

•The wine cellar will keep a desired humidity of 50~70% RH even when the

environment becomes dry and humid.

•These temperatures and humilities are optimized for long term wine

storage.

•Top, rear and side exhaust options are available for convenient

installations.

•See the voltage type from the label on the back of the cooling unit.

The dimension and capacity are specified as follows:

Model Description Capacity (Bottles) Dim (W”XD”XH”)

VINO-100WC 1 Door 70 30X29X40

VINO-110FW 2 French Doors 70 36X29X36

VINO-114 1 Door 70 30X29X40

VINO-114G 1 Glass Door 70 30X29X40

VINO-200WC 1 Door 175 28X29X73

VINO-230 2 Doors 135 38X29X50

VINO-230G 2 Glass Doors 135 38X29X50

VINO-250 1 Door 175 28X29X73

VINO-250G 1 Glass Door 175 28X29X73

VINO-296 2 Doors 200 58X29X40

VINO-296G 2 Glass Doors 200 58X29X40

VINO-300WC 1 Door 240 32X29X82

VINO-400EC 1 Door 300 38X29X82

VINO-400EC3D 1 Door 450 38X40X82

VINO-400CRED 4 Doors 560 88X29X40

VINO-400CREDG 4 Glass Doors 560 88X29X40

VINO-440 1 Door 300 38X29X82

VINO-440TDFT 2 Furniture Trim Doors 300 38X29X82

VINO-440TDG 2 Glass Doors 300 38X29X82

VINO-440TDBON 2 Beveled Doors, Cornice 300 46X33X86

VINO-440TDGFE 2 Glass Doors, Front Vent 300 38X29X82

VINO-600EC 2 Doors 450 51X29X88

VINO-600EC3D 2 Doors 700 51X40X88

VINO-600-2 2 Doors, 2 Cooling Units 500 51X29X88

VINO-700FT 2 Furniture Trim Doors 455 51X29X88

VINO-700G 2 Glass Doors 455 51X29X88

VINO-700PRO 2 Furniture Trim Glass Doors 455 51X29X88

VINO-700BON 2 Beveled Doors, Cornice 455 59X33X92

Installation Instruction

1. Cellar Inspection

•Note any damage by yourself and the installation personals.

•Claim the damage with 5 days after receipt.

2. Cellar Location

•Place the wine cellar in a properly ventilated location. If it is not, heat

exhausted by the unit will build up and the unit will not operate properly.

•Leave 4~6 “clearance between the exhaust side and the wall or ceiling.

•Leave 2~4” clearance for the fresh air supply side.

•Leave 1~2” for the other sides.

3. Level Adjusting

•Adjust the level by raising and lowering the feet height using a wrench

•Ensure the cabinet stand solidly and the doors flush and seal well.

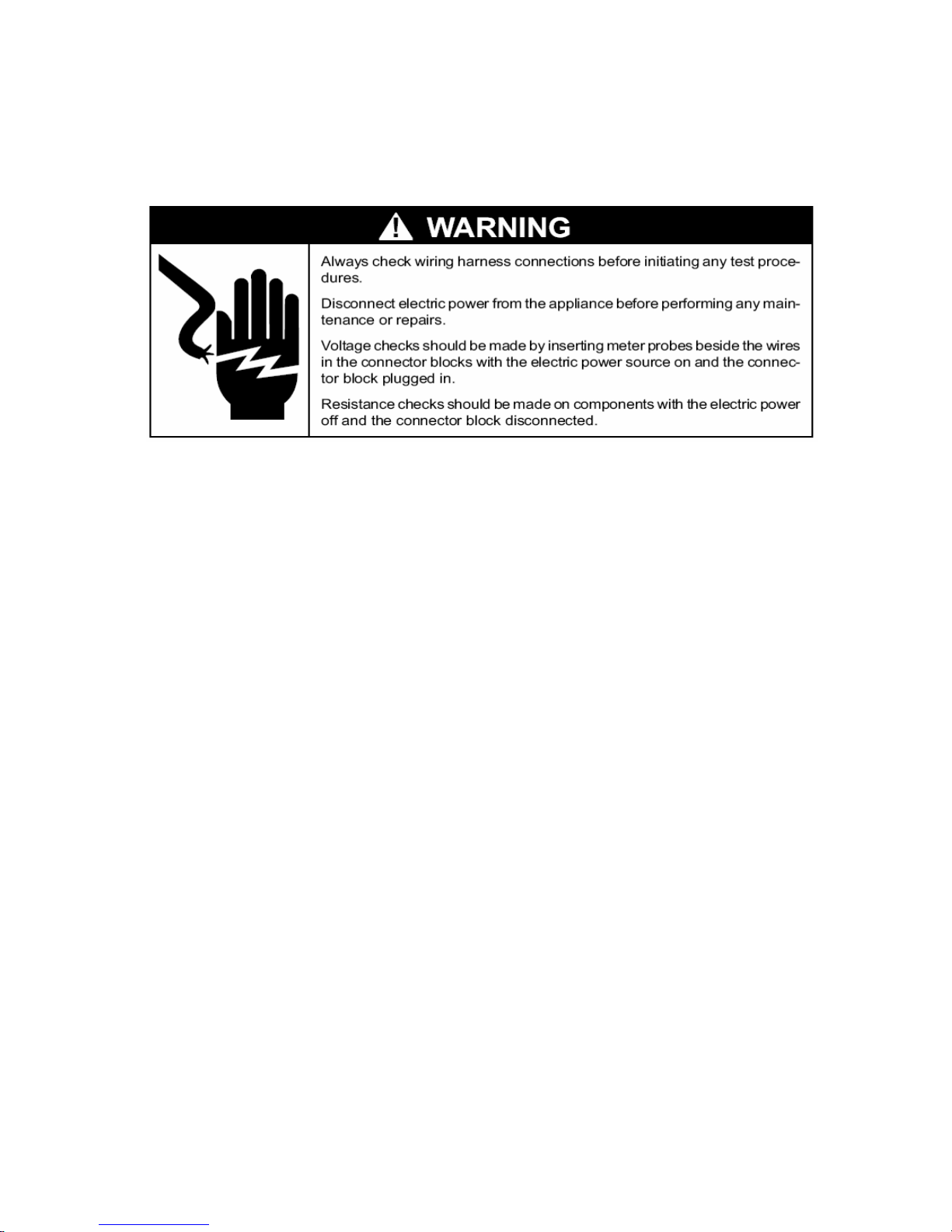

4. Electrical Cord

•We strongly recommend against the use of an extension cord. However, if

you still select to use an extension cord, it is absolutely necessary that it is

a UL LISTED 3-wire grounding type appliance extension cord. The

marked rating of the extension cord should be 115 V, 15 A. or equivalent

and not greater than 15ft in length.

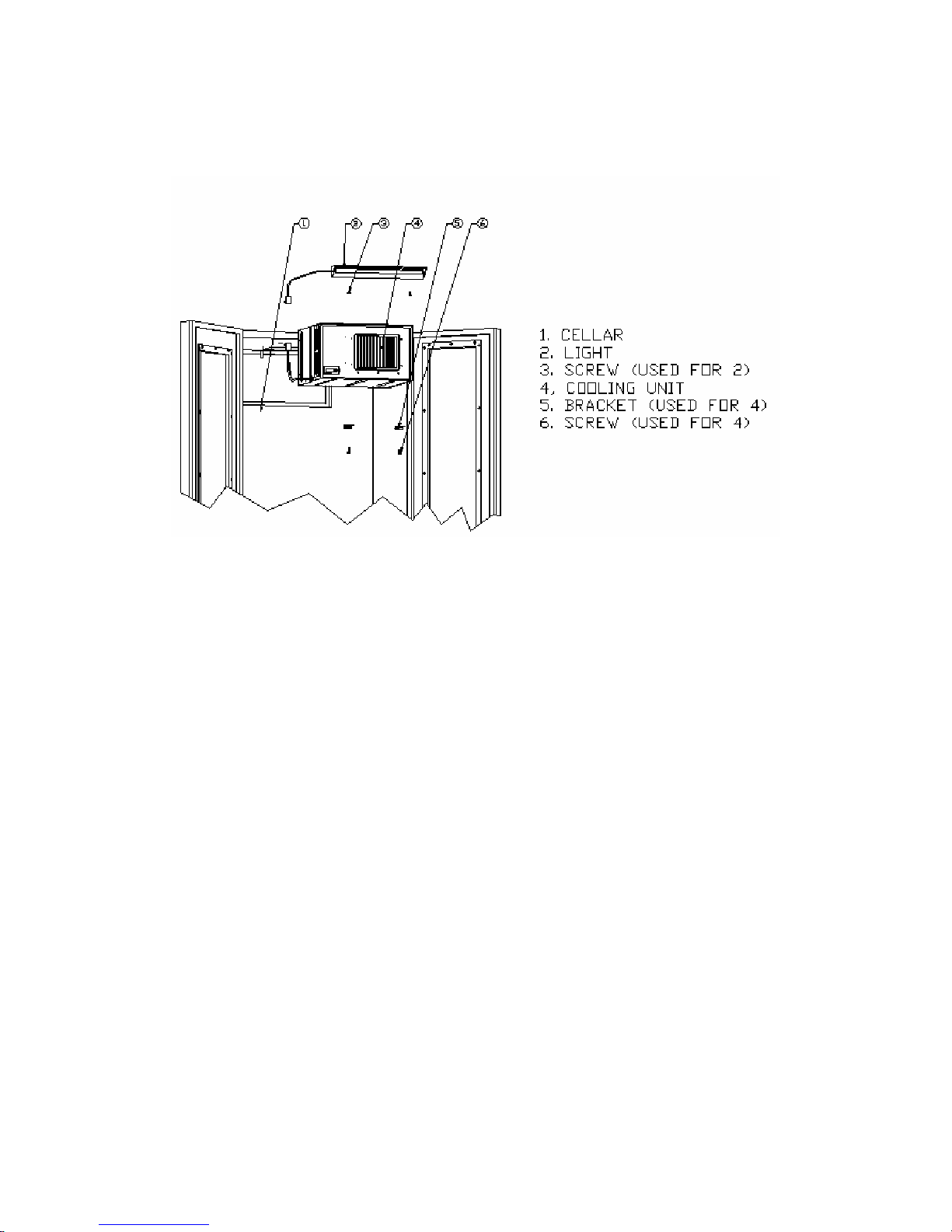

5. Winemate Installation

•Unplug the wine cellar or disconnect power.

•Unplug the light from receptacle.

•Unscrew the 2 screws and remove the light.

•Unplug the Winemate cooling unit from receptacle.

•Use 7/16” wrench to unscrew the 2 screws and remove the 2 brackets

•Move the cooling unit away from the mounting side and place it on the top

of the rack temporally

•Remove the cooling unit to a stable place.

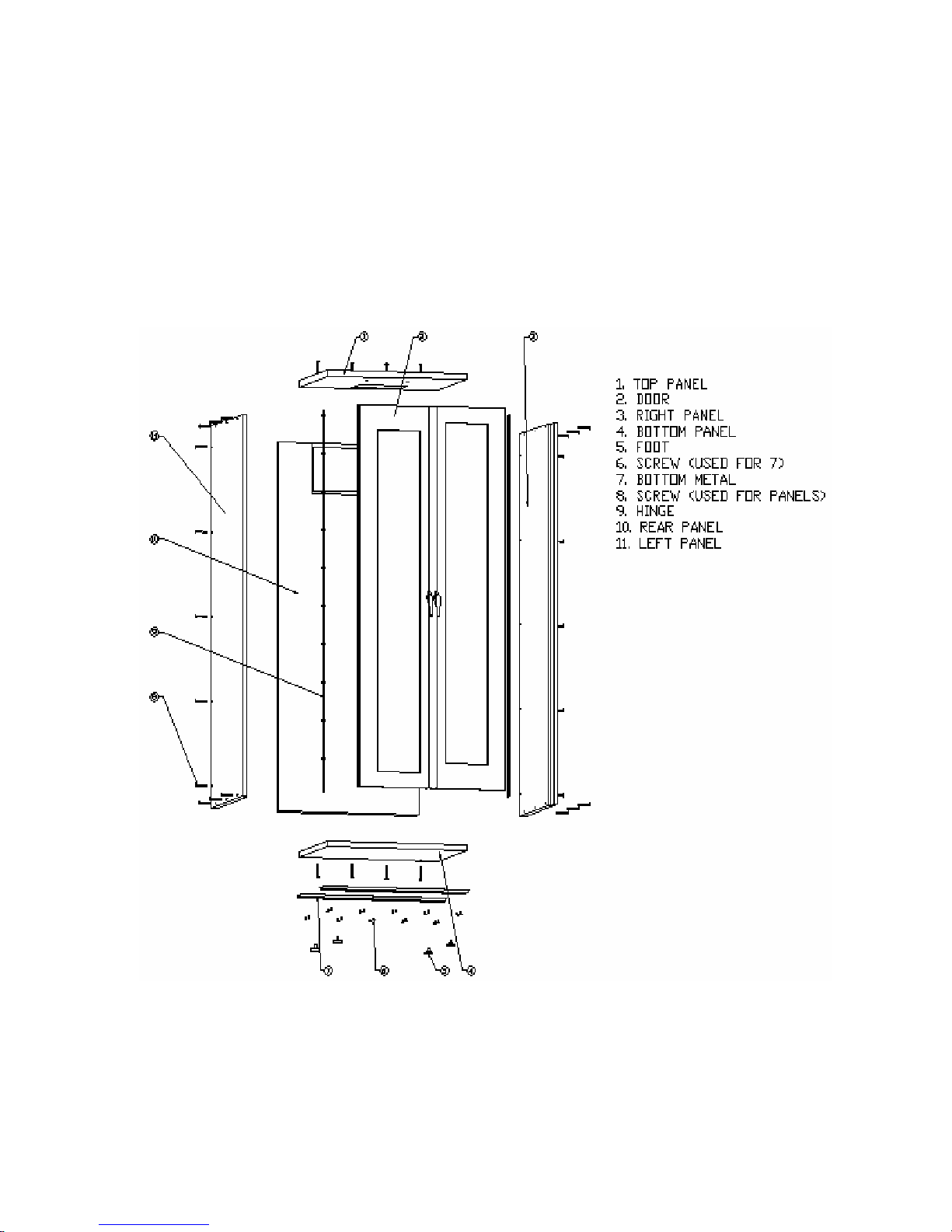

6. Cellar Disassembly

•Use 4 mm hex wrench, ¼” nut driver and Phillips head screw driver to

unscrew and remove all the screws and nuts from panels and feet.

Use & Temperature Control

1. Bottle Load

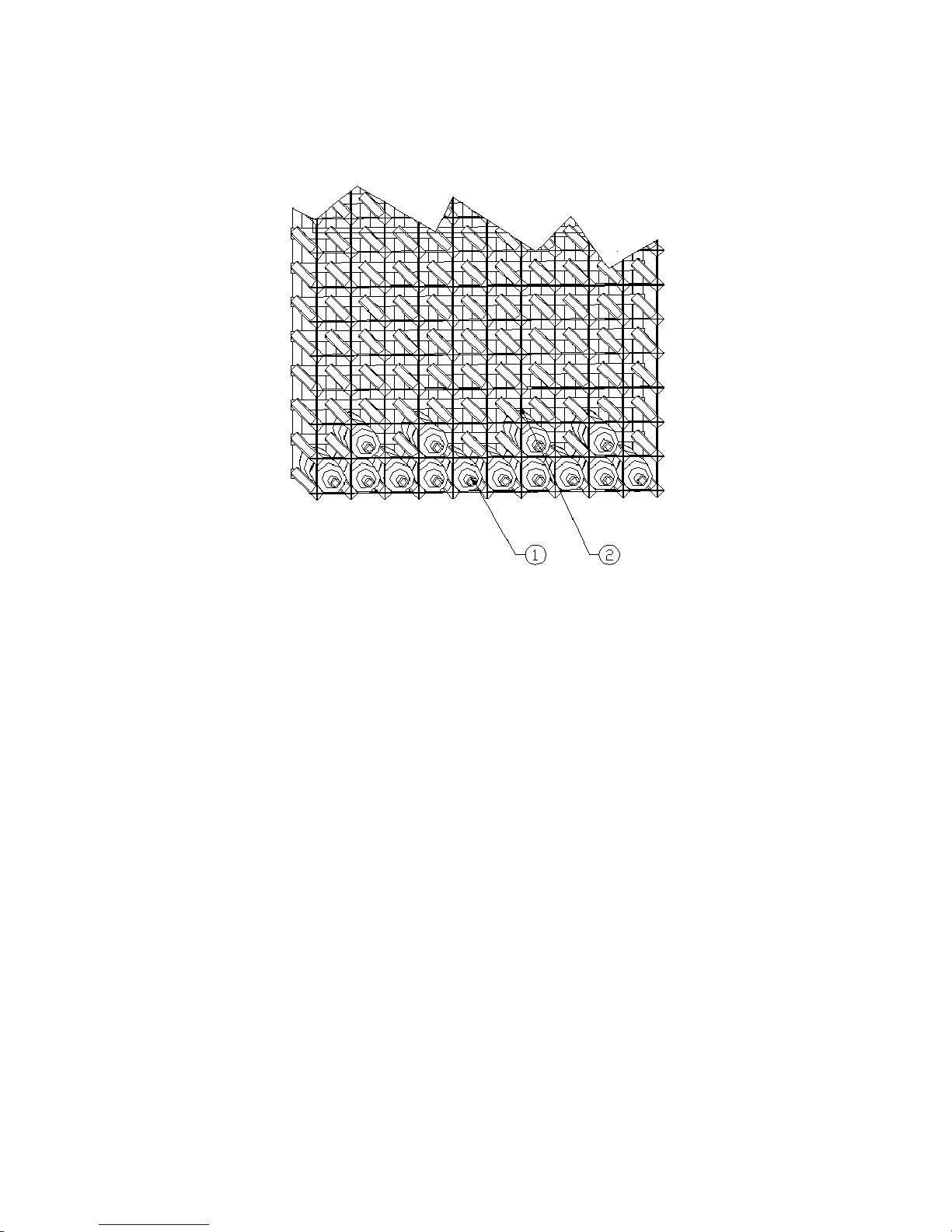

1. Wine Bottle 2. Rack

•Unless otherwise modified, the standard rack cubicle is 3 3/8”X3 3/8” to

accommodate the traditional cabernets standard 750 ml Burgundy or

Bordeaux bottles.

•Customize 3 ¾” for French Burgundy, 4” for Dom Perignon, 4 ½” for

Magnums.

•Load wine bottles starting from the bottom; locate the bottles evenly from

left to right. This will prevent the cellar from shifting and potentially

knocking the doors out of alignment.

•Keep the rack open by every few bottles to allow the free airflow.

•Load the cellar with 2 cases of bottles everyday to allow the cellar cool

down rapid.

2. Temperature Control

•Set the temperature at 55 °Ffor the optimum aging of wine

•Set the temperature higher at very high ambient temperature.

•On initial start-up, the time required to reach the desired temperature

will vary, depending on the quantity of bottles, temperature setting

and surrounding temperature.

•Allow at least 24 hours to stabilize the temperature for each new

temperature setting operation
