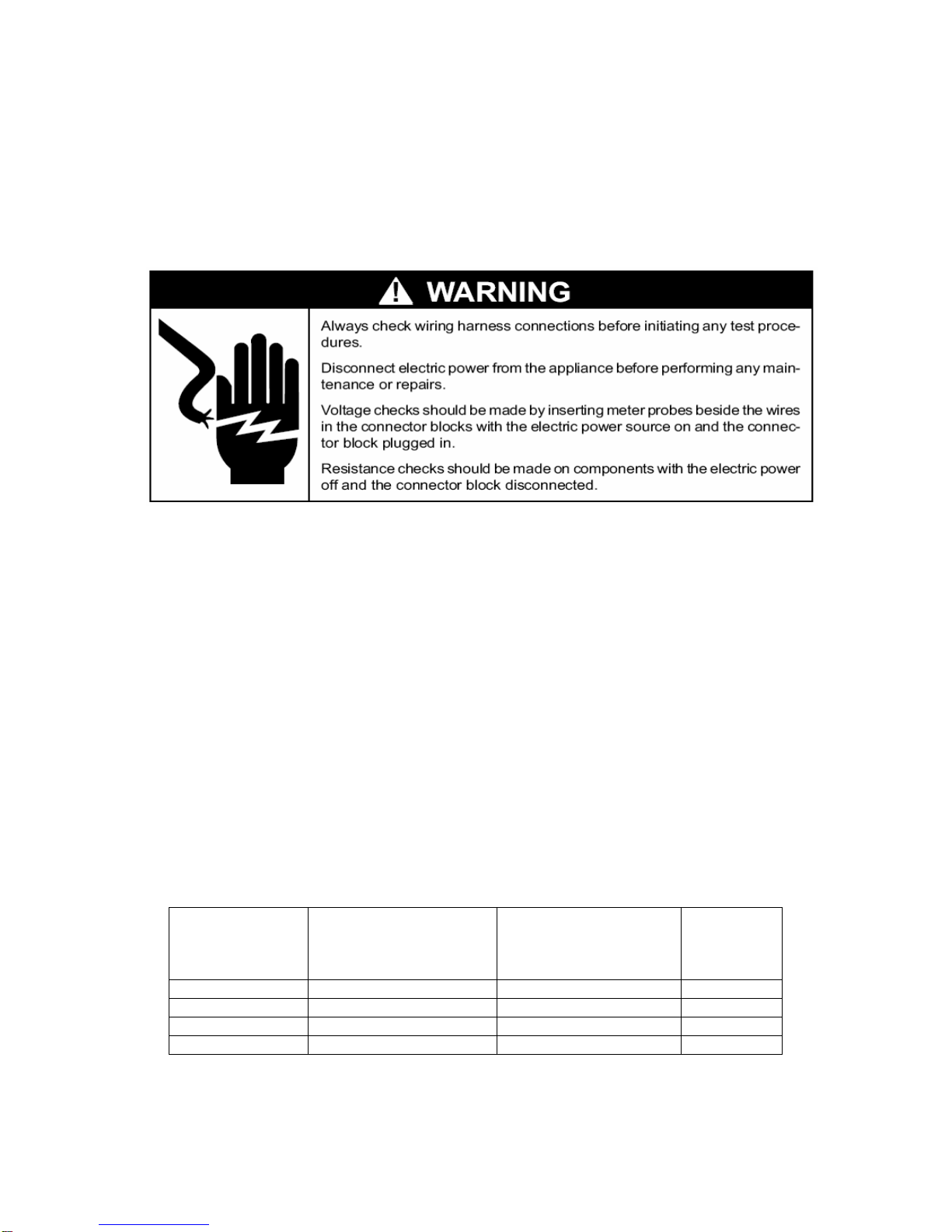

- 1 -

VINO2500SSH, 4500SSH

VINO6500SSH, 8500SSH

Installation Instruction

Federal law requires that WINEMATE split cooling systems be

installed by an EPA certified refrigeration technician.

1. Location

•Place the condensing unit in a properly ventilated location. If it is not, heat

exhausted by the condensing unit will build up and the cooling system will

not operate properly.

•Leave minimum 3 feet clearance between the exhaust side and the wall.

•Leave minimum 1 foot clearance for the fresh air supply side.

•Condensing unit should be elevated to avoid possible flooding and shaded

from direct sun. It should not be exposed to temperatures higher than 125

°F or lower than 20 °F.

•Air flow from the unit cooler should be unobstructed for at least 1 foot.

2. Refrigeration Installation

Model Liquid Line Diameter

(inch), recommended

Suction Line Diameter

(inch), recommended

Pipe (inch)

VINO2500SSH 3/8 3/8 8

VINO4500SSH 3/8 3/8 8

VINO6500SSH 3/8 5/8 10

VINO8500SSH 3/8 5/8 10

WINEMATE split system is shipped as components and is ready for use only

after a certified refrigeration technician has properly installed and tested the

- 2 -

system. Proper installation is critical. WINEMATE can only warrant the quality of

the components. The installation and proper operation of the system must be

warranted by the installer.

Installation of the system must be done in accordance with all state and local

building codes.

The condensing unit and unit cooler are connected by a liquid line and an

insulated suction line that are supplied by the installer. These lines must be

properly sized for the distance between the two units. After the units and the lines

are installed, the system must be pressure tested. If no leaks are found,

evacuate and charge system with R134A. Refrigerant amount will vary

depending on the length of line set.

3. Air Sensor

The air sensor is recommended to place in the wine room. If it is in a return duct,

the temperature differential may lead to erroneous readings.

4. Electrical Wiring

•We strongly recommend against the use of an extension cord. However, if

you still select to use an extension cord, it is absolutely necessary that it is

a UL LISTED 3-wire grounding type appliance extension cord. The

marked rating of the extension cord should be 115 V, 20 A. or equivalent

and not greater than 15ft in length.

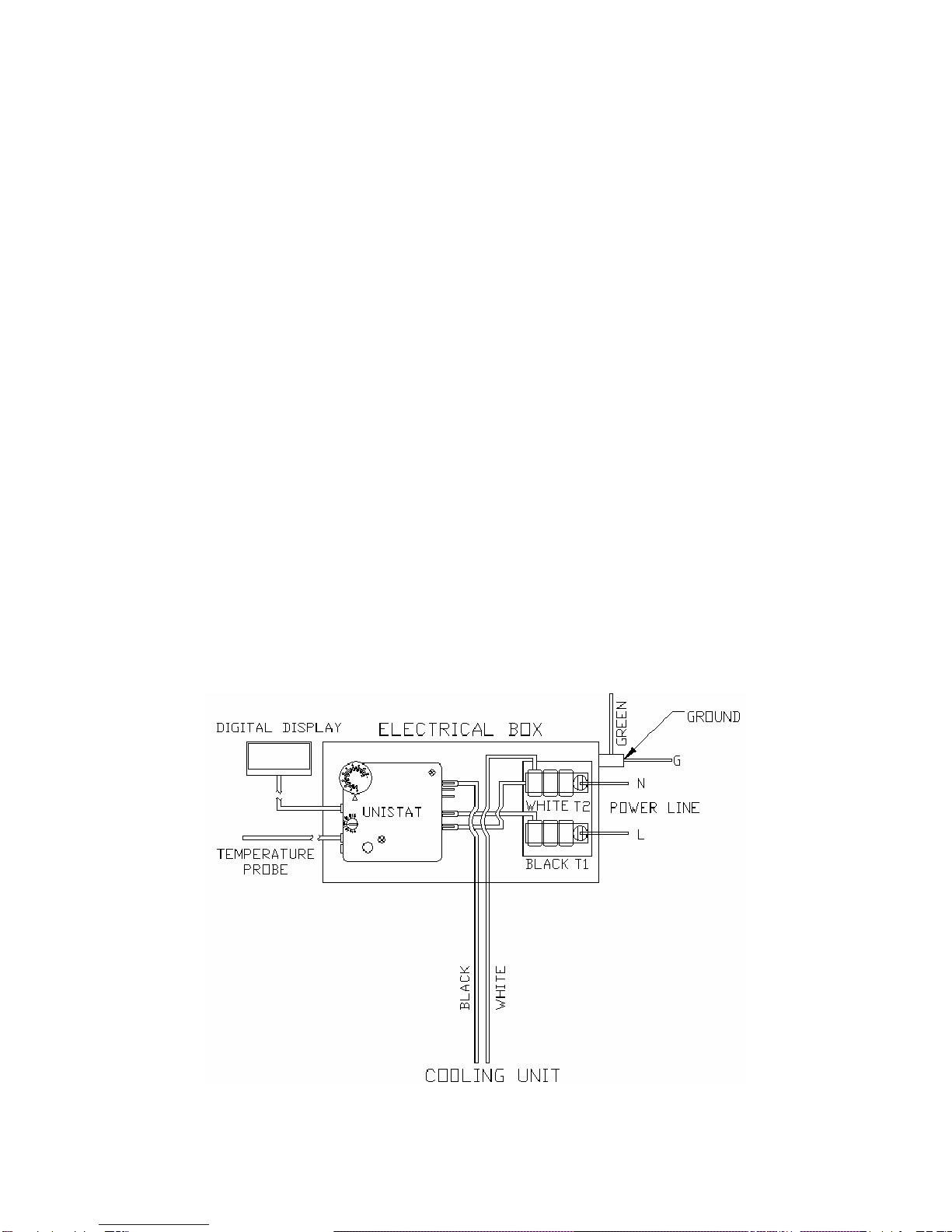

1) Customer Wiring

- 3 -

•If the air sensor can not reach the wine room because of the distance

between the cooling unit and wine room, you need to remount the

electrical box.

•Remove the 3 black, white and green wires that come from the cooling

unit in the electrical terminal

•Remove the electrical box and mount it close to the wine room so the air

sensor can reach the wine room

•Use extra wires to connect the terminal in the electrical box and the 3

white, black and green wires from the cooling unit.

2) Factory Wiring

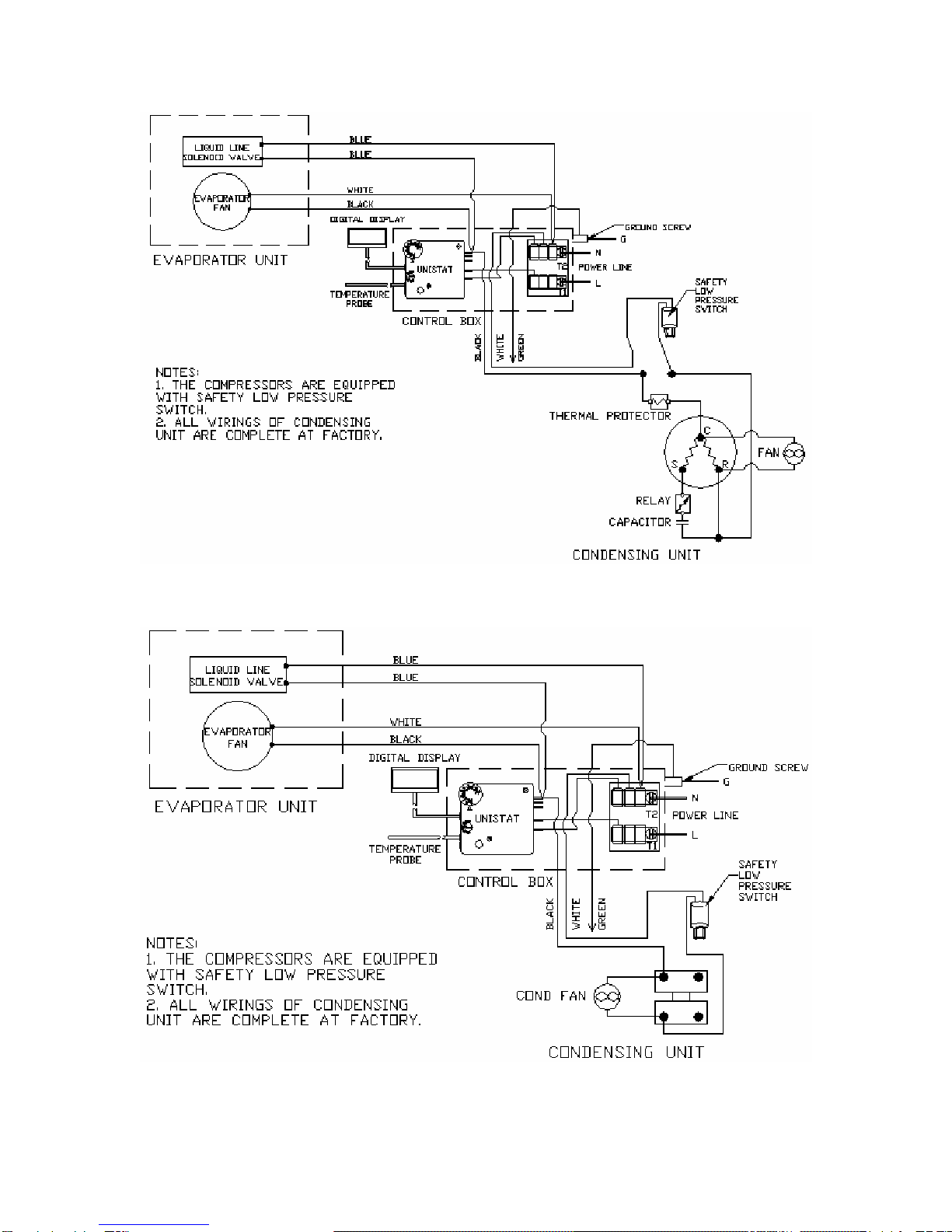

VINO2500& 4500SSH Electrical Wiring Diagram

- 4 -

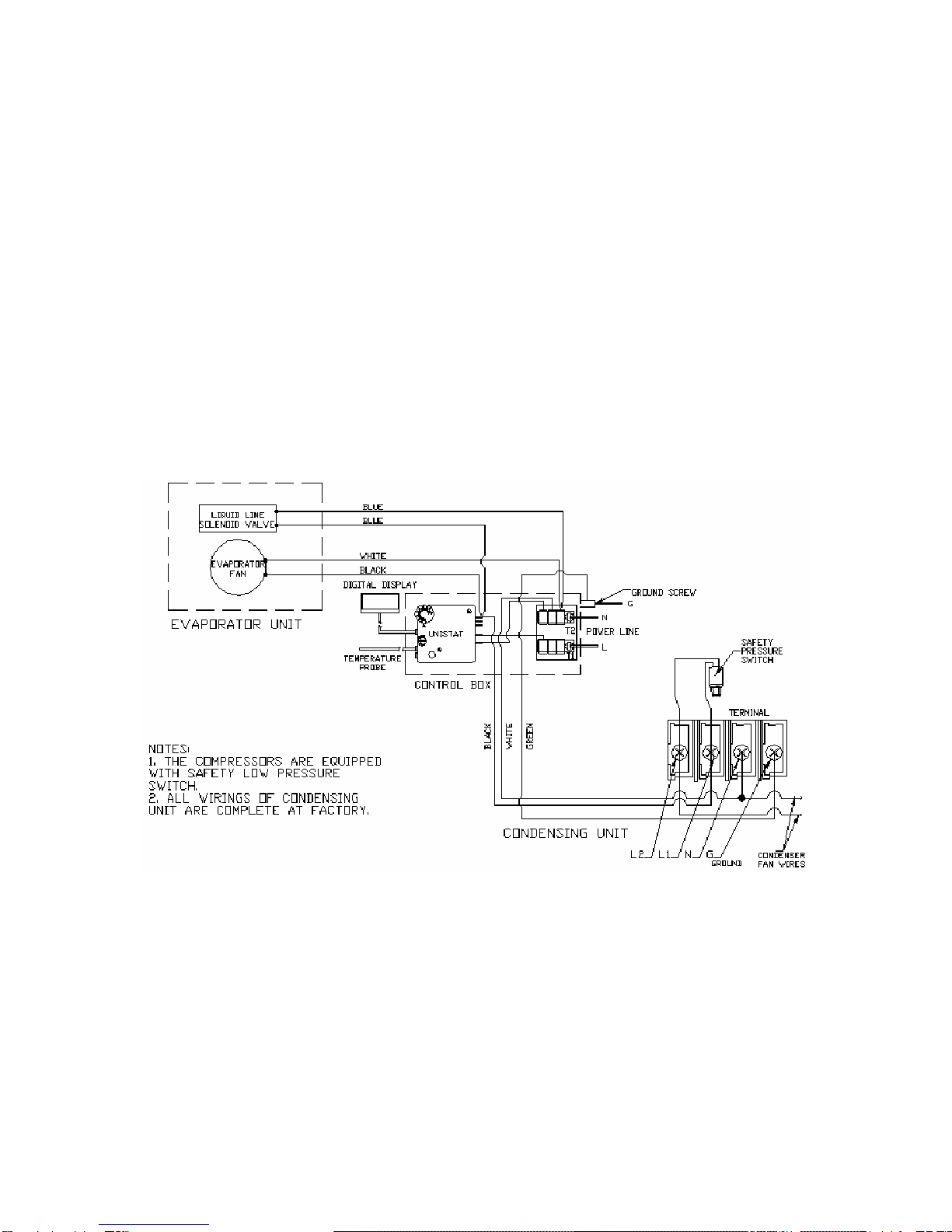

VINO6500SSH Electrical Wiring Diagram

VINO8500SSH Electrical Wiring Diagram
