Viking K-2000-DVA Instructions d'installation et d'utilisation

Contact Closure

Dialing with

Hot-Line Dialers

February 8, 2005

Initiate Dialing from a Contact Closure

APPLICATION

All of Viking’s hot-line dialers, both existing and discontinued, may

be configured to dial when triggered by a contact closure. This is

ideal for applications where a piece of equipment provides the clo-

sure, allowing the dialer to dial a phone num-

ber or pager number for alarm notification.

Various contact closures are required,

depending on the dialer.

Important: Different revisions of products

may require different programming and/or

setup. Please read your serial label to find

the proper selection.

K-

-1

-5

ON ON

Important: Electronic components are sensitive to static electricity.

Personnel and the work area should be grounded before handling.

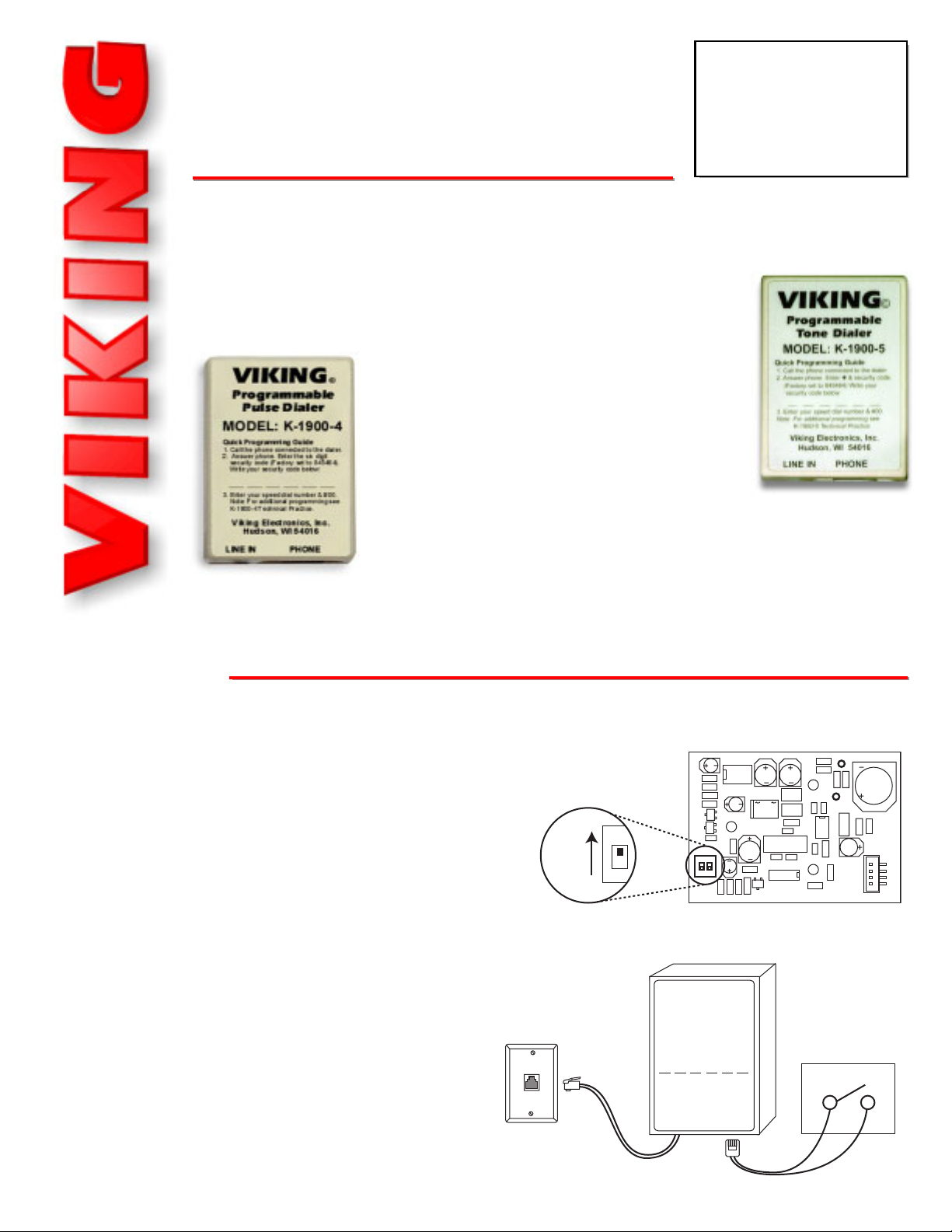

1. Remove the cover of the K-1900-5.

2. Locate the Dip switches.

3. Set DIP switch 1to ON (as shown to the right).

4. Replace the cover when finished.

A. Converting the K-1900-5 to Contact Closure Dialing

Note: The K-1900-5 will drop the line as soon as

it’s done dialing, so it is important to add several

pauses to the end of the dialing string to allow

time for the call to go through. If the contact or

switch is continuous, the K-1900-5 will drop the

line when closure is released.

VIKING

Programmable

Tone Dialer

MODEL: K-1900-5

Quick Programming Guide

1. Call the phone connected to the dialer.

2. Answer phone. Enter ,& security code.

(Factory set to 845464) Write your

security code below:

3. Enter your spped dial number & #00.

Note: For additional programming see

K-1900-5 Technical Practice.

Viking Electronics, Inc.

Hudson, WI 54016

LINE IN PHONE

Modular

Phone Plug Red/Green

Contact Closure

or Switch

(2 second minimum)

C.O. Line or Analog

PABX/KSU Station

Model K-1900-5

B. Installing the K-1900-5 for Contact Closure Dialing

Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or

subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate

such changes.

Fax Back Doc 866 ZF301090 Rev 21Printed in the U.S.A.

K-

-1

-4

VIKING

Programmable

Pulse Dialer

MODEL: K-1900-4

Quick Programming Guide

1. Call the phone connected to the dialer.

2. Answer phone. Enter the six digit

security code. (Factory set to 845464)

Write your security code below:

3. Enter your speed dial number & #00.

Note: For additional programming see

K-1900-4 Technical Practice.

Viking Electronics, Inc.

Hudson, WI 54016

LINE IN PHONE

Modular

Phone Plug Red/Green

150 Ohm 1/2 Watt

Resistor

C.O. Line or Analog

PABX/KSU Station

Model K-1900-4

Contact

Closure

Note: The contact closure must be maintained

for the duration of the call.

A. Single Number Dialing

JP1

JP2

JP3

JP5

JP4

Green Wires

OEM front panel with

telephone balance

network, hook switch

and momentary push

buttons.

K-1900-4 used in FCC

Registered phone assembly

C.O. line or analog

PABX/KSU station

Red Wires

Momentary

Push Buttons Speed Dial

Memory Positions

JP1 ..................

JP2 ..................

JP3 ..................

JP4 ..................

JP5 ..................

00 .....................

01 .....................

02 .....................

03 .....................

04 .....................

Hotel

Car Rental

Airline

Information

Security

Take handset off hook then press button

Courtesy Phone

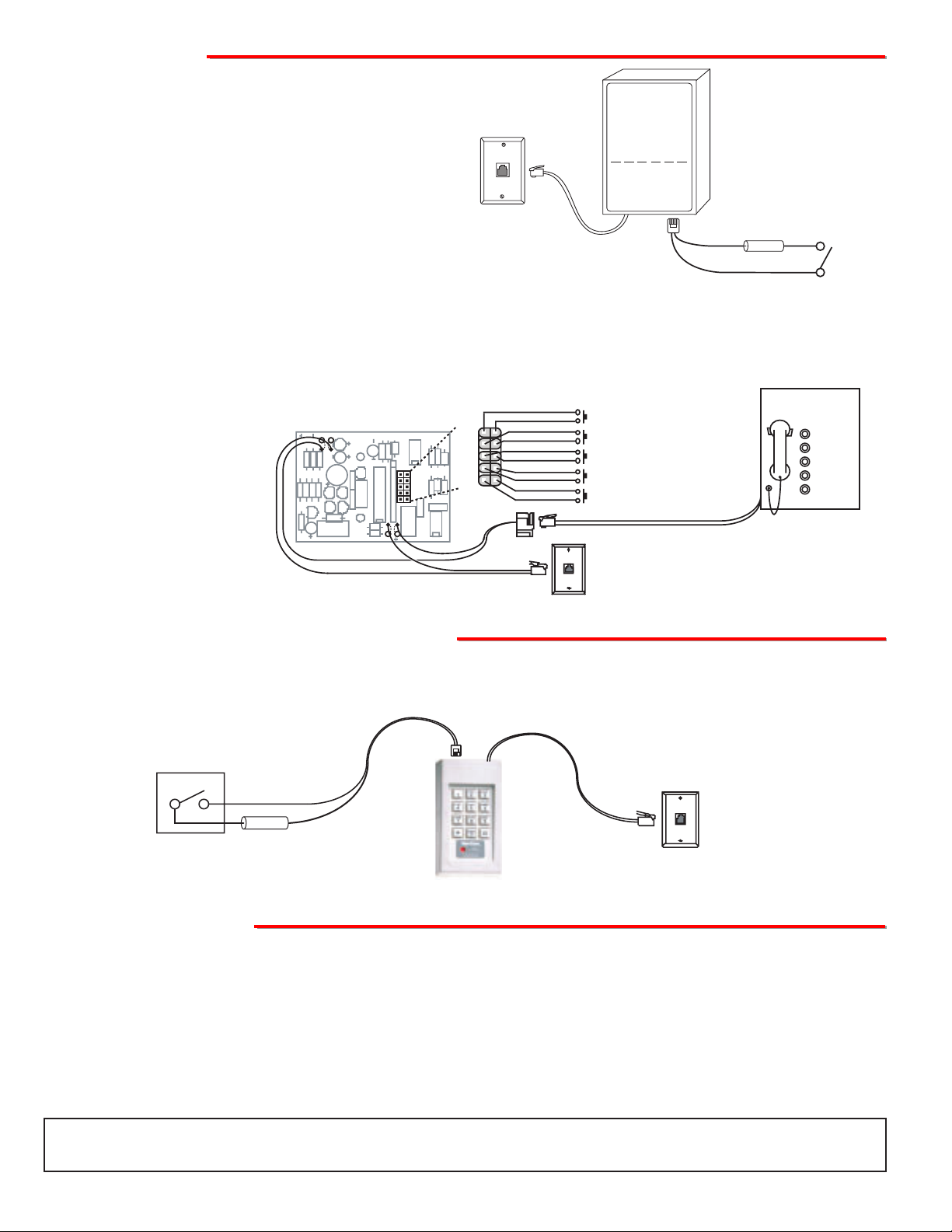

B. Dialing Up to 5 Numbers from Multiple Contact Closures

The K-1900-4 may be used in OEM applications

to create a multi-number dialer with push button

selections.

Note: Contact Viking

Technical Support for

configurations of up to

31 speed dial numbers.

K-

-1

-5

)

Note: The contact closure must be maintained for the duration of the call.

K-

-2

-D

The K-2000-DVA combines multi-number dialing from multiple contact closures combined with a built-in digital voice

announcer for emergency and non-emergency applications. The K-2000-DVA can store multiple phone numbers and can

record and play a user recorded alarm message.

For more information regarding the K-2000-DVA, retrieve Fax Back Document 303.

C.O. Line or analog

PABX/KSU extension

Contact

Closure

Modular

Phone

Plug

Red/Green

150 Ohm 1/2 Watt

Resistor
