Viking DLE-200B Instructions d'utilisation

DLE-200B

Two Way Phone

Line Simulator

May 4, 2000

Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided

Dimensions: 120mm x 70mm x 35mm (4.75” x 2.75” x 1.38”)

Shipping Weight: .72 kg (1.59 lbs)

Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95%

non-condensing humidity

Ringer Output: 2.0 REN load

Loop Length: 4.2 km (2.6 mi) maximum - 24 AWG twisted pair

Maximum Data Speed: 28,800 bps

Connections: (2) RJ11 jacks

Two Way Phone Line Simulator Ideal for

Intersystem Communication and Demos

The DLE-200B Line Simulator produces two

way communication between standard telecom

products such as modems, fax machines, Key

Systems, PABX’s and standard single line tele-

phones. The Line Simulator can also provide

sales people with a cost effective, easy to use

method of conducting on site demonstrations,

eliminating the need to locate phone lines and

disrupt the customer’s phone service.

The DLE-200B Line Simulator provides precise dialtone, DC talk battery and standard

or distinctive ringing. The unit also provides a CPC break on hang up.

TECHNICAL

• Dedicated point-to-point communications

(ringdown circuits)

• Programming PC based voice products

• Connecting dictaphone equipment to

Electronic Key Systems

• Intersystem TIE line

• Courtesy phones

• Demonstrating telecom equipment at trade

shows, meetings, etc.

• Connecting modems together

• Compatible with fax machines and modem

speeds up to 28.8 kbps

• Precise dial tone

• 32VDC talk battery

• Switch selectable ring cadence

• Provides CPC breaks after hang-up on either

port

• Switch selectable audio attenuation

• Provides 2 seconds of precise dial tone after

off-hook

• Provides ring back signal to calling device

• One or two way ring down capability

• Jumper selectable ring count

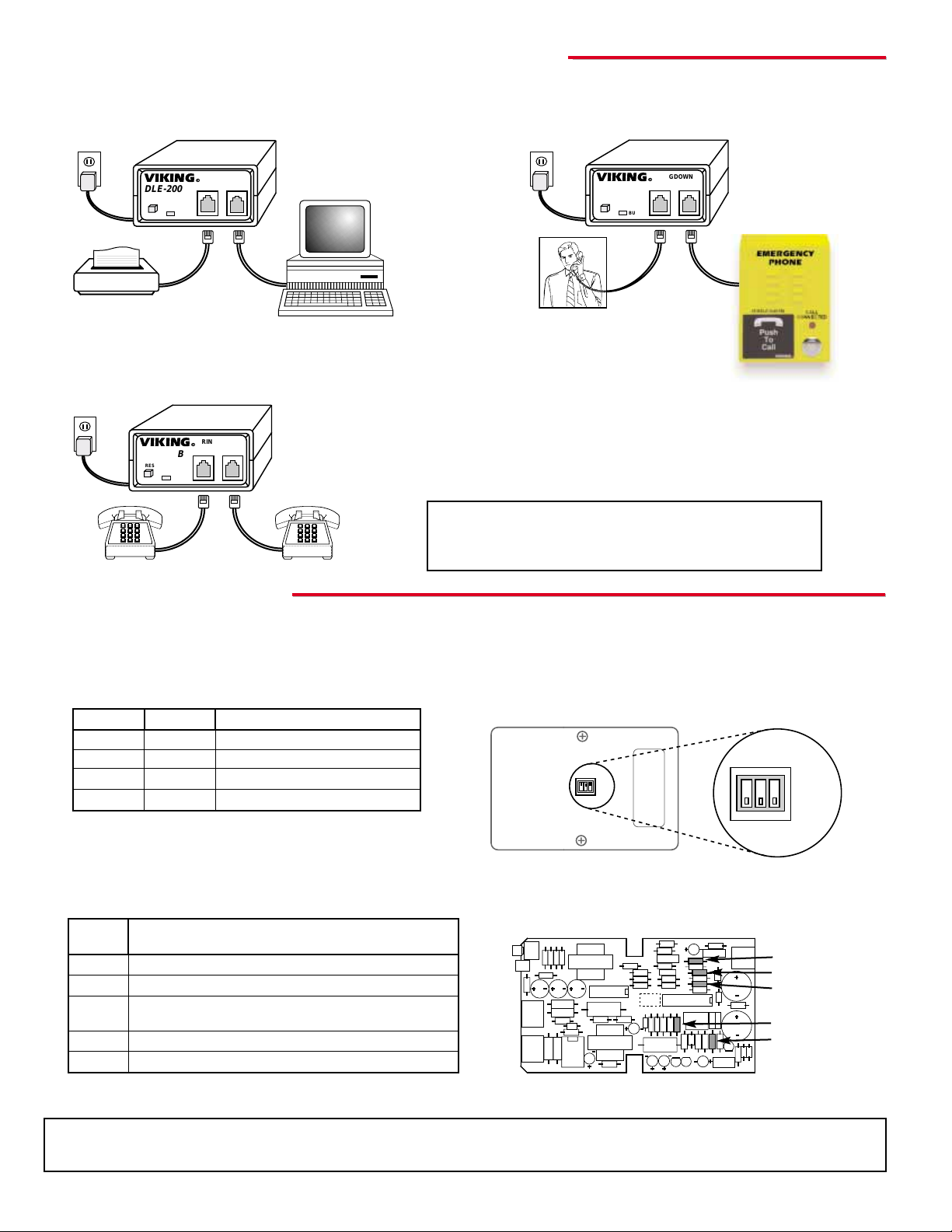

A. Demonstrations

Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or

subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate

such changes.

Fax Back Doc 605

ZF300280 Rev E

Printed in the U.S.A.

Several features can be set by changing switch settings on the bottom of the DLE-200B or by clipping internal jumpers. The

DLE-200B is shipped for standard applications.

Jumper

B. Ringdown Applications

C. Emergency Applications

Clipping these jumpers will have the following

effects:

Eliminates the CPC break.

Enables only 5 rings (normal - ring until answer).

One-way ringdown circuit. Rings from device 1 to

device 2 only.

Eliminates the 2 seconds of precise dial tone.

150ms CPC break time (normal - 2 seconds).

B. Internal Jumpers

VIKING©

DLE-200B

RES

RINGDOWN

BUSY

VIKING©

DLE-200B

RES

RINGDOWN

BUSY

VIKING©

DLE-200B

RES

RINGDOWN

BUSY

Note: For more information on

the 1600A Series Emergency

Phones, retrieve Fax Back

Document 215.

Note: In Fax/Modem applications, it may be necessary to

reduce the volume level. See Programming, section A.

Fax or Modem

Personal

Computer

Security

Personnel

E-1600-45A

IMPORTANT: A surge protector is recommended in

ALL applications. The DLE-200B is NOT protected

against power surges.

Switch 1

OFF

Ringing Cadence

Long-Long

Short-Short-Long

Short-Long-Short

2 seconds ON, 2 seconds OFF

A. DIP Switch Programming

Switch 2

OFF

DIP switch 3 decreases the audio volume between

devices by 9 dB when in the ON position.

OFF

Bottom View of the DLE-200B

Jumper 5

Jumper 4

Jumper 3

Jumper 2

Jumper 1

Internal View of the DLE-200B

Simply go off-hook on either port to initiate a call.
