DLE-200B
The DLE-200B allows two-way communi-
cation between two telecom devices or
systems and provides sales people with a cost
effective, easy to use method of conducting
on-site demonstrations. The DLE-200B
eliminates the need to locate phone lines and
disrupt the customer’s phone service during product demonstrations.
This compact unit (4.75" x 2.75" x 1.38") provides 2 seconds on,4
seconds off,interrupted 20HZ ringing and 32V talk battery to demon-
strate virtually any telephone device. Compatible with modems,fax
machines,answering machines and feature phones, the DLE-200B also
functions as a two-way ringdown circuit.
When either telecom device goes off-hook,the DLE-200B provides
2 seconds of precise dial tone,then rings the other device until answered.
A 120V AC UL listed power supply is included.
Applications
include:
• Demonstrations:
- fax machines
- modems
- phone systems
- feature phones
- any telecom device
• Classroom training
• Courtesy phones
• Elevator and emergency
phones
• Inter-phone system
communications
• Interfacing“ring-trip” devices:
- Dialogic or Rhetorex cards
- Dictaphone equipment
- Electronic key systems
• Distinctive ringing
• Prison phones
• Scanning documents into
P.C. based fax boards
• Fax machine repair
• Modem repair
• Communication between
modems without phone lines

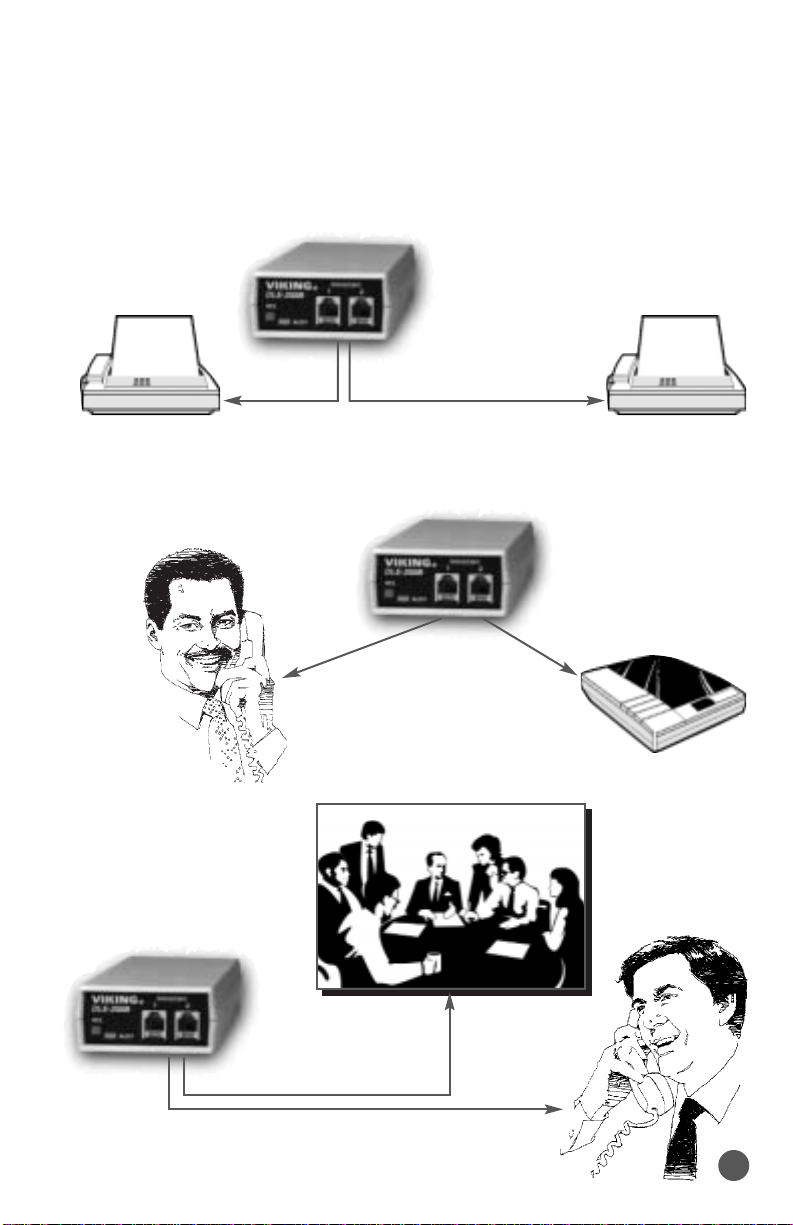

Ringdown Applications
Unused C.O.
line input
KSU/PABX
Device #1
FAX
Device #2
Demonstrations
1
Fax Back Doc. No 605
PDF
There are different features available by changing the switch settings
or by clipping the internal jumpers (see below). The DLE-200B is
shipped factory set for standard applications with all features enabled.

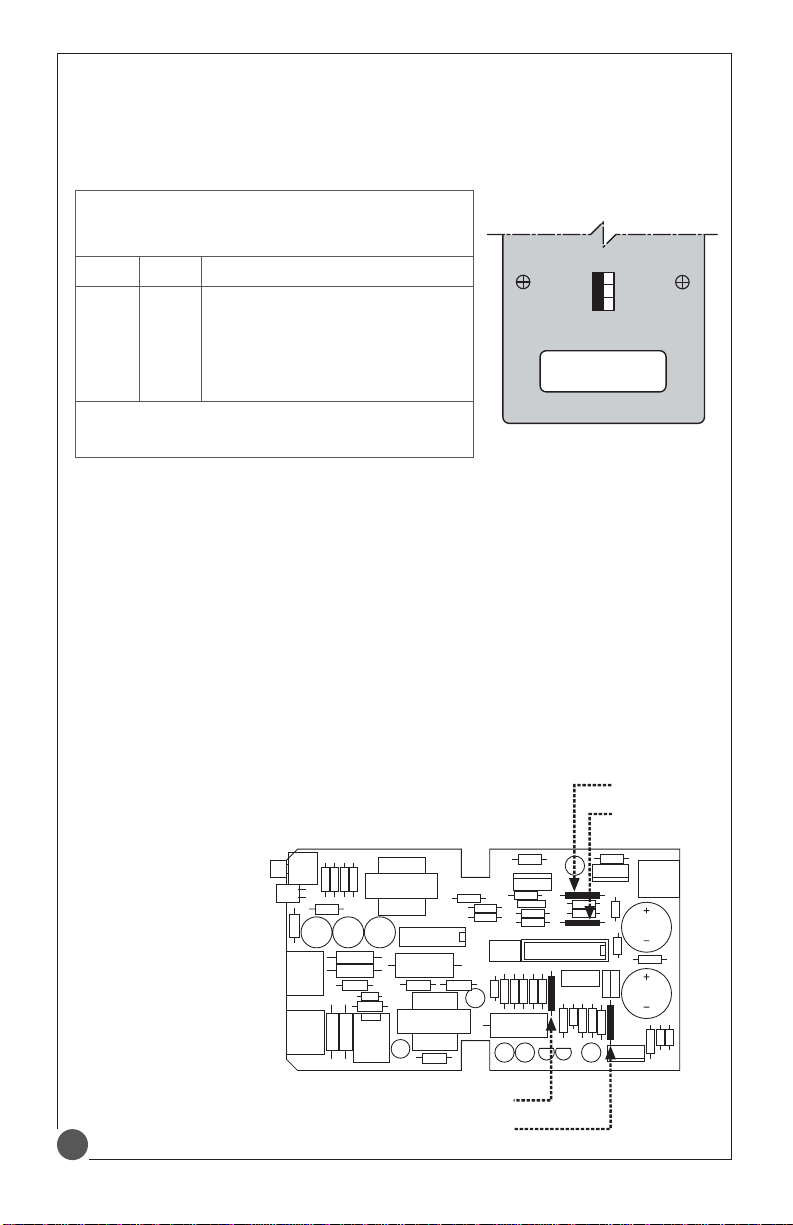

By CLIPPING the internal jumpers on the circuit board of the
DLE-200B,the unit can:
Jumper 1:Eliminate the CPC signal.
Jumper 2:Enable only 5 rings (normally the DLB-200B continues to
ring the second device until answered).
Jumper 3:Convert the unit to a ONE-way ringdown circuit. Rings
from Device 1 to Device 2 only.
Jumper 4:Eliminates the two seconds of dial tone,causing the other
device to begin ringing immediately.
Caution:
Personnel and
work area should
be grounded and
power removed
before handling
the circuit board.
Switch Settings for Distinctive
Ringing
SW-1 SW-2 RINGING CADENCE
ON ON LONG, LONG
OFF ON SHORT, SHORT, LONG
ON OFF SHORT, LONG, SHORT
OFF OFF 2 SECOND ON, 4 SECOND OFF
Switch #3 attenuates audio volume between devices by 9dB
when in the “ON” position.
Bottom View
VIKING LABEL
ON
OFF
Switch 1
Switch 2
Switch 3
2
JP2
JP1
JP4
JP3
Trade Shows or Customer Demonstrations
Communicate Between Phone Systems without Using Outside Lines
By using the DLE-200B
with 2 phone systems you can
demonstrate the ringing on the
phone systems and all the fea-
tures. The DLE-200B elimi-
nates the need to locate phone
lines and disrupt the phone
service during the demonstra-
tion. Demonstrations can be
complete and comprehensive,
but non-disruptive.
Using Dictaphone Dictation Equipment,Dialogic
Cards, etc. on Electronic Key
Many electronic key systems will not support Dictaphone dictation
equipment,Dialogic cards (or any equipment that requires interaction
with aTouchTone phone) connected to the key system single line or OPX
station card. Proprietary key telephones do not sendTouchTones (only
data) on a station to station call.
Proprietary key telephones will sendTouchTones on outside calls.

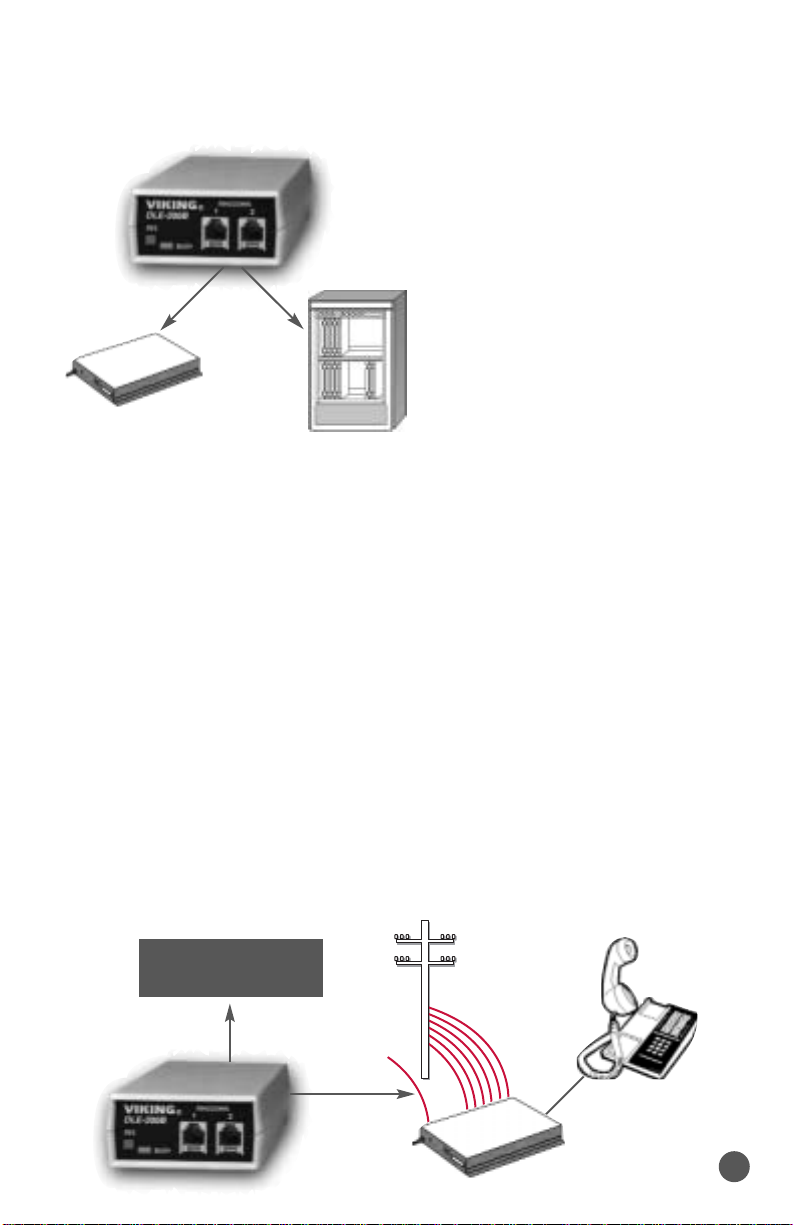

Connect a Viking DLE-200B ringdown circuit to an unused key system
line input. Then connect theTouchTone interactive equipment to another
DLE-200B port. When a key system user selects that line position,the
DLE-200B will ring theTouchTone interactive equipment and it can now
send theTouchTone commands.
Because the DLE-200B has much lower audio loss than a central
office, theTouchTones will be too “HOT” in most applications. They
should be attentuated by setting switch 3 to the“ON” position.
KSU/PABX
KSU/PABX
C.O.
Unused
Line Input
PABX
Dictation equipment,
dialogic cards, etc.
3
• Prison Phones
• Courtesy Phones
• Infra and Inter-Office
Communications
• Warehouses
• Elevator Phones
Eliminates the Need for
Station Circuits,Phone
Systems or C.O.Lines
For Dedicated Communication Between 2 Phones
Up to 2 miles
IBMMacintosh
Communicating Between 2 Different Computers
The DLE-200B will allow 2 different
types of computers to communicate with
each other utilizing your communication
software. Two (2) seconds of precise dial
tone (required by most modems) is pro-
vided.
Sporting Events: Coach in
Pressbox to Coaches and
Players on Sideline
Eliminates Installing Phone Lines!
4
Instead of lining up at the lobby desk to pick up their cars,have guests
pick up a phone which connects to the parking area. By using Viking’s
Model K-1500P-W wall phone or the K-1500P-D desk phone with the
DLE-200B you can accomplish just that. The DLE-200B detects the off-
hook on the courtesy
phone and sends ring-
ing to the phone con-
nected to the other
port until answered.
Hotel desk staff are
then free to take care
of guests who are
checking in and check-
ing out,resulting in
improved guest servic-
es. Great for hotels
where large conven-
tion crowds check-in
and check-out en
masse.
Hotel Check-outTime
LetYour Customers Use a Phone to Pick UpTheir Car
Parking lot
Security. How may
I help you?
E-30
Help! I’ve
fallen and I can’t
get up!!
5
Emergency Phones
When the button on the Viking E-10/20A/30 emergency phone is
pressed,the DLE-200B provides ringing to the security phone.
Valet parking courtesy phones
K-1500P-W (wall)
or K-1500P-D (desk)
Hotel parking
lot. How may
I help you?
6
Communicate from the 18th Hole...
...to the Clubhouse Restuarant
E-1600A
E-1600-EHFA
Elevator or Emergency Phones
E-10, E-15,
20A or E-30
Clubhouse
Restaurant
Security Office
In this application your food and beverage can be ready when you
come in from the eighteenth green. Just press and hold the button (when
using E-15) on the E-10,E-15 or E-20A,activating the DLE-200B,
providing ringing into a phone in the restaurant connected to the DLE-
200B. Place your food order and by the time you get to the restaurant
your food will be ready.
By using the DLE-200B with elevator phones an extra phone circuit
is not needed. Plug the elevator phone into one of the ports on the
DLE-200B and the security phone into the other port. When used with
a conventional phone in an elevator application,the DLE-200B eliminates
the risk of long distance fraud.
Demonstrate the Features of Fax Machines,
Answering Machines, Feature Phones, Modems, Key
Systems,PABX’s or any telecom device
Eliminates Disrupting your Customer’s Phone Lines.
Fax, modem, etc. Fax, modem, etc.
The DLE-200B is used to provide the realistic
telephone circuit desired for training of this type.
Training:
• Classroom
• Telemarketing
• Hostage Negotiating
• Attendant/Receptionist
The DLE-200B will provide CPC when demonstrating answering machines.
Ideal for
Trade Shows!
Ideal for
Trade Shows!
7

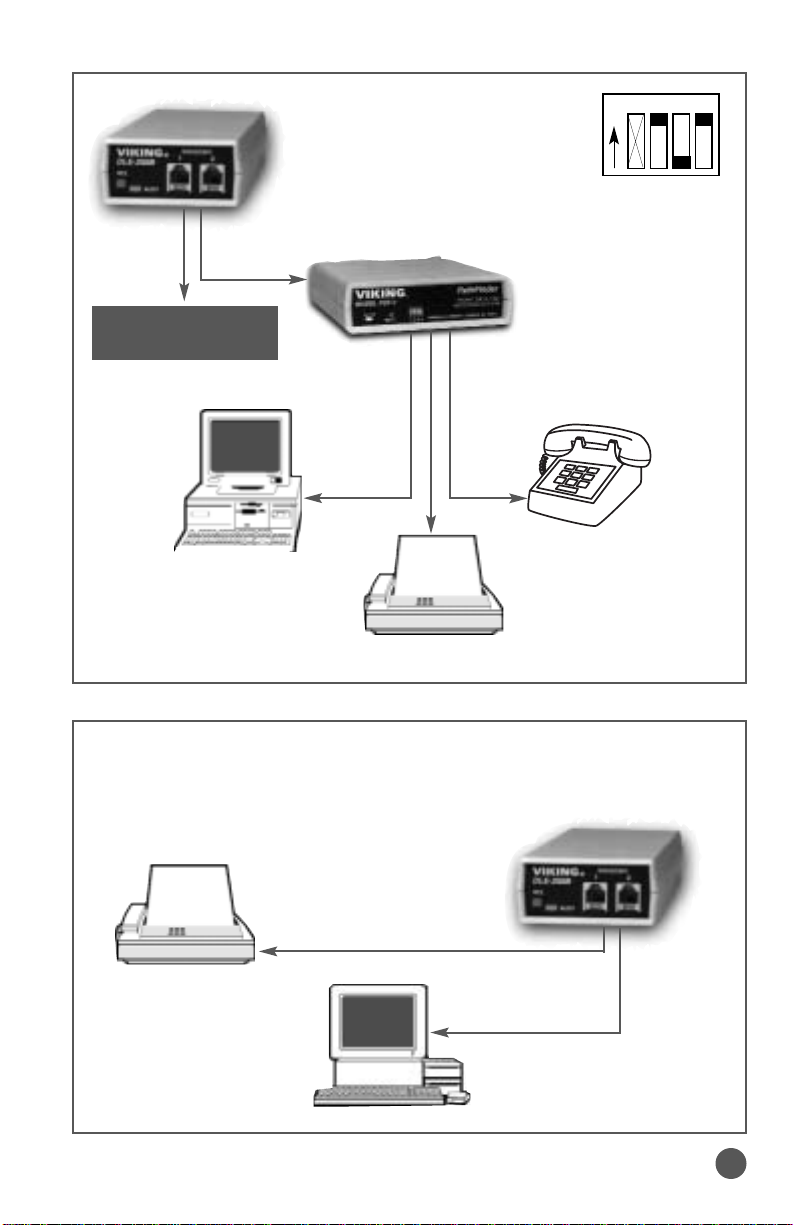

The DLE-200B can generate 4 different distinctive ringing patterns.
The FAXJ-300 or PDF-2 must be set to the custom ring detection
mode by setting the proper switches (see the appropriateTech Practices).
The following chart shows the ringing patterns generated for each switch
setting on the DLE-200B and the port the call will be directed to on the
FAXJ-300 or PDF-2.
Switch Settings Ring Pattern Generated Port the Call will
on the DLE-200B by the DLE-200B be directed to By:
SW-1 SW-2 FAXJ-300 PDF-2
OFF OFF 2 SECOND “ON” PHONE PHONE
4 SECOND “OFF” (NORMAL)
ON OFF SHORT, LONG, SHORT NONE MODEM
OFF ON SHORT, SHORT, LONG NONE MODEM
ON ON LONG, LONG DATA FAX
Demonstrate Custom Ringing
Demonstrate the FAXJ-300 and PDF-2 Custom Ringing Detection
8
Fax Machine Single Line
Telephone
Single Line
Telephone
X-N.A.
(switches
are on the
bottom)
Single Line
Device
Set switches 2 and 3 to
the “ON” position.
Press the“TR” button
on the FAXJ-300.
ON
9
Fax Machine
Modem Single Line
Telephone
X-N.A.
Fax Machine
Single Line
Device
Set switches 2 and 4 to the
“ON” position and switch 3
to the“OFF” position.
Press the“RESET” button
on the PDF-2.
1234O
N
Use your Fax Machine as a Full Page Scanner
for your Fax Board
Fax Board
(Modem)
