Initiate Dialin

from a Contact Closure

VIKING©

Application Note

Telecommunication Peripheral Products Contact Closure

Dialing with Hot-Line

Dialers

October 8, 2003

K-1900-5

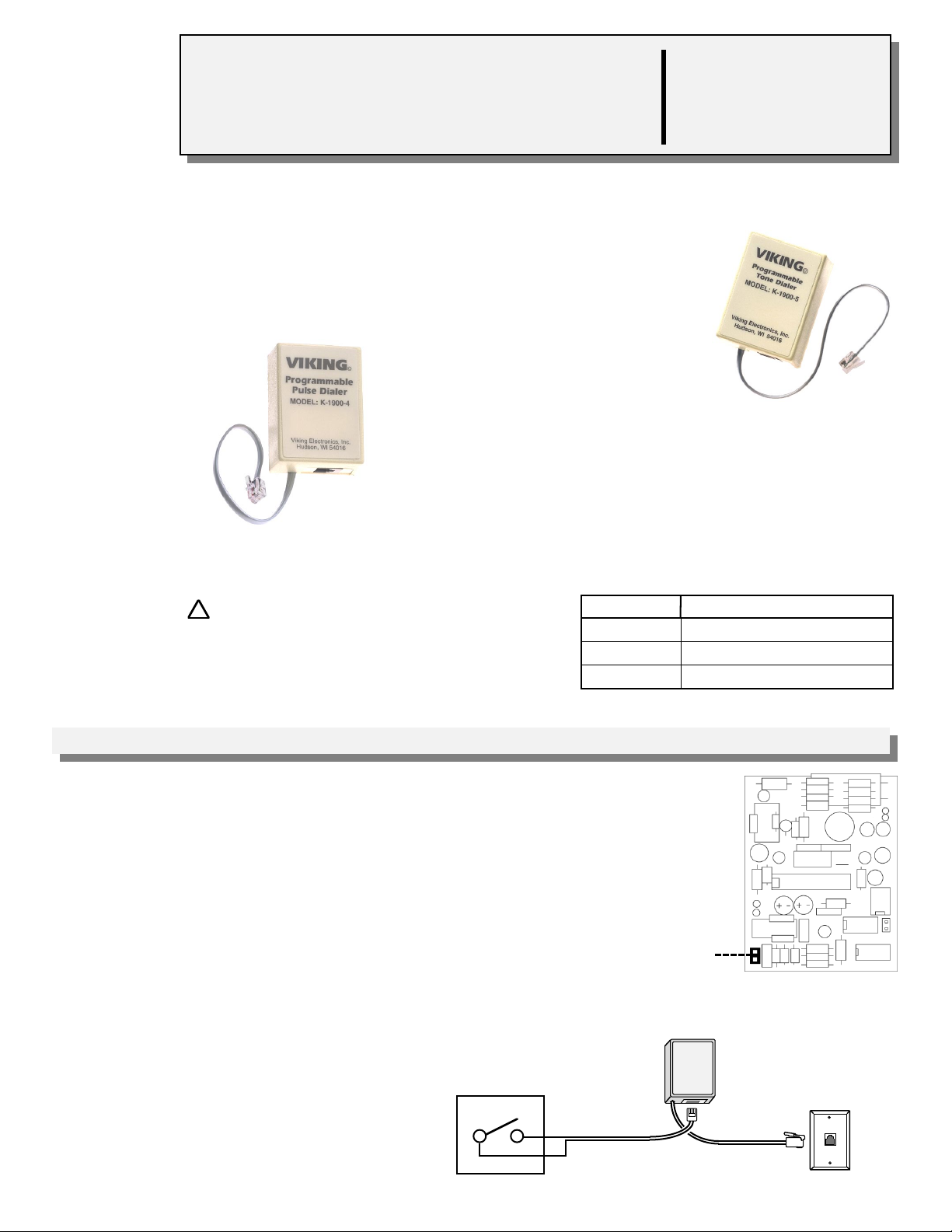

All of Viking’s Hot-Line dialers, both exisiting and

discontinued, may be configured to dial when triggered by a

contact closure. This is ideal for applications where a piece

of equipment provides the closure, allowing the dialer to dial a

phone number or pager number for alarm notification.

This document must be used in

combination with the product’s Technical

Practice.

K-1900-4

K-1900-5

Important: Electronic components are sensitive to static electricity. Personnel and the work area

should be grounded before handling.

1. Remove the cover of the K-1900-5 with your hands.

2. Locate JP1.

Note: There are (2) two pin headers on the circuit board. Use the diagram (right) to find JP1.

3. Short the two pins on JP1 together. Wrapping a bare telephone wire around both pins is suggested.

4. When finished, replace the cover.

Important: Be sure whatever is used to short the jumper is not touching any other components.

JP1

B. Installation

A. Converting the K-1900-5 to Contact Closure Dialing

C.O. line or analog

PABX/KSU station

RJ-11

Contact Closure or switch

(2 second minimum)

Modular

phone plug

K-1900-5

VIKING©

Programmable

Tone Dialer

MODEL: K-1900-5

Viking Electronics, Inc.

Hudson, WI 54016

Red/Green

Various contact closures are

required depending on the

dialer.

http://www.VikingElectronics.com

[email protected]

Sales...(715) 386-8861

Note: The K-1900-5 will drop the line as

soon as it is done dialing, so it is important

to add several pauses to the end of the

dialing string to allow time for the call to go

through. If the contact or switch is

continuous, the K-1900-5 will drop the line

when closure is released.

Model

K-1900-4

K-1900-5

K-2000-DVA

Fax Back Document Number

315

317

303

Important: Different revisions of products may require different programming and/or setup.

Please read your serial label to find the proper section.

Printed in the U.S.A. ZF301090 Rev 20Fax Back Doc # 818

Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking

Electronics, its affiliates and/or subsidiaries assume no responsibility for errors and/or omissions contained in this information. Revisions of

this document or new editions of it may be issued to incorporate such changes.

Product Support Line...(715) 386-8666 Fax Back Line...(715) 386-4345

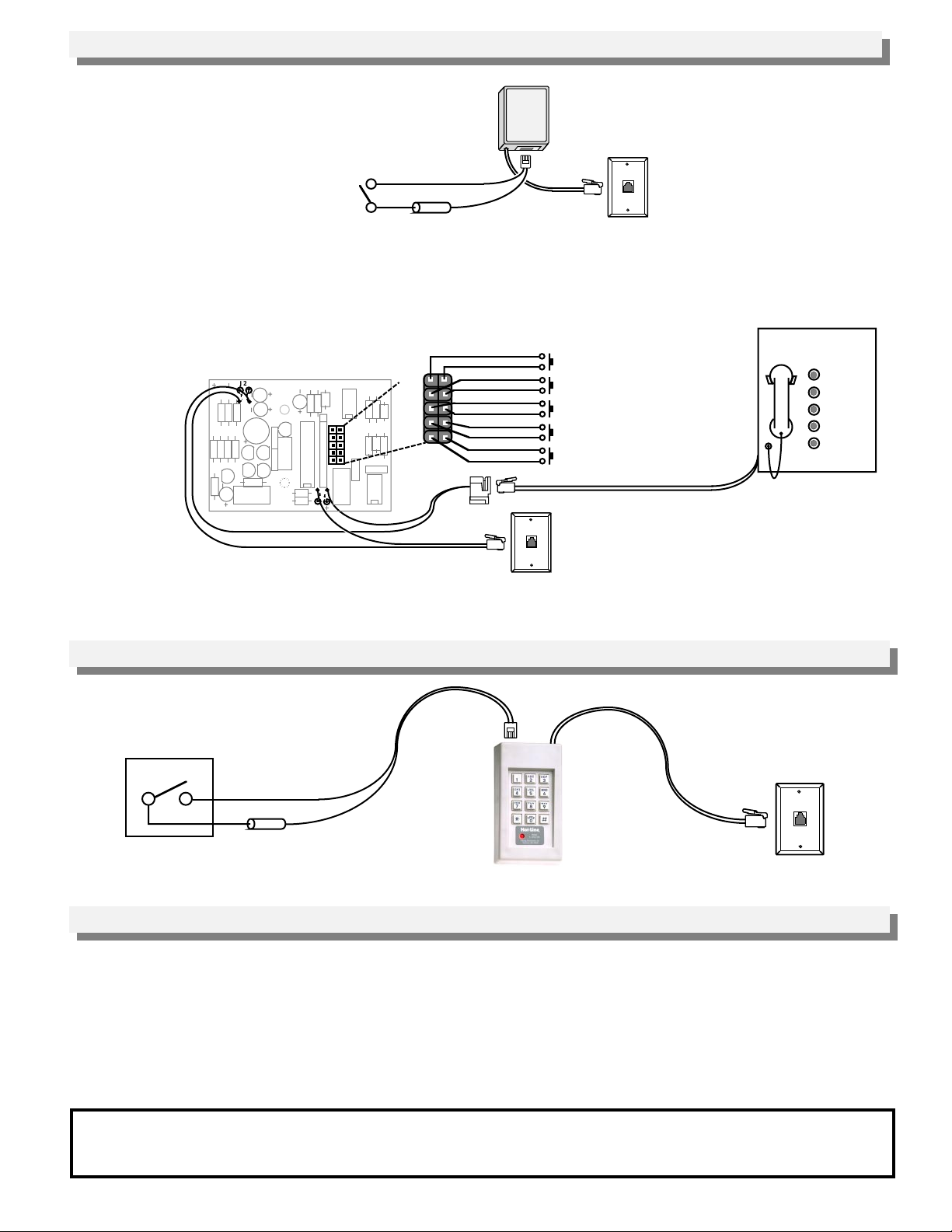

B. Dialing up to 5 Numbers from Multiple Contact Closures

A. Single Number Dialing

K-1500-5KB (discontinued)

C.O. Line or analog

PABX/KSU extension

Note: The contact closure must be maintained

for the duration of the call.

Contact Closure

Modular phone

plug

R/G

150 Ohm 1/2 watt

resistor

The K-1900-4 may be used in OEM applications to

create a multi-number dialer with push button

selections.

Note: Contact Viking Technical support for configurations of up to 31 speed dial numbers.

JP1

JP2

JP3

JP5

JP4

Green Wires

OEM front panel with

telephone balance

network, hook switch

and momentary push

buttons

K-1900-4 used in FCC

Registered phone assembly

C.O. line or analog

PABX/KSU station

Red Wires J2

Momentary

Push Buttons Speed Dial

Memory Positions

JP1 ..................

JP2 ..................

JP3 ..................

JP4 ..................

JP5 ..................

00 .......................

01 .......................

02 .......................

03 .......................

04 .......................

Hotel

Car Rental

Airline

Information

Security

Take handset off hook then press button

Courtesy Phone

K-1900-4

C.O. line or analog

PABX/KSU station

RJ-11

Contact

Closure

Modular

phone plug

K-1900-4

VIKING©

Programmable

Pulse Dialer

MODEL: K-1900-4

Viking Electronics, Inc.

Hudson, WI 54016

R/G

150 Ohm 1/2 watt

resistor

Note: The contact closure must be

maintained for the duration of the call.

K-2000-DVA

The K-2000-DVA combines multi-number dialing from multiple contact closures combined with a built-in digital voice

announcer for emergency and non-emergency applications. The K-2000-DVA can store multiple phone numbers and

can record and play a user recorded alarm message.

For more information regarding the K-2000-DVA, retrieve Fax Back Document 303.
