ViewSonic VS19573 Manuel utilisateur

TD2265

Display

User Guide

Model No. VS19573

P/N: TD2265

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precauons

Please read the following Safety Precautions before you start using the device.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Sit at least 18" (45 cm) away from the device.

• Allow at least 4" (10 cm) clearance around the device to ensure proper

ventilation.

• Place the device in a well-ventilated area. Do not place anything on the device

that prevents heat dissipation.

• Do not use the device near water. To reduce the risk of fire or electric shock, do

not expose the device to moisture.

• Avoid exposing the device to direct sunlight or other sources of sustained heat.

• Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including amplifiers) that may increase the temperature of the

device to dangerous levels.

• Use a soft, dry cloth to clean the external housing. For more information, refer

to the "Maintenance" section of this manual.

• Avoid touching the screen, as oil may collect on the screen if you touch it.

• Do not touch the screen surface with sharp or hard objects, as it may cause

damage to the screen.

• Do not place the device on cloth or other materials that may be placed between

the product and supporting furniture.

• When moving the device, be careful not to drop or bump the device on

anything.

• Do not place the device on an uneven or unstable surface. The device may fall

over resulting in an injury or a malfunction.

• Do not place any heavy objects on the device or connection cables.

• Always use cabinets, stands, or installation methods recommended by the

manufacturer of the device set.

• Always use furniture that can safely support the device.

• Always ensure the device is not overhanging the edge of the supporting

furniture.

• Do not place the device on tall furniture, such as cupboards or bookcases,

without anchoring both the furniture and the device to a suitable support.

• Always educate children about the dangers of climbing on furniture to reach the

device or related equipment.

• Do not place the monitor where children are likely to be present.

• Do not place items that might tempt children to climb, such as toys and remote

controls, on the top of the device or furniture on which the product is placed.

• If smoke, an abnormal noise, or a strange odor is present, immediately turn the

device off and call your dealer or ViewSonic®. It is dangerous to continue using

the device.

• Do not attempt to circumvent the safety provisions of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding-type plug has two blades and a third grounding prong. The

wide blade and the third prong are provided for your safety. If the plug does not

fit into your outlet, obtain an adapter and do not attempt to force the plug into

the outlet.

• When connecting to a power outlet, Do not remove the grounding prong. Please

ensure grounding prongs are never removed.

• Always route and manage cords and cables connected to your device so they

cannot be tripped over, pulled, or grabbed.

• Protect the power cord from being treaded upon or pinched, particularly at the

plug, and at the point where it emerges from the equipment. Ensure that the

power outlet is located near the equipment so that it is easily accessible.

• Disconnect the power plug from the power outlet if the device is not being used

for a long period of time.

• Please confirm the distribution system installed in the building. The system

should provide a circuit breaker rated at 120/240V, 20A.

• Only use attachments/accessories, such as carts, stands, tripods, brackets or

tables, specified by the manufacturer.

• When a cart is used, use with caution when moving the cart/equipment

combination to avoid injury from tipping over.

• Refer all servicing to qualified service personnel. Service will be required when

the unit has been damaged in any way, such as:

if the power-supply cord or plug is damaged.

if liquid is spilled onto or objects fall into the unit.

if the unit is exposed to rain or moisture.

if the unit does not operate normally or has been dropped.

• When using ear-/headphones, adjust the volume to appropriate levels, or

hearing damage may result.

• Stability Hazard: The display may fall, causing serious personal injury or death.

To prevent injury, this display must be securely attached to the floor/wall in

accordance with the installation instructions.

• Fastening the display to a wall or fixed object using cordage or other restraining

devices can help support the weight of the display in order to prevent the

display from falling over.

Hole paern

(W x H)

Interface Pad

(W x H x D) Pad Hole Screw

Specicaon Quanty

100 x 100 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm 4 screws

VESA wall mounng hole

NOTE:

• Restraining device/cordage should be able to withstand 100N force.

• Make sure the cordage is straightened, and any slack is removed. The back

of the device shall face the wall to ensure the device cannot tilt under

external force.

• Make sure the display does not tilt under external force at any height and

rotation angle of the device.

• If the existing display is going to be retained and relocated, the same

considerations as above should be applied.

NOTE: This product is not specifically designed for 24/7 usage in any

environment.

Contents

Safety Precautions....................................................... 3

Introduction ................................................................ 8

Package Contents ...................................................................................................8

Product Overview...................................................................................................9

Initial Setup............................................................... 10

Adjusting the Stand ..............................................................................................10

Stand Installation..................................................................................................11

Wall Mounting......................................................................................................12

Using the Security Slot..........................................................................................13

Making Connections.................................................. 14

Connecting to Power ............................................................................................14

Connecting External Devices ................................................................................15

DisplayPort Connection......................................................................................... 15

HDMI Connection.................................................................................................. 16

VGA Connection .................................................................................................... 17

USB Connection..................................................................................................... 18

Audio Connection.................................................................................................. 19

Touch Function Control......................................................................................... 20

Using the Monitor ..................................................... 24

Adjusting the Viewing Angle.................................................................................24

Tilt Angle Adjustment (Adjustable Foot) ..............................................................24

Tilt Angle Adjustment (Stand) ..............................................................................24

Turning the Device On/Off ...................................................................................25

Using the Control Panel Keys................................................................................25

On-Screen Display (OSD) Menu............................................................................26

Hot Keys ................................................................................................................ 27

Configuring the Settings .......................................................................................29

General Operations ............................................................................................... 29

On-Screen Display (OSD) Menu Tree .................................................................... 31

Touch Screen Modes - Additional Information ..................................................... 34

Appendix................................................................... 35

Specifications........................................................................................................35

Glossary ................................................................................................................38

Troubleshooting ...................................................................................................42

Maintenance.........................................................................................................44

General Precautions.............................................................................................. 44

Cleaning the Screen............................................................................................... 44

Cleaning the Case.................................................................................................. 44

Regulatory and Service Information .......................... 45

Compliance Information.......................................................................................45

FCC Compliance Statement................................................................................... 45

Industry Canada Statement................................................................................... 45

CE Conformity for European Countries ................................................................. 45

Declaration of RoHS2 Compliance......................................................................... 46

Indian Restriction of Hazardous Substances ......................................................... 47

Product Disposal at End of Product Life ................................................................ 47

Customer Service .................................................................................................. 49

Limited Warranty .................................................................................................. 50

Mexico Limited Warranty...................................................................................... 53

Introduction

Package Contents

• Touch display

• Power cord

• HDMI cable

• USB 3.0 upstream cable (Type B to Type A)

• Quick start guide

NOTE: The power cord and video cables included in your package may vary

depending on your country. Please contact your local reseller for more

informaon.

Product Overview

Front View

Display Screen

Power LED

Rear View

Power

Button

Adjustable Foot

▲

HDMI VGA

5 6 78

1 2 3 4

1. AC IN 2. DisplayPort 3. HDMI 4. VGA 5. Audio In

6. Audio Out 7. USB Upstream 8. USB Downstream

NOTE: For more informaon about the 1/2/▲/▼ key and its funcons, refer to

“Hot Keys” on page 27.

Inial Setup

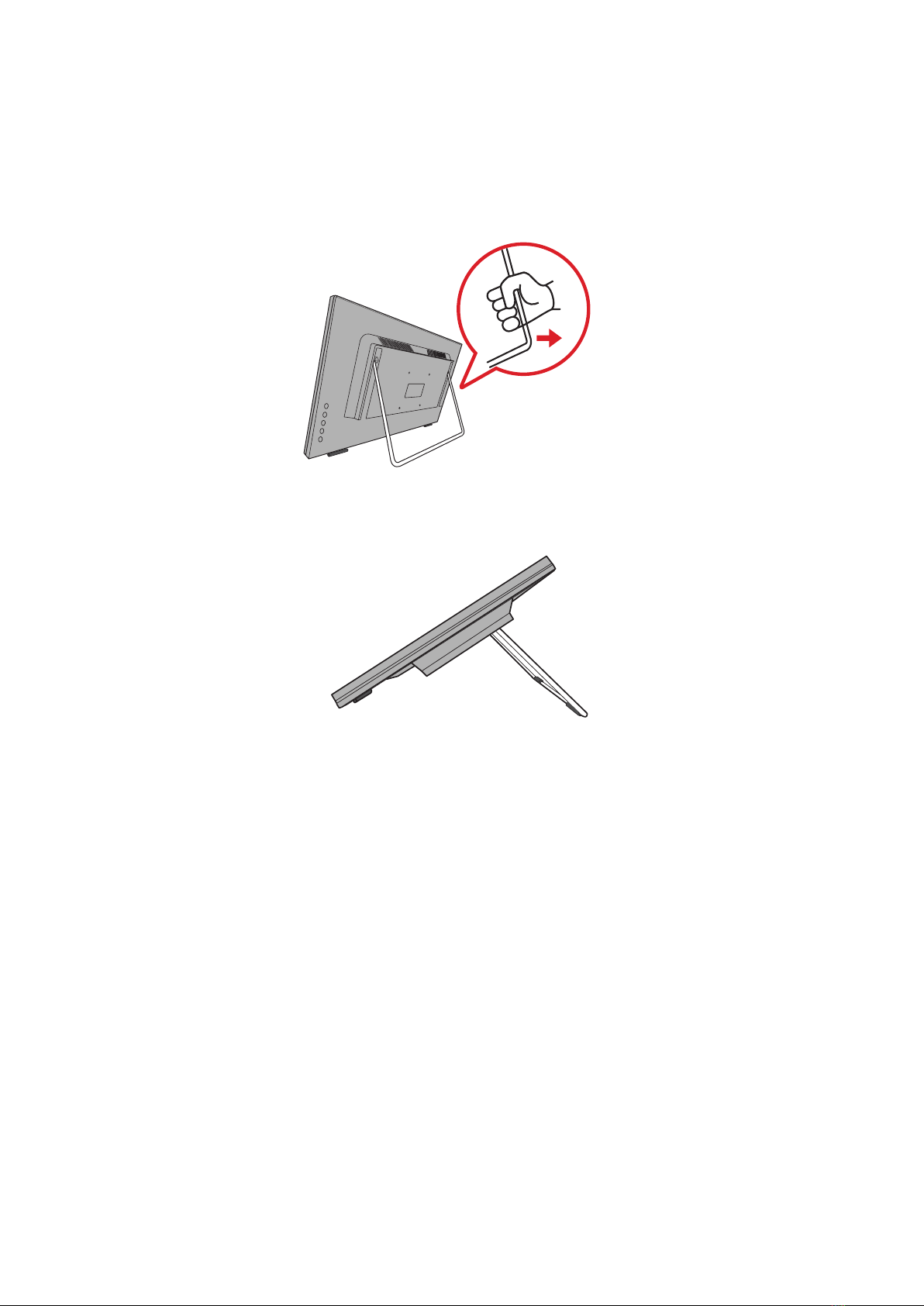

Adjusng the Stand

1. Place the monitor on a at, stable surface with the screen facing down.

2. With one hand supporng the monitor, carefully pull and extend the stand.

3. Li the device into its upright posion on a at, stable surface.

NOTE: Always place the device on a at, stable surface. Failure to do so may

cause the device to fall and damage the device and/or result in personal

injury.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ViewSonic Moniteur

ViewSonic

ViewSonic VA2231wm Manuel utilisateur

ViewSonic

ViewSonic VG2401mh Manuel utilisateur

ViewSonic

ViewSonic VX2728J-2K Manuel utilisateur

ViewSonic

ViewSonic 21PS Manuel utilisateur

ViewSonic

ViewSonic Q71B - Optiquest - 17" CRT Display Manuel utilisateur

ViewSonic

ViewSonic VLED221WM - 22" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic E70FSB-2 - E 70F+SB - 17" CRT Display Manuel utilisateur

ViewSonic

ViewSonic N4200W - NextVision - 42" LCD Flat Panel... Manuel utilisateur

ViewSonic

ViewSonic VSD220 Manuel utilisateur

ViewSonic

ViewSonic VA1616W Manuel utilisateur

ViewSonic

ViewSonic VX2439wm Mode d’emploi

ViewSonic

ViewSonic CDP6530 Manuel utilisateur

ViewSonic

ViewSonic VG2732m Manuel utilisateur

ViewSonic

ViewSonic SWB5560 Manuel utilisateur

ViewSonic

ViewSonic VA705M Manuel utilisateur

ViewSonic

ViewSonic VA2202-h Manuel utilisateur

ViewSonic

ViewSonic Optiquest Q95 Manuel utilisateur

ViewSonic

ViewSonic G90f/B-3 Manuel utilisateur

ViewSonic

ViewSonic VA2709M Manuel utilisateur

ViewSonic

ViewSonic VA2756-4K-MHD Manuel utilisateur

ViewSonic

ViewSonic Optiquest Q55 Manuel utilisateur

ViewSonic

ViewSonic CDP6530T Manuel utilisateur

ViewSonic

ViewSonic VG2408 Manuel utilisateur

ViewSonic

ViewSonic VX2640W - 26" LCD Monitor Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
