ViewSonic G810 - 21" CRT Display Manuel utilisateur

User Guide

Guide de l’utilisateur

Benutzerhandbuch

Guía del usuario

Guida dell’utente

Guia do usuário

Användarhandbok

Käyttöopas

Руководство пользователя

Podręcznik użytkownika

With Plug & Play



21" (20" Viewable Diagonal)

G810 Color Monitor

Contents

ViewSonic G810 1

Product Registration..............................................................2

For Your Records ..................................................................2

Getting Started

Package Contents .................................................................3

Precautions ...........................................................................3

Quick Installation ...................................................................4

Using the Monitor

Setting the Timing Mode .......................................................5

Adjusting the Screen Image ..................................................6

Other Information

Specifications ......................................................................12

Troubleshooting...................................................................13

Customer Support ...............................................................14

Cleaning the Monitor ...........................................................15

Limited Warranty .................................................................16

Appendix

Safety Guidelines ................................................................17

Compliance Information for U.S.A.......................................18

CE Conformity for Europe only............................................18

04/22/04 D

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of

ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC

are trademarks of VESA.

ENERGY STAR®is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR®partner, ViewSonic Corporation has determined that this product meets the

ENERGY STAR®guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions

contained herein; nor for incidental or consequential damages resulting from furnishing this

material, or the performance or use this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to

change product specifications without notice. Information in this document may change without

notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose

without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes

available, please register your monitor's warranty on the Internet at: www.viewsonic.com

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

ViewSonic G810

VCDTS23852-M/P/A/E/G

A-CD-G810-6

______________

ViewSonic G810 2

Getting Started

Congratulations on your purchase of a ViewSonic G810 color monitor.

Important! Save the original box and all packing material for future shipping

needs.

NOTE: The word “Windows” in this user guide refers to the following

Microsoft operating systems: Windows ‘95, Windows NT, Windows ‘98,

Windows 2000, Windows Me (Millennium), and Windows XP.

NOTE: This product was designed for operation in the magnetic fields of the

hemisphere where it was purchased.

Package Contents

Your G810 package includes:

• G810 monitor

• DB-15 video cable

• Power cord

• ViewSonic Wizard CD-ROM

NOTE: The CD jacket contains the Quick Start Guide, and the CD includes the

User Guide PDF files and INF/ICM display optimization files. The INF file

ensures compatibility with Windows operating systems, and the ICM file (Image

Color Matching) ensures accurate on-screen colors. ViewSonic recommends

that you install both files.

Precautions

• For best viewing conditions sit at least

18” from the monitor.

• AVOID TOUCHING THE SCREEN

WITH YOUR FINGERS. Oils from the

skin are difficult to remove.

• NEVER REMOVE THE REAR

COVER. The monitor contains high-

voltage parts. You may suffer serious

injury if you touch these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source. The

monitor should be facing away from

direct sunlight to reduce glare.

• Do not place your monitor near a source

of water or moisture.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that blocks the ventilation slots

or prevents adequate dissipation of heat.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, abnormal noise, or strange

odor is present, immediately switch the

monitor off and call your dealer or

ViewSonic. It is dangerous to operate

your monitor under these conditions.

• Keep the monitor away from magnets,

motors, transformers and televisions.

ViewSonic G810 3

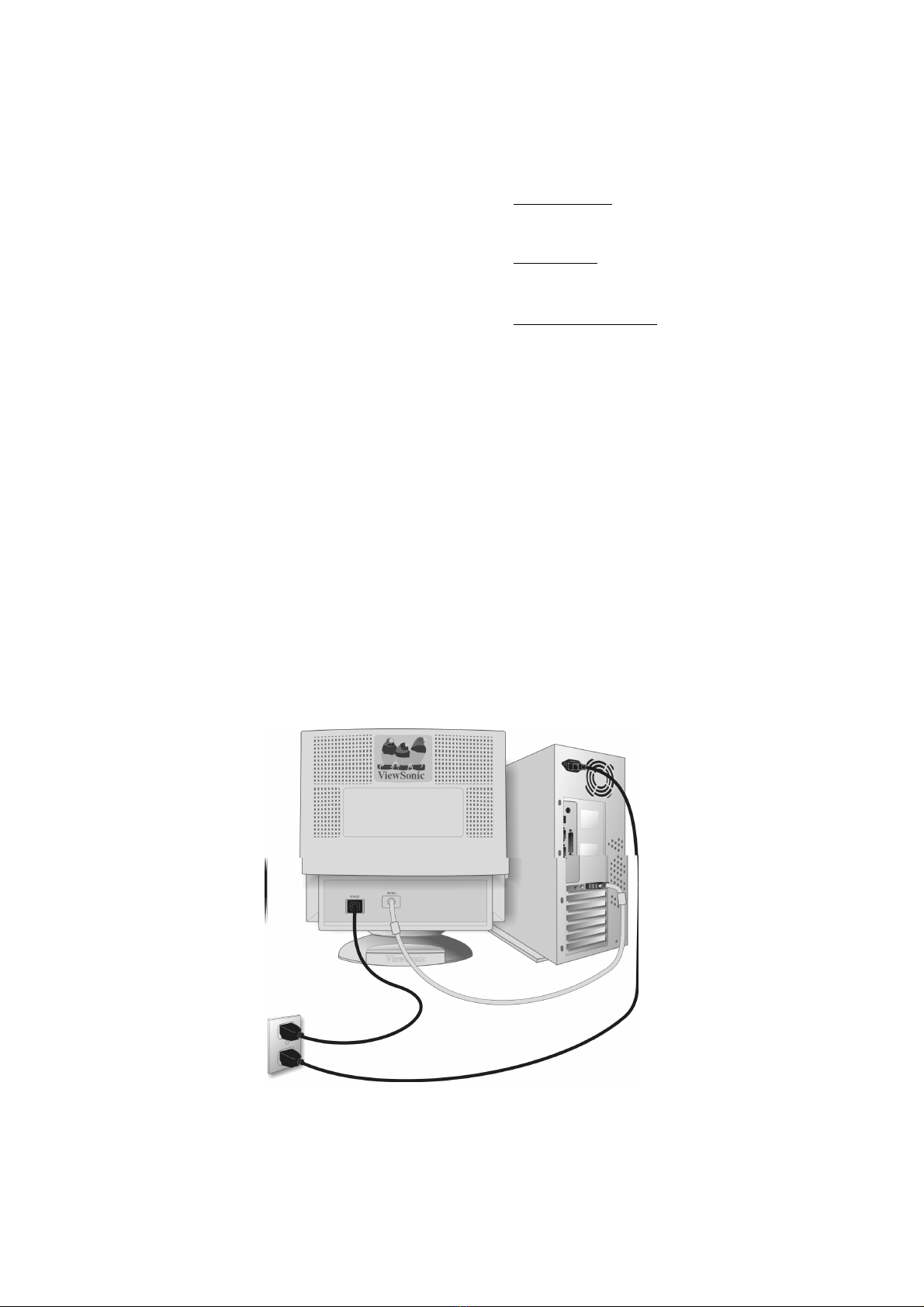

Quick Installation

1 Connect video cable

Make sure both the monitor and computer

are powered OFF.

Connect the video cable to the computer,

then to the monitor.

Macintosh users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a ViewSonic®Macintosh adapter,

contact ViewSonic. See Customer Support

in this user guide.

2 Connect power cord

Connect the power cord from the monitor to

a properly grounded AC outlet.

3 Power-ON monitor and computer

Power-ON the monitor, then power-ON the

computer. This sequence (monitor before

computer) is very important.

NOTE: At this point Windows 98 users may

receive a message asking them to install the

G810 INF file.

4 Install INF and ICM files

For CD-ROM: Insert your auto-start

CD-ROM, select “Monitor Drivers,” and

follow the on-screen instructions.

For diskette: Insert your diskette and run

install.exe. Follow the on-screen

instructions.

5 Windows users: Set the Timing

Mode (resolution and refresh rate)

Example: 1024 X 768 @ 75Hz.

For instructions on changing the resolution

and refresh rate, see the user guide for your

computer's graphics card.

Installation is complete. Enjoy your new

G810 monitor!

To be best prepared for any future customer

service needs:

Write the serial number (see back of the

monitor) in “For your Records” on page 1 of

this guide.

Internet at:

www.viewsonic.com/registration/

AC Outlet Video Cable

Power Cord

ViewSonic G810 4

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

resolution (example 1280 x 1024) and refresh rate (or vertical frequency;

example 75 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

The recommended timing modes for this monitor are:

VESA 1024 x 768 @ 75 Hz and VESA 1600 x 1200 @ 75 Hz.

To set the Timing Mode:

1Set the resolution: Right-click on the Windows®desktop > Properties >

Settings > Desktop or Screen Area > set the resolution.

2Set the refresh rate: See your graphic card's user guide for instructions.

NOTE: To minimize the adjustments required for an optimal screen image,

select a timing mode from the Preset Timing Modes table below.

WARNING: Do NOT set the graphics card in your computer to exceed the

maximum refresh rate for each resolution (see below). Doing so may result in

permanent damage to your monitor.

(NI = Non Interlaced)

Preset Timing Modes

VGA 640 x 400 @ 70 Hz

VGA 640 x 480 @ 60 Hz

VESA®640 x 480 @ 75 Hz

VESA 800 x 600 @ 75 Hz

VESA 800 x 600 @ 85 Hz

VESA 1024 x 768 @ 60 Hz

VESA 1024 x 768 @ 75 Hz

VESA 1024 x 768 @ 85 Hz

VESA 1280 x 1024 @ 75 Hz

VESA 1280 x 1024 @ 85 Hz

VESA 1600 x 1200 @ 75 Hz

Macintosh 832 x 624 @ 75 Hz

Macintosh 1152 x 870 @ 75 Hz

Macintosh 640 x 480 @ 67 Hz

Timing Modes with Maximum Refresh Rates

1600 x 1200 NI @ 77 Hz

1280 x 1024 NI @ 90 Hz

1152 x 870 NI @ 105 Hz

1024 x 768 NI @ 118 Hz

800 x 600 NI @ 149 Hz

640 x 480 NI @ 180 Hz

ViewSonic G810 5

1920 x 1440 NI @ 64 Hz

2048 x 1536 NI @ 60 Hz

Adjusting the Screen Image

Beginning with the Main Menu shown below, use the buttons on the front

control panel to adjust the OnView®controls which display on the screen. The

OnView controls are explained in the four steps at the top of the next page and

are further explained on pages 8-11.

* The monitor automatically degausses each time you turn it on, removing the buildup of magnetic

fields that can affect color purity and convergence. To prevent possible damage, if you turn the

monitor off, then immediately on again, wait 20 minutes before doing this again. Do not turn the

monitor on and off repeatedly. To manually degauss the monitor, see the instructions on page 9.

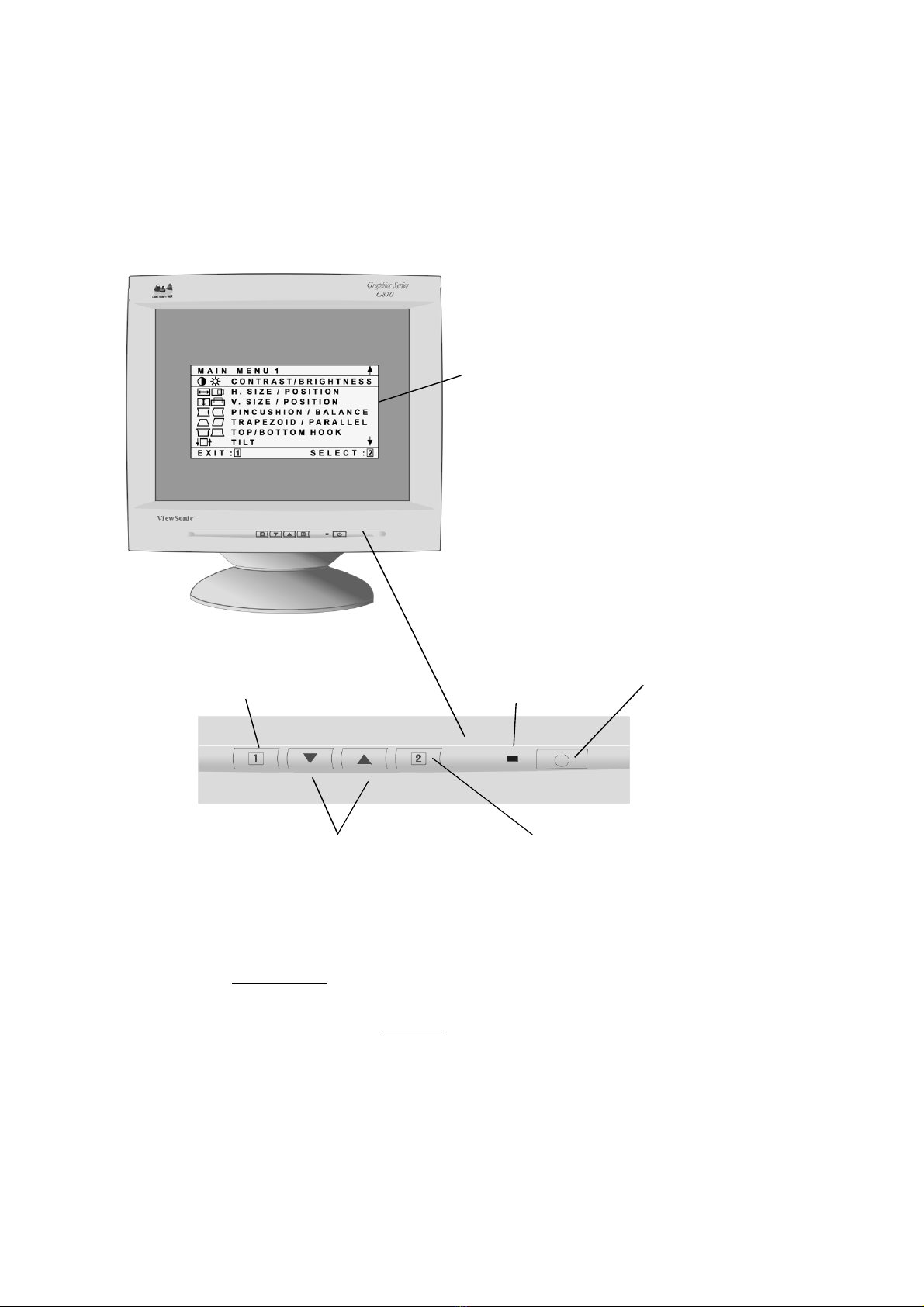

Main Menu with OnView controls

Status line at the bottom of the menu

shows what to do next: Button [1] EXITs

this menu, or Button [2] SELECTs the

highlighted control (or pair of controls).

Front Control Panel

Power On/Off

Power Light

Displays Main Menu; also saves

changes/exits Main Menu.

Scroll Up/Down

menu options

Displays control screen for

highlighted control (or pair

of controls). Also, toggles

between pair of controls on

some control screens.

ViewSonic G810 6

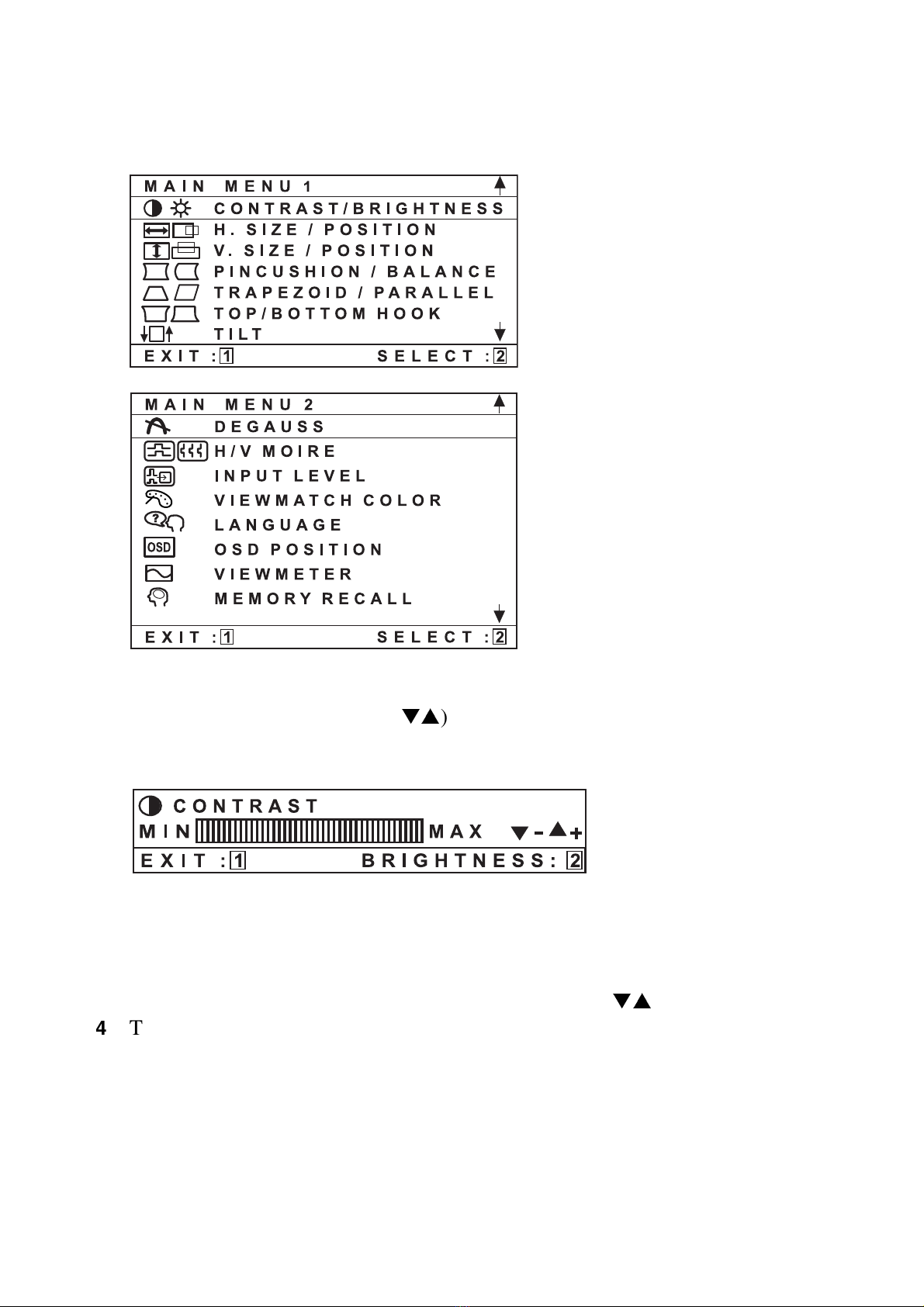

To adjust the screen image:

1To display the Main Menu (parts 1 and 2 shown below), press button [1].

2To select a control you want to adjust, press the arrow buttons on the front

control panel of your monitor (



) and scroll through the choices.

When the control you want to adjust is highlighted, press button [2].

NOTE: Some controls on the Main Menu are listed in pairs, such as

Contrast/Brightness. Press button [2] to toggle between control pairs after

displaying a control screen.

3To adjust the selected control, press the arrow buttons (



4To save the control setting and Exit the menu, press button [1] twice.

ViewSonic G810 7

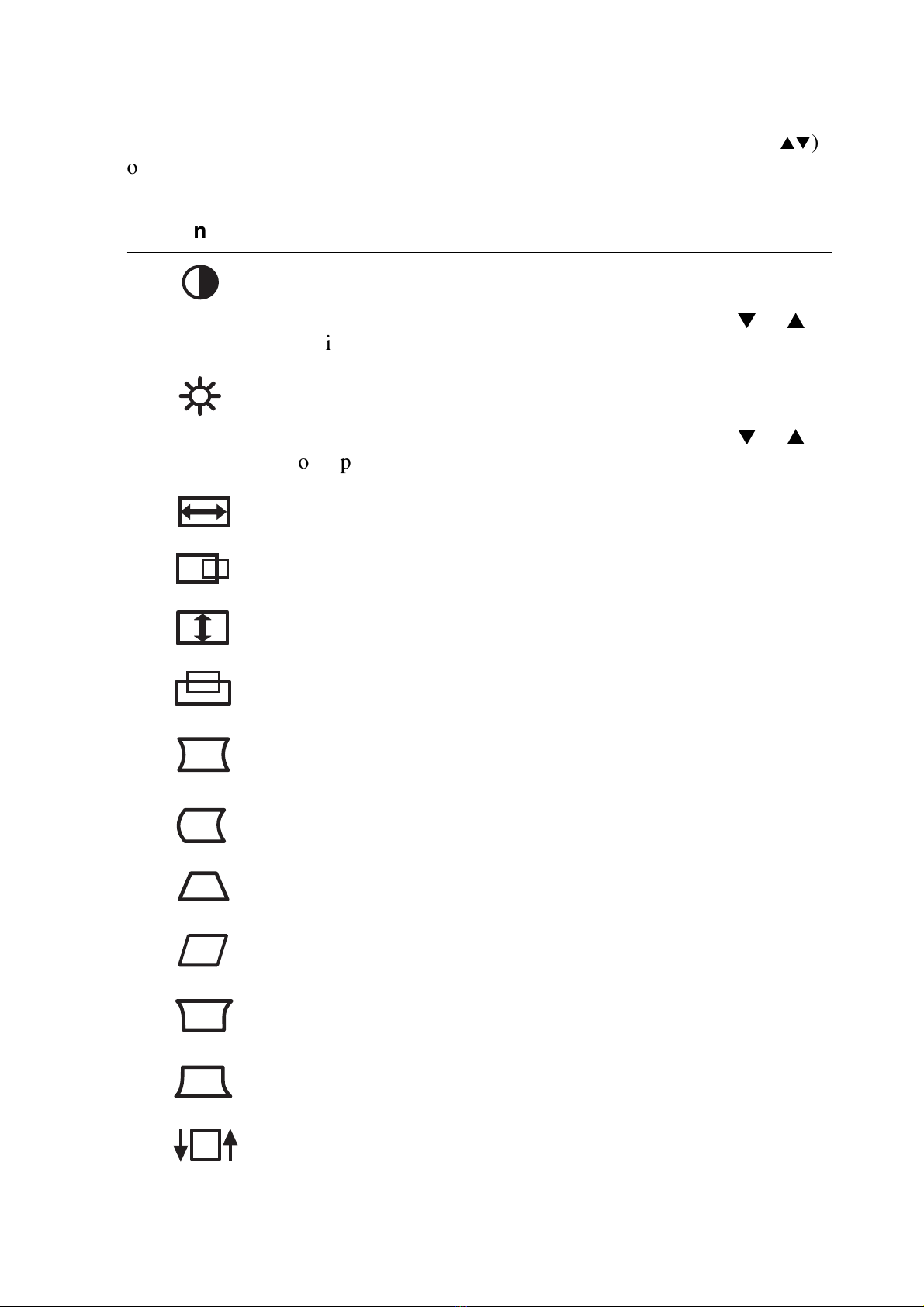

Main Menu Controls

The menu items shown below can be adjusted by using the arrow buttons (



)

on the front of your monitor.



Control Explanation

Contrast adjusts the difference between the image

background (black level) and the foreground (white level).

Shortcut: Before displaying the Main Menu, press





to display the Contrast/Brightness control screen.

Brightness adjusts the background black level of the screen

image.

Shortcut: Before displaying the Main Menu, press





to display the Contrast/Brightness control screen.

Horizontal Size adjusts the width of the screen image.

Horizontal Position moves the screen image left or right.

Vertical Size adjusts the height of the screen image.

Vertical Position moves the screen image up or down.

Pincushion straightens curves along the vertical edges of

the screen image that bow inward or outward.

Pin Balance straightens curves along the vertical edges of

the screen image that bow in the same direction.

Trapezoid makes the vertical edges of the screen image

parallel.

Parallel slants the vertical edges of the screen image.

Top Hooking straightens the top corners of the screen

image.

Bottom Hooking straightens the bottom corners of the

screen image.

Tilt rotates the entire screen image.

ViewSonic G810 8

Degauss removes the build-up of magnetic fields that can

cause irregular colors to appear around the edges of screen

images. Your monitor will degauss automatically each time

you power it on.

To degauss your monitor manually, select Degauss on the

on-screen menu and press button [2].

Important: Do not degauss repeatedly. Doing so can be

harmful to the monitor. Wait at least 20 minutes before

using this control again.

H. Moire (Horizontal Moire) reduces vertical interference

patterns that appear as ripples, waves, or unwanted

background color textures.

NOTE: Interference patterns of this type are most

noticeable when viewing images having closely spaced

lines or finely detailed patterns.

V. Moire (Vertical Moire) reduces horizontal interference

patterns that appear as ripples, waves, or unwanted

background color textures.

NOTE: Interference patterns of this type are most

noticeable when viewing images having closely spaced

lines or finely detailed patterns.

Input Level displays the voltage level of the video signal.

NOTE: the default selection is 0.7 Volts.

Control Explanation (Continued)

ViewSonic G810 9

Autres manuels pour G810 - 21" CRT Display

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ViewSonic Moniteur

ViewSonic

ViewSonic VS13513 Manuel utilisateur

ViewSonic

ViewSonic VX2025wm VS10859 Manuel utilisateur

ViewSonic

ViewSonic CDE4802 Manuel utilisateur

ViewSonic

ViewSonic VA2446mh-LED Manuel utilisateur

ViewSonic

ViewSonic XG2700-4K Manuel utilisateur

ViewSonic

ViewSonic VA930M - 19" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic VS18570 Manuel utilisateur

ViewSonic

ViewSonic XG2705-2K Manuel utilisateur

ViewSonic

ViewSonic VX2338Sh Manuel utilisateur

ViewSonic

ViewSonic LD108-121 Manuel utilisateur

ViewSonic

ViewSonic Optiquest Q190mb Manuel utilisateur

ViewSonic

ViewSonic VE800 Manuel utilisateur

ViewSonic

ViewSonic G510b Manuel utilisateur

ViewSonic

ViewSonic V3D231 Manuel utilisateur

ViewSonic

ViewSonic VX1932WM-LED - 19" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic ViewPanel VA520 Manuel utilisateur

ViewSonic

ViewSonic VX510 Manuel utilisateur

ViewSonic

ViewSonic G90fB-4 Manuel utilisateur

ViewSonic

ViewSonic VS16854 Manuel utilisateur

ViewSonic

ViewSonic ViewBoard IFP9850-3 Manuel utilisateur

ViewSonic

ViewSonic VP171B - 17" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic VS17286 Manuel utilisateur

ViewSonic

ViewSonic VE710S - LCD Display - TFT Manuel utilisateur

ViewSonic

ViewSonic VA903MB - 19" LCD Monitor Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
