Digital Photo Frame

DPX702

-Quick Start Guide

Model No. : VS12078

- Quick Start Guide

- Guide de démarrage rapide

- Guía de Inicio Rápido

Model No. : VS12075

Digital Photo Frame

ViewSonic®

DPX802

Quick start guide

Compliance Information

FCC Statement

This device complies with part 15 of FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy, and if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modications not expressly

approved by the party responsible for compliance could void your authority to

operate the equipment.

For Canada

• This Class B digital apparatus complies with Canadian ICES-003.

• Cet appareil numérique de la classe B est conforme à la norme NMB-003

du Canada.

CE Conformity for European Countries

The device complies with the requirements of the EEC directive

2004/108/EC as amended by 92/31/EEC and 93/68/EEC Art.5 with

regard to “Electromagnetic compatibility”, and 2006/95/EC as amended

by 93/68/EEC Art.13 with regard to “Safety.”

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical

and Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment as

unsorted municipal waste, but use the return and collection systems

according to local law.

English

Quick start guide

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean with a soft, dry cloth. If still not clean, see “Cleaning the Display” in

this guide for further instructions.

Do not block any ventilation openings. Install the unit in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves,

or other devices (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong. The wide blade and

the third prong are provided for your safety. If the provided plug does not t

into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at

plugs. Convenience receptacles and the point where they exit from the

unit. Be sure that the power outlet is located near the unit so that it is easily

accessible.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specied

by the manufacturer, or sold with the unit. When a cart is used,

use caution when moving the cart/unit combination to avoid

injury from tipping over.

13. Unplug this unit when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when

the unit has been damaged in any way, such as: if the power-supply cord or

plug is damaged, if liquid is spilled onto or objects fall into the unit, if the

unit is exposed to rain or moisture, or if the unit does not operate normally

or has been dropped.

English

Quick start guide

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive

2002/95/EC of the European Parliament and the Council on restriction of the use

of certain hazardous substances in electrical and electronic equipment (RoHS

Directive) and is deemed to comply with the maximum concentration values

issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance Proposed Maximum

Concentration

Actual

Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers

(PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex of

the RoHS Directives as noted below:

Examples of exempted components are:

1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in

other lamps not specically mentioned in the Annex of RoHS Directive.

2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes,

and electronic ceramic parts (e.g. piezoelectronic devices).

3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by

weight or more lead).

4. Lead as an allotting element in steel containing up to 0.35% lead by weight,

aluminium containing up to 0.4% lead by weight and as a cooper alloy

containing up to 4% lead by weight.

English

Quick start guide

English

Package contents

Check your Digital Photo Frame package for the following items.

• Digital Photo Frame

• Power adapter

• Stand

• Quick Start Guide

• USB cable

• Replacement front panel*

* The bundled front panel varies depending on the model you purchase.

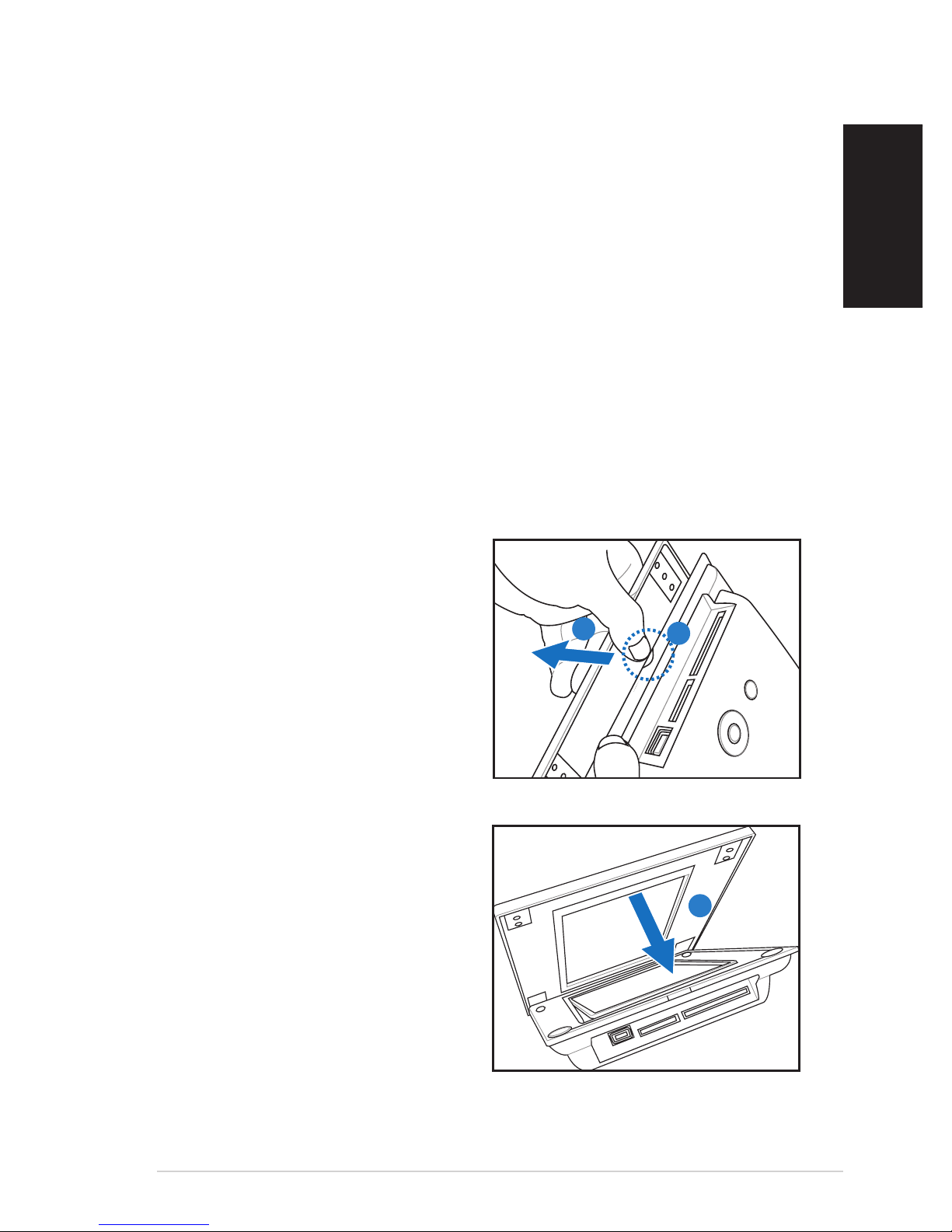

Replacing front panel

If your Digital Photo Frame package contains a spare front panel, follow these

instructions to replace the front panel for personal preference.

1. Locate the indent on the edge

near the memory card socket.

2. Follow the direction of the gure

and gently lift the front panel.

3. To install a new front panel, align

the panel edge to the Digital

Photo Frame and gently place the

panel on the device.

Quick start guide

English

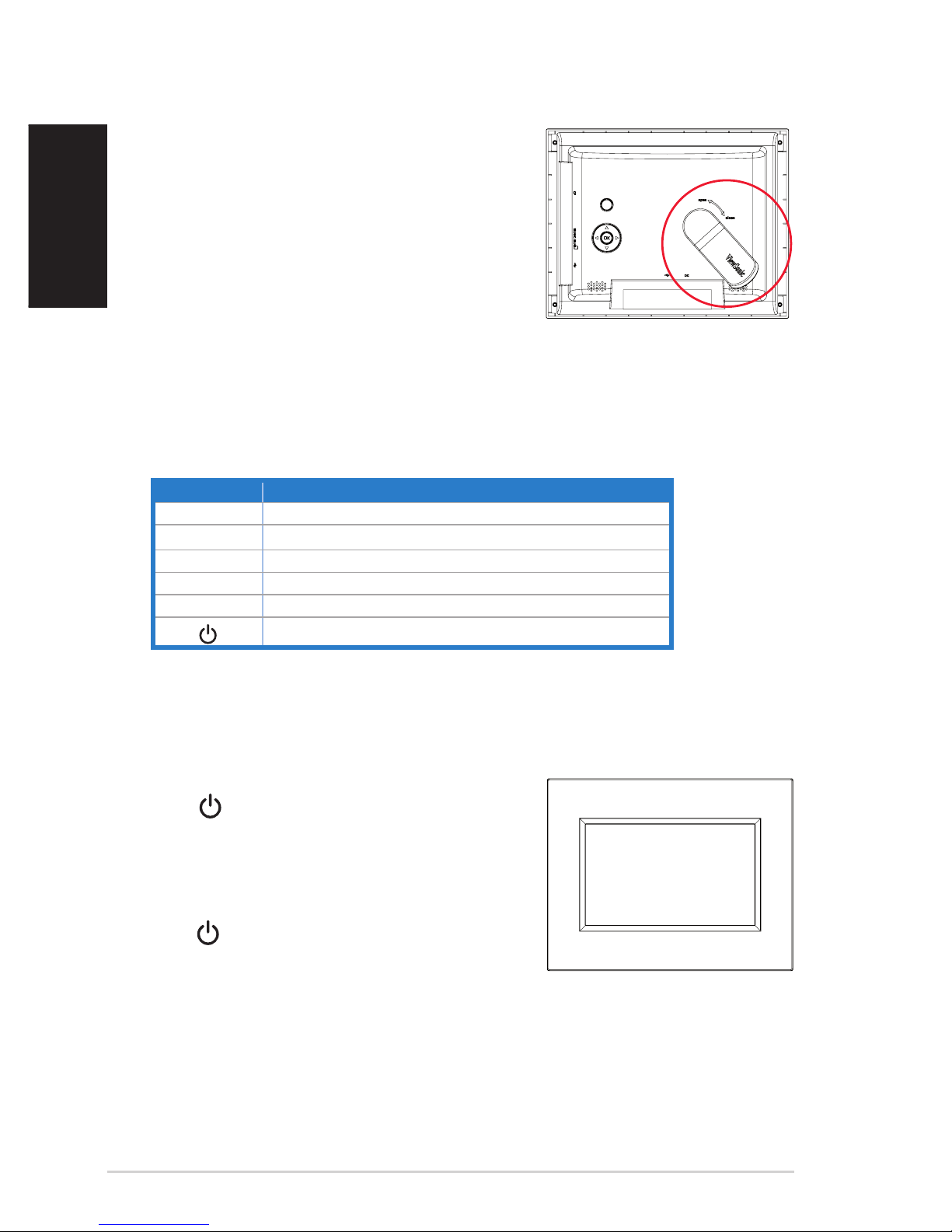

Connect

Button Function

OK Enter or conrm the selection

Left Move to the previous or left selection

Right Move to the next or right selection

Up Move upward

Down Move downward

Power On/Off

Locate control keys (in the back panel)

Locate the control buttons in the back panel according to the following

table.

2. Plug the power adapter from the device to a power outlet.

1. Align the head of the stand with the

socket, then rotate clockwise until the

stand locks into place.

Turn ON/OFF the device

Turn on the device

Press turn on the device, then the main

screen appear. The LED will light up in blue

color.

Turn off the device

Hold for 2 seconds then release to turn off

the device.

Tips: If you can’t turn on the device normally, please try to turn off the device

then turn it on again.

Quick start guide

English

Remote Control

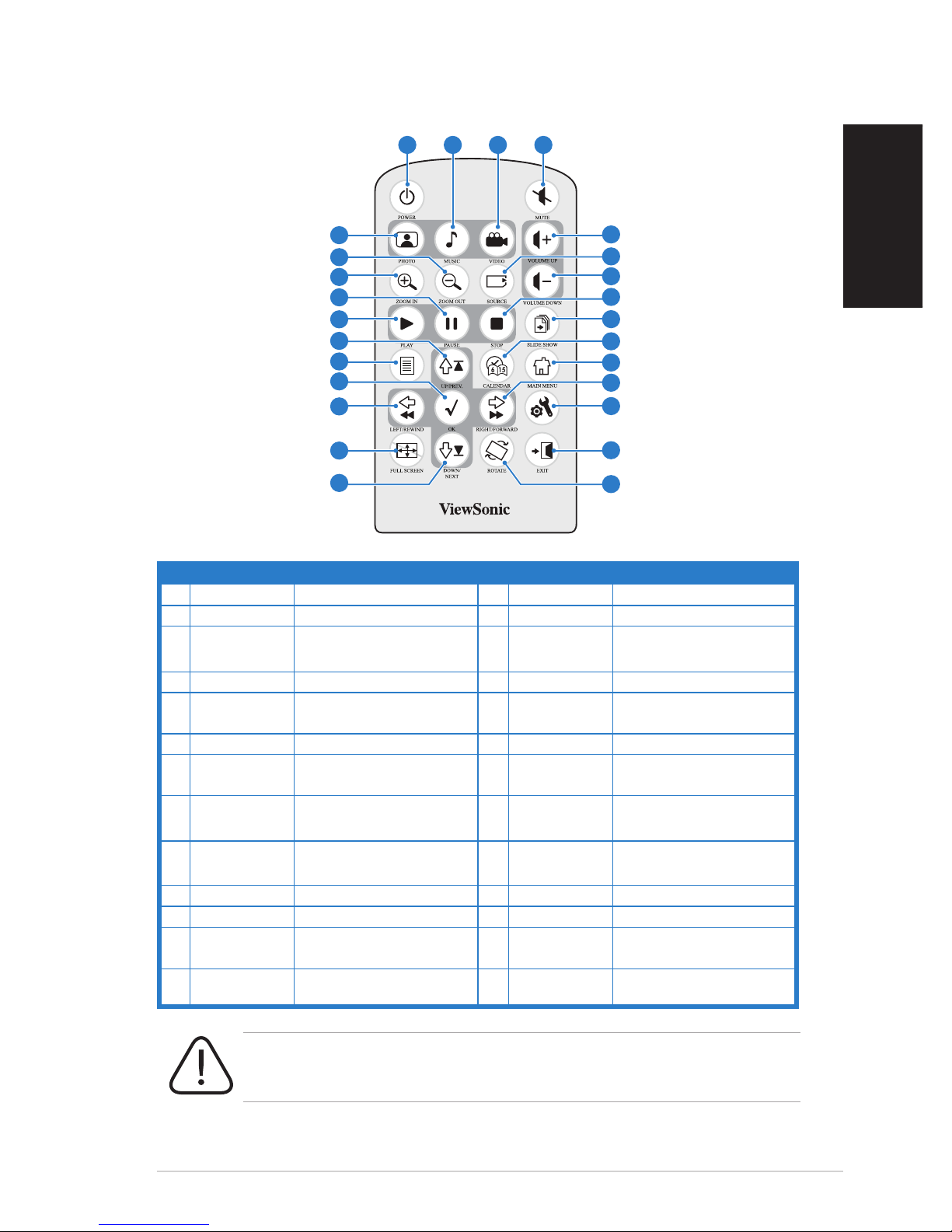

Refer to the following image and table for details of the remote control.

No. Item Description No. Item Description

1 POWER Disabled on this model 14 EXIT Go back one menu level

2 MUSIC Shortcut to the Audio menu 15 ROTATE Rotate photo 90° clockwise

3 VIDEO Shortcut to the Video menu 16 DOWN/NEXT Navigate down in menus/

skip to next available media

4 MUTE Mute audio output 17

FULL SCREEN

Enlarge image to full screen

5 VOLUME UP Increase audio volume 18 LEFT/

REWIND

Navigate left in menus/

rewind audio playback

6 SOURCE Shortcut to Source menu 19 OK Select/accept selected item

7VOLUME

DOWN Decrease audio volume 20 View Display advanced media

options in media menus

8 STOP Stop Video or Audio

playback 21 UP/PREV. Navigate up in menus/skip

to previous available media

9 SLIDE SHOW Start slide show of available

photos 22 PLAY Play selected media

10 CALENDAR Disabled on this model 23 PAUSE Pause current media

11 MAIN MENU Display Main Menu 24 ZOOM IN Enlarge photo image size

12 RIGHT/

FORWARD

Navigate right in menus/fast

forward audio playback 25 ZOOM OUT Reduce photo image size

13 Setting Shortcut to Settings menu 26 PHOTO Shortcut to Photo menu

• POWER and CALENDAR functions are disabled on this model.

• ZOOM IN/OUT are only available using the remote control.

Setting

View

1 2 3 4

Quick start guide

English

Settings

Brightness

Allows you to adjust the screen brightness.

Language

Allows you to select the language you need.

Default

Go to SETTINGS > Default, then select Yes to retore to the factory default

setting or No to discard the selection.

Set Beep

Allows you to turn on/off the key control sound.

Status

Displays the software version and the current memory size.

Auto Tilt

Automatically adjusts the orientation of the screen when you rotate the frame.

The default value is On.

Auto Tilt does not compensate if the frame is placed upside

down—only 90° rotation clockwise or counter clockwise is

supported.

Volume

Allows you to adjust the volume between 0and 16. The default value is 8.

You will see Low battery please plug-in the power adapter

on the screen when the batterty is low. Plug the power adapter

immediately, or the device will be turned off soon.

Quick start guide

English

View Photos

From the main screen, press the Up and Down navigation keys to select

PHOTO, then select the photo source you want to display.

Photos pre-stored in the device will appear when no memory card or USB

ash disk is connected.

When photo source is selected, press OK to switch between 3 view modes:

• Browse mode: manual viewing of photos one-by-one

• Thumbnail mode: list of all photos

When viewing photos in Thumbnail mode, hold the Down navigation

key for 2 seconds then release to quickly enter the setting menu for

photo-related settings,

or press View on the remote control.

• Slideshow mode: automatically shifting display of photos

To exit the PHOTO function, switch to Thumbnail mode, then press the Up

navigation key.

Compact Flash card

Memory Stick/ XD/

Secure Digital/ MMC card

(Right side)

USB ash disk

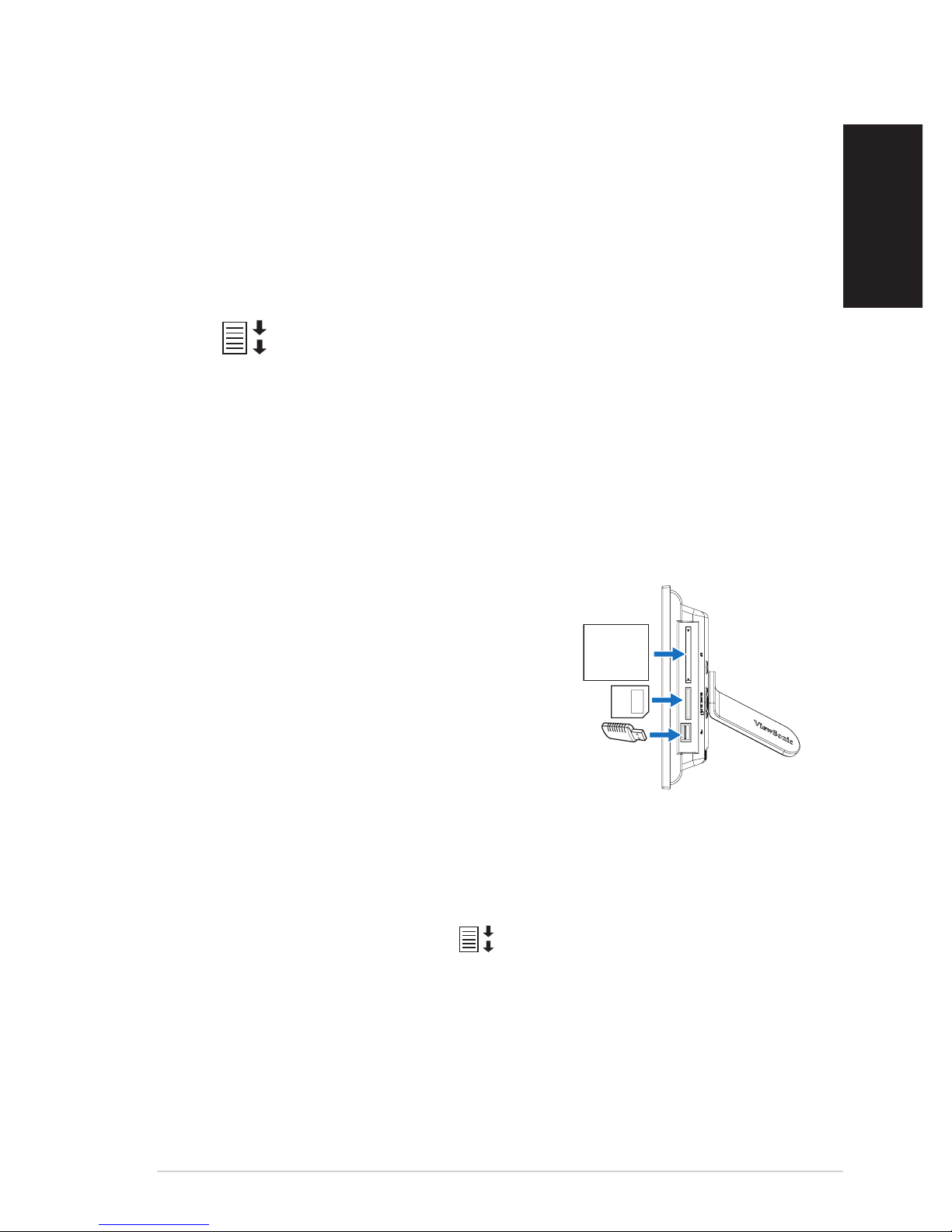

View photos from your memory card or USB ash

disk

1. Insert your memory card

with photos into the

corresponding slot,

OR: insert your USB

ash disk into the USB

port.

2. Photos on your memory

card will appear after a

few seconds.

Copy photos from your photo source

1. In Thumnail mode, press the navigation keys to select one photo.

2. Hold the Down navigation key for 2 seconds then release to quickly

enter the setting menu, or press View on the remote control.

3. Select Copy to or Copy all to, then press OK.

4. Select the source where you want to store the selected photos.

5. Press OK to copy.

Quick start guide

English

Copy multi-photos

1. In Thumnail mode, select one photo, then press the Down navigation

key . The selected photo is labeled with a "+" mark.

2. Repeat step 1 to other photos you want to copy to a source.

3. Finishing selection, repeat step 2–5 in section Copy photos from your

photo source.

Delete photos from your photo source

1. In Thumnail mode, press the navigation keys to select one photo.

2. Hold the Down navigation key for 2 seconds then release to quickly

enter the setting menu, or press View on the remote control.

3. Select Delete or Delete all, then press OK.

Delete multi-photos

1. In Thumnail mode, select one photo, then press the Down navigation

key . The selected photo is labeled with a "+" mark.

2. Repeat step 1 to other photos you want to delete.

3. Finishing selection, repeat step 2–3 in section Delete photos from your

photo source.

Photo Setting menu

While in Thumnail mode, hold the Down navigation key for 2 seconds

then release to enter the photo setting menu You can adjust the screen view,

slideshow sequence/effect/speed, copy or delete photos, effect, rotate photos,

and set background music from the photo setting menu.

• Full Screen: sets the displayed photo to full screen.

When set to Full Screen, the displayed photo is automatically cropped to

t the screen.

• Slideshow Sequence: sets the photo transition sequence.

• Slideshow Effect: sets the photo transition effect.

• Slideshow Speed: sets the photo transition frequency.

• Copy/Copy all to: copy one or all photos to a selected source.

• Delete/Delete all: delete one or all photos.

• Effect: displays photos in black and white.

• Rotate: rotate the displayed photo 0/90/180/270 degrees

• Background Music: display photos with background audio. Default value

is Off.

Photo and Audio les must be from the same Source, for example,

USB ash disk.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ViewSonic Cadre photo numérique

ViewSonic

ViewSonic DPX704WH Manuel utilisateur

ViewSonic

ViewSonic VFM1035-52 Manuel utilisateur

ViewSonic

ViewSonic VFD1024W Manuel utilisateur

ViewSonic

ViewSonic DPG801BK Manuel utilisateur

ViewSonic

ViewSonic VFA721w-50 Manuel utilisateur

ViewSonic

ViewSonic VFM1036W-51E Manuel utilisateur

ViewSonic

ViewSonic VFA720w-10 Manuel utilisateur

ViewSonic

ViewSonic VFD720-12 - Digital Photo Frame Manuel utilisateur

ViewSonic

ViewSonic DPX1002 Manuel utilisateur

ViewSonic

ViewSonic VFM1024w-11 Manuel utilisateur

ViewSonic

ViewSonic VFA721w-50 Manuel utilisateur

ViewSonic

ViewSonic VFP838-11 Manuel utilisateur

ViewSonic

ViewSonic VS13471 Manuel utilisateur

ViewSonic

ViewSonic VFD874 Manuel utilisateur

ViewSonic

ViewSonic VFM1586-11E Manuel utilisateur

ViewSonic

ViewSonic VFM820-50 Manuel utilisateur

ViewSonic

ViewSonic VFM670w-50E Manuel utilisateur

ViewSonic

ViewSonic DF88W Manuel utilisateur

ViewSonic

ViewSonic VFD823 Manuel utilisateur

ViewSonic

ViewSonic VFD1024w-51 Manuel utilisateur

ViewSonic

ViewSonic VS12978 Manuel utilisateur

ViewSonic

ViewSonic VFM823-50 Manuel utilisateur

ViewSonic

ViewSonic VFD826-70 Manuel utilisateur

ViewSonic

ViewSonic DPD308BK Manuel utilisateur

Manuels Cadre photo numérique populaires d'autres marques

LENCO

LENCO DF-830 Manuel utilisateur

NIX

NIX Advance X10G Manuel utilisateur

Nextar

Nextar N7S-100 Manuel utilisateur

Sungale

Sungale TD350A Manuel utilisateur

texet

texet DPF-830 Instructions de montage

Philips

Philips SPF2017 Manuel utilisateur

Philips

Philips SPF1327 Manuel utilisateur

Philips

Philips SPF7010/10 Manuel utilisateur

Digital Spectrum

Digital Spectrum MemoryVue MV-1500 Manuel utilisateur

YURAKU

YURAKU YUR.PHOTO 7B4C Manuel utilisateur

Denver

Denver PFF-710WHITE MK2 Manuel utilisateur

Pandigital

Pandigital PAN8000DWPCF1 Manuel utilisateur

Rekam

Rekam Deja View HD-850 Manuel utilisateur

Majestic

Majestic DF 918HD MP3 Manuel utilisateur

Philips

Philips SPF2527 Manuel utilisateur

Digital Foci

Digital Foci Image Moments IMT-063 Manuel utilisateur

Nokia

Nokia SU-4 Manuel utilisateur

Hama

Hama 118564 Manuel utilisateur
