Viessmann VITOSOLIC 100 Mode d'emploi
Operating instructions
for the system user
VIESMANN

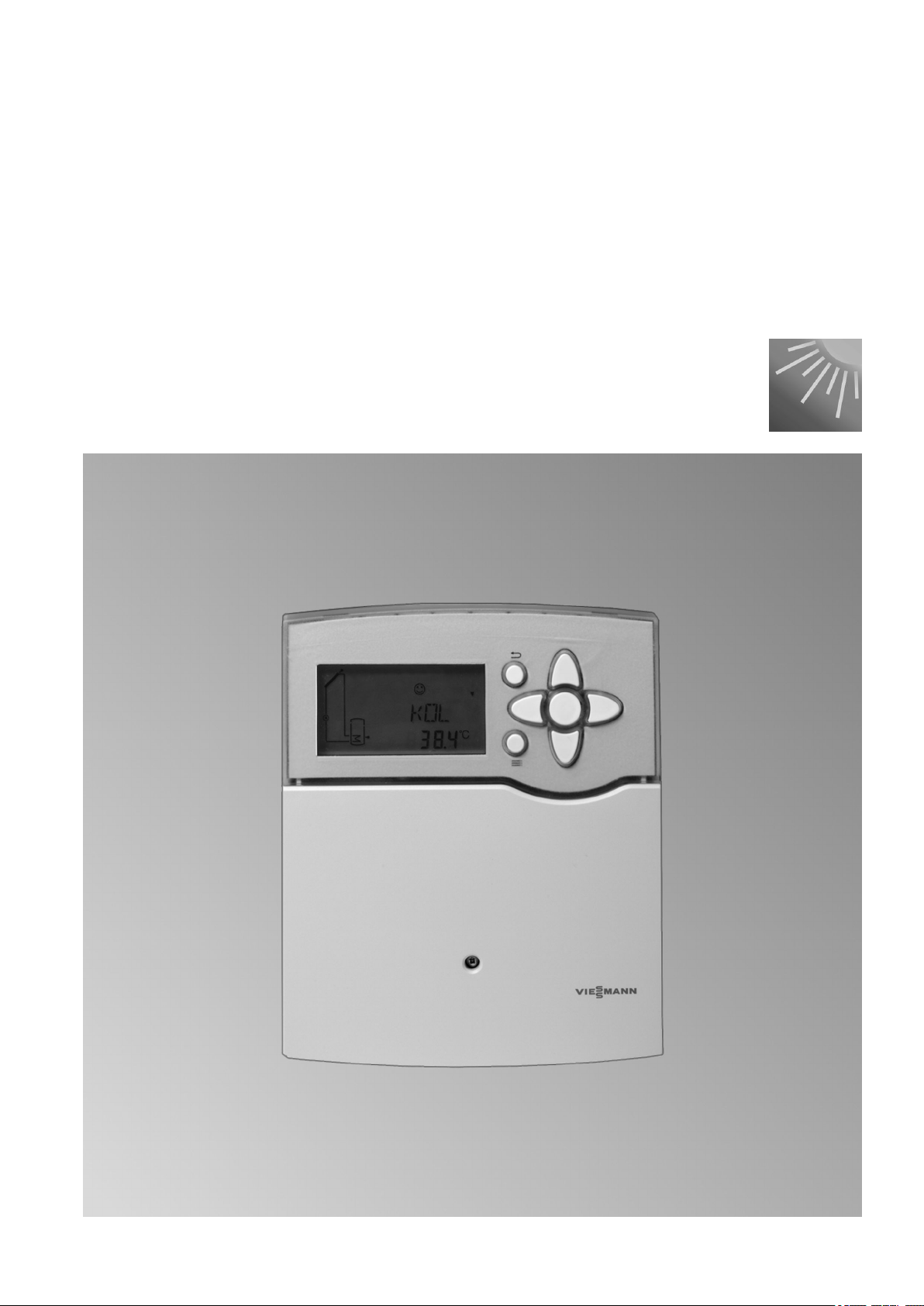

Control unit for solar thermal systems
VITOSOLIC 100
5592 640 GB 4/2014 Please keep safe.
2
Please follow these safety instructions closely to
prevent accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk of injury.
!Please note
This symbol warns against the risk of material
losses and environmental pollution.
Note
Details identified by the word "Note" contain additional
information.
Target group
These operating instructions are intended for system
users.
This appliance can also be operated by children of 8
years and older, as well as by individuals with reduced
physical, sensory or mental faculties or those lacking
in experience and knowledge, provided such individu-
als are being supervised or have been instructed in the
safe use of this appliance as well as in any risks aris-
ing from it.
!Please note
Supervise children in the proximity of the appli-
ance.
■Never permit children to play with the appli-
ance.
■Cleaning and maintenance must not be car-
ried out by unsupervised children.
Appliance connection
■The appliance may only be connected and commis-
sioned by authorised contractors.
■Observe the specified electrical connection require-
ments.
■Modifications to the existing installation may only be
carried out by authorised contractors.
Danger
Incorrectly executed work on the system can
lead to life-threatening accidents.
Work on electrical equipment must only be car-
ried out by a qualified electrician.
Work on the appliance
■All settings and work on the appliance must be car-
ried out as specified in these operating instructions.
Further work on the appliance may only be carried
out by authorised contractors.
■Never open the appliance.
■Never change or remove fitted accessories.
In case of fire
Danger
Fire presents a risk of burns and explosion.
■Switch the system OFF.
■Use a tested fire extinguisher, class ABC.
Auxiliary components, spare and wearing parts
!Please note
Components that were not tested with the sys-
tem may cause system damage, or may affect
its functions.
Have all installation or replacement work carried
out by qualified contractors.
Safety instructions
For your safety
5592 640 GB
3
The commissioning and adjusting of the control unit to
local conditions and to building characteristics, plus the
instruction of the user in operating the system, must be
carried out by your heating contractor.
Introductory information
Commissioning
5592 640 GB
4
Controls
KOL
°C
AB
Fig. 1
AOK to confirm your selection or setting.
BSymbols line
To terminate a value adjustment in progress.
/ Cursor keys
To scroll through the menu.
/ Cursor keys
To adjust values.
To change from the scanning level to the setting
level
To the right, underneath the symbol line on the display,
you will see which keys you can operate to make
adjustments and scans.
Symbols on the display
These symbols are not always displayed, but appear
subject to the system operating condition.
Symbol Permanent display Flashing
The system is operational. —
ÂRelay 1 is on.
The solar circuit pump is running.
—
ÃRelay 2 is on. —
ÈThe set DHW temperature has been
reached.
Collector cooling function, return cooling
function enabled
ÇThe frost protection function is enabled. Failed to reach minimum collector tem-
perature
¨—Emergency collector shutdown (collector
limit temperature reached) or cylinder
emergency stop active
¨+ÄSensor fault:
Ä ¨
¨+ÆManual mode:
Æ ¨
SET You can change the relevant parame-
ters.
Change parameters with / .
Operation
Operation
5592 640 GB
5
Use / to scan the following actual values subject to
the system equipment level:
■Note
The flashing sensor symbol in the system scheme
shows the position of the actual temperature.
KOL – Collector temperature in °C (standard display)
■TSPU – DHW temperature in °C
■S3 – Thermostat temperature in °C,
temperature at any additional connected sensor that
may be connected
■n1% – Solar circuit pump speed
■n2% – Operating condition of the actuator at relay
output R2
■hP1 – Hours run of the equipment at relay output 1
■hP2 – Hours run of the equipment at relay output 2
■KWh – Amount of heat in kWh, if the heat meter is
enabled
■MWh – Amount of heat in MWh, if the heat meter is
enabled
Note
Add the values for MWh and kWh together.
Resetting hours run and amount of heat
Whilst the value is displayed, press the following keys:
1. OK "SET" flashes. Value 0 appears.
2. OK to confirm
Scanning options
Displaying actual values
5592 640 GB
6
Cause Remedy
The solar control unit MCB has responded. Inform your local heating contractor.
Power failure The solar control unit automatically returns to operation
once the power supply has been restored.
The power distribution MCB (main domestic MCB) has
responded.
Check the MCB and inform your heating contractor if
necessary.
The collector limit temperature or maximum cylinder
temperature has been reached.
Wait until the relevant temperature has fallen below its
respective limit.
The solar control unit is in manual mode.
The display shows "Æ" and "¨" flashes.
Select "Auto":
1. Press until "ANL" is displayed.
2. Press until "HND 1" or "HND 2" is displayed.
3. Press OK, "SET" flashes.
4. Press until "Auto" is displayed.
5. Press OK to confirm.
6. Press . The collector temperature is displayed.
There is no DHW available
Cause Remedy
The solar control unit is faulty. Inform your local heating contractor.
The collector temperature is too high, safety shutdown
by the solar control unit.
Wait until the collector temperature has dropped.
The set cylinder temperature (set DHW temperature) is
set too low.
Inform your local heating contractor.
The solar circuit pump is faulty. Inform your local heating contractor.
The DHW cylinder is not being reheated:
The operating and time programs on the boiler control
unit are incorrectly set.
Enable DHW heating.
Operating instructions of the boiler control unit
The display is flashing
Cause Remedy
Example, sensor fault
KOL
°C
The sensor symbol in the system scheme flashes
quickly.
¨ flashes.
Read off the fault code. Inform your local heating con-
tractor.
In the example, the collector temperature sensor has a
short circuit.
–88.8 Sensor short circuit
888.8 Sensor lead break
Note
Check other sensors with / .
What to do if...
The solar thermal system does not start
5592 640 GB
7
DHW cylinder (if installed)
Standards DIN 1988-8 and EN 806 specify that main-
tenance and cleaning should be carried out no later
than 2 years after commissioning and as required
thereafter.
Only a qualified heating contractor should clean the
inside of a DHW cylinder and the DHW connections.
If any water treatment equipment (e.g. a sluice or
injection system) is installed in the cold water supply of
the DHW cylinder, ensure this is refilled in good time.
In this connection, observe the manufacturer's instruc-
tions.
In addition for Vitocell 100:
We recommend that the correct function of the sacrifi-
cial anode is checked annually by your heating con-
tractor.
The function of the sacrificial anode can be checked
without interrupting the system operation. The heating
contractor will check the earth current with an anode
tester.
Safety valve (DHW cylinder)
The function of the safety valve must be checked
every six months by the user or a contractor through
venting (see valve manufacturer's instructions). The
valve seat may become contaminated.
Water may drip from the safety valve during a heat-up
process. The outlet is open to the atmosphere and
must not be closed off.
Potable water filter (if installed)
To maintain high hygienic standards, proceed as fol-
lows:
■Replace filter element on non-back flushing filters
every six months (visual inspection every
two months).
■On back flushing filters, back flush every
two months.
Damaged cables / lines
If there is damage to the connecting cables or lines of
the appliance or externally installed accessories, these
must be replaced with special cables or lines. Only use
Viessmann cables / lines as replacement. For this,
notify your qualified contractor.
Upkeep
Inspection and maintenance
5592 640 GB
8
Your contact
Contact your local contractor if you have any questions regarding the maintenance and repair of your system.
You may, for example, find local contractors on the internet under www.viessmann.com.
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP, GB
Telephone: +44 1952 675000
Fax: +44 1952 675040
E-mail: [email protected]
Viessmann Werke GmbH&Co KG
D-35107 Allendorf
Telephone: +49 6452 70-0
Fax: +49 6452 70-2780
www.viessmann.com
Your contact
Contact your local contractor if you have any questions regarding the maintenance and repair of your system.
You may, for example, find local contractors on the internet under www.viessmann.com.
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP, GB
Telephone: +44 1952 675000
Fax: +44 1952 675040
E-mail: [email protected]
Viessmann Werke GmbH&Co KG
D-35107 Allendorf
Telephone: +49 6452 70-0
Fax: +49 6452 70-2780
www.viessmann.com
5592 640 GB Subject to technical modifications.
