Vicon CE202D-WN Manuel utilisateur

www.vicon-security.com

XX269-10-00

CE202D-WN Network Outdoor

Camera Dome

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the

operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed

to be used in life-critical situations and must not be used for this purpose.

Vicon Industries Inc.

Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Document Number: 8009-8269-10-00

3URGXFWVSHFL¿FDWLRQVVXEMHFWWRFKDQJHZLWKRXWQRWLFH

Issued: 214

&RS\ULJKW9LFRQ,QGXVWULHV,QF$OOULJKWVUHVHUYHG

Quick Guide

1. Description

The information in this manual provides quick installation and setup procedures for the CE202D-WN

Camera Dome. These units should only be installed by a qualified technician using approved materials

in conformance with federal, state, and local codes. Read these instructions thoroughly before

beginning an installation. Always refer to Vicon’s website to assure you have the most up-to-date

manual, www.vicon-security.com.

The CE202D-WN is designed for demanding outdoor security installations. This cost-effective fixed

network camera includes an integral 3.7 mm megapixel fixed lens; the 1080p resolution delivers crisp

clear images. The CE202D-WN camera is fully compatible with all ViconNet® systems; its ONVIF

certification provides an open-platform for integration into other video management systems.

The network camera provides triple-streaming video and supports H.264 compression technology.

MPEG-4 and Motion JPEG (M-JPEG) compressions are also provided, as are privacy masking and

motion detection. Installation is made easy and cost-effective with Power-over-Ethernet (PoE); the

camera also accepts 12 VDC.

• Installation Steps

Follow these steps to install the network camera on your local network (LAN):

1. Check the package contents against the list that follows.

2. Connect the network camera.

3. Set an IP address.

4. Set the password.

1.1 Components

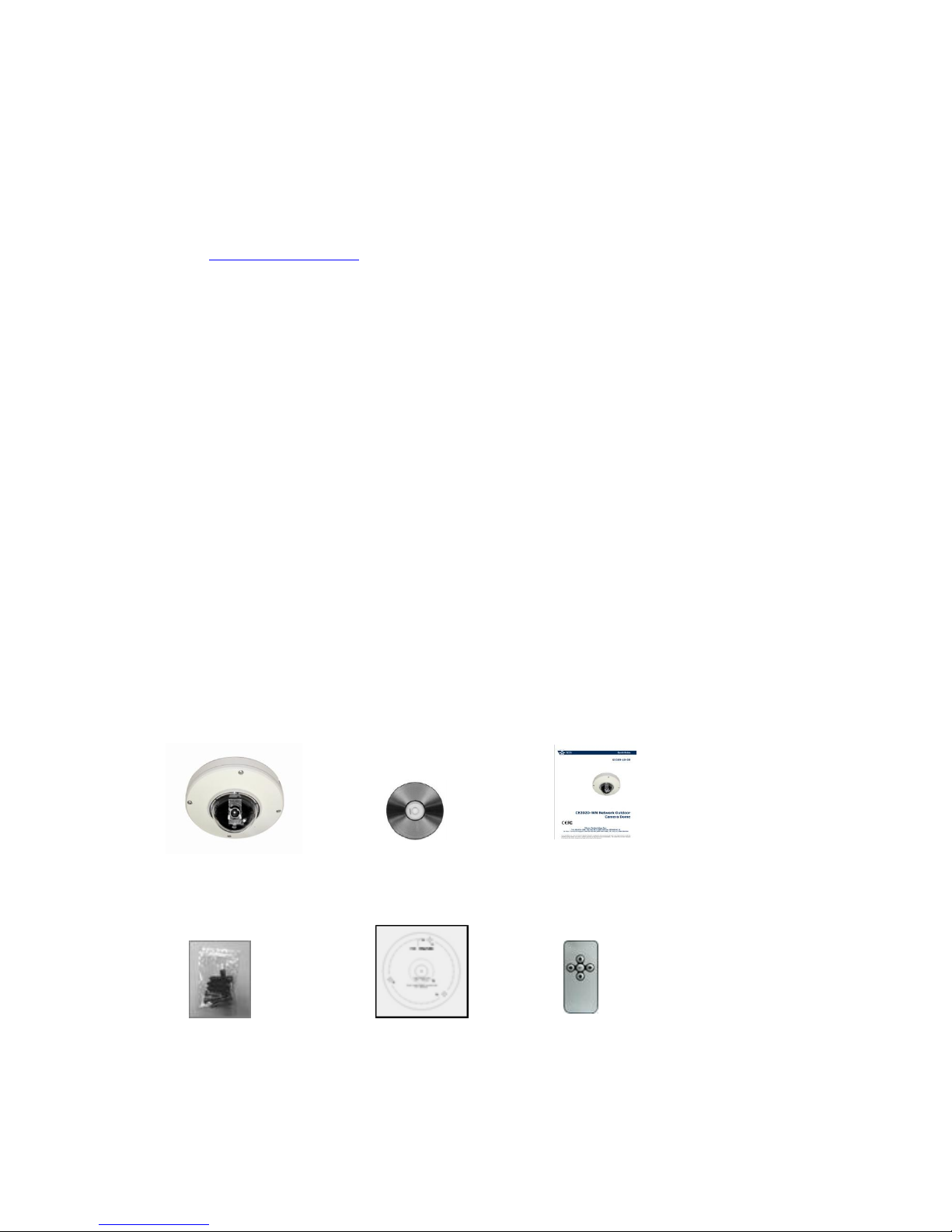

The system comes with the following components:

Camera Unit Installation CD Installation Guide

Accessory Kit Template Sheet Optional OSD Controller

Note 1: Check your package to make sure that you received the complete system, including all

components shown above.

Note 2: Adapter for 12 VDC is not supplied; the optional V920D-OSD Controller can be purchased

separately..

• Contents in the installation CD

1. The CE202D-WN User’s Manual

2. The SmartManager User’s Manual

3. The SmartManager Installation software

2. Installation

• Camera Installation

Carefully remove the contents from the box, and verity that nothing was damaged in shipment.

1) Using the template sheet provided, make screw holes for camera on the ceiling.

2) Disassemble the camera by loosening the four (4) captive screws securing the cover and removing

the camera cover.

3) Secure the dome camera to the ceiling using the anchors (2x) and screws (2x) provided in the

accessory kit.

Camera Dimension

The diagram below provides dimensions.

Dimensions Unit: mm

2.2 Connections

Connection Cable

NO Name Description

1 Audio Cable Audio line output, RCA Jack

2 Power Cable

Red: 12 VDC

White: GND

3 ALARM Cable

Blue: GND

Gray: ALARM INPUT

Brown: GND

Yellow : ALARM OUT

4 Ethernet Cable Ethernet, RJ-45 port compatible with 10/100Mbps having PoE

functionality. Modular Jack

NO Name Description

Micro-SD Slot

Micro-SD memory slot

2 Factory Default Button Button for the factory default setting

Mic Port

Microphone input.

4 Service Monitor Port

Service Monitor (set to NTSC by default; change video format

from Source menu); V920D-OSD Controller (option)

Communication Port, Mono Jack

• Connecting to the RJ-45

Connect a standard RJ-45 cable to the network port of the network camera. Generally a

cross-over cable is used for direct connection to a PC, while a direct cable is used for connection

to a hub.

Micro SD memory slot

Insert the SD memory card (customer supplied).

• Connecting the Power

Connect a 12 VDC power adaptor (customer supplied) to the camera.

• Connecting Service Monitor Port

The Service Monitor output port is located on the board of the dome camera and is used for easy

OSD setup.

▶ID & IP assignment

To make changes in the OSD menu, the optional V920D-OSD controller can be used to set

camera title and IP address.

1. Connect the OSD Controller to the Service Monitor port of the network camera.

2. Connect Service Monitor and the Video Output port of the OSD Controller.

3. Press the SET button on the controller to access the Main Menu.

4. Change camera ID and IP address as needed. Additionally, the Name (or title) of the camera

can be changed. Use the ↑↓←→ buttons on the controller to change the parameters.

5. Select SAVE or CANCEL to exit the Main Menu.

The Video Output can also be used for easy zoom and focus control when adjusting the lens.

Video Output is restricted to 704x480 (576) resolution.

▶Pan & Tilt Control

The camera enters Zoom and Focus control mode when the OSD Controller is connected to the

Service Monitor port.

-. Pan Control: ↑(Up), ↓(Down)

-. Tilt Control: ← (Left), → (Right)

Note:

The optional V920D-OSD OSD Controller can be purchased separately.

2.3 Network Connection and IP assignment

The network camera is designed for use on an Ethernet network and requires an IP address for

access. Most networks today have a DHCP server that automatically assigns IP addresses to

connected devices. By the factory default, your camera is set to obtain the IP address automatically

via DHCP server. If your network does not have a DHCP server the network camera will use

192.168.1.100 as the default IP address.

If DHCP is enabled and the product cannot be accessed, run the “Smart Manager” utility on the CD to

search and allocate an IP address to your products, or reset the product to the factory default settings

and then perform the installation again.

1. Connect the network camera to the network and power up.

2. Start SmartManager utility (Start>All programs>SmartManager>SmartManager), the main

window displays. After a short while any network devices connected to the network will be

displayed in the list.

3. Select the camera on the list and click right button of the mouse. The pop-up menu below

displays.

4. Select Assign IP. The Assign IP window displays. Enter the required IP address.

Note: For more information, refer to the Smart Manger User’s

Manual.

3. Operation

The network camera can be used with Windows® operating system and browsers. The recommended

browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google Chrome® with Windows.

Note: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX

controls.

Note: Some screens may appear different (i.e., color scheme) depending on the firmware version, but

the functionality is the same or similar.

3.1 Access from a browser

1. Start a browser (i.e., Internet Explorer).

2. Enter the IP address or host name of the network camera in the Location/Address field of your

browser.

3. A starting page displays. Click Live View, Playback or Setup to enter web page.

4. Click Live View for the network camera’s Live View page to appear in the browser.

3.2. Access from the internet

Once connected, the network camera is accessible on your local network (LAN). To access the

network camera from the Internet you must configure your broadband router to allow incoming data

traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to

automatically configure the router to allow access to the network camera. This is enabled from Setup

> System > Network > NAT.

For more information, refer to “3.5.6 System>Network>NAT”of User’s Manual.

3.3 Setting the admin password over a secure connection

To gain access to the product, the password for

the default administrator user must be set. This

is done in the “Admin Password” dialog, which is

displayed when the network camera is accessed

for the setup at the first time. Enter your admin

name and password, set by the administrator.

Note:

The default administrator username is

“ADMIN” and password is “1234”. If the

password is lost, the network camera must be

reset to the factory default settings. See section

“3.8 Resetting to the Factory Default Settings” for

more details.

3.4 Live View Page

The live view page comes in several screen

modes: 1920x1080, 1280x1024, 1280x720,

704x480 (576), 640x480, 352x240 (288)

and 320x240. Select the most suitable

mode in accordance with your PC

specifications and monitoring purposes.

1) General controls

Live View Page Search & Playback Page Setup Page Help Page

The video drop-down list allows you to select a customized or pre-programmed

video stream on the live view page. Stream profiles are configured under Setup > Basic

Configuration > Video & Image. For more information, see section “3.5.1 Basic Configuration >

Video & Image”of User’s Manual.

The resolution drop-down list allows the selection of the most suitable

video resolutions to be displayed on Live View page.

The protocol drop-down list allows the selection of the combination of

protocols and methods to use depending on your viewing requirements and on the properties of

the network.

2) Control toolbar

The live viewer toolbar is available on the web browser page only. It displays the following

buttons:

The Stop button stops the video stream being played. Pressing the key again toggles the

start and stop. The Start button connects to the network camera to start playing a

video stream.

The Pause button temporarily stops (pauses) the video stream being played.

The Snapshot button takes a picture (snapshot) of the current image. The location where

the image is saved can be specified.

The digital zoom activates a zoom-in or zoom-out function for video image on the live

screen.

The Full Screen button causes the video image to fill the entire screen area. No other

windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full

screen view.

The Manual Trigger button activates a pop-up window to manually start or stop the event.

The PT button activates a pop-up window for Pan and Tilt control.

Use the speaker icon scale to control the volume of the speakers.

Use the microphone icon scale to control the volume of the microphone.

3) Video Streams

The network camera provides several images and video stream formats. Your requirements and

the properties of your network will determine the type you use.

The Live View page in network camera provides access to H.264, MPEG-4 and Motion JPEG video

streams and to the list of available video streams. Other applications and clients can also access

these video streams/images directly, without going via the Live View page.

4) Pan and Tilt Control

You can control Pan and Tilts from the live view screen. Press the button on the left top in

the live view screen to activate the control panel.
