Vicon V840D Series Manuel utilisateur

User Quick Guide

User VVV840D Series Dome Cameras

XX308-20-00

Vicon Industries Inc. does not warrant that the functions contained in

this equipment will meet your requirements or that the operation will be

entirely error free or perform precisely as described in the

documentation. This system has not been designed to be used in life-

critical situations and must not be used for this purpose.

Document Number: 8009-8308-20-00 Product specifications subject to

Vicon Industries Inc.

Tel: 631-952-2288)

Fax: 631-951-2288

Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON

(800-348-4266) UK: 44/(0) 1489-566300

www.vicon-security.com

Vicon Industries Inc.

Tel: 631-952-2288)

Fax: 631-951-2288

Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-

4266) UK: 44/(0) 1489-566300

www.vicon-security.com

Safety and Compliance Information

Installation and removal of the unit and its accessories must be carried

out by qualified personnel. You must read all of the Safety Instructions

supplied with your equipment before installation and operation.

Installation

This device is a class A product and may cause radio interference.

Take measures if necessary.

Be careful not to blur, scratch, damage the dome cover or leave

fingerprints on it because this could decrease image quality. Keep

the protective film on the dome cover until installation is complete.

Make sure the camera operates in an environment where the

temperature and humidity meet requirements. Keep the camera

from excessive pressure, vibration, moisture, dust, and intensive

electromagnetic radiation.

Use a power adapter or a PoE device that meets requirements.

Otherwise, the device may be damaged.

Make sure the length of the power cable between the power

adapter and the camera is not too long, otherwise the voltage of

the camera is lowered, causing the camera to work abnormally. If it

is required to lengthen the power cable, lengthen the cable

between the power adapter and the mains.

Do not hold the tail cable by hand for weight bearing. Otherwise,

the cable connector of the camera could be loosened.

When connecting to an external interface, use an existing

connection terminal, and ensure that the cable terminal (latch or

clamp) is in good condition and properly fastened. Ensure that the

cable is not tense during mounting, with a proper margin reserved

to avoid poor port contact or loosening caused by shock or shake.

The connectors of the tail cable must not be exposed. The bar cavity,

waterproof box, corrugated pipe and PVC pipe must be fully sealed

to protect the connectors from water. The waterproof components

for the RJ45 plug must be used properly to protect the network

cable from water.

Make sure the wall or ceiling is strong enough to support the weight

of the camera. If dust falls during mounting, take off the dome cover

and keep it away from dust. Install the dome cover after the base is

installed.

Purchase a bracket if you need to increase the field of view. Contact

your local dealer for details.

Contact professionals for maintenance information. Do not attempt

to dismantle the device by yourself. We shall not assume any

responsibility for problems caused by unauthorized repair or

maintenance.

for problems caused by unauthorized repair or maintenance.

Maintenance

Caution: There will be risk of explosion if battery is replaced by an

incorrect type. Dispose of used batteries according to the

instructions.

If there is dust on the lens or the transparent dome cover, remove

the dust gently using an oil-free brush or a rubber dust blowing ball.

If there is grease on the lens, remove the grease using an oil-free

cloth gently and then clean the lens in a circular spiral from the

center outward using an oil-free cloth or a lens cleaning paper

dipped with small amount of cleaning solution. If the grease still

cannot be removed, change to another oil-free cloth or lens

cleaning paper and clean the lens gently until it is removed.

If there is grease or a dust stain on the transparent dome cover,

clean the cover gently from the center outward using anti-static

gloves or an oil-free cloth. If the grease or the stain still cannot be

removed, use anti-static gloves or an oil-free cloth dipped with

detergent and clean the dome cover gently until it is removed.

Do not use organic solvents, such as benzene or ethanol when

cleaning the transparent dome cover.

Make sure the lens cleaning cloth is clean itself.

Never look at the transmit laser while the power is

on. Never look directly at the fiber ports and the

fiber cable ends when they are powered on.

Use of controls or adjustments to the performance

or procedures other than those specified herein

may result in hazardous laser emissions.

Regulatory Compliance

FCC Part 15

This equipment has been tested and found to comply with the limits for

digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at his

own expense.

This product complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including

interference that may cause undesired operation.

LVD/EMC Directive

This product complies with the European Low Voltage

Directive 2014/35/EU and EMC Directive 2014/30/EU.

WEEE Directive–2012/19/EU

The product this manual refers to is covered by the Waste

Electrical & Electronic Equipment (WEEE) Directive and

must be disposed of in a responsible manner.

Default IP, Username and Password

By default, the camera is set to obtain an IP address via

DHCP. If your network does not have DHCP use the

discovery tool to find the camera’s IP address.

Default username: ADMIN

Default password: 1234

The default password is used for your first login. To

ensure account security, it is recommended to change

the password after your first login. Be sure to set a

strong password (no less than eight characters).

Packing List

Check your package to make sure that you received the

complete system, including all components listed below.

Item

Quantity

Camera

Quick Guide

Accessory pack

Appearance

Dimensions

The figures in this manual are for reference only. Use the

supplied template to mark and create mounting holes.

Cable Connections

Refer to the following figure for connecting cables.

61mm

( 2. 4" )

110mm

( 4. 3" )

SR30mm

( 1. 2" )

3- Φ4mm

( 0. 2" )

Φ98mm

( 3. 9" )

IP network

Power

adapter Audio input

(Sound pickup)

Audio output

(Sound box)

12 VDC

Power

Audio output

(Speaker)

Audio input

(Microphone)

IP/PoE

For specifications, see the latest product datasheets.

Mounting the Camera

Ceiling Mount

The dome camera can be ceiling or wall mounted; mounting

accessories are available separately. The following steps use

ceiling mounting as an example; wall mounting is similar.

1. Loosen the captive screws and remove the dome assembly

to access the mounting base. Do not remove desiccant

bags.

2. Route cabling to the installation site and connect all

cables; secure the camera to the ceiling using self-tapping

screws (supplied).

Paste the drill template and lead the

cables through the hole. Use a Ø6mm-

6.5mm drill bit to drill 30 mm-depth

guide holes according to the template.

Knock the plastic rivets into the

guide holes and ensure that they

are tightened up.

Using the drill template provided, mark the

hole locations and drill holes in the ceiling;

use a Φ6mm -6.5mm drill bit to drill 30mm-

depth guide holes.

Insert the plastic anchors for the self-tapping

screws into the mounting holes and ensure

they are secure.

3. Adjust the camera position:

Grasp the camera assembly and carefully rotate and tilt it

to the position required. The camera can be rotated in

pan 60°, tilt 90° and rotate around its axis 360°.

4. (Optional) Insert a Micro SD card in the slot provided.

5. Replace the dome assembly and tighten the screws.

Keep the transparent dome free from dust during

installation.

Ensure that the dome screws are inserted securely.

Micro SD card slot

(Conduit)

The preceding installation process is for a concealed

installation, where cables are routed through the ceiling

directly to the surface-mounted camera. For installations

where the cabling is routed externally, via conduit (customer

supplied, an optional backbox must be used. Install the

conduit/backbox first and then connect all the cables and

secure the camera onto the ceiling.

As a mounting alternative, the V840D can be mounted to a

4x4 electrical box, using the V840D-PLATE, or to a surface on

a tilt, using the V840D-WDG.

Screw plug

Cable outlet Junction box

Camera

Dome cover

Connect and waterproof the cables before routing

them into the junction box. See instructions below.

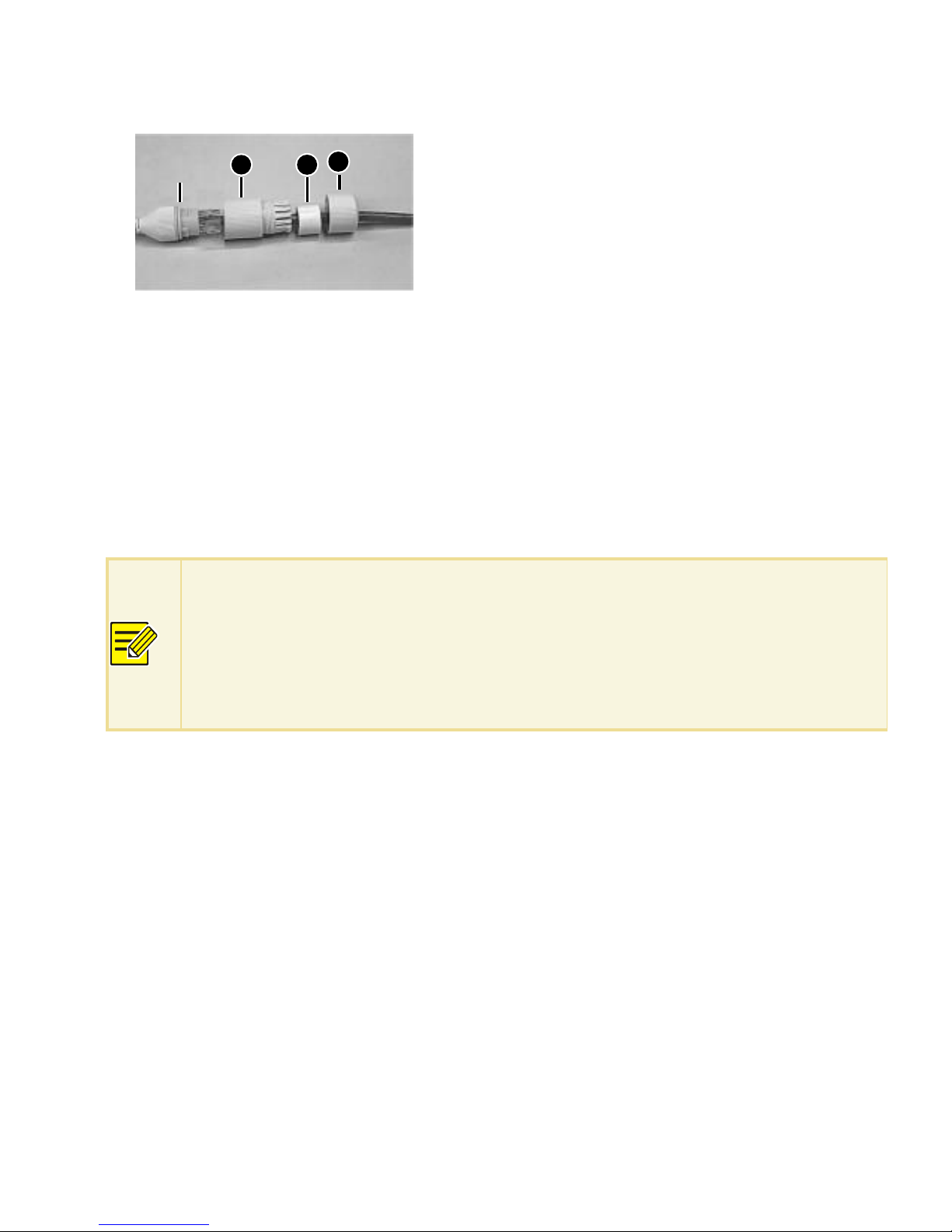

Waterproof Components for an RJ-45 Plug

The accessory kit includes an

RJ-45 protective cover. Install

the supplied seal ring onto the

RJ-45 connector. Install the

waterproof components in the

order shown onto the Ethernet

cable (customer supplied). Then

insert the Ethernet cable into the

RJ-45 connector of the camera

and screw the waterproof bolt

until snug.

When fabricating your own Ethernet cable, Vicon

recommends to crimp the inner wires of the cable with

the RJ-45 plug first and then cover the waterproof

components.

Insert in order

Seal ring 1

Autres manuels pour V840D Series

Table des matières

Autres manuels Vicon Caméra de sécurité

Vicon

Vicon VC-3000-DSP Manuel utilisateur

Vicon

Vicon ROUGHNECK V910 Manuel utilisateur

Vicon

Vicon Surveyor 99 Manuel utilisateur

Vicon

Vicon V15CCM-IR-2 Series Rouchneck Manuel utilisateur

Vicon

Vicon V930D Manuel utilisateur

Vicon

Vicon VC-632 Manuel utilisateur

Vicon

Vicon Roughneck V910V3 Series Manuel utilisateur

Vicon

Vicon S2000-MSH-HHB Surveyor 2000 Manuel utilisateur

Vicon

Vicon V898MSH Guide de l'utilisateur

Vicon

Vicon V840D Series Manuel utilisateur

Vicon

Vicon V9360-6 Series Manuel utilisateur

Vicon

Vicon Cruiser S660 Mode d'emploi

Vicon

Vicon XX264-20-00 Manuel utilisateur

Vicon

Vicon Cruiser SN660V Mode d'emploi

Vicon

Vicon VC-630 Manuel utilisateur

Vicon

Vicon V700-C Series Manuel utilisateur

Vicon

Vicon i-onyx MP-980DN Manuel

Vicon

Vicon Roughneck Pro V2000D Series Manuel utilisateur

Vicon

Vicon V672-PTZ Manuel utilisateur

Vicon

Vicon I-Onyx MPD-955DN-O Manuel utilisateur

Vicon

Vicon I-ONYX VND-970IP Manuel utilisateur

Vicon

Vicon V940B Manuel utilisateur

Vicon

Vicon Surveyor 99 Manuel du propriétaire

Vicon

Vicon V1008-WIR-180-1 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur

Lumens

Lumens VC-A50PNW Manuel utilisateur
