Quick Guide

V-CELL-HD Quick Installation Guide

1. Description

The information in this manual provides quick installation and setup procedures for the V-CELL-HD of

High-Security Corner-Mounted Cameras. These units should only be installed by a qualified technician

using approved materials in conformance with federal, state, and local codes. Read these instructions

thoroughly before beginning an installation. Refer to the complete manual for detailed information.

Always refer to Vicon’s website to assure you have the most up-to-date manual, http://www.vicon-

security.com.

The Roughneck® V-CELL-HD high-security camera is an integrated housing, camera, lens and IR

illuminators system specifically designed for use in custodial suites and prison cells. It is available in

an IP version that is fully compatible with all ViconNet® systems; its ONVIF certification provides an

open-platform for integration into other video management systems.

The housing is designed to fit into a corner; once installed, the base plate should be permanently

sealed to the wall so that the housing is ligature proof. The housing consists of a two part stainless

steel assembly, a fixed base plate and a removable front plate, that allows ease of installation and

servicing. The front plate is secured with security screws and has two polycarbonate windows to

protect the camera and IR illuminators. The alarm input and alarm output can be used to connect

various third party devices, such as door sensors and alarm bells.

• Installation Steps

Follow these steps to install the network camera on your local network (LAN):

1. Check the package contents against the list that follows.

2. Connect the network camera.

3. Set an IP address.

4. Set the password.

• Package Component

The system comes with the following components:

Cameraunit InstallationGuide InstallationCD AccessoryKit

Optional OSD Controller

Check your package to make sure that you received the complete system, including all components

shown above.

Note: Adapter for 12 VDC is not supplied and the optional OSD Controller can be purchased

separately.

V-CELL-HD Quick Installation Guide

2. Installation

For the network camera to operate, it is necessary to connect a network cable for data transmission

and power connection from customer-supplied power supply.

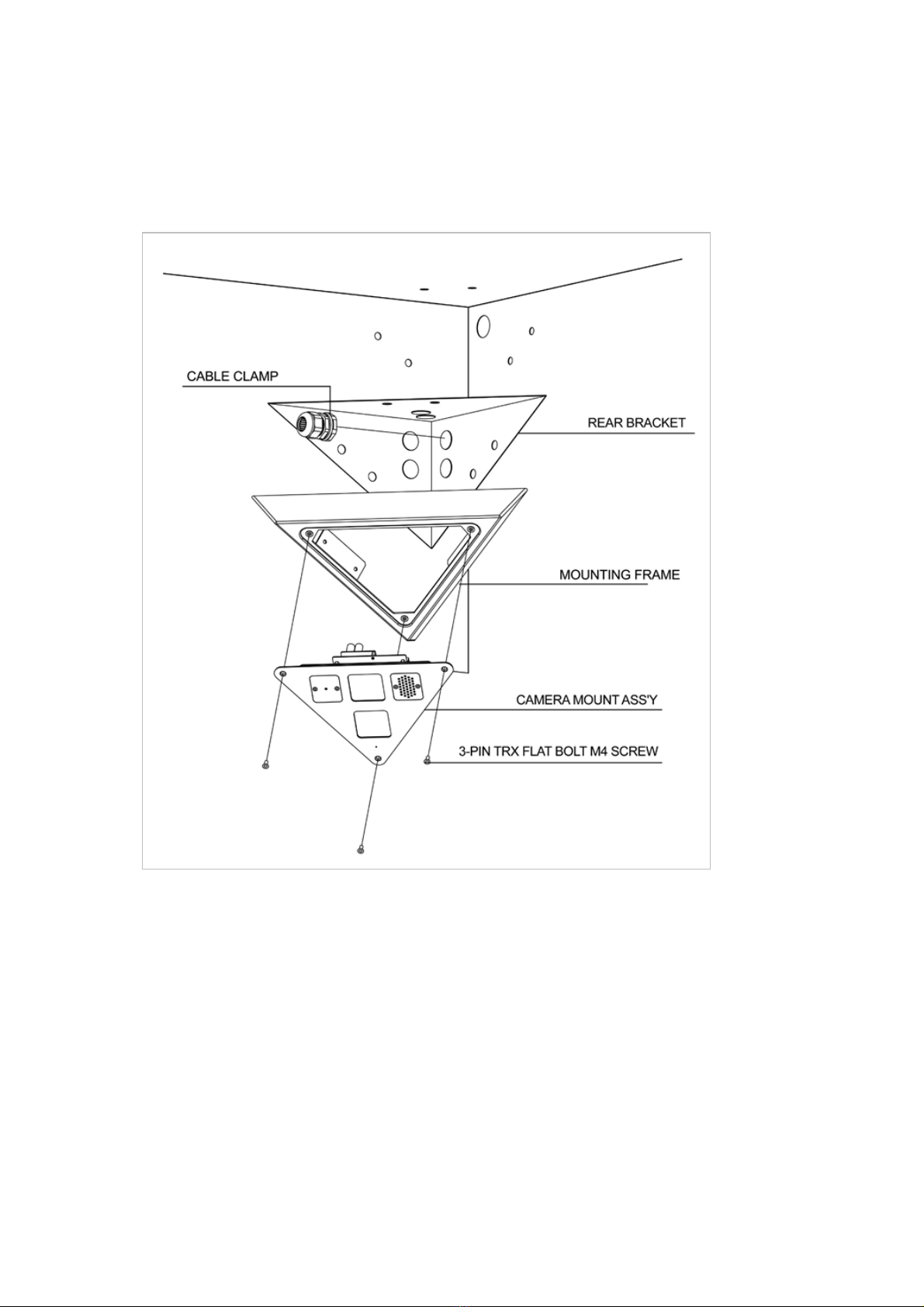

2.1 Exploded View

 Parts and Description

①Main Power 24VAC/12VDC (↑(+) pole /↓(-) pole)

②RJ45(PoE) Port

③Micro-SD Card Slot

④Alarm & Audio In/Out Port

⑤Status LED

Upon boot-up, green and red are both on for a short time and then only green will be on.

If red is lit, this indicates a failure (no picture); if flashing green and no red,

this indicates a good picture is displaying.

⑥Service Monitor Port

V-CELL-HD Quick Installation Guide

 Quick Installation (without Rear Cover)

1. Use camera mounting frame as template to mark mounting holes on mounting surface. (Fig.1)

2. Drill holes for mounting base and a minimum 3/4 in. hole for routing wines. (Fig.1)

3. Mount camera mounting frame using appropriate hardware for mounting surface. (Fig.2)

4. Route wires through hole in wall and out through base plate. (Fig.2).

5. Terminate wires to camera board.

6. Mount front plate to base plate. (Fig.2)

V-CELL-HD Quick Installation Guide

 Quick Installation (using Rear Cover)

1. Use rear cover as template to mark mounting and cable access holes.

2. Drill mounting and cable access holes in mounting surface.

3. Insert cable clamp into access hole, route cables through clamp and mount cover using

appropriate hardware.

4. Use camera mounting frame to mark its mounting holes, drill holes and mount using

appropriate hardware.

5. Terminate wires to camera board. Feed the excess wire back through cable clamp and tighten

clamp.

6. Mount front plate to camera mounting frame.

Note: Installation of the rear cover is required for UL

V-CELL-HD Quick Installation Guide

2.2 Connections

• Connecting to the RJ-45

Connect a standard RJ-45 cable to the network port of the network camera. Generally a

cross-over cable is used for directly connection to PC, while a direct cable is used for connection

to a hub.

 Micro SD memory slot on the board

Insert the SD memory card (customer-supplied).

• Connecting Alarms

 Alarm-In: External devices can be used to signal the network camera to react upon events.

Mechanical or electrical switches can be wired to the Alarm In and GND connectors.

 GND (Ground): Connect the ground side of the alarm input and/or alarm output to the GND

connector.

 Alarm Out: The network camera can activate external devices such as buzzers or lights.

Connect the device to the Alarm Out and GND connectors.

• Connecting the Power

Connect the power of 12 VDC or 24 VAC for the network camera. Connect the positive (+) pole

to the ‘+’ position and the negative (-) pole to the ‘-’ position for the DC power. Use

Certified/Listed Class 2 power source.

• Connecting Service Monitor Port

The Service Monitor output port is located on the board of the camera and is used for easy OSD

setup.

▶ID & IP assignment

To make changes in the OSD menu, the optional OSD controller can be used to set Camera Title

and IP Address.

1. Connect the OSD Controller to the Service Monitor port of the network camera.

2. Connect Service Monitor and the Video Output port of the OSD Controller.

3. Press the SET button on the controller to access the Main Menu.

4. Change camera ID and IP address as needed. Additionally, the Name (or title) of the camera

can be changed. Use the ↑↓←→ buttons on the controller to change the parameters.

5. Select SAVE or CANCEL to exit the Main Menu.

V-CELL-HD Quick Installation Guide

The Video Output can also be used for easy zoom and focus control when adjusting the lens.

Video Output is restricted to 704x480 (576) resolution.

Note: The optional OSD Controller can be purchased separately.

2.3 Network Connection and IP assignment

The network camera is designed for use on an Ethernet network and requires an IP address for access.

Most networks today have a DHCP server that automatically assigns IP addresses to connected

devices. By factory default, your camera is set to obtain the IP address automatically via DHCP server.

If your network does not have a DHCP server the network camera will use 192.168.1.100 as the

default IP address.

If DHCP is enabled and the product cannot be accessed, run the “Smart Manager” utility on the CD to

search and allocate an IP address to your product or reset the product to the factory default settings

and then perform the installation again.

1. Connect the network camera/device to the network and power up.

2. Start SmartManager utility (Start>All programs>SmartManager>SmartManager); the main

window will display. After a short while any network devices connected to the network will be

displayed in the list.

3. Select the camera on the list and click right button of the mouse. The pop-up menu displays as

below.

4.Select Assign IP. The Assign IP window displays. Enter the required IP address.

V-CELL-HD Quick Installation Guide

Note: For more information, refer to the Smart Manger User’s

Manual.

3. Operation

The network camera can be used with Windows® operating system and browsers. The recommended

browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google® Chrome® with Windows.

Note: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX

controls.

Note: Some screens may appear different (i.e., color scheme) depending on the firmware version, but

the functionality is the same or similar.

3.1 Access from a browser

1. Start a browser (Internet Explorer).

2. Enter the IP address or host name of the Network Camera in the Location/Address field of your

browser.

3. A starting page displays. Click Live View, Playback or Setup to select corresponding web page.

4.Click Live View for the network camera’s Live View page to appear in the browser.

V-CELL-HD Quick Installation Guide

3.2. Access from the internet

Once connected, the network camera is accessible on your local network (LAN). To access the

network camera from the Internet you must configure your broadband router to allow incoming data

traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to

automatically configure the router to allow access to the network camera. This is enabled from Setup

> System > Network > NAT.

For more information, see “3.5.7 System>Network>NAT” of User’s Manual.

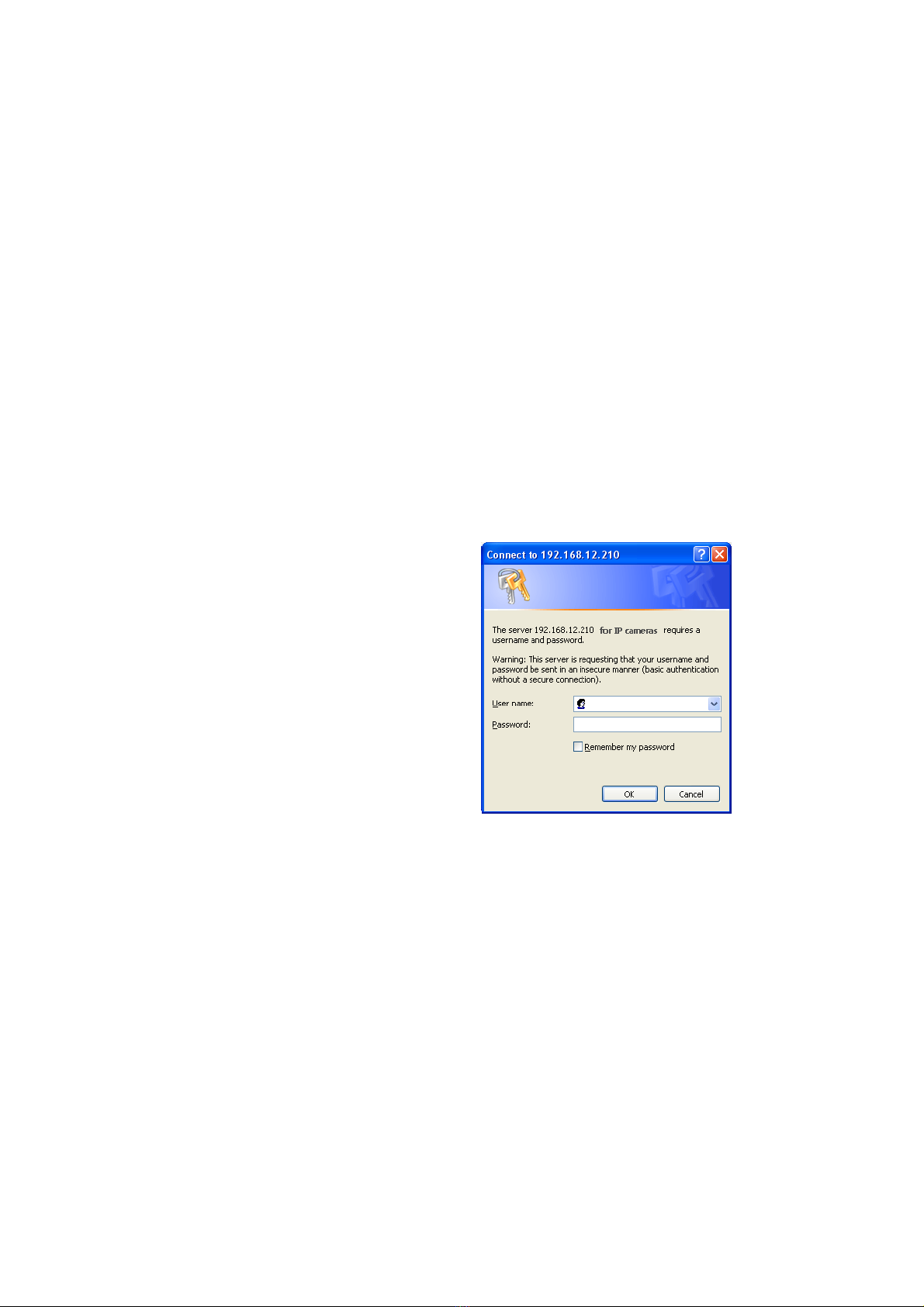

3.3 Setting the admin password over a secure connection

ain access to the product, the password for

he default administrator user must be set. This

is done in the “Admin Password” dialo

, which is

displayed when the network camera is accessed

or the setup at the first time. Enter your admin

name and password, set by the administrator.

Note: The default administrator username is

“

ADMIN” and password is “1234”. If the

password is lost, the network camera must be

reset to the factory default settings. See section

“

3.5 Resettin

to the Factory Default Settin

s” for

more details.

To prevent network eavesdropping when setting the admin password, this can be done via an

encrypted HTTPS connection, which requires an HTTPS certificate (see note below).

To set the password via a standard HTTP connection, enter it directly in the first dialog shown above.

To set the password via an encrypted HTTPS connection, see “3.5.7 System >Security>HTTPS” of

User’s Manual.

Note: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the traffic between

web browsers and servers. The HTTPS certificate controls the encrypted exchange of information.

V-CELL-HD Quick Installation Guide

3.4 Live View Page

he Live View pa

e provides seven screen

modes: 1920x1080, 1280x1024, 1280x720,

704x480 (576), 640x480, 352x240 (288),

and 320x240. Select the most suitable

mode in accordance with your PC

specifications and monitorin

purposes.

1) General controls

LiveViewPage Search&PlaybackPage SetupPage HelpPage

The video drop-down list allows you to select a customized or pre-programmed

video stream on the live view page. Stream profiles are configured under Setup > Basic

Configuration > Video & Image. For more information, see “3.5.1 Basic Configuration > Video &

Image” of User’s Manual

The resolution drop-down list allows you to select the most suitable video

resolution to be displayed on live view page.

Theprotocoldrop-downlistallowstheselectionofthecombinationof

protocols and methods to use, depending on your viewing requirements and on the properties of

the network.

2) Control toolbar

The live viewer toolbar is available in the web browser page only. It displays the following

buttons:

The Stop button stops the video stream being played. Pressing the key again toggles the

start and stop. The Start button connects to the network camera or starts playing a

video stream.

The Pause button temporarily stops (pauses) the video stream being played.

The Snapshot button takes a takes a picture (snapshot) of the current image. The location

where the image is saved can be specified.

The digital zoom activates a zoom-in or zoom-out function for video image on the live

screen.

The Full Screen button causes the video image to fill the entire screen area. No other

windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full

screen view.

The Manual Trigger button activates a pop-up window to manually start or stop the event.

Table des matières

Autres manuels Vicon Caméra de sécurité

Vicon

Vicon SVFT-W35 Manuel utilisateur

Vicon

Vicon SurveyorVFTXX134-60-01 Manuel utilisateur

Vicon

Vicon V900-358-24C Manuel utilisateur

Vicon

Vicon V2008-W0950-LPR Manuel utilisateur

Vicon

Vicon VC-600W Manuel utilisateur

Vicon

Vicon CE202D-N Manuel utilisateur

Vicon

Vicon SurveyorVFT SVFT-UPM-1 Manuel utilisateur

Vicon

Vicon XX258-50-01 Roughneck Series Manuel utilisateur

Vicon

Vicon Surveyor 282-20-02 Series Manuel utilisateur

Vicon

Vicon surveyor X971 Manuel utilisateur

Vicon

Vicon SURVEYORVFT SVFT Manuel utilisateur

Vicon

Vicon SurveyorVF SVFT-M Manuel utilisateur

Vicon

Vicon Surveyor MKII PTZ SV36W Manuel utilisateur

Vicon

Vicon V9360-6 Series Manuel utilisateur

Vicon

Vicon Cruiser S660 Mode d'emploi

Vicon

Vicon Roughneck V2000D-PTZ Manuel utilisateur

Vicon

Vicon Surveyor 99 Manuel du propriétaire

Vicon

Vicon Surveyor 99 Manuel utilisateur

Vicon

Vicon Roughneck Pro V2000 Series Manuel utilisateur

Vicon

Vicon Roughneck V2100D Series Manuel utilisateur

Vicon

Vicon V940B Manuel utilisateur

Vicon

Vicon V1008-WIR-180-1 Manuel utilisateur

Vicon

Vicon Roughneck Pro V2000D Series Manuel utilisateur

Vicon

Vicon ROUGHNECK V910 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur

Lumens

Lumens VC-A50PNW Manuel utilisateur
