V9360 Indoor

Network Hemispheric Camera

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the

operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed

to be used in life-critical situations and must not be used for this purpose.

Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788

Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Document Number: 8009-8263-20-01

Product specications subject to change without notice.

Issued: 613

Installation Guide

V9360 Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Table of Contents

Precautions 3

1. Introduction 6

Package Contents.............................................................................6

Features and Benefits .......................... Error! Bookmark not defined.

Safety Instructions ............................... Error! Bookmark not defined.

Physical Description ........................................................................7

2. Accessing Camera 11

If you have DHCP server router in your network:........................ 11

If you do NOT have DHCP server/router in your network:.......... 11

V9360 Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Precautions

Read these instructions

Read all the safety and operating instructions before using this product.

Heed all warnings

Adhere to all the warnings on the product and in the instruction manual. Failure to follow the

safety instruction given may directly endanger people, cause damage to the system or to other

equipment.

Servicing

Do not attempt to service this video device yourself, as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Trademarks

All names used in this manual may be registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Inform your local

office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

FCC/CE Regulation

NOTE: This equipment has been tested and found to comply with the limits for a Class Adigital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the users will be required to correct the

interference at their own expense.

V9360 Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Safety Instructions

Don’t use the power supply with other voltages

This device is likely to be damaged or damage other equipments/personnel, if you use a power

supply with different voltage than the one included with this device. All warranty of this product

will be voided if this occurs.

Don’t open the housing of the product

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may

cause hazards.

Water and Moisture

Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool and the like.

Don’t use accessories not recommended by the manufacturer

Only install this device and the power supply in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself, as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

V9360 Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Damage Requiring Service

Disconnect this video product from the power supply immediately and refer servicing to

qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged.

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in

this manual. Adjust only those controls that are covered by the instruction manual, as an

improper adjustment of other controls may result in damage, and will often require

extensive work by a qualified technician to restore the video product to its normal

operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

Caution: The black base of the camera will be hot while camera is powered on!

(Please note that this is a NORMAL CONDITION for this model since the base is used as a

heat sink and all the camera functions will work normally!)

Caution: Do NOT install this camera directly onto any surface (wall,

ceiling). One of the mounting accessories must be used, V9360-WM

wall mount or V9360-FMK in-ceiling flush mount.

V9360 Hemispheric Camera with Advanced WDR

Hardware User’s Manual

1.Introduction

Package Contents

V9360 H.264 4-Megapixel IP D/N Hemispheric

Camera with Advanced WDR QIG

Terminal Blocks for Power, DI/O Network Cable

Audio Accessories

Drill Template

V9360 Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Physical Description

Reset Button Ethernet Port

Micro SDHC Card Slot Digital Input/Output

Power LED 12 VDC Power Input

Audio Input/Output

1) Reset Button

Step 1: Switch off IP device by disconnecting the power cable.

Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen).

Step 3: Reconnect the power cable while continuing to hold the Reset Button. The red

Power LED light will flash on for 3 second first, turn off for about 15 seconds, flash on for

another second and turn off again. By this time the reset to default operation is already

completed. This will take about 20 seconds from power up (this length of time fluctuates

slightly with the environment). You may then release the Reset Button. The Power LED light

will come back on and stay on after a few more seconds. The unit will start up with factory

default settings automatically.

On (3s) On

Power On

About 20 Seconds

Stay On

Off (about 15s) Off (10~15s)

Restore to Default

Complete

V9360 Hemispheric Camera with Advanced WDR

Hardware User’s Manual

2) Micro SDHC Card Slot*

Insert a Micro SDHC card (*customer supplied) for local recording on camera.

3) Power LED

This LED light will indicate current camera status.

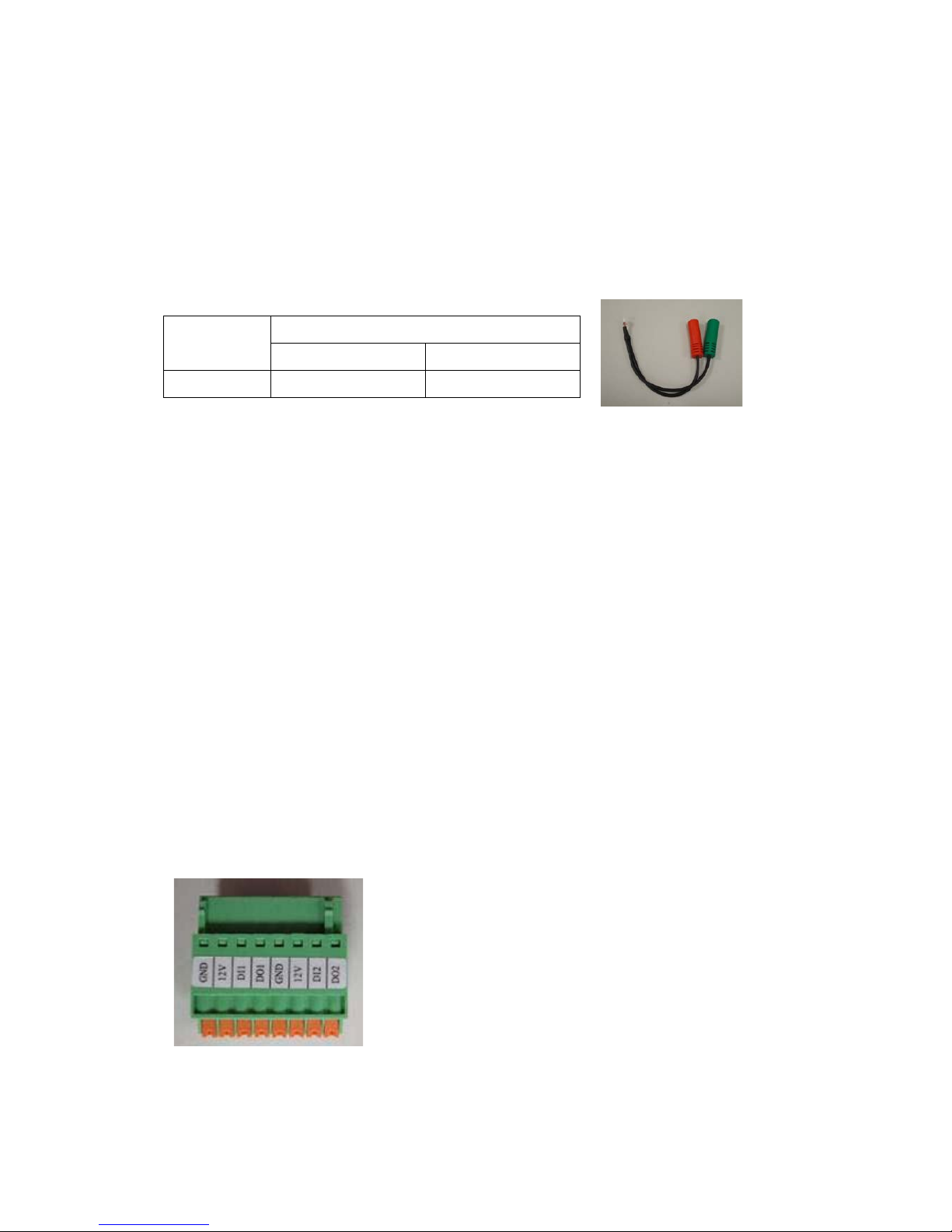

4) Audio Input/Output (Indoor unit only)

The IP device supports audio input and output via terminal block

Audio terminal block

Red

Green

Audio In/Out

Audio In

Audio Out

5) Ethernet Port

The IP device connects to the Ethernet via a standard RJ-45 connector. Supporting NWAY, this

IP device can auto detect the speed of local network segment (10Base-T/100Base-TX

Ethernet).

6) Digital Input/Output

Used in applications like motion detection, event triggering, time lapse recording, alarm

notifications, etc., the I/O terminal connector provides the interface to:

•Digital Output (2) - For connecting external devices such as relays and LEDs. Connected

devices can be activated by Output buttons on the Live View page or through video

management software. Connect Pin 2 with Pin 4 or Pin 6 with Pin 8.

•Digital Input (2)- An alarm input for connecting devices that can toggle between an open and

closed circuit, for example: PIRs, door/window contacts, glass break detectors, etc. The device

will detect the change in digital input and transmit the signal to video surveillance servers.

Digital Input/Output Connector

V9360 Hemispheric Camera with Advanced WDR

Hardware User’s Manual

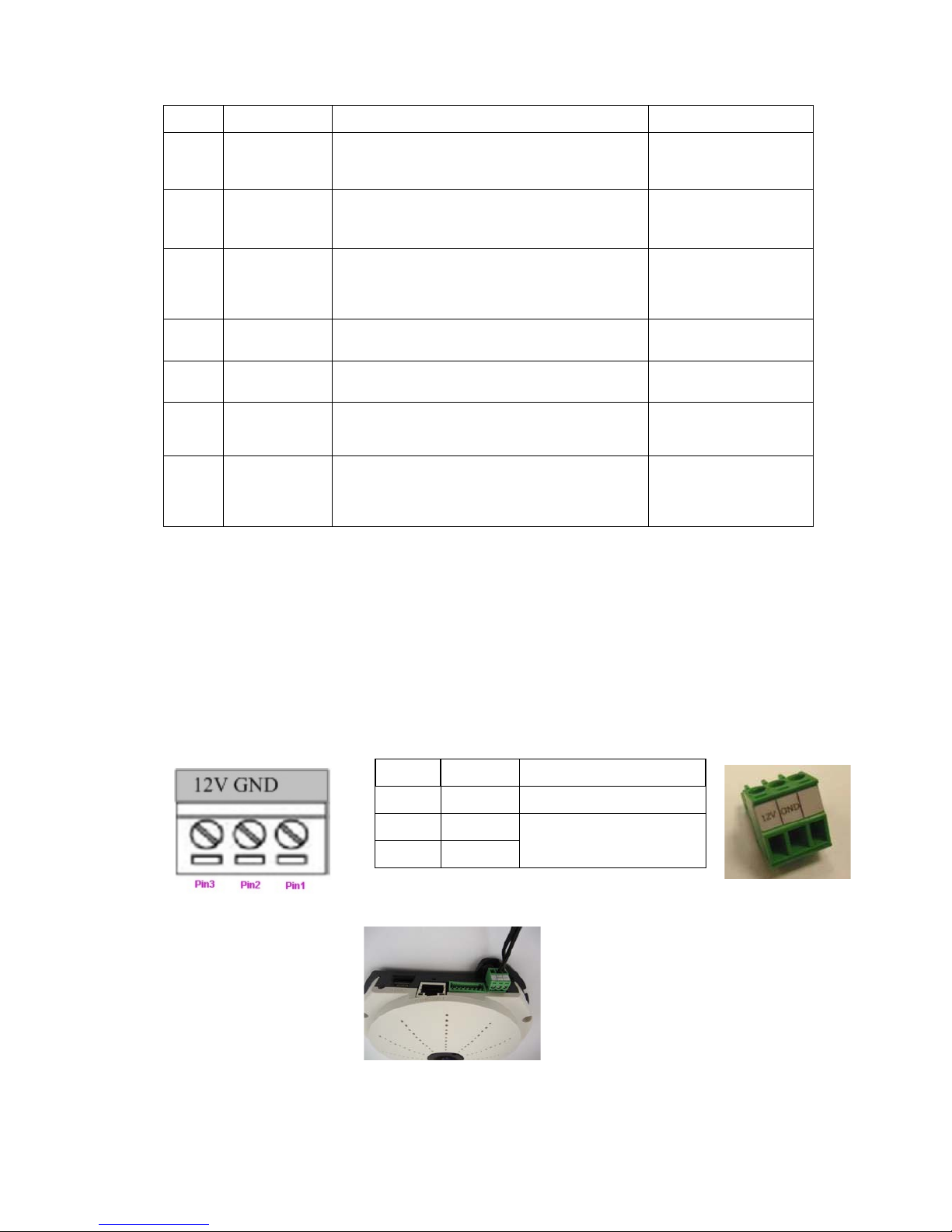

Pin 1 GND

Ground. Connect with Pin 3 for DI control loop.

Pin 2 12 V

Provides power to external devices with a

maximum current of 100 mA.

Voltage: 12 VDC,

Max: 1.2 W

Pin 3 Digital Input 1

Connect to GND (Pin 1) to activate or leave

floating (unconnected) to deactivate.

Must not be exposed

to voltages greater

than 30 VDC.

Pin 4 Digital

Output 1

Connect to Pin 2 through external devices for

DO loop. If used with an external relay, a diode

must be connected in parallel with the load for

protection against transient voltages.

Max load = <100 mA

Max voltage = 24 VDC

(to the transistor)

Pin 5 GND

Ground. Connect with Pin 7 for DI control loop.

Pin 6 12 V

Provides power to external devices with a

maximum current of 100 mA.

Voltage: 12 VDC,

Max: 1.2 W

Pin 7 Digital Input 2

Connect to GND (Pin 5) to activate or leave

floating (unconnected) to deactivate.

Must not be exposed

to voltages greater

than 30 VDC.

Pin 8 Digital

Output 2

Connect to Pin 6 through external devices for

DO loop. If used with an external relay, a diode

must be connected in parallel with the load for

protection against transient voltages.

Max load = <100 mA

Max voltage = 24 VDC

(to the transistor)

Connect input/output devices to the camera as follows:

1. Attach the cables for the device securely to the supplied green connector block.

2. Once cables are connected, push connector block into the terminal connector on camera.

7) 12 VDC Power Input

Connect DC power source to the terminal block. The wire with white dashed lines is the live

wire, which should connect to the 12V pin.

Once cables are connected, push the terminal block into the 12 VDC power input terminal

connector of the camera.

PIN NAME DESCRIPTION

1 E-Ground Chassis Ground

2 GND DC Power Input

3 12 V

V9360 Hemispheric Camera with Advanced WDR

Hardware User’s Manual

Using the Mounting Options

V9360-WM Wall Mount

If it is required to mount the V9360 to a wall, use the V9360-WM. Typical mounting hardware is

provided; be sure to use mounting hardware appropriate for the mounting surface.

1. A mounting template is provided with the wall mount. Mark the mounting holes on the

surface and drill mounting holes. Mount the flat side of the V9360-WM to the wall, with

the wide end (with the cable hole) at the top, using appropriate hardware for the

surface; be sure to use anchors as needed. Cables can be routed through the back

slot or through the access hole.

2. Remove the camera cover if not already done. Align the three (3) holes on the bottom

of the V9360 with the mounting posts of the V9360-WM. Secure with the screws

provided. Reattach the cover.

V9360-FMK Wall Mount

If it is required to mount the V9360 flush in the ceiling, the V9360-FMK is required.

1. Carefully snap the trim ring off of the in-ceiling mounting assembly.

2. Using the template provided, cut a hole in the ceiling for the V9360-FMK.

3. Lift the in-ceiling mount assembly up through the ceiling hole so that the mounting lips

rest on the ceiling. Tighten the flipper screws until the mounting assembly is securely

in place. Holes are provided in the lip if additional support is required.

4. Remove the camera cover. Align the three (3) mounting holes on the bottom of the

camera with the mounting posts on the mounting assembly. Secure the camera with

the screws provided.

5. Snap the trim ring back onto the mounting assembly.

Autres manuels pour V9360

Table des matières

Autres manuels Vicon Caméra de sécurité

Vicon

Vicon SN680D-WNIR Manuel utilisateur

Vicon

Vicon S2000-MSH-HHB Surveyor 2000 Manuel utilisateur

Vicon

Vicon V992D-IR Manuel utilisateur

Vicon

Vicon VC-3000-DSP Manuel utilisateur

Vicon

Vicon XX247-32-00 Manuel utilisateur

Vicon

Vicon VC-600W Manuel utilisateur

Vicon

Vicon SurveyorVFTXX134-60-01 Manuel utilisateur

Vicon

Vicon SURVEYORVFT SVFT Manuel utilisateur

Vicon

Vicon IX 8000 IR Manuel utilisateur

Vicon

Vicon I-ONYX VND-970IP Manuel utilisateur

Vicon

Vicon roughneck V900 Manuel utilisateur

Vicon

Vicon V700W Series Manuel utilisateur

Vicon

Vicon Roughneck Pro V2002D-PTZ Manuel utilisateur

Vicon

Vicon CE202D-N Manuel utilisateur

Vicon

Vicon V900-358-24C Manuel utilisateur

Vicon

Vicon Surveyor MKII Series XX282-00-01 Manuel utilisateur

Vicon

Vicon rouchneck V910V5 Manuel utilisateur

Vicon

Vicon V662V-2 Series Mode d'emploi

Vicon

Vicon V662-D Mode d'emploi

Vicon

Vicon V960D-N312 Manuel d'instructions

Vicon

Vicon ROUGHNECK V-CELL-HD-B Manuel utilisateur

Vicon

Vicon V960-N Series Manuel d'instructions

Vicon

Vicon V2000D-W28IRM Manuel utilisateur

Vicon

Vicon V898MSH Guide de l'utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur

Lumens

Lumens VC-A50PNW Manuel utilisateur
