Service manual
Service manual
FUNCTION wine cooler
FUNCTION wine cooler
Version A – November 2005
2
1. Access to evaporator, ventilator and heating element
2. Location of top and bottom sensor and sensor for frost
protection thermostat
3. Access to hinge with adjustable foot, lock and control panel.
4. Dismounting of control panel ”Remote control”.
5. Dismounting of cover for terminal box in engine room
Location of frost protection thermostat
6. Door magnet switches off the light when the door is opening
7. Location of type plate and description of data on type plate
8. Resistance values of temperature sensor
9. Replacement of bottom sensor
10. Reversible door
11. Replacement of light bulb/light fitting
Service manual FUNCTION wine cooler
2
1. Access to evaporator, ventilator and heating element.
1. Pull front plate from evaporator clips
Clips
2. Dismount 2 screws in front of the box
3. Dismount 2 screws at the bottom of the box
16-01-20064
3
1. Ventilator box 2. Heating element mounted with 4 screws
1. Access to evaporator, ventilator and heating element.
Back side, ventilator shield mounted with 4 screws Back side of heating element
4

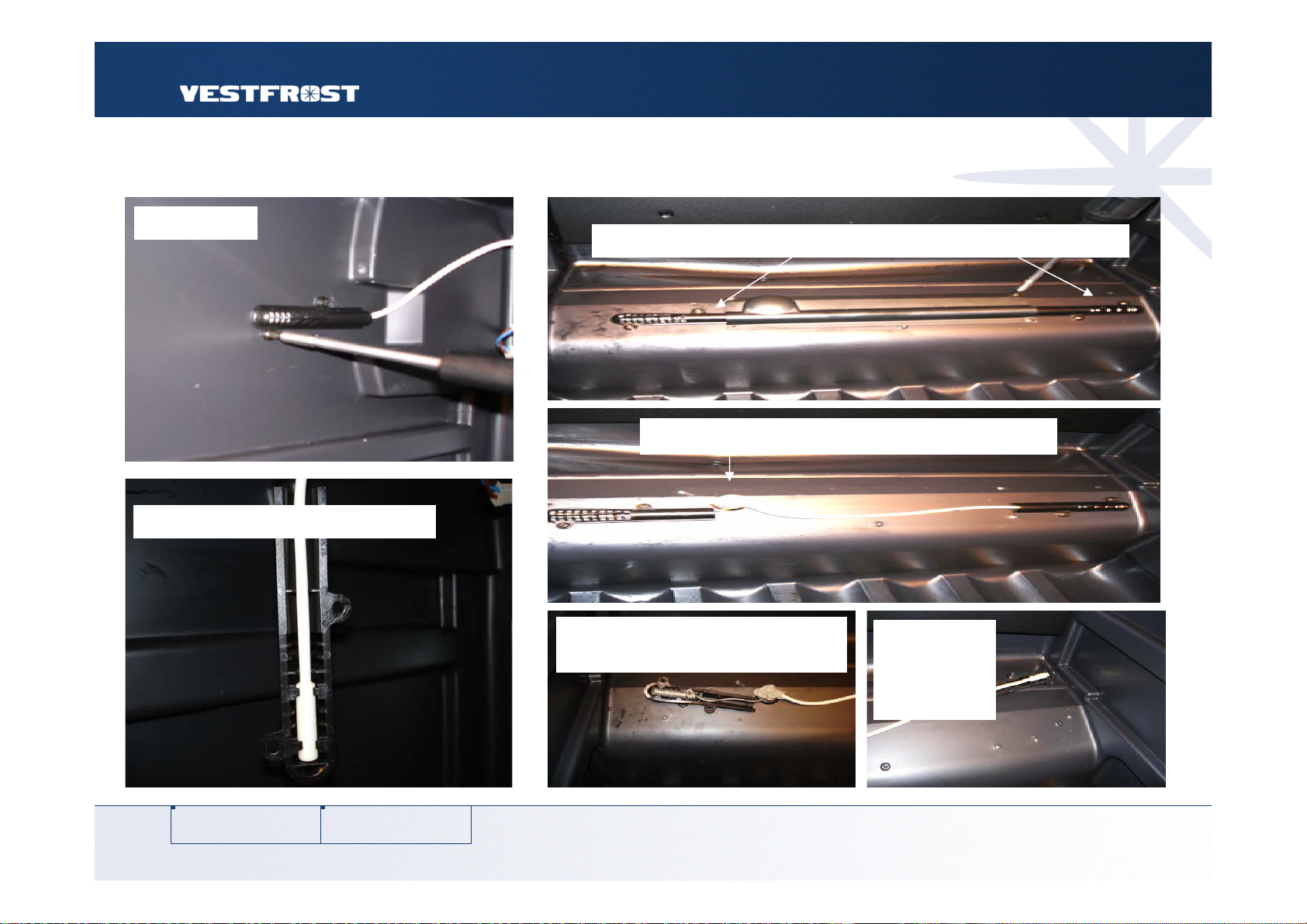

Top sensor
Top sensor mounted in retainer
Sensor for frost protection thermostat and bottom sensor
Lead-in from engine room. Must be isolated!
Sensor for frost protection
thermostat fitted in container Bottom
sensor
fitted
in retainer
2. Location of top and bottom sensor and sensor for frost
protection thermostat
16-01-20066
1. Tip outwards with straight slot screwdriver
2. Remove cover from the column
3. Unscrew catch for lock
4. Take up catch and remove cylinder
5. Unscrew 2 cross slot screws
6. Dismount 4mm Allen screws
and remove the column.
Hereafter, the base plate can be
dismounted from the cabinet.
3. Access to hinge with adjustable foot, lock and control panel
6
1. Unscrew screws in control panel
2. Hereafter, the control panel can be pulled free from the base plate
Back side of operating panel.
The control panel consists of:
Remote control
ETC1H, thermostat
ON/OFF print
If this (control panel)
is defect, it is recommended that the
entire unit is replaced!
4. Dismounting of control panel “Remote control”
16-01-20068
1. Place a straight slot screwdriver
in the cover
2. Hereafter, pull cover backwards
Location of frost protection thermostat.
Frost protection thermostat
”Black” lead from control panel comes from the front along and under the
bottom and plug fitted in terminal box.
Terminal box
5. Dismounting of cover for terminal box in engine room.
Location of frost protection thermostat
8
The magnet is placed under the door
Magnet in retainer fastened with
clips up under the door
Magnet
Retainer
Micro switch (light)
On/off light switch
The light will be switched off all the time if
the light switch is positioned at off
6. Door magnet switches off the light when the door is opening
On/off switch
If the ventilator is operating when the door is being opened, this is switched off.
16-01-200610
Placed in the right side of the inner container
Model.
Serienummer.
Produktnummer.
Kølemiddel– fyldemængde.
9
7. Location of type plate and description of date on type plate
Model Serial number
Product number Cooling agent – filling quantity
