Verizon 4G LTE Fiche technique

Get to

Know Your

Device

Verizon 4G LTE

Broadband Router

You’re now part of a growing movement that’s about speed, signal and strength. So go

ahead, make yourself heard.

With the Verizon 4G LTE Broadband Router, you can enjoy lightning fast Internet speeds on

America’s largest 4G LTE network. Experience average download speeds of 5 to 12 Mbps

and average upload speeds of 2 to 5 Mbps.* The setup is easy and, in no time, you’ll be able

to browse the web, download ﬁles and view email attachments on up to 20 Wi-Fi™ enabled

devices (in addition to 4 connected devices via the included Ethernet cable).

*Actual throughput speed and coverage may vary.

Welcome

Router Features

Front View

WPS (Wi-Fi Protected Setup) Button

Mobile Broadband/Wi-Fi On/Off Button

Power

Internet

Wi-Fi

LAN

Ethernet WAN

4G LTE

Signal Strength

Note: The color-coded LED indicators are easily visible on the front of the Verizon 4G LTE Broadband Router to provide you with

information about network activity and status. Actual product appearance (shape, color, labeling) may differ slightly from that shown in

the following figures.

Wide Area

Network Port

Ethernet

Local Area

Network Ports

SIM Card

Slot

Power On/Off

Button

Power Adapter

Input

Detachable

Base for the Vertical Stand

The Verizon 4G LTE Broadband Router includes a Wide Area Network (WAN) port and four additional Ethernet ports

for wired high-speed connections.

The WAN port is for connecting to an external network source such as a cable or DSL internet service.

The Ethernet Local Area Network (LAN) ports provide wired broadband connections for your home networking that

may include computers, printers, and other devices. The router allows your computers to share printers, data and

MP3 ﬁles, digital photos, and much more.

Reset Button

Bottom ViewRear View

SSID/

Password

Label

LED or Button

Activity

Description

WPS (Wi-Fi Protected Setup) Mode: Click the WPS button on the router to connect with otherWPS-enabled devices

within two (2) minutes.

Solid green WPS wireless connection is established.

WPS

Blinking green WPS wireless LAN activity is present (traffic is passing through device in either

direction).

Wi-Fi

Turnsoff the Wi-Fi connection.Wi-Fi and 4G LTE are on by default.

Solid green Router power is on. Router is operating normally.

Solid amber POST (power-on self-test) is in progress.

Power

Off Router power is off.

Solid green Internetconnection isestablished.

Solid amber Traffic meter limit has been reached, and traffic is blocked. This feature is user

settable.Please see the User Manual for more information.

Blinking green Data is being transmitted over the Internet connection.

Blinking amber Traffic meter limit has been reached, but traffic is not blocked. This feature is user

settable.Please see the User Manual for more information.

Internet Port

Off No Internet connection is detected.



The table below describes possible states for each of the device indicators:

Understanding the Indicators

Guide for more information.

Press the WPS button on the router and within (2) minutes, connect other Wi-Fi devices with WPS

capability.

* Further explanation of the indicators and associated settings can be found in the downloadable User Guide at

verizonwireless.com/support or by calling 1-800-229-1235 to order a copy.

is on by default.

Solid blue The Wi-Fi local access point is initialized.

Blinking blue Data is being transferred over the Wi-Fi link.

Wi-Fi

Off The wireless access point is turned off.

Solid green The local Ethernetportshave detected wired

links with computers or other Ethernet

devices.

Blinking Data is being transferred.

LAN Ports

Off No link isdetected on these ports.

Solid green The Ethernet WAN port has detected an active

link.

Blinking Data is being transmitted or received.

WAN Port

Off No link is detected on these ports.

Solid blue 4G LTE coverage is established for router.4G LTE

Off No 4G LTE coverage is detected.

Solid blue Strong signal is detected.

Solid green Good signal is detected.

Solid amber Weak signal is detected.

Signal Strength

Off No signal or service failure detected.

Restore Factory

Settings

To resetthe router,locate the resetbutton (small hole outlined in red)on the

bottom panel of the router. While the router is powered off, insert a paperclip

into the hole and gently push down the button forsix (6)seconds. Depressing

the reset button causes the Power LED to blink briefly. After the reset button

isheld down for more than 6 seconds,the Power LED will momentarily flash

amber,and then turn green as the router resets to the factory default

settings.

Note:Resetting the router will erase any changes you have made to the

default settings.



The table below describes possible states for each of the device indicators:

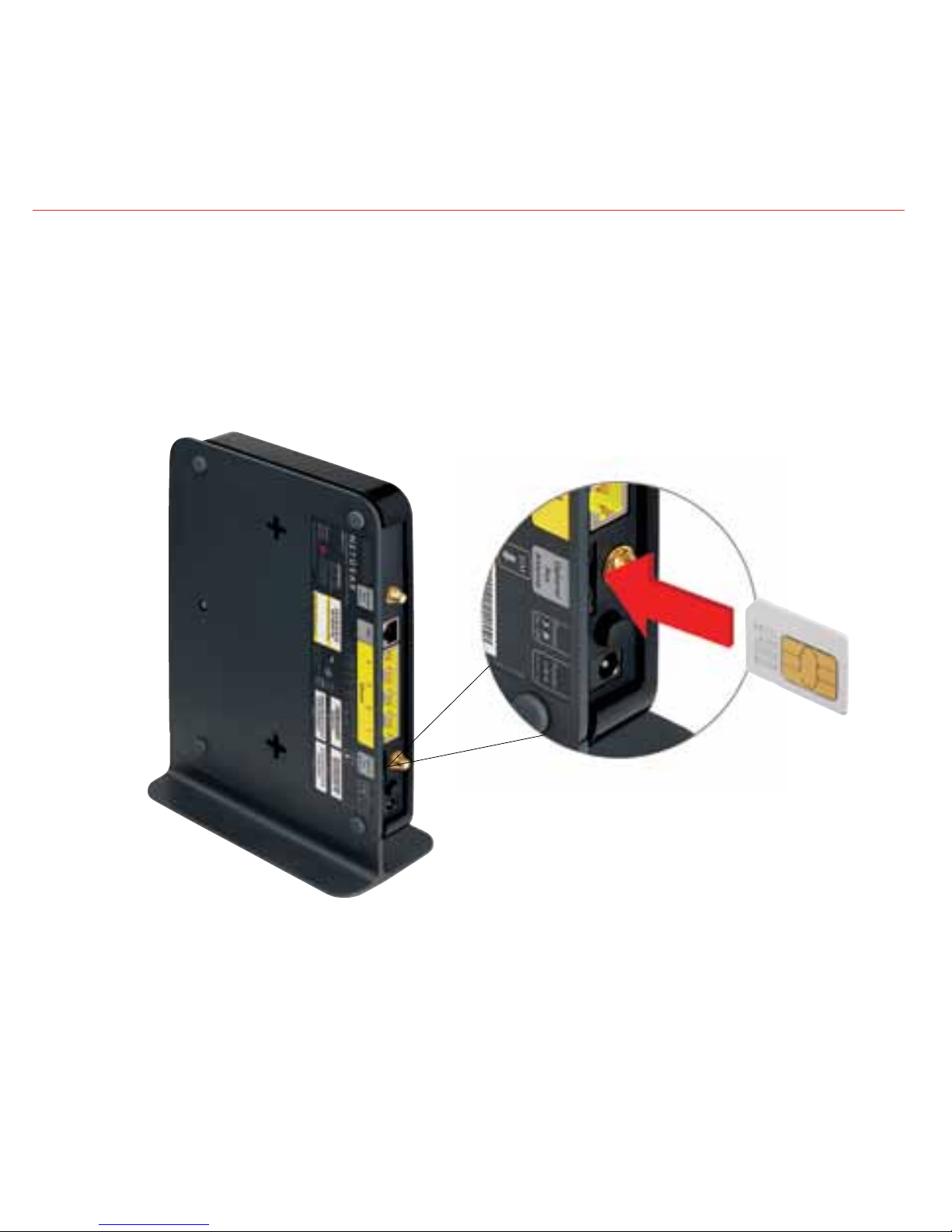

Step 1: Installing the 4G LTE SIM Card*

1. Insert the SIM card into the labeled SIM card slot with its gold contacts facing back and its cut-off

corner facing inward.

If you need to remove your SIM card from your router, gently press the SIM card inward to release it,

and remove from the slot.

Setting up your Router

*Your SIM (Subscriber Identity Module) Card is a small rectangular plastic card that stores your mobile identity and

important information about your wireless service.

Caution: Do not bend or scratch your SIM card. Avoid exposing your SIM Card to static electricity or dirt.

Step 2: Installing the Antennas or WAN ethernet cable

The Verizon 4G LTE Broadband Router comes with two detachable antennas.

1. Align the antennas with the antenna posts on the router as illustrated below.

2. Mount the antennas on the threaded antenna post by twisting the red, textured connector

until the connection is secure.

3. You can swivel the antennas in any direction, to better ﬁt the space where your router will

be placed.

*For using Wide Area Network (WAN), wired Ethernet as your internet access, please see instructions in the Wide Area

Network (WAN) Ethernet Broadband Settings section of your online User Guide

Steps 1

Step 3

Step 3: Powering Your Router On

1. Place the Verizon 4G LTE Broadband Router in a location in your home that receives a

strong wireless signal (For example: near a window).

Additional Considerations:

• AvoidphysicalobstructionswheneverpossiblethatmightweakenWi-Fisignals.

• Avoidplacingclosetoreectiveormetalsurfaces,suchasmirrors,metallecabinets,

stainless steel countertops that can lessen both network range and performance.

• Placeawayfromelectricalequipmentorappliances(microwaveovens)

that can also generate Wi-Fi signal interference.

2. Plug the Power Adapter cord into the Power Adapter Input on the

rear of the router and insert the other end into an electrical outlet.

3. Press the Power On/Off button.

How do I connect to the router with Wi-Fi?

1. From the Wi-Fi device you want to connect with your router, go to your Wi-Fi device’s

settings or software that manages it’s Wi-Fi connections.

2. Scan for new or available Wi-Fi networks or devices to connect with.

3. Your Wi-Fi device will scan for wireless networks in your area. Look for your router’s Wi-Fi

network. (The default Wi-Fi Name (SSID) and Wi-Fi/Admin Password are printed on the

back of your router.)

4. Select the Wi-Fi network which appears as “Verizon – MBR1515 – XXXX”

(Where X = last 4 digits of the Mac Address), and connect.

Congratulations, you are now connected to the internet!
