Vello LAE-MFT-CEFA Manuel utilisateur

AUTO

LENS ADAPTER

 

LAE-MFT-CEFA

Canon EF/EF-S Lens to

Micro Four Thirds Mount

This Vello Lens Adapter is

for attaching Canon EF and

EF-S lenses to a Micro Four

Thirds mount. It supports

autofocus (AF) with select

Canon lenses, and maintains

auto exposure (AE) as

well as aperture control

with most other lenses.

The adapter also delivers

metadata for your pictures.

The inside of the adapter is

coated to reduce any stray

reﬂections and maximize

picture quality. The tripod

foot is detachable and

has a /4-inch socket for

attaching to most tripods.

THANK YOU FOR CHOOSING VELLO

• Vello LAE-MFT-CEFA

Lens Adapter for Canon

EF/EF-S lens to Micro

Four Thirds mount

• Front and Rear Caps

• Removable Tripod Foot

• User Manual

CONTENTS

• Please read and follow

these instructions, and

keep this manual in a

safe place.

• Avoid sandy or dusty

environments when using

this adapter.

• Handle the adapter with

care—don’t drop it, and

avoid bumps and shocks.

• Clean the adapter by

wiping it with a soft,

dry cloth.

• Do not use solvents such

as benzene, alcohol, or

detergents to clean the

adapter.

• Be sure to read the

operating instructions for

your digital camera.

PRECAUTIONS

• Keep this unit away from

children.

• Keep this unit away from

water and ﬂammable

gases or liquids.

• Do not attempt to

disassemble or repair

the equipment—doing

so will void the warranty,

and Vello will not be

responsible for any

damage.

• Handle the unit with

care.

• All images are for

illustrative purposes only.

Micro Four

Thirds Mount

Front Back

/4"-20 Tripod Socket

EF/EF-S

Lens Mount

EF Lens Alignment

Dot (Red)

EF-S Lens Alignment Dot

(White) Lens Release

Button Camera Mount

Alignment Dot

Tripod Foot

Mounting Wheel

OVERVIEW

. Turn the camera's power

o and remove all caps

before mounting. Line

up the alignment dots

and carefully insert the

adapter.

2. Rotate the adapter

clockwise until it locks

into place.

MOUNTING THE LENS ADAPTER

3. Line up the alignment

dots on the lens and the

adapter. Then carefully

insert the lens into the

adapter.

4. Rotate the lens clockwise

until it locks.

5. Turn your camera on.

. Turn the camera’s

power o.

2. Press and hold the

release pin on the lens

adapter, and rotate the

lens counterclockwise

to detach.

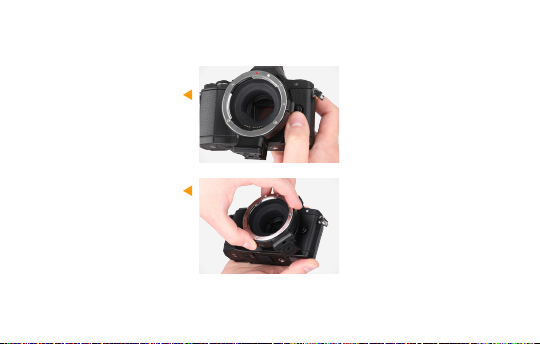

REMOVING THE LENS ADAPTER

0

3. Press and hold the lens

release button on the

camera.

4. Rotate the lens adapter

counterclockwise to

release, and carefully

detach the lens adapter

from the camera.

5. Reattach the lens

adapter's front and rear

caps.
