Vello FreeWave Viewer Manuel utilisateur

USER’S MANUAL

FREEWAVE

VIEWER

WIRELESS LIVE-VIEW

REMOTE

Thank you for choosing the Vello FreeWave

Viewer Wireless Live-View Remote. The

Viewer displays the live view from the LCD

display on your camera and can trigger the

shutter from 200 feet (60 meters) away

under optimal conditions.

The FreeWave Viewer does not require

line-of-sight alignment, as its radio waves

pass through and around objects such as

walls, windows, and ﬂoors.

It features two modes to enhance your

shooting experience. A/V mode functions

as the Live View on your camera would,

allowing you to see what your lens sees.

The CCTV mode allows for a wider-angle

view from the receiver’s built-in camera,

allowing you to see action outside the ﬁeld

of view of your camera’s lens.

Suggested Uses For Your Live-View

Remote:

Shooting wildlife or other dangerous or

elusive subjects from a distance.

Photographing children and other shy

subjects that act dierently when in the

presence of a photographer.

Maintaining a view from the camera

when the camera is in a hard-to-access

location.

Creating live-view function in cameras

that don’t possess this feature through

use of the built-in CCTV.

Conserving power on your camera by

turning o the LCD.

INTRODUCTION

2.4GHz Radio Frequency: Provides

improved signal quality with reduced

interference.

Long Range: Over 200ft in optimal

conditions.

Multi-Purpose: Real-time monitoring of

either your DSLR’s Live View or the

Transmitter’s built-in CCTV camera.

Dual-Function Shutter / Auto Focus

Button: Press halfway to focus; press

fully to release the shutter.

Clear Viewing: The Receiver features a

3.5” TFT LCD screen with a resolution

of 320 x 240 and 10 levels of brightness

adjustment.

Power Options: Transmitter and Receiver

can be powered by using 4 alkaline,

lithium or Ni-MH AA batteries or by

connecting to a USB power source. The

Transmitter can attach to 5V DC power

so you can operate the transmitter

indeﬁnitely.

Control Multiple Cameras: You can set

the Receiver to control any one of up to

four cameras outﬁtted with Transmitters

that are set up within range of the

Receiver.

Versatile: The Transmitter works with

DSLR cameras from many manufacturers

- just use the appropriate Sync cable.

With one receiver, you can control

cameras from multiple manufacturers.

KEY FEATURES

Canon Kit Nikon Kit

Wireless

Transmitter  

Wireless

Receiver  

Carrying

Case  

AV Cable CVC-10

CVC-20

CVC-40

CVC-20

CVC-30

Release

Cable

RCC-C1

RCC-C2

RCC-N1

RCC-N2

Your Vello FreeWave Viewer contains:

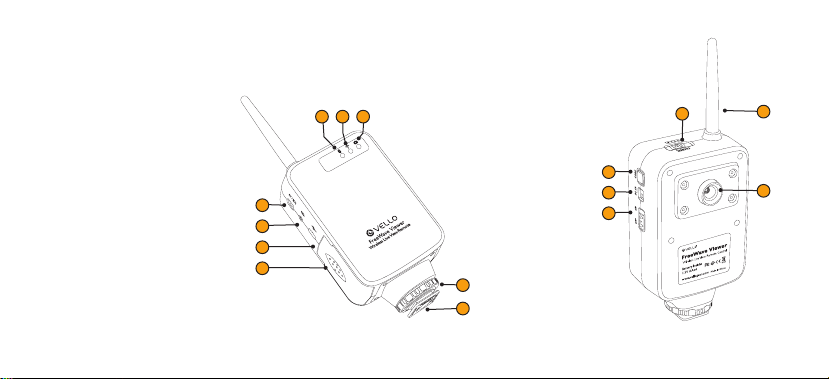

OVERVIEW OF TRANSMITTER

321

1. Power LED Indicator

2. Status LED Indicator

3. Shooting LED Indicator

4. Audio Video/Microphone

Input (1/8” mini)

5. Remote Shutter-Release

Output (sub-mini)

6. USB Power Input

7. Battery Door

8. Shoe-Mount Locking Collar

9. ¼”-20 Threaded Receiver

10.Channel Selection Switch

11.Code-Matching Button

12.5V DC Power Input

13.Power-Switch

14.Antenna

15. CCTV Camera

OVERVIEW OF REMOTE CAMERA CABLES

RCC-N1– Nikon

10-Pin Connection

RCC-N2 – Nikon

DC2 Connection

RCC-C1– Canon

Sub-Mini Connection

RCC-C2 – Canon

3-Pin Connection

RCC-N1RCC-N2 RCC-C1RCC-C2

Transmitter Side

OVERVIEW OF RECEIVER

1. Power Switch

2. Audio Video/Audio Output

3. USB Power Input

4. MENU Button

5. CCTV (Transmitter’s Built-In Camera)/

AV (Camera’s Live View) Selection

Button

6. Video Enlarge Button (for Transmitter’s

Built-In Camera)

7. Channel Switch/Sleep Mode Button

8. Status LED

9. Shutter/Auto Focus

714

CVC-10

CVC-10– Canon 5D Mark II

CVC-20 – Canon G11, G12, G1

X, Rebel XS, Rebel XSi, 40D,

50D

Nikon D90, D300s, D700

CVC-30 – Nikon D5100, D7000

CVC-40 – Canon Rebel T1i,

Rebel T2i, Rebel T3i, 60D, 7D,

1D Mark IV, 5D Mark III

OVERVIEW OF CAMERA VIDEO CABLES

CVC-20 CVC-30 CVC-40

Transmitter Side

10.Volume Up/Navigate Up (When in

Enlarge mode)

11. Increase Screen Brightness/Navigate

Right (When in Enlarge mode)

12. OK Button

13.Volume Down/Navigate Down (When

in Enlarge mode)

14. Decrease Screen Brightness/Navigate

Left (When in Enlarge mode)

15.Battery Door (Not pictured/On back

of Receiver)

16.¼”-20 Threaded Receiver

17. LCD Display

•ConrmtheFreeWaveViewerand

camera are powered OFF before

installing the device.

•Externalenvironmentalfrequencies

may hinder the overall performance

of this product, as with most radio

controlled devices.

•Donotforciblypullonthecables

once they’re connected to the

camera.

•ThiselectronicdeviceisNOT

waterproof. Exposure to moisture

and immersion in water can

permanently damage the FreeWave

Viewe r.

•Prolongedvibrationmayresultin

product failure.

•WhentheFreeWaveVieweris

not in use for a prolonged period,

remove the batteries from both the

Transmitter and the Receiver.

•DonotexposetheFreeWaveViewer

to extreme temperatures, high

humidity, or direct sunlight.

•Donotuseammablegaseswhen

operating this electronic device.

•Disposeofbatteriesinaccordance

with local environmental regulations.

SAFETY WARNINGS

1. Slide and open the battery door on

the Transmitter and insert 4 alkaline,

lithium or Ni-MH AA batteries as

speciﬁed by the diagram within the

battery compartment. Close the

battery door.

SETTING UP

Fre eWave

Viewer

CCT V / AV

CH+/-

AV / AUDIO

DC 5V CODE

AV / MIC

1 2 3 4

CHANNEL

FreeWave Viewer

Wireless Live-View Remote

ON OFF

Fre eWave

Viewer

CCT V / AV

CH+/-

AV / AUDIO

DC 5V CODE

AV / MIC

1 2 3 4

CHANNEL

FreeWave Viewer

Wireless Live-View Remote

ON OFF

2. Slide and open the battery door on the

Receiver and insert 4 alkaline, lithium

or Ni-MH AA batteries as speciﬁed

by the diagram within the battery

compartment. Close the battery door.

3. Mount the Transmitter to your

camera’s hot shoe, a cold shoe or to a

¼”-20 threaded stud on any mounting

adapter or support device.

SETTING UP

a. For shoe-mounting, loosen the locking

collar by turning it counterclockwise

and slide the Transmitter’s foot forward

into the shoe. Twist the locking collar

on the Transmitter clockwise to tighten

until the unit is secure.

FreeWave Viewer

Wireless Live-View Remote

b. For mounting to a ¼”-20 threaded stud

– for example a tripod, stand adapter,

accessory clamp or camera bracket –

line up the male screw’s thread with

the Transmitter’s female receiver and

rotate the screw until the connection is

tight.
