USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that

disposal of the device after its lifecycle could harm the

environment. Do not dispose of the unit (or batteries) as

unsorted municipal waste; it should be taken to a

specialized company for recycling. This device should be

returned to your distributor or to a local recycling service. Respect

the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly

before bringing this device into service. If the device was damaged in

transit, don't install or use it and contact your dealer.

2. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last

pages of this manual.

page

Do not expose the device to high temperatures, dripping or

splashing water, strong vibrations or heavy mechanical stress.

Do not press hard on the LCD display area to prevent damage or

leakage.

The wire connecting the camera to the display is fragile. Please

handle with care to prevent breaking or internal damage.

3. Features

photo and video recording

energy saving mode

easy installation

discreet: camera looks like peephole

bright 2.8" TFT LCD

video/photo browsing via calendar function

recording on micro SD card (not included)

4. Overview

Refer to the illustrations on page 2 of this manual.

CAMSET29

V. 01 –12/02/2013 4 ©Velleman nv

LCD display

User Guide - System Information

Answer key

Menu/OK key indicator

Left key

Right key indicator

Right key

Left key indicator

Menu/OK key

Battery status

Time

System Settings

Date

Visitor Records

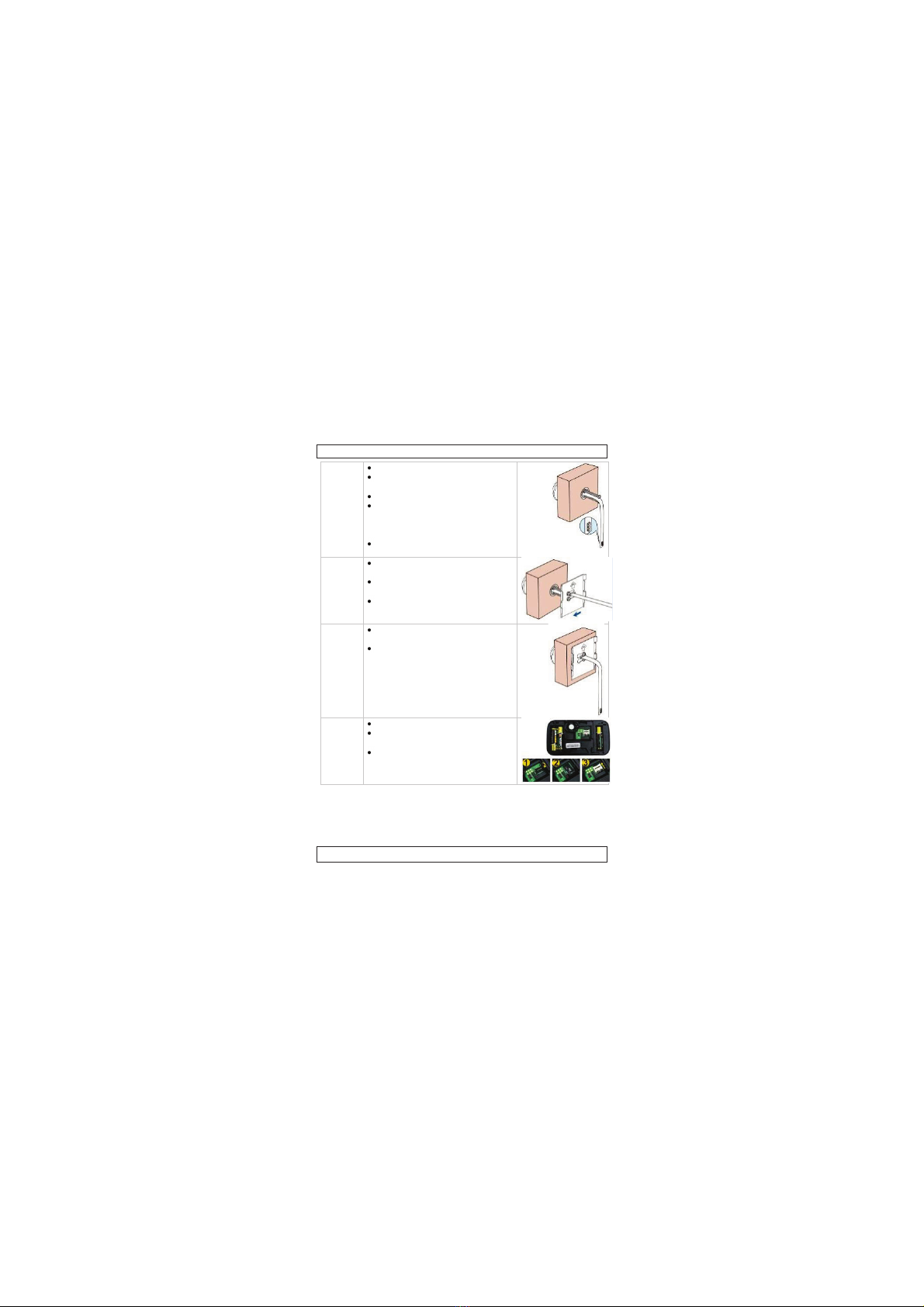

5. Installation

Step 1

Remove the existing peephole

viewer.

Make sure the hole matches the

camera (range between 13mm

and 28mm).

If necessary, drill a new hole.

Step 2

Screws are included in the

package.

oUse the short screws if the

door is less than 65 mm thick.

Use the long screws if the door

is between 65 and 95 mm.

Insert the appropriate

screws into

the camera part.

Do not tighten the screws yet.

CAMSET29

V. 01 –12/02/2013 5 ©Velleman nv

Step 3

Remove the adhesive foam.

Please note the UP sign at the

back of the camera.

Turn the camera part upward.

Gently slide the camera cable

through the hole and attach the

camera

by pressing the adhesive

foam.

Make sure the connector on the

wire is turned to the outside.

Step 4

Please note the UP sign at the

back of the bracket.

Slide the cable through the

bracket.

Slide the screws from the large

part to the smaller part of the

slots.

Step 5

Tightly fix the screws and the

bracket tightly.

When finished, gently

straighten

the camera cable.

Step 6

Open the battery lid.

Insert the Micro SD card as

shown.

Install the batteries as shown.

Note:

The device will only recognize

the SD card if inserted before the

batteries.

CAMSET29

V. 01 –12/02/2013 6 ©Velleman nv

Step 7

Hold the display with the Answer

key down.

Flip the device by 180 degrees,

Connect the

camera cable to the

connector next to the SD card.

Put the battery lid back in place.

Step 8

Flip the device back again.

Straighten the camera cable.

Ali

gn the device with the bracket

and gently push it down until

the

device is fastened

on the bracket.

Make sure the camera is firmly

attached to the door.

Press keys to check if

the device

works correctly.

6. Operation

6.1 Start the camera

1. Press the Answer key to activate the device.

The LCD displays the camera view.

2. To record (video or picture), press the Answer key again.

The device automatically saves the picture or video to the Visitor

records (see below).

You can set whether the device records video or pictures in the

settings (see below).

6.2 Visitor records

The visitor Records lists all visits, sorted by time.

To view the visitor records:

1. Press the Answer key to activate the device.

The LCD displays the camera view.

2. Press the Menu/OK key to change the view.

3. Use the arrow keys to select Visitor records and press Menu/OK

key.

CAMSET29

V. 01 –12/02/2013 7 ©Velleman nv

4. Select a record with the arrow keys and press Menu/OK key.

5. Press the Answer key to go up one level and the Visitor records.

View a picture or video

1. Go to Visitor Records as described above.

The Visitor Records lists all recorded visits by date.

2. Use the arrow keys to select the appropriate folder and press the

Menu/OK key.

3. Press the Menu/OK key to select an item.

4. Press the Answer key to leave and go back to Visitor records.

Delete a picture or video

1. Go to Visitor Records as described above.

The Visitor Records lists all recorded visits by date.

2. Use the arrow keys to select the appropriate folder and press the

Menu/OK key.

3. Press the Menu/OK key to select an item.

4. While viewing the item, press the Menu/OK key and press the

Menu/OK key again to confirm deletion.

6.3 System Settings

To go to the system settings:

1. Press the Answer key to activate the device.

The LCD displays the camera view.

2. Press the Menu/OK key to change the view.

3. Use the arrow keys to select System Settings and press the

Menu/OK key to enter the system settings.

4. Use the arrow keys to go through the system settings and press

the Menu/OK key to select a setting.

5. Change the setting as desired and press the Menu/OK key to

confirm.

If you want to cancel your changes, press the Answer key.

6. Go back to the main menu with the Answer key.

7. Activate the camera view with the Answer key.

Available settings

The device has the following settings:

Date and time

Language

Recording Mode: photo or video

LCD Brightness

CAMSET29

V. 01 –12/02/2013 8 ©Velleman nv

Video Recording Time: changes the default length of recorded

video

Backlight Time: changes the time the device remains powered on

(5 –10 –15 –20 seconds).

Format Micro SD card: allows formatting the Micro SD card (press

the Answer key to cancel or the Menu-OK key to confirm).

Restore factory settings: restores factory settings (press the

Answer key to cancel or the Menu-OK key to confirm).

6.4 User manual

The User manual contains the user guide and system information.

7. Troubleshooting

Problem

Possible solution

The device randomly powers

on/off.

May be caused by low batteries.

Change the batteries.

When inserting the Micro SD

card, the device displays a

message “Insert Memory Card”

or “Param Error”.

Remove and put back the

batteries.

Use another Micro SD card.

The device displays the message

“Param Error”.

Reconnect the camera cable.

8. Cleaning and maintenance

Insert or replace the batteries

Install the Micro SD card before the batteries and click the Micro

SD card. The device will only recognize the SD card if inserted

before the batteries.

Only use appropriate batteries (see Technical Specifications

below).

1. Remove the battery lid.

2. Remove the used battery and install a new one.

Mind the battery polarity (+ and -).

3. Close the battery lid.

CAMSET29

V. 01 –12/02/2013 9 ©Velleman nv

9. Technical Specifications

monitor

2.8" TFT LCD

viewing angle

75°

door dimensions

drill hole range: 13 - 28 mm

door thickness range: 35 - 105 mm

monitor

dimensions

135 x 75 x 17 mm

camera

dimensions

Ø 30 x 7 mm

power supply

3 x 1.5V AA batteries (LR6C - not included)

weight

180 g

Use this device with original accessories only. Velleman nv

cannot be held responsible in the event of damage or injury

resulting from (incorrect) use of this device.

For more info concerning this product and the latest version

of this manual, please visit our website www.velleman.eu.

The information in this manual is subject to change without

prior notice.

The copyright to this manual is owned by Velleman nv. All

worldwide rights reserved. No part of this manual may be copied,

reproduced, translated or reduced to any electronic medium or

otherwise without the prior written consent of the copyright holder.

CAMSET29

V. 01 –12/02/2013 10 ©Velleman nv

GEBRUIKERSHANDLEIDING

1. Inleiding

Aan alle ingezetenen van de Europese Unie

Belangrijke milieu-informatie betreffende dit product

Dit symbool op het toestel of de verpakking geeft aan dat,

als het na zijn levenscyclus wordt weggeworpen, dit toestel

schade kan toebrengen aan het milieu. Gooi dit toestel (en

eventuele batterijen) niet bij het gewone huishoudelijke

afval; het moet bij een gespecialiseerd bedrijf

terechtkomen voor recyclage. U moet dit toestel naar uw verdeler of

naar een lokaal recyclagepunt brengen. Respecteer de plaatselijke

milieuwetgeving.

Hebt u vragen, contacteer dan de plaatselijke autoriteiten

betreffend de verwijdering.

Dank u voor uw aankoop! Lees deze handleiding grondig voor u het

toestel in gebruik neemt. Werd het toestel beschadigd tijdens het

transport, installeer het dan niet en raadpleeg uw dealer.

2. Algemene richtlijnen

Raadpleeg de Velleman® service- en kwaliteitsgarantie

achteraan deze handleiding.

Stel het apparaat niet bloot aan hoge temperaturen, druip- of

spatwater, sterke trillingen of hoge mechanische belastingen.

Druk niet hard op het LCD-scherm om schade of lekken te

voorkomen.

Het snoer dat de camera verbindt, is fragiel. Wees voorzichtig om

elke beschadiging te vermijden.

3. Eigenschappen

foto en video-opname

energiebesparende functie

eenvoudige installatie

discreet: de camera ziet eruit als een spionnetje

helder 2.8" TFT LCD-beeldscherm

foto's/video's doorbladeren met de kalenderfunctie

opname op micro SD-kaart (niet meegelev.)

Table des matières

Langues :

Autres manuels Velleman Appareil photo numérique

Velleman

Velleman CAMCOLBUL32 Manuel utilisateur

Velleman

Velleman CAMCOLVC15 Manuel utilisateur

Velleman

Velleman CAMCOLBUL24 Manuel utilisateur

Velleman

Velleman CAMSETW15 Manuel utilisateur

Velleman

Velleman CAMCOLBUL35 Manuel utilisateur

Velleman

Velleman CAMTVI17 Manuel utilisateur

Velleman

Velleman CAMCOLBUL30 Manuel utilisateur

Velleman

Velleman CAMSET23 Manuel utilisateur

Velleman

Velleman CAMTVI11 Manuel utilisateur

Velleman

Velleman CAMZWMBLAH2N Manuel utilisateur

Velleman

Velleman CAMCOLVC2N Manuel utilisateur

Velleman

Velleman CAMCOLVC20 Manuel utilisateur

Velleman

Velleman CAMZWBLAH2N Manuel utilisateur

Velleman

Velleman CAMTVI14WN Manuel utilisateur

Velleman

Velleman CAMCOLVC5 Manuel utilisateur

Velleman

Velleman CAMCOLVC10 Manuel utilisateur

Velleman

Velleman CAMD5 Manuel utilisateur

Velleman

Velleman CAMCOL6A Manuel utilisateur

Velleman

Velleman AVMOD9 Manuel utilisateur

Velleman

Velleman CM1F005 (CAMCOLVC9) Manuel utilisateur

Velleman

Velleman CAMTVI9 Manuel utilisateur

Velleman

Velleman CAMCOLBUL24Z Manuel utilisateur

Velleman

Velleman CAMSETW9 Manuel utilisateur

Velleman

Velleman CAMZWBUL13 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
