MANUAL
whadda.com
EN 4 CHANNEL SOLID STATE RELAY MODULE
WPM464
2
Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the
environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a
specialized company for recycling. This device should be returned to your distributor or to a local recycling
service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Whadda! Please read the manual thoroughly before bringing this device into service. If the
device was damaged in transit, do not install or use it and contact your dealer.
Safety Instructions
Read and understand this manual and all safety signs before using this appliance.
For indoor use only.
•This device can be used by children aged from 8 years and above, and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning the use of the device in a safe way and understand
the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall
not be made by children without supervision.
General Guidelines
•Refer to the Velleman®Service and Quality Warranty on the last pages of this manual.
•All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the
device is not covered by the warranty.
•Only use the device for its intended purpose. Using the device in an unauthorized way will void the warranty.
•Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer
will not accept responsibility for any ensuing defects or problems.
•Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) –
of any nature (financial, physical…) arising from the possession, use or failure of this product.
•Keep this manual for future reference.
What is Arduino®
Arduino®is an open-source prototyping platform based on easy-to-use hardware and software.
Arduino®boards are able to read inputs –light-on sensor, a finger on a button or a Twitter message –
and turn it into an output –activating of a motor, turning on an LED, publishing something online. You
can tell your board what to do by sending a set of instructions to the microcontroller on the board. To
do so, you use the Arduino programming language (based on Wiring) and the Arduino®software IDE
(based on Processing). Additional shields/modules/components are required for reading a twitter
message or publishing online. Surf to www.arduino.cc for more information
3

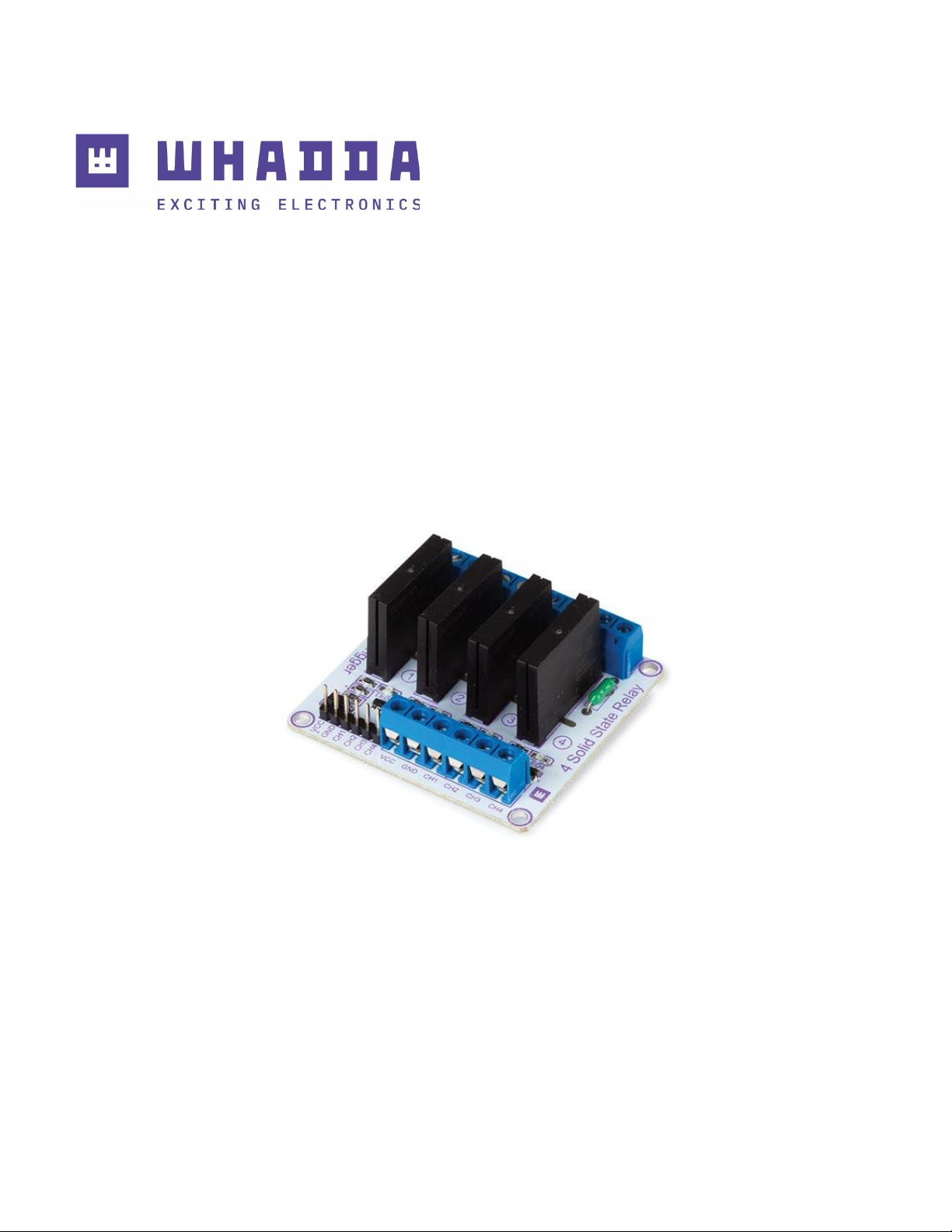

Product overview
The Whadda 4-channel Solid State Relay (SSR) module can be used to quickly and efficiently switch AC loads
on and off without using any moving parts (e.g. like a classic electromechanical relay).
The SSR module uses a phototriac to provide a galvanic isolation between the logic level side and the AC load
side. All four of the channels can be switched on by providing a HIGH logic level signal (3 –5 V), and off by
providing a LOW logic level signal (0 –1,5 V) to its corresponding channel signal input.
Note that this module can ONLY SWITCH AC CURRENTS, up to a maximum of 2 A, with a maximum voltage
of 240 V AC. Trying to use this module to switch DC loads or exceeding the specified limits can damage the
module and/or your connected devices!
Specifications:
Max. load voltage: 240 V AC
Max. load current: 2 A
Supply voltage: 5 V DC
SSR working current: 12,5 mA
SSR trigger voltage: 3,3 –5,0 V DC
SSR trigger current: 2 mA
Weight: 36,8 g
Dimensions (W x L x H): 55 x 57 x 24 mm

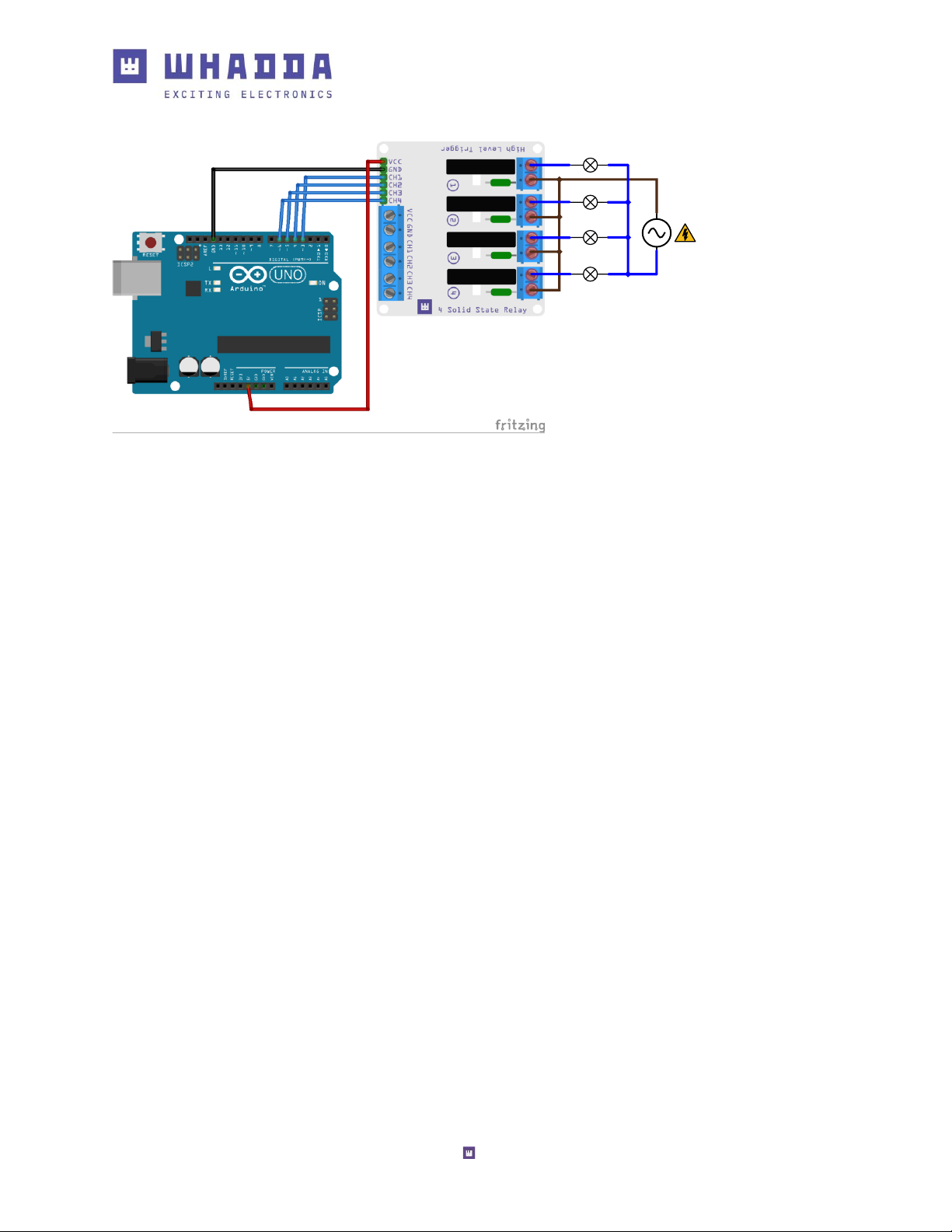

Wiring description
Pin
Name
Arduino®connection
VCC
Supply voltage (5 V DC)
5V
GND
Ground
GND
CH1
SSR channel 1 signal
Digital Pin (e.g. D3)
CH2
SSR channel 2 signal
Digital Pin (e.g. D4)
CH3
SSR channel 3 signal
Digital Pin (e.g. D5)
CH4
SSR channel 4 signal
Digital Pin (e.g. D6)
A1
SSR channel 1 AC voltage source
-
B1
SSR channel 1 Load
-
A2
SSR channel 2 AC voltage source
-
B2
SSR channel 2 Load
-
A3
SSR channel 3 AC voltage source
-
B3
SSR channel 3 Load
-
A4
SSR channel 4 AC voltage source
-
B4
SSR channel 4 Load
-
4
5
Example program
You can download the example Arduino® program by going to the official Whadda github page:
https://github.com/WhaddaMakers/4-Channel-solid-state-relay-module

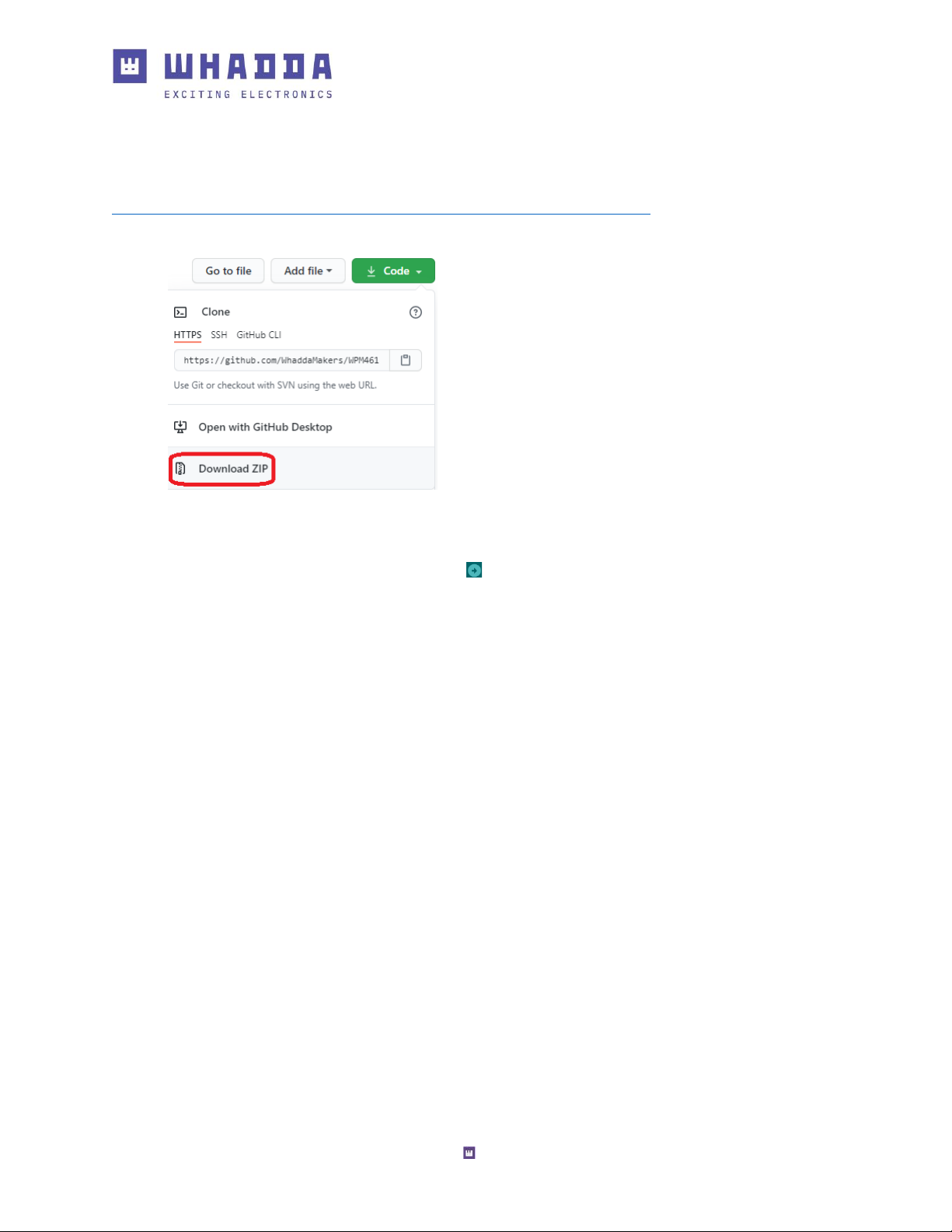

1. Click the “Download ZIP” link in the “Code” menu:
2. Unzip the downloaded file, and browse to the example_code folder. Open the example
Arduino® sketch (example_code.ino) located in the folder.
3. Connect your Arduino compatible board, make sure the correct Board and connection port
are set in the tools menu, and hit Upload
6
whadda.com
Modifications and typographical errors reserved - © Velleman Group nv. WPM464
Velleman Group NV, Legen Heirweg 33 - 9890 Gavere.
