VarTech Systems VT420W Manuel utilisateur

VT420 Liquid Display User Guide 150-098

User’s Guide

Read these instructions completely before attempting to operate your new Color Display.

VT420 Large Screen Series

42.0” Large Screen Series LCD Monitors

VT420W, VT420C

Solutions for Demanding Applications

Industrial CRT and Flat Panel Displays

VARTECH

S Y S T E M S I N C.

VT420 Liquid Display User Guide 2 150-098

Table Of Contents

Page

1. GENERAL DESCRIPTION 3

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATIONS

2. ABSOLUTE RATINGS OF ENVIRONMENT 4

3. INTERFACE PIN CONNECTION 5

3.1 COMPOSITE VIDEO

3.2 S-Video

3.3 COMPONENT

3.4 DVID 24pin

3.5 DVID 15pin

4. VARTECH ADJUSTMENTS 10

4.1 OSD

4.2 OSD DISPLAY EXAMPLES

4.3 REMOTE CONTROL

4.4 ORIGINAL SETTING

5. EMC & SAFETY 19

6. HANDLING PRECAUTIONS 20

3.6 RS 232 In

3.7 RS 232 Out

VT420 Liquid Display User Guide 3 150-098

1. GENERAL DESCRIPTION

1.1 OVERVIEW

VT420 is a 42” TFT Liquid Display with 24-CCFL Backlight units. This display

supports 1920 x 1080 HDTV format and can display true 16.7M colors (8-bit/

color).

1.2 FEATURES

-High brightness (550 nits)

-High contrast ratio (800:1)

-Fast response time (8msec)

-High color saturation NTSC 75%

-HD (1920 x 1080 pixels) resolution

-DE (Data Enable) only mode

-Optimized response time for 50/60 Hz frame rate

-Ultra wide viewing angle: 176(H)/176(V) (CR>20) Super MVA technology

1.3 APPLICATION

-Direct view LCD flat panel display

VT420 Liquid Display User Guide 4 150-098

2. ABSOLUTE RATINGS OF ENVIRONMENT

Note

(1) Temperature and relative humidity range is shown in the figure below.

(a) 90% RH Max. (Ta ≦40ºC)

(b) Wet-bulb temperature should be 39ºC Max. (Ta ＞ 40ºC)

(2)The maximum operating temperature is based on the test condition that the

surface temperature of display area is less than or equal to 60ºC with LCD

module alone in a temperature controlled chamber. Thermal management

should be considered in final product design to prevent the surface tempera-

ture of display area from being over 60ºC. The range of operating tempera-

ture may degrade in case of improper thermal management in final product

design.

(3) 11 ms, half sine wave, 1 time for ±X, ±Y, ±Z.

(4)10~200 Hz, 10 min, 1 time each X, Y, Z.

(5) At testing Vibration and Shock, the fixture in holding the module has to be

hard and rigid enough so that the module would not be twisted or bent by

the fixture.

VT420 Liquid Display User Guide 5 150-098

3. INTERFACE PIN CONNECTION

3.1

3.2

VT420 Liquid Display User Guide 6 150-098

3.3

VT420 Liquid Display User Guide 7 150-098

3.4

VT420 Liquid Display User Guide 8 150-098

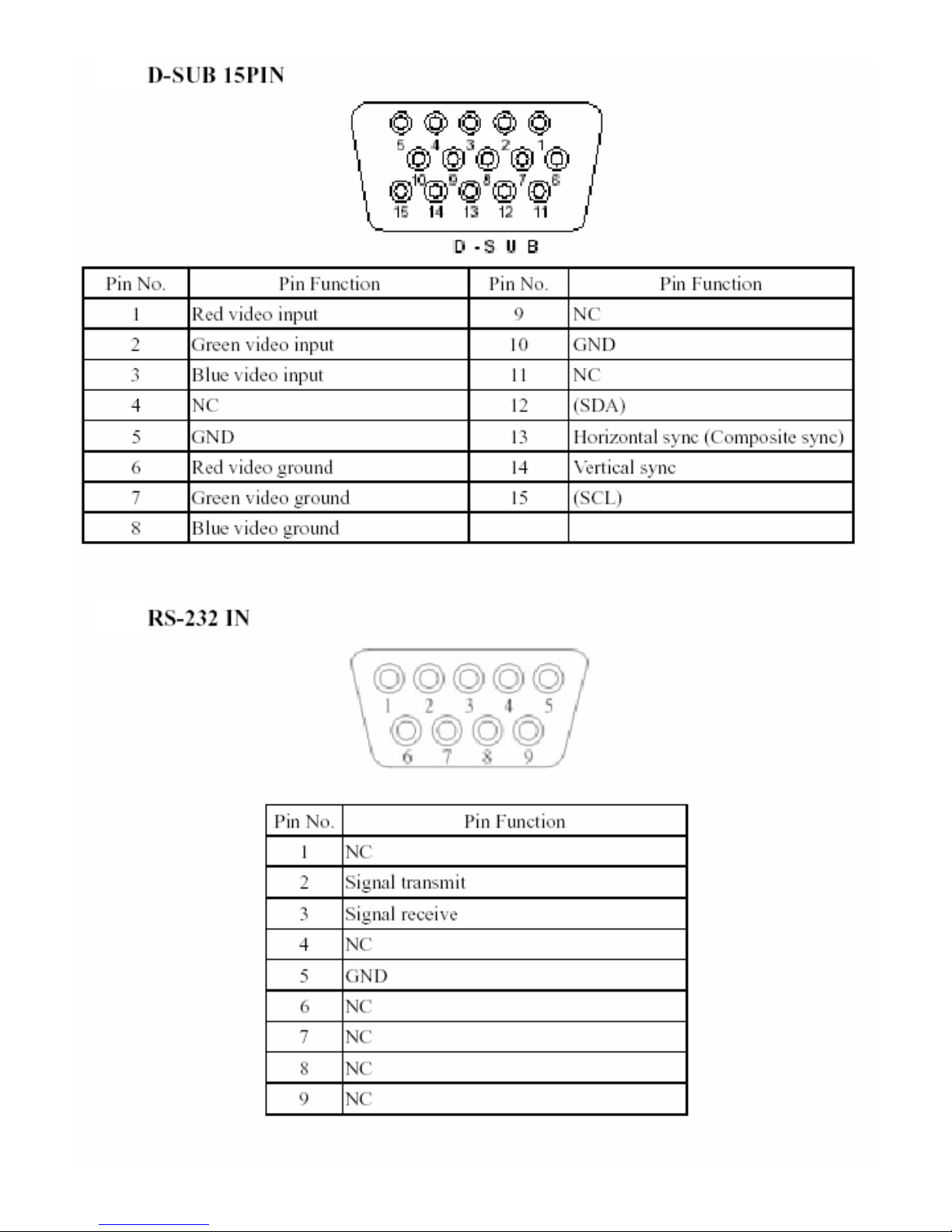

3.5

3.6

VT420 Liquid Display User Guide 9 150-098

3.7

VT420 Liquid Display User Guide 10 150-098

4. VARTECH ADJUSTMENTS

0 , 100

-45 , +45

0 , 100

Off, Weak, Soft, Strong

0 , 100

In , Out

Left, Right

Down, Up

0 , 255

Off, Single, PAP

Small, Med, Large

0 , 100

1:1,Fill,Aspect,Panor

Select

0 , 255

Off , 2.2, 2.4

0 , 255

0 , 15

0 , 60

On , Off

Select

Yes , No

0,255

Off, On

0, 100
