VarTech Systems VT150CHB Manuel utilisateur

VT150 High Bright User Guide 150-085

VT150 High Bright Series

15.0” High Bright Series LCD Monitors

VT150CHB

VT150DHB

Solutions for Demanding Applications

Industrial CRT and Flat Panel Displays

User’s Guide

Read these instructions completely before attempting to operate your new Color Display.

VARTECH

S Y S T E M S I N C.

VT150 High Bright User Guide 150-085

Table Of Contents

Section Page Section Page

Section 1 Section 4

Introduction Display Timing 11

1.1 VT150 High Bright Series 3

1.2 Product Safety Precautions 4 Section 5

Touch screen

Section 2 5.1 Introduction 12

Display Setup 5.2 Installation 12

2.1 Display Features 5

2.2 Unpacking The Display 5 Section 6

2.3 Included Parts 5 Troubleshooting Tips 13

2.4 Connecting Your Display 6

Section 7

Cleaning & Maintenance 14

Section 3

Getting Started Section 8

3.1 Operating the Monitor 7 Special Notes 15

3.2 Adjusting the Viewing Angle 7

3.3 OSD Information 8-9 Section 9

3.4 Self Test Check 9 Display Specifications 16

3.5 OSD Table 10

VT150 High Bright User Guide 150-085

INTRODUCTION

Section

VT150 High Bright Series

The VT150 high bright (HB) series of LCD displays supplies a superior display consisting of a

native resolution of XGA (1024x768) and 700 nits of brightness.

The VT150 high bright series is capable of displaying video resolutions of VGA (640x480), SVGA

(800x600), and XGA (1024x768).

1.1

Product Safety Precautions

⇒ Ensure that sufficient space is available around the display to provide the circulation

necessary for cooling.

⇒ Ensure that the ambient air temperature will not exceed the specified maximum

temperature.

⇒ Do not attempt to service this display yourself. The rear chassis has a seal so that non

qualified personal will not expose themselves to dangerous voltages or other risks.

⇒ To protect from electrical shock, unplug the display power supply from the wall before

moving.

⇒ Do not expose the display to direct sunlight or heat.

⇒ Do not use this display near water

⇒ Do not place any heavy objects on the power cords. Damage may cause electrical shock.

⇒ Unplug the power supply from the wall or unit if one of the following conditions exists.

⇒ Power cord or plug is damaged or frayed

⇒ Liquid is spilled into the display or the display is exposed to rain or water.

⇒ The display does not operate normally when the operating instructions are

followed.

⇒ The display has been dropped or the enclosure has been damaged.

⇒ The display exhibits a distinct change in performance, indicating a need for

service.

1.1

VT150 High Bright User Guide 150-085

⇒ Touch panel control functions

⇒ Support for XGA resolution of 1024x768 pixels

⇒ Wide viewing angle

⇒ Wide tilting angle (VT150DHB)

⇒ Digital Character Smoothing

⇒ Automatic Set-Up

⇒ Windows 95/98/2000/XP Plug & Play Compliant

⇒ Versatile, functional & User friendly OSD

⇒ Plug & Play: Conforms to the VESA standards and support DDC1/2B specification

⇒ Meets Energy Star guidelines for power management

Section

DISPLAY SETUP

VT150 High Bright Series Display Features

2.1

⇒ VT150CHB or VT150DHB LCD Monitor

⇒ VGA Cable

⇒ Power Cord

⇒ Audio Cable

⇒ Users Guide (CD)

⇒ Driver CD , USB or RS232 cable (Optional Touch)

2.2 Unpacking and setting up your display

Your LCD monitor package will consist of the components listed below. Open shipping

container and lay all components on a flat clean surface.

2.3 What is included with your display

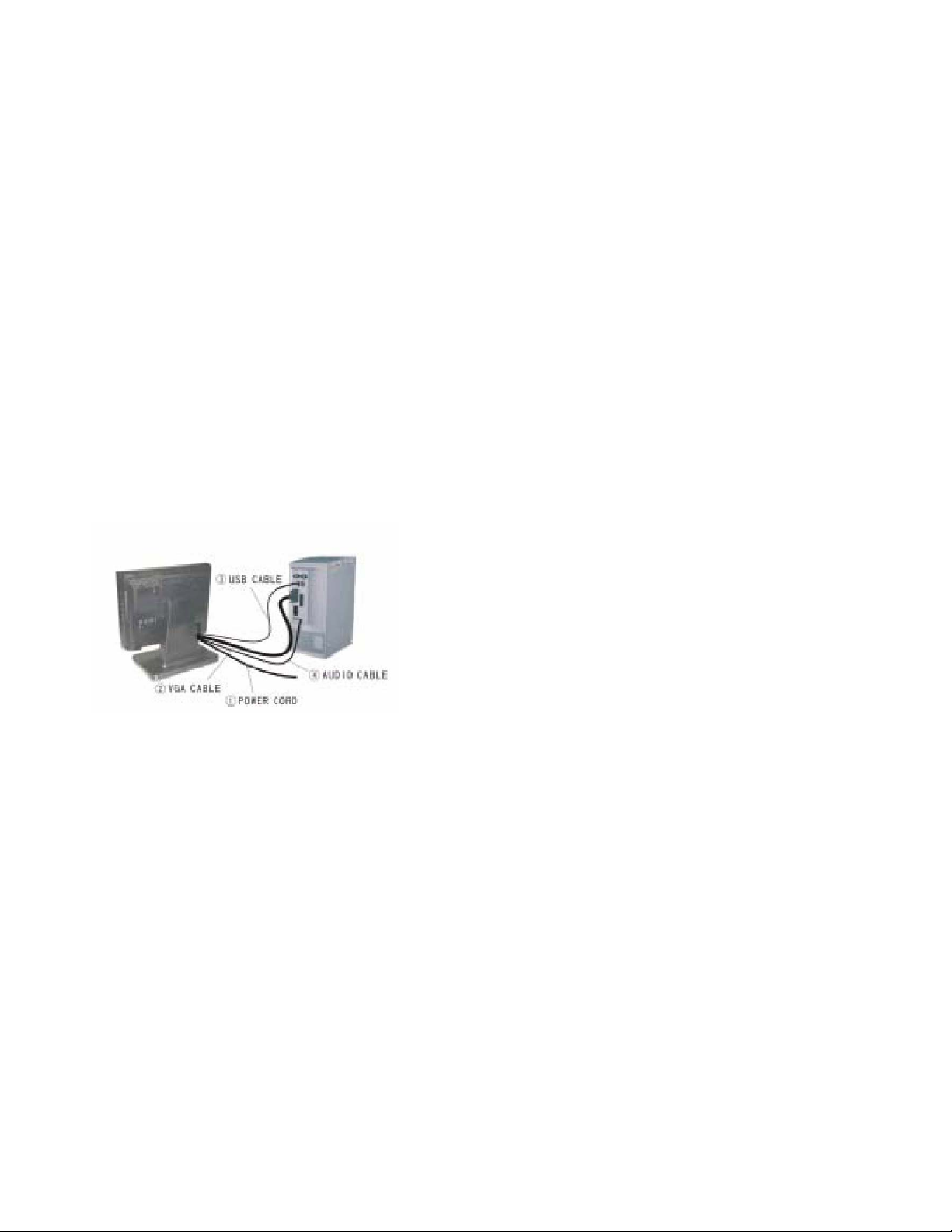

2.4 Connecting the Display

1. Turn off the PC and the LCD Monitor before making any connections.

2. Use the supplied VGA cable to connect the VGA connector of the LCD Monitor to the VGA

port of the PC system.

3. Use the supplied audio cable to connect the “Audio in” jack on your LCD Monitor and the

PC sound card’s “Audio out” or speaker jack.

4. Connect the male end of the power cord into a wall socket and the female end to the

Monitor.

5. If your LCD Monitor has a touch screen and USB interface, use the supplied USB cable to

connect the USB connector of LCD Touch Monitor to the USB port of the PC system.

Remember to follow proper software driver installation.

6. If your LCD Monitor has a touch screen and RS232 serial interface, unplug the PC keyboard

and reconnect it to the supplied serial cable power adaptor. Connect the other end of the

adaptor to the keyboard connector on the PC. Connect the serial D-connector to and

standard PC serial comport. Connect the other end or the serial interface cable to the

Monitor.

7. Turn on your computer, and then turn on your LCD Monitor.

Power Plug the power cord in.

Input 1 Connect with detachable VGA

cable.

Input 2

(Touch Function) Connect to USB/RS232 cable

Audio In Connect with PC sound card.

VT150 High Bright User Guide 150-085

Operating the Monitor

Getting Started

Section

3.1

Users can adjust the picture to the desired brightness and sharpness by following these

instructions. The adjustment buttons utilize a security feature that required the use of a paper

clip or pin to activate each selection. This is accomplished through pinholes in each button

except the power on/off.

1 Power Switch Power On/Off

2 Auto Automatically optimize positions, phase & clock when OSD is not

shown

3 Exit / Exit the OSD menu when OSD is shown

4 ＋/ Selection or adjustment when OSD is shown/Quick brightness ad-

justment

5 －/ Adjustment when OSD is shown/Quick contrast adjustment

6 Menu Enter OSD/Access sub-menu & selection

Adjusting the Viewing Angle (VT150DHB)

Your LCD Monitor is designed to allow you to adjust to an optimal viewing angle.

The tilt mechanism has a locking knob on the rear of the display portion of the Touch Monitor.

There is a legend on the lock to indicate the locked or unlocked position of the locking knob.

Do not force the display to tilt without unlocking the mechanism first.

3.2

How to Use the OSD (On Screen Display)

3.3

The OSD function allows the user to easily adjust the display to the desired requirements.

The OSD menu includes a main menu and sub-menus. Use the buttons on the right side

control panel to adjust the OSD (see Operating the Monitor).

Color Temp. Selection

Volume Adjustment

Image Adjustment

Source Resolution &

Frequency Status

Current Audio Status

Color Temp. Status

Input Source Status

Language

Settings

Input Source Selection

1. Power on LCD Touch Monitor

2. Press “MENU” to display OSD menu

3. Press “+” or “-” to select menu item

4. Press “MENU” to select submenu

5. Press “+” or “-” to select sub-menu item

6. Press “EXIT” to finish and accept setting

7. Press “AUTO” to process auto tune function

MAKE OSD ADJUSTMENTS

VT150 High Bright User Guide 150-085

3.3 Additional On Screen Display (OSD) Information

The OSD disappears (times-out) several seconds after you stop pressing the buttons

while performing an adjustment. This function can be adjusted up to 60 seconds allow-

ing the user more time. This adjustment is made in the “Settings” submenu.

Any changes made are automatically saved in the Touch Monitor memory when the

OSD disappears. Turning off the power should be avoided while using the OSD, as this

may not allow changes to be saved.

Adjustments for clock, phase and positions are saved for each signal timing or screen

resolution. Except for these adjustments, all other adjustments have only one setting

that applies to all signal timing.

The submenu color will change from white to pink when the function is selected.

You can skip the OSD menu and display commonly used adjustment scales directly by

using the following button operations (refer to previous diagram for button locations):

Brightness Press the Brightness Button (3) when the Menu is not displayed.

Contrast Press the Contrast Button (2) when the Menu is not displayed.

Auto Setting Press the Auto Button (5) when the Menu is not displayed.

The Auto Adjust process may take as much as 10 consecutive seconds. The display image

will make noticeable changes as the Auto Adjust function completes.

3.4 Self Test Check

This product provides a self-test ability, through which you can check whether the LCD

monitor functions are working properly.

If your LCD monitor is properly connected, but there is no image showing and the power

indicator light on the Touch Monitor displays orange, please follow the steps below:

1. Turn off both the computer and LCD monitor.

2. Unplug the video signal connector from the back of the computer.

3. Turn the LCD monitor on.

4. The monitor should display “No Signal Input” on the screen and the power LED indicator

should be orange. If no display is observed, there may be a problem with the Touch

Monitor.

5. Turn off the LCD monitor and reconnect the signal cable, then turn the computer and LCD

monitor on. As the computer boots, there should be a video display and the power LED

should now be green. If the LED of the monitor is an orange color after completing the

steps above, please check your VGA card and computer system.

The following table indicates all the On Screen Display control, adjustment,

and setting menus.

3.5 On Screen Display (OSD) Control Adjustment Table

Main Menu Sub Menu Reference

IMAGE BRIGHTNESS Adjust the brightness of the screen

CONTRAST Adjust the contrast of the image

CLOCK Adjust the clock pulse of the image

PHASE Adjust the focus of the image

H. POSITION Move the image left and right on the screen

V. POSITION Move the image up and down on the screen

SHARPNESS Adjust the picture sharpness of lower resolutions

AUDIO VOLUME Adjust audio volume

MUTE Set the audio mute on or off

COLOR 9300K To customize the color of the screen

7500K

6500K

USER R/G/B Adjust red/green/blue gain

LANGUAGE ENGLISH Select OSD language

Adjust OSD display time and setting

Move OSD display position to any one of the following 5

positions within the overall screen

FRANCAIS

ITALIANO

DEUTSCH

ESPANOL

日本語

简体中文

繁體中文

SETTINGS OSD TIMEOUT

OSD POSITION

AUTO SETTING Set-up to adjust clock, phase and positions automatically

RECALL

INPUT SOURCE ANALOG Select Analog input source

VT150 High Bright User Guide 150-085
