Vaillant TURBOmax Plus 824/2 E Manuel utilisateur

INSTRUCTIONS FOR USE

TURBOmax Plus 824/2 E, 828/2 E

THERMOcompact 615/2 E, 620/2 E, 624/2 E, 628/2 E

The code of practice for the installation,

commissioning & servicing of central heating systems

TABLE OF CONTENTS

General information

Safety

For your information . . . . . . . . . . . . . . . . . . . . . . . . . .3

Key to symbols . . . . . . . . . . . . . . . . . . . . . . . . .3

Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Specified use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

EC designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Factory Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Operation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Initial checks before turning ON . . . . . . . . . . . . . . . . . .9

Domestic hot water operation (TURBOmax Plus only) . . . .10

Heating operation . . . . . . . . . . . . . . . . . . . . . . . . . .13

Resetting the appliance . . . . . . . . . . . . . . . . . . . . . . .14

Turning the boiler OFF (TURBOmax Plus only) . . . . . . . .15

Turning the boiler OFF (THERMOcompact only) . . . . . . .16

Care and maintenance . . . . . . . . . . . . . . . . . . . . . . .17

Frost protection . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Status display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Important Note

☞This symbol is used to indicate

important instructions.

●This symbol is used to indicate

a required step.

GENERAL INFORMATION

We can accept no liability

whatsoever for damage or

injury resulting from failure to

observe these instructions.

Key to symbols

Liability

For your information Thank you for choosing a Vaillant

boiler. The information given in this

booklet will enable you to obtain the

best performance from your boiler.

TURBOmax Plus provides both central

heating and domestic hot water,

with the domestic hot water supplied

directly from the boiler. The boiler

will operate automatically to provide

domestic hot water whenever a hot

water tap is opened, and auto-

matically adjusts to meet the demand

for both central heating and domestic

hot water in the most economical way.

THERMOcompact provides central

heating and domestic hot water

where a separate indirect hot water

cylinder is also incorparated to the

system.

If, after reading these instructions,

you have any questions on the

operation of the boiler, please

contact either your installer or Vaillant

Technical Department.

The benchmark logbook should be

completed by the installer and/or the

commissioning engineer and handed

to the user.

All CORGI registered installers

carry a CORGI ID card, and have a

registration number.

Both should be recorded in your

Benchmark Log Book. You can check

your installer by calling CORGI direct

on 01256 372300.

GENERAL INFORMATION

Specified use

EC designation The purpose of EC designation is to

certify that the boiler complies with

the requirements of the directives

covering gasfired appliances

(Council directive 90/396/EEC) and

electromagnetic compatibility

(Council directive 89/336/EEC).

These appliances also comply with

the requirements of the directive on

operating efficiency (Council directive

92/42/EEC).

Vaillant TURBOmax Plus and

THERMOcompact boilers are made

to fulfil the latest technical specifica-

tions and official safety regulations.

These appliances are designed as

boilers for use in central heating and

hot water supply systems.

THERMOcompact boilers only supply

domestic hot water where a separate

indirect hot water cylinder is also

incorparated to the system.

If the appliances are used for purposes

other than or in excess of these

specifications, this shall be classed as

incorrect operation, and neither the

manufacturer nor supplier will accept

any liability for resulting damage or

injury.

Use of this type is entirely at the

owner’s risk.

The term „specified use” also covers

observance of the operating and

installation instructions, along with

adherence to the servicing schedules.

SAFETY

Safety instructions

Setup and adjustments

Installation and adjustment of the

boiler as well as service maintenance

and repair of the boiler may only be

carried out by a competent person in

accordance with the Gas Safety

(Installation and Use) Regulations

1998. (In the U.K. „CORGI“

Registered installers undertake the

work to a safe and satisfactory

standard).

If the boiler is installed in a

compartment do not obstruct any

purpose provided ventilation

openings, and do not use the

compartment for storage purposes.

Gas smell

If you smell gas or suspect a gas

leak:

- Turn off the boiler.

- Do not switch any electrical

switches in the hazardous area

ON or OFF.

- Do not smoke in the hazardous

area.

- Turn off the gas supply at the gas

meter.

- Ventilate the room.

- Consult your gas supplier, service

agent or other competent person.

Modifications in and around the

boiler

No modifications may be made to

the following items:

- The boiler.

- The gas, water and electrical

supply.

- The flue system.

- The safety valve for the heating

water.

- Any structural changes around the

appliance that could affect the

operational safety of the boiler.

Follow the safety instructions!

Fig. S.1

Euro B/S 002/0_GB

SAFETY

Explosive and flammable

materials

Do not use or store any explosive or

highly flammable materials (e.g.

gasoline, paper or paint) near to the

appliance.

Inspection

The boiler should be serviced

annually. We recommend that you

sign a service agreement with your

service agent or Vaillant Ltd.

Safety instructions

Two year guarantee!

Fig. W.1

Euro B/S 122/0_GB

Your guarantee

Vaillant undertakes to rectify any

manufacturing defect that occurs

within twenty four months of the

installation date.

Registering with us

Registration is simple. Just complete

the Guarantee Registration Card and

return to Vaillant within 30 days of

installation. Your details will then be

automatically registered within the

Vaillant scheme.

Note: No receipt will be issued.

Immediate help

If your Vaillant boiler develops a fault

your first action should be to contact

your installer, as his professional assess

ment is needed under the terms of our

Guarantee. If you are unable to

contact your installer, phone Vaillant

Service Solutions:

0870 6060 777

FACTORY GUARANTEE

OPERATION

32 10

758 4

VRC-VC

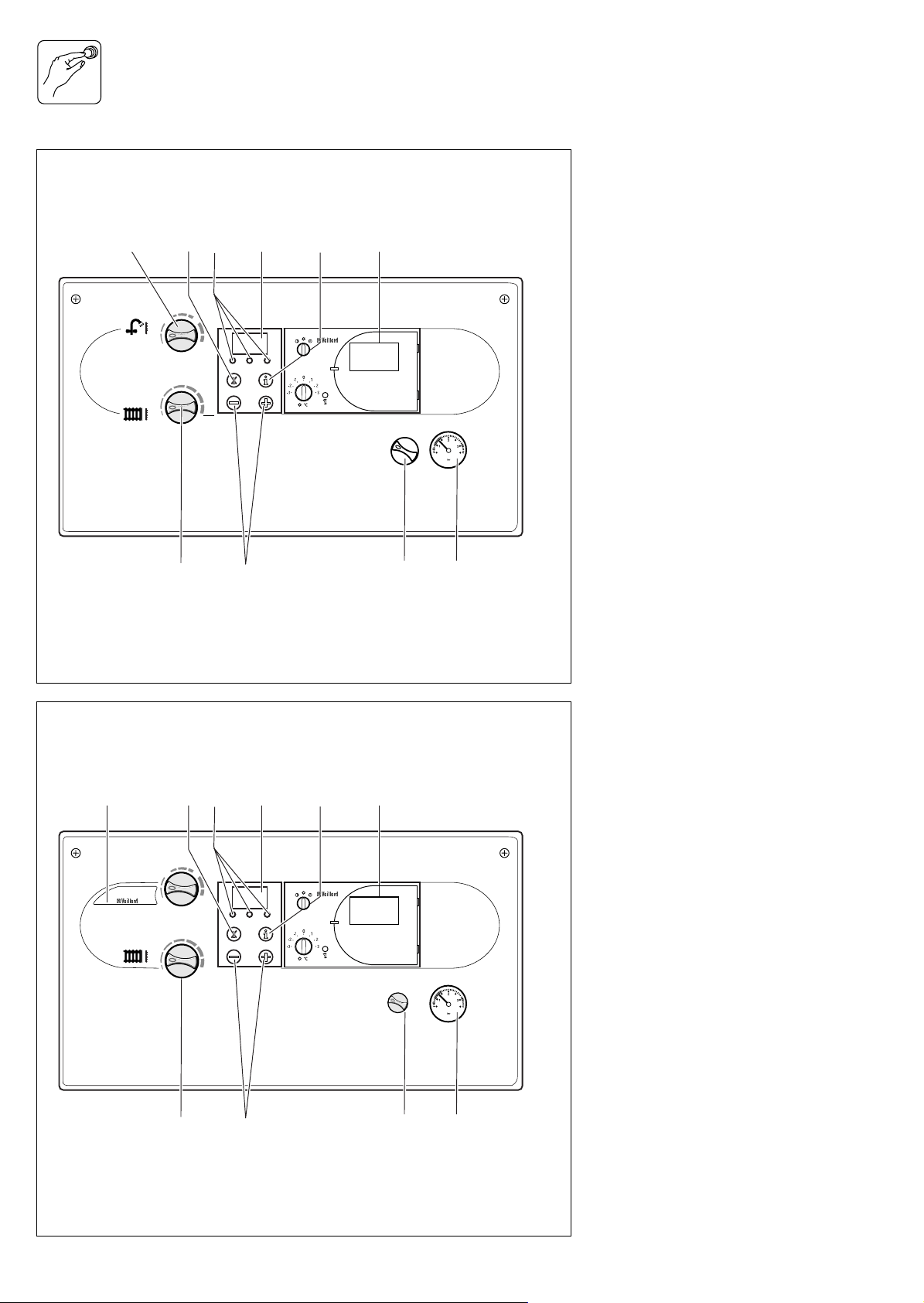

Fig. B.1a: Operating elements TURBOmax Plus

Euro B/S 073/1

32 9

758 4

VRC-VC

THERMOcompact

Fig. B.1b: Operating elements THERMOcompact

Euro B/S_VC_086/1GB

Overview

TURBOmax Plus

Operating controls

For access to the controls press the

upper middle of the lower front panel

and drop it down.

The following can be seen:

1Maximum radiator temperature

control (page 13)

2The „+“ and „-“ buttons for the

display panel

3Main ON/OFF control (pages 10

and 15)

4Built in control/timer module (if

fitted)

5The „i“ information button

6Boiler display

7Indicator lights to display the

current operating mode

8„Reset“ button: (see page 14)

9Maximum hot water temperature

control and warmstart ON/OFF

control (page 11)

10 Pressure gauge displaying the

pressure in the heating system

THERMOcompact

You can identify a THERMOcompact

boiler by the sticker which is situated

at the top left hand side of the control

panel (see A, Fig. 1b)

Operating controls

For access to the controls press the

upper middle of the lower front panel

and drop it down.

The following can be seen:

1Maximum radiator temperature

control (page 13)

2The „+“ and „-“ buttons for the

display panel

3Main ON/OFF control (pages 10

and 16)

4Built in control/timer module (if

fitted)

5The „i“ information button

6Boiler display

7Indicator lights to display the

current operating mode

8„Reset“ button: (see page 14)

9Pressure gauge displaying the

pressure in the heating system

OPERATION

VRC-VC

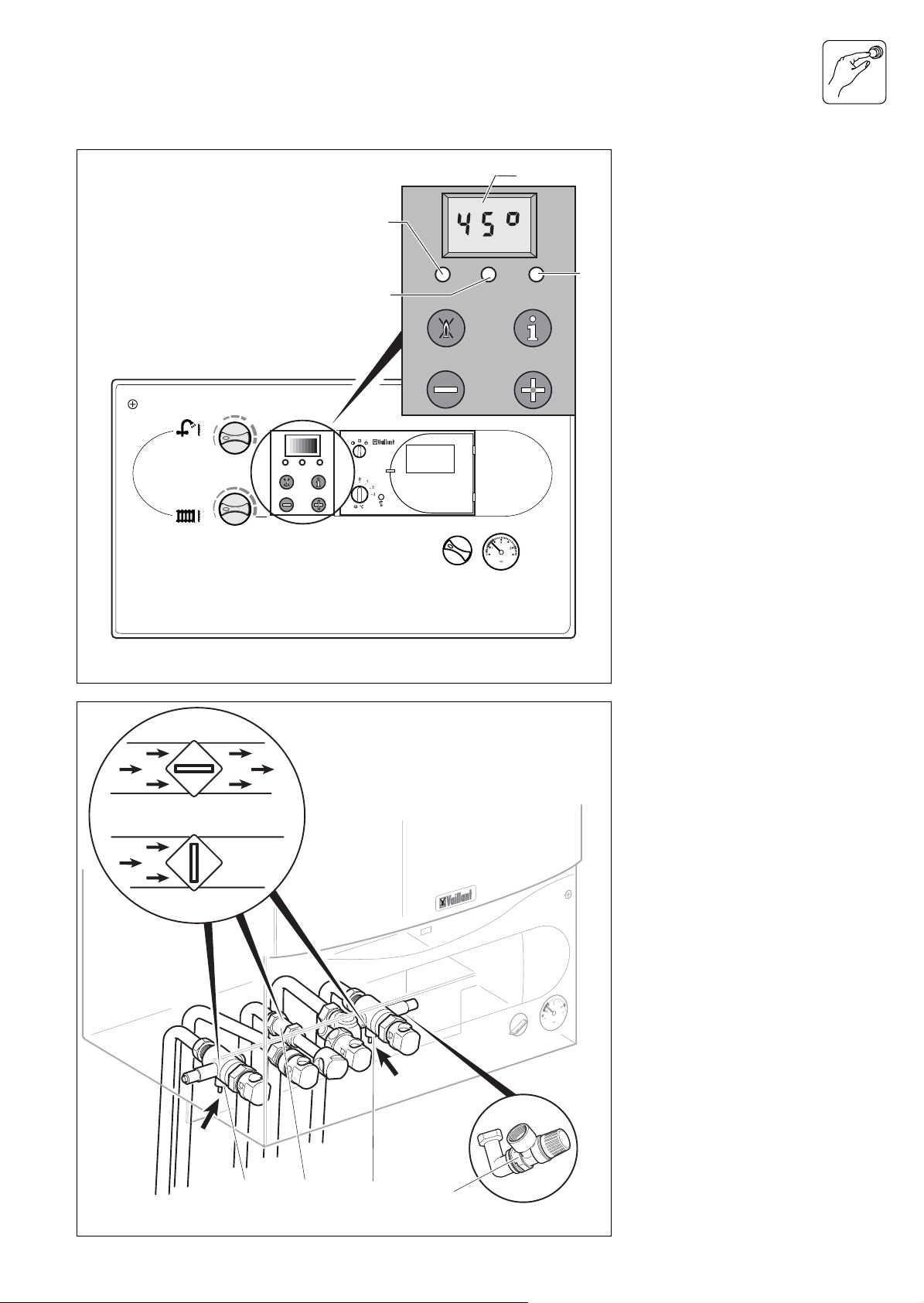

Fig. B.2: LED displays

Euro B/S 074/1

Initial checks before

turning ON

Open the service valves

●Ensure the cold water service valve

is open. This can be checked by

opening a hot water tap and

ensuring water flows.

●Ensure that the service valves in

the heating flow and return (2and

1) and the gas service valve (3)

are open.

☞The flow, return and gas

service valves are open when

the line marking has the same

direction as the pipe.

●The pressure relief valve (4) is

provided for safety reasons and

must not be interfered with.

Note:

A bottom cover is fitted to the

appliance. The service valves can

be seen through the cover.

2 3 1 4

Fig. B.3: Opening service valves

Euro B/S 009/0GB

☞picture shows a TURBOmax

Plus boiler

Indicator lights/boiler display

TURBOmax Plus and THERMOcompact

boilers have an advanced multi-

function boiler display (1). When the

main ON/OFF control is in the „ON“

position the display will normally

show the temperature of water in the

boiler circuit (45 °C in the example),

which confirms that the boiler is

functioning correctly.

1In the unlikely event of a fault

developing which prevents the

boiler from operating, the display

may show a fault code (page 14).

2Red indicator

Illuminated = Boiler has locked out

3Yellow indicator

Illuminated = Main burner ignited

4 TURBOmax Plus

Green warmstart indicator (3)

Illuminated = Warmstart switched

Not illuminated = Warmstart is

switched OFF and there is no

demand for hot water

Flashing = There is either a

demand for hot water or

warmstart

4 THERMOcompact

Green indicator (3) is illuminated

but has no function.

OPERATION

Check the water contents

●Check the water contents of the

system on the pressure gauge (1).

The needle on the pressure gauge

should be within the green band

(between 1 and 1.5 bar). If the

needle displays a value below

0.8 bar when the appliance is

cold, follow the instructions left by

your installer to refill the system.

Alternatively, your installer should

be called to refill the system.

VRC-VC

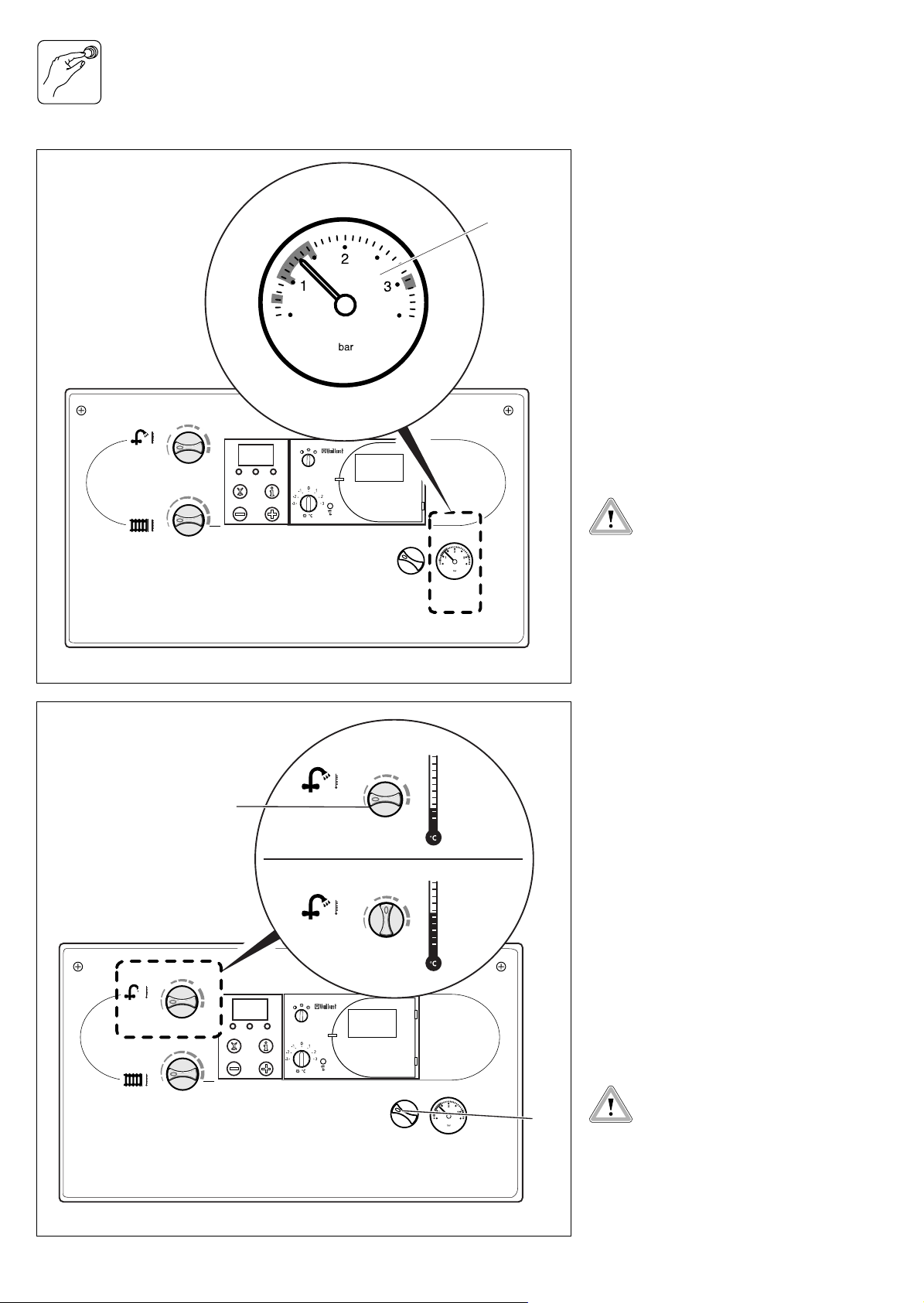

Fig. B.4: Checking the water level

Euro B/S 076/1

VRC-VC

Fig. B.5: Domestic hot water supply

Euro B/S 077/1

Domestic hot water

operation (TURBOmax

Plus only)

The boiler should only be used

when the heating system con-

tains water. Use of the boiler

without water may cause

damage to the boiler or its

components.

Setting the maximum domestic

hot water temperature control

●Turn the main switch (2) to the „l“

position.

●The display will show the boiler

flow temperature which indicates

electrical power to the boiler.

●The domestic hot water tempera-

ture can be adjusted using the hot

water temperature control (3).

●

Turn the control clockwise to increa-

the temperature and anti-clock-

wise to decrease the temperature.

As a guide for normal circumstances

set the knob to the one o´clock positi-

on.

Note:

This control adjusts the maximum

domestic hot water temperature. If

adjusting the control upwards

appears to have no effect on the

temperature, then the boiler is

already operating at full output for

the selected flow rate.

If you live in a hard water

area please do not set the

control knob above the mid

(12 o´clock) position to prevent

excessiv scale formation

(fig. B.5).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vaillant Chaudière

Vaillant

Vaillant ecoTEC plus SERIES Manuel utilisateur

Vaillant

Vaillant atmoMAG 4/1 Z Series Manuel utilisateur

Vaillant

Vaillant ecoTEC plus VU GB 5-5 Series Manuel utilisateur

Vaillant

Vaillant TURBOmax VUW 242 E Guide de l'utilisateur

Vaillant

Vaillant Turbomax Plus 824 E Manuel utilisateur

Vaillant

Vaillant geoTHERM exclusive Manuel utilisateur

Vaillant

Vaillant ecoTEC plus SERIES Manuel utilisateur

Vaillant

Vaillant ecoCRAFT exclusive VKK GB 1206/3-E R1 Manuel utilisateur

Vaillant

Vaillant ElectronicVED E 18/8 INT Manuel utilisateur

Vaillant

Vaillant TURBOmax Plus SERIES Manuel utilisateur

Vaillant

Vaillant ecoMAX SERIES Guide de l'utilisateur

Vaillant

Vaillant armoMAG 4/1 G Series Manuel utilisateur

Vaillant

Vaillant ecoTEC exclusive 843 Manuel utilisateur

Vaillant

Vaillant ecoTEC plus 937 Manuel utilisateur

Vaillant

Vaillant eloSTOR Exclusive VEH 50/8-7 Manuel utilisateur

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Vaillant

Vaillant ecoMAX 635 Guide de l'utilisateur

Vaillant

Vaillant VWZ MEH 60 Manuel utilisateur

Vaillant

Vaillant atmoMAG 4/1 Z Series Manuel utilisateur

Vaillant

Vaillant ecoTEC SERIES Guide de l'utilisateur

Vaillant

Vaillant ecoFIT pure Series Manuel utilisateur

Vaillant

Vaillant ecoTEC VC 406/5 Manuel utilisateur

Vaillant

Vaillant ecoTEC plus 806 VU GB 806/5-5 Manuel utilisateur

Vaillant

Vaillant flexoTHERM exclusive VWF 87/4 Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur

Radiant

Radiant R2K 55 Manuel
