Vaillant TURBOmax VUW 242 E Manuel utilisateur

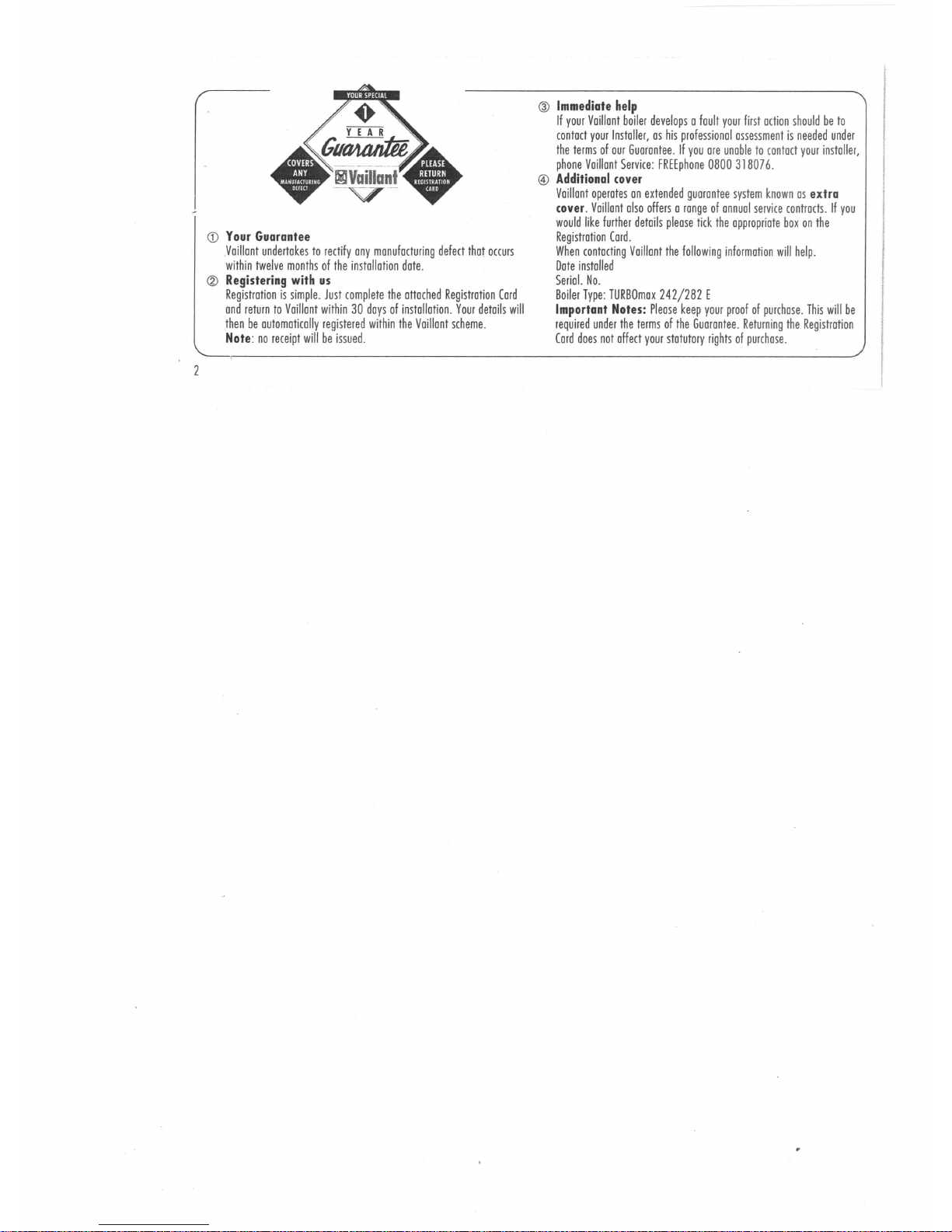

Your Guarantee

.Vaillant undertakes tarectify any manufacturing defect that accurs

within twelve months of theinstallation dote.

Registering with us

Registration is simple.Just complete the attached Registration Card

ond return to Vaillant within 30 days of installotion. Your details will

then beautomatically registeredwithin the Vaillant scheme.

Note:

no receipt will be issued.

<ID

Immediate help

If yaur Vaillant boiler develaps a fault your first actian shauld be ta

contact your Installer,ashisprofessional assessmentisneeded under

the termsof our Guarantee. If you are unable ta cantact your installer,

phone Vaillant Service:FREEphane 0800 318076.

Additional cover

Vaillant aperatesan extended guarantee system known as

extra

cover.

Vaillant also offers a range of annual service contracts.If you

would like further detailsplease ticktheappropriate boxon the

Registration Card.

When contacting Vaillant the following informatian will help.

Date installed

Serial.No.

Bailer Type:TURBOmax242/282 E

Important Notes:

Please keep your proofofpurchase.This willbe

required under the terms of the Guarantee.Returning the Registration

Card doesnat affect yaur statutary rightsof purchase.

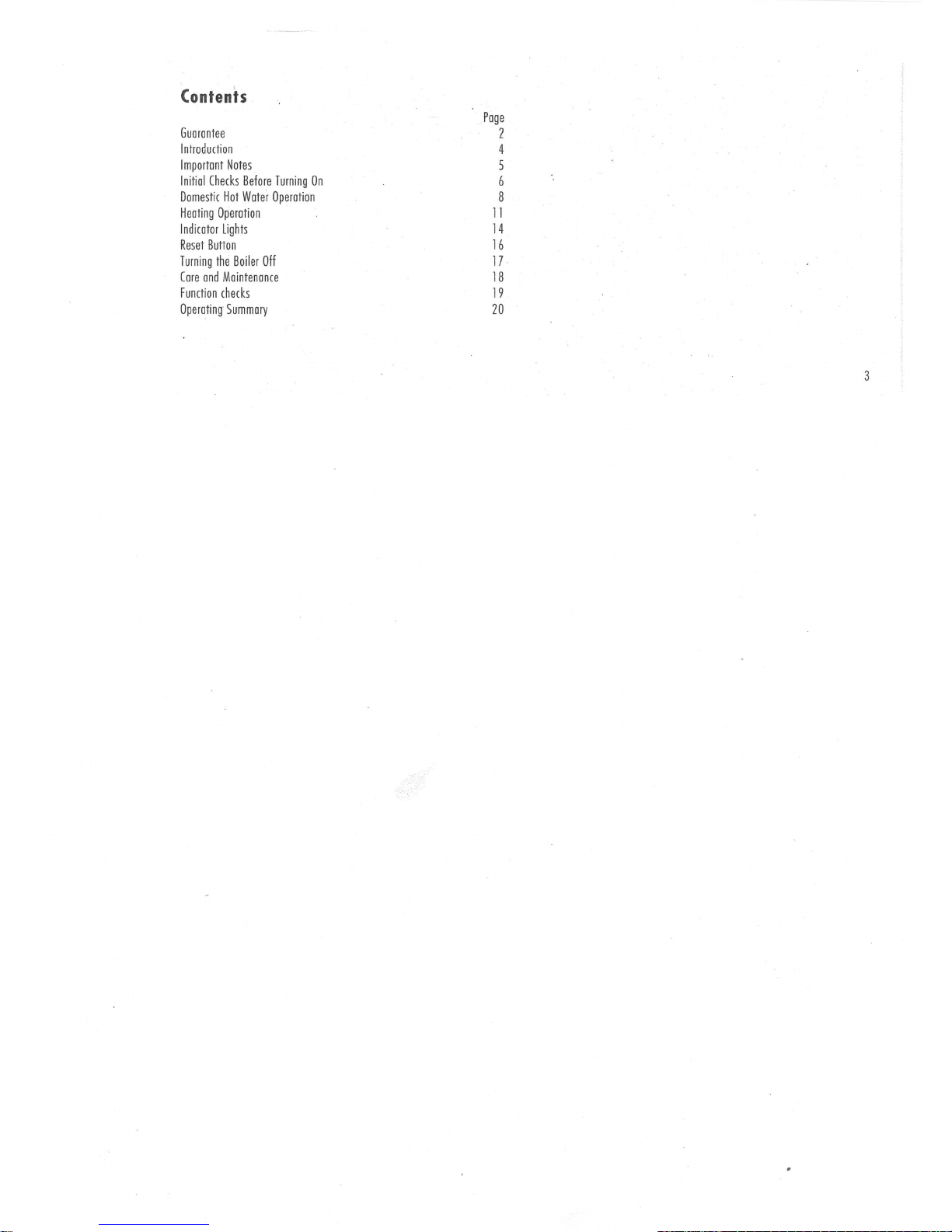

Guarontee

Introduction

Importont Notes

Initiol Checks Before Turning On

Domestic Hot WaterOperation

Heating Operation

Indicator Lights

Reset Button

Turning theBoiler Off

CareandMaintenance

Function checks

Operating Summary

Page

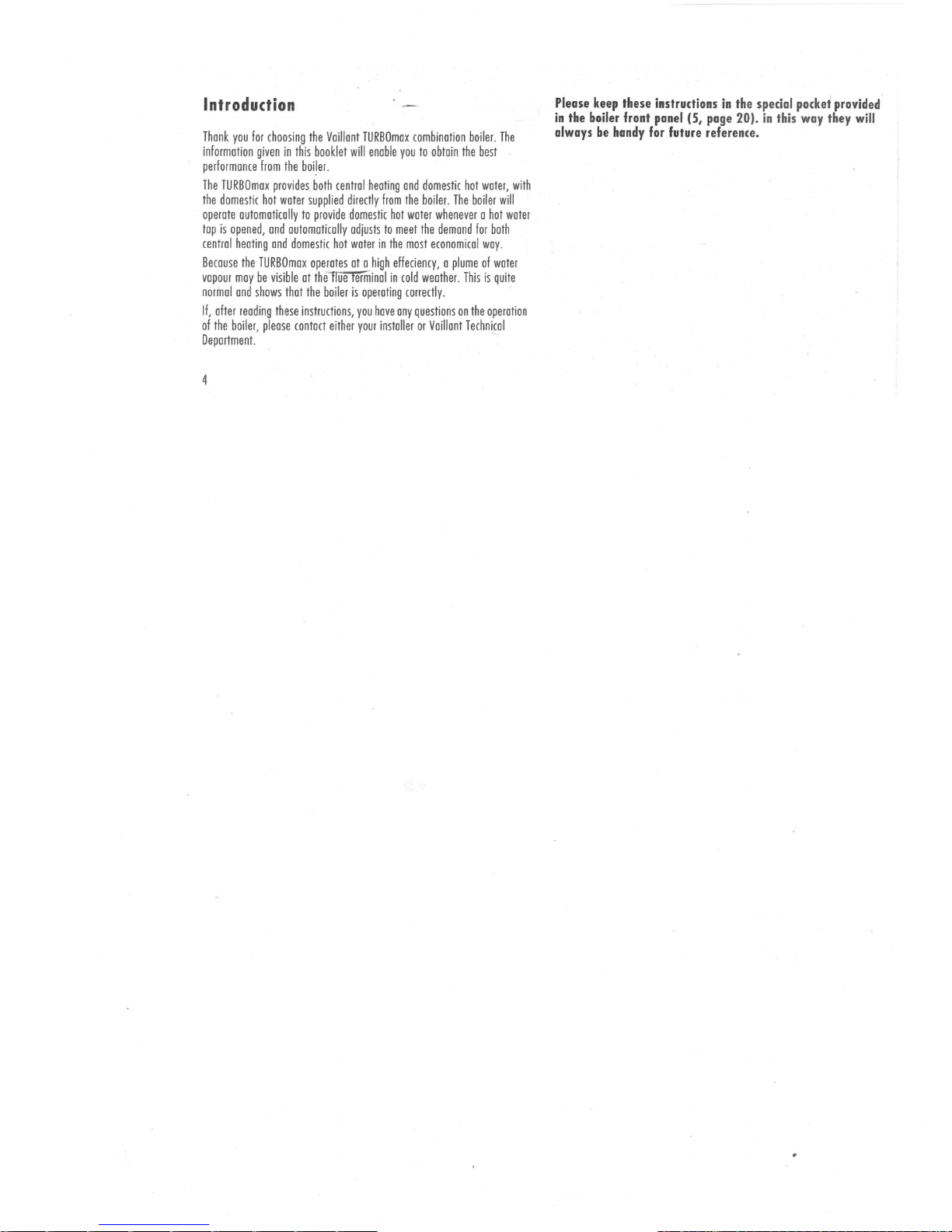

Thank you for choosing the Vaillant TURBOmaxcombination boiler.The

informatian given in thisbaokletwill enable youta obtain thebest

performance fram the bailer.

The TURBOmaxprovidesboth central heating and domestic hat water,with

the damestic hat water supplied directly from the boiler.The boiler will

operate automatically to pravide domestic hat water whenever a hat water

tap isopened,and automatically adjusts to meet the demand far bath

central heating and domestic hat water in the most ecanamical way.

Because the TURBOmaxaperates at a high effeciency,a plume of water

vapaur may be visible at the 11ue terminal in cold weather.Thisisquite

normal and shaws that the boiler is operating correctly.

If,after reading these instructions, yau have any questions an the operation

of the boiler,please contact either yaurinstaller or Vaillant Technical

Deportment. -

Please keep these instructions in thespecial pocketprovided

in the boiler front panel (5, page 20). inthis waythey will

always be handy for future reference.

Important notes

• Please nate that the TURBOmaxmust be installedand serviced bya

campetent persan in accordancewith theGasSafety (lnstallatian and Use)

Regulations 1994.(Inthe U.K: CORGI registered installersundertake the work

ta a safeand satisfactory standard).

• Ifagasleak ar fault issuspected,turn off thebailer and consult yaurgas supplier,

service agent ar othercampetent persan.

• Ifthe ·bailer is installed in a compartment da nat obstruct any purpose provided

ventilatianapenings, anddo not use thecampartmentfarstaragepurpases.

•The fallawing minimum clearances araund thebailer case shauld bemaintained:

5 mm either side150 mm belaw 165 mm abave

• ElectricitySupply. Warning: Thisbailer must be earthed.The electricity cannectian

ta the boiler must be fram a 230V-50Hz. supply.If a mains plug connectian is

used it mustbe af a three pin type and cantain a 3A fuse.

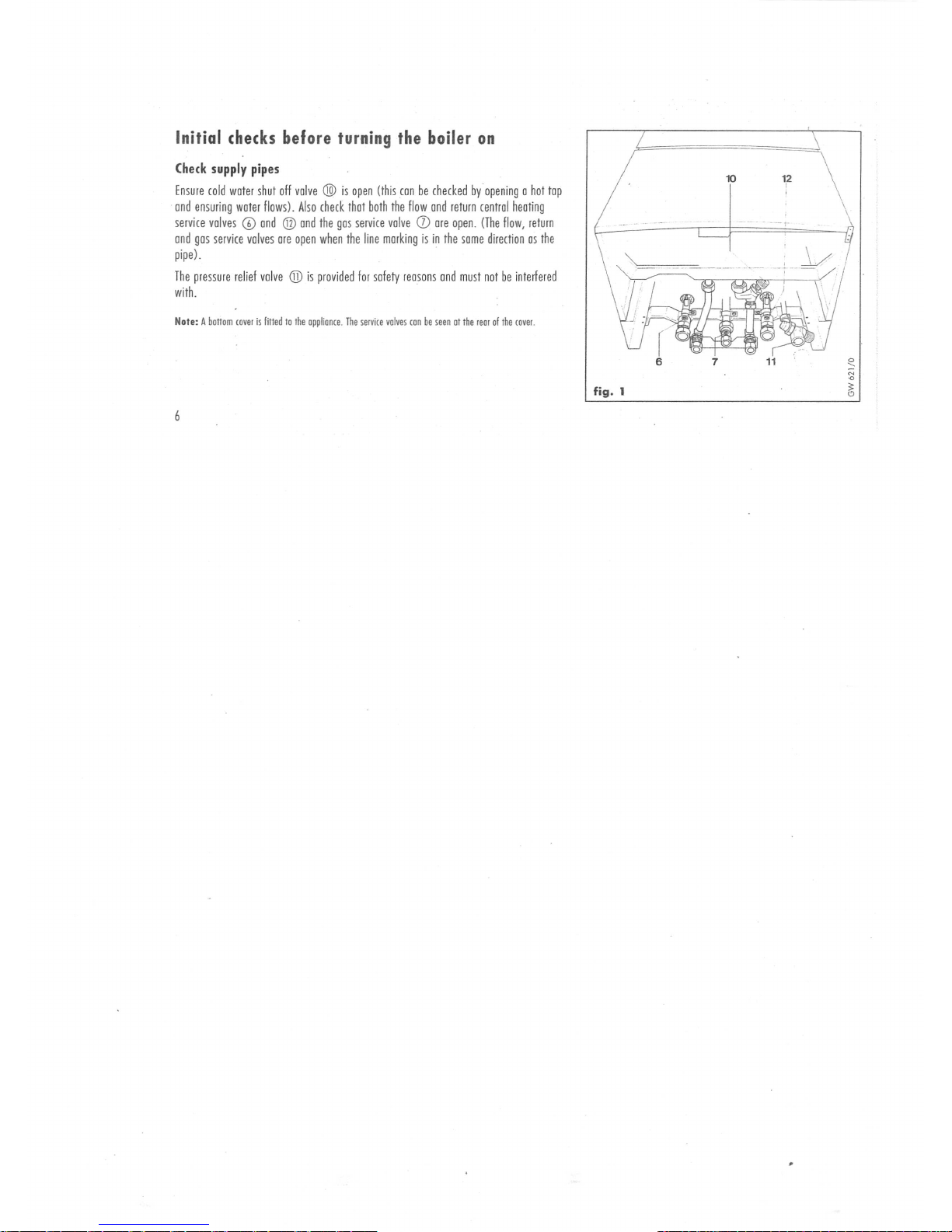

Check supply pipes

Ensurecold water shut off valve

is open(thiscon bechecked byopening

hot top

and ensuring water flows).Also check that both the flow and return centralheating

service valves

and

and the gas service valve

ore open. (The flow,return

and gas service valves ore open when the linemarking isin the some direction osthe

pipe)..

Thepressurerelief valve

isprovided forsafetyreasonsand must not beinterfered

with.

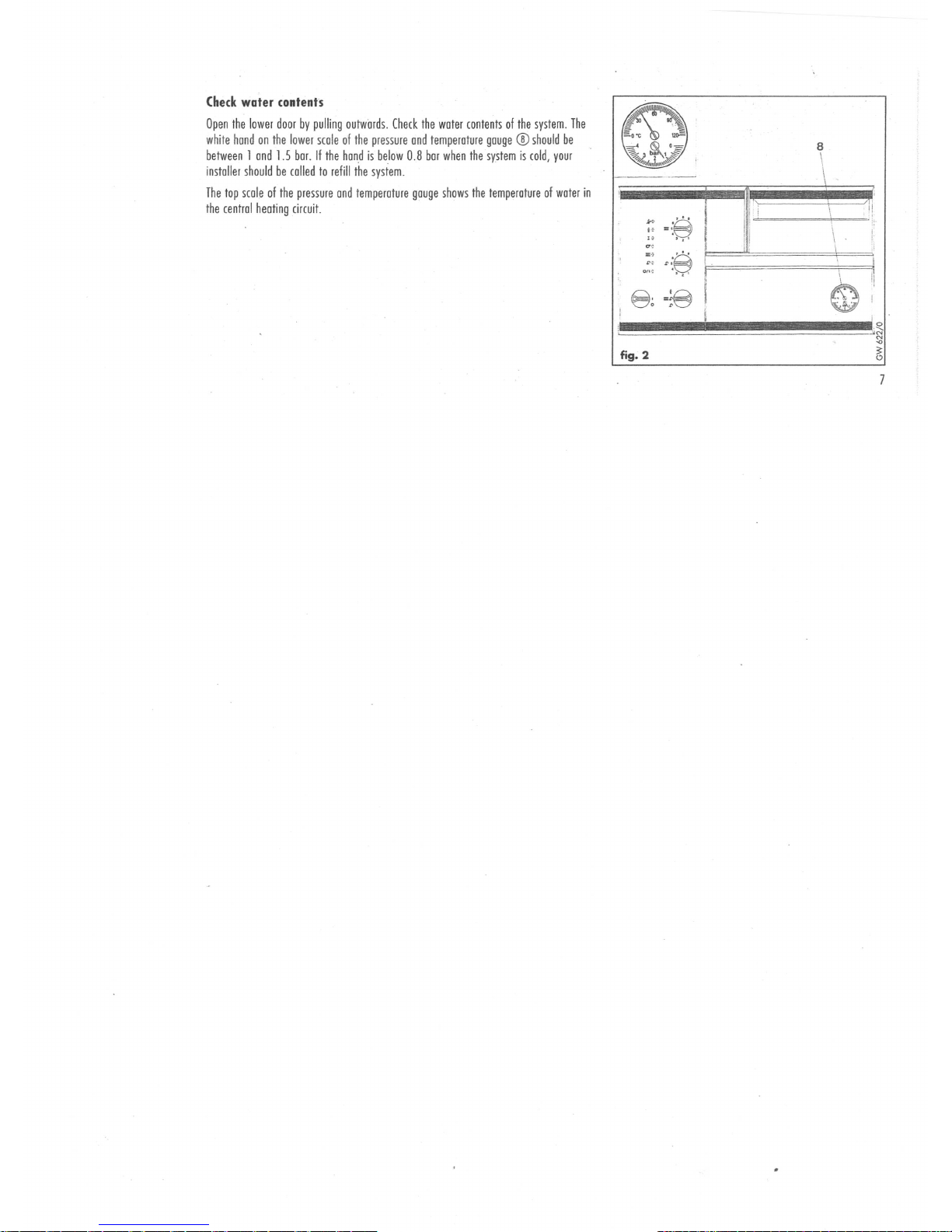

Check water contents

Open thelowerdoorby pulling outwards. Check the water contents of the system.The

white hand on the lowerscale of the pressure andtemperature gouge

should be

between 1 and 1.5 bar. If the hand isbelow0.8 bar when the system iscold,your

installer should be called to refill thesystem.

The top scaleof the pressure and temperaturegouge shows the temperature ofwaterin

the central heating circuit..

~..·:e

: v ~ ••

':~

8~"~

~J~

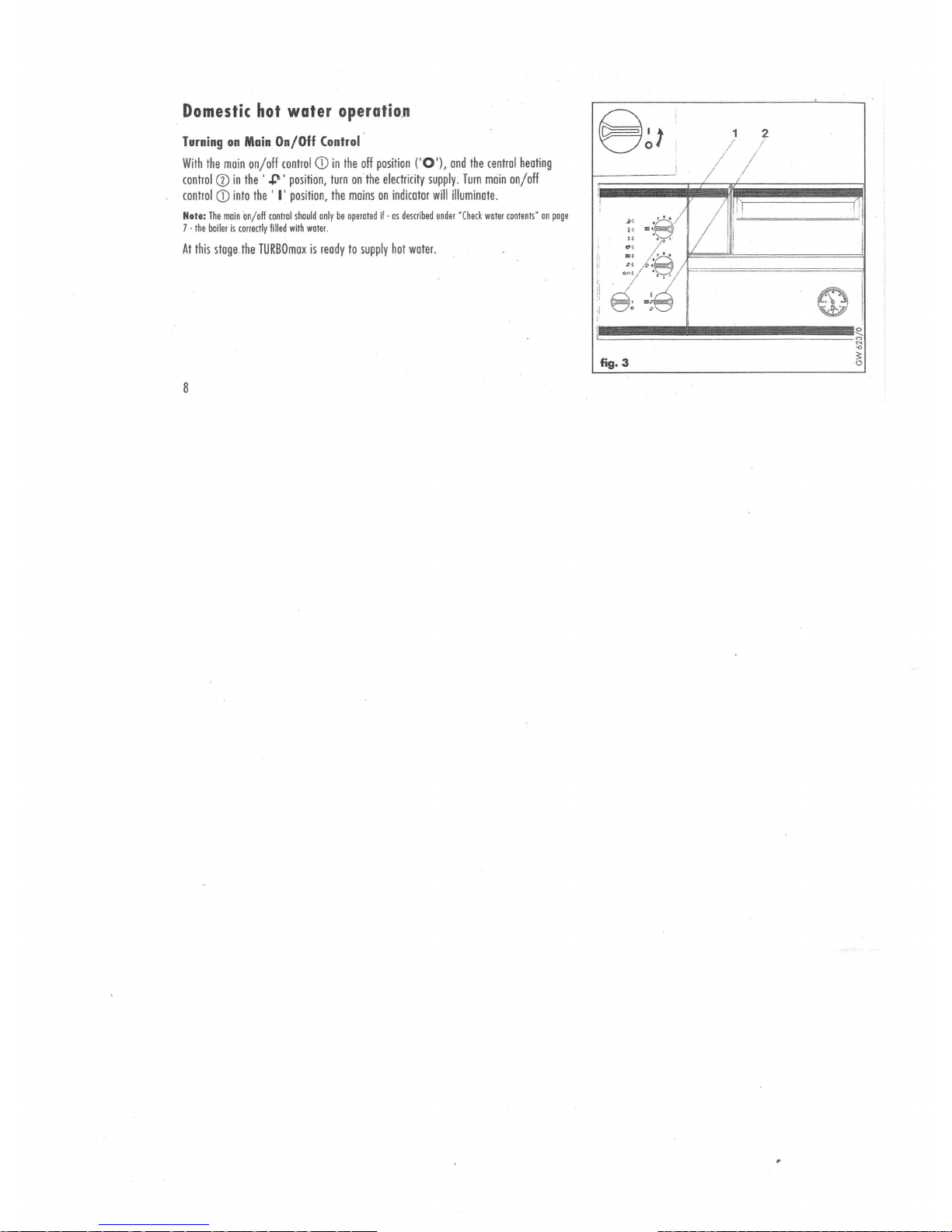

Domestic hot water operation

Turning on Main On/Off Control-

Withthe main on/off control

in the off position ('0'l,ondthecentrol heoting

control

in the'

J:l'

position,turn on-the electricity supply_Turn moin on/off

coQtrol

into the' I' position, the moinson indicotor will illuminote_

Nole:

The main-on/off controlshould only beoperoted if -asdescribed under Check woter contentson page

7.theboiler is correctly filledwith water.

At this stogethe TURBOmox is readyto supplyhot woter.

.t'.~

li' ID~C

~:L'

.0J.

~I'~

_.";/'¥

r<~

10. ~

-----------------~

-0

Obtaining hot water

On opening a hot watertap

at a supply point (basin, shower,bath, etc.)the boiler

will operate automatically to provide hot water.(A short deloy may be experiencedin

obtaining hot water at the tap, depending on the length of pipeworkand your system

layout.Thisdelaycan be reduced by not fully opening the tap until the water isflowing

at the desired temperature).

With the tap fully openyou will receive the maximum flow rate ofhot water.Should

you requirehotter water reduce the flow by partially closing the tap.

On c1asing thetap the boiler automaticallyswitchesoff(or continues to operate for

centralheating if required). The pump may coniinue to operate for a short

period.

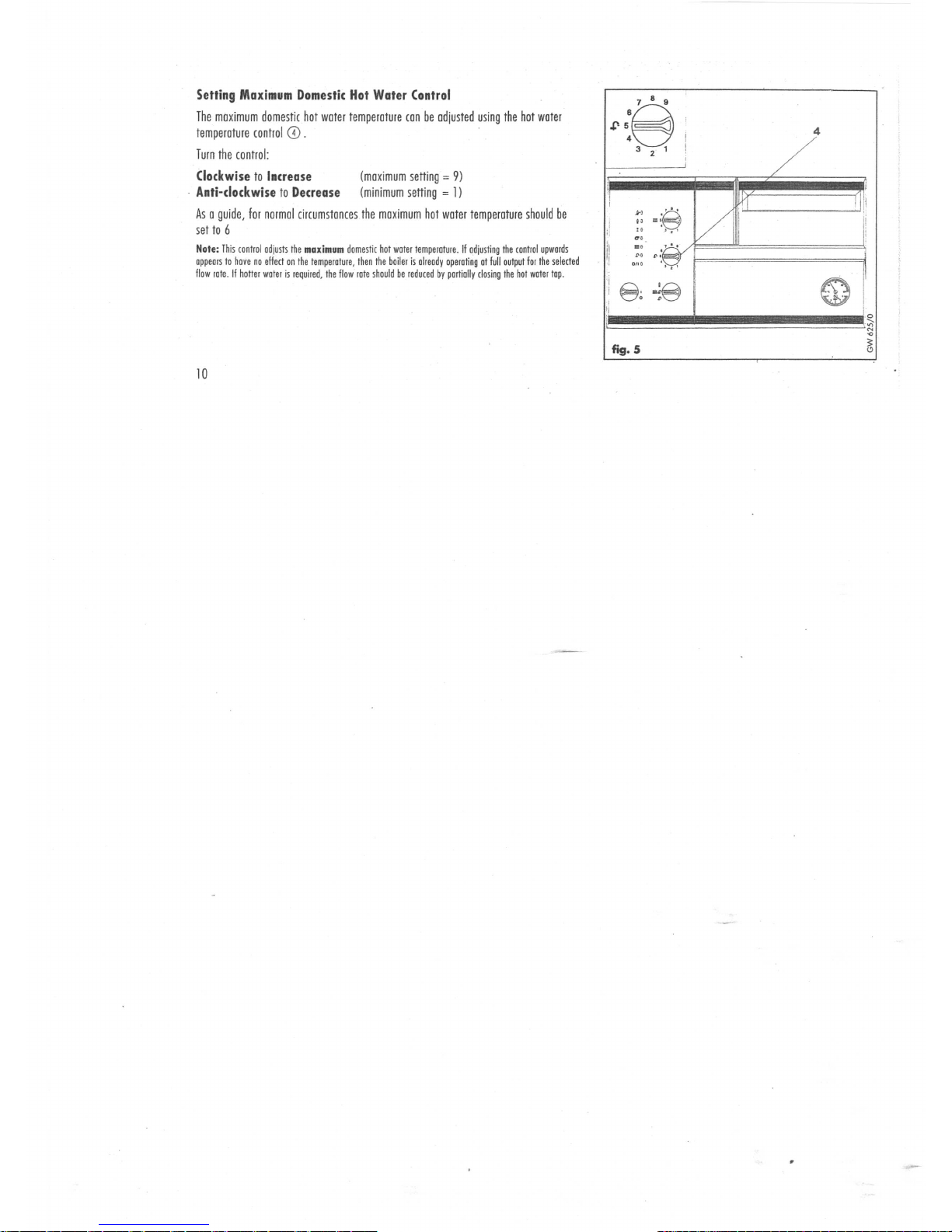

Setting Maximum Domestic Hot Water Control

The maximum domestic hot water temperature con be adjusted using the hot water

temperature control

CD .

Turn thecontrol:

Clockwise to Increase

(maximum setting

Anti-clockwise to Decrease

(minimum setting

Asa guide,for normal cjrcumstoncesthe maximum hot water temperature should be

set to 6

Nole:

This control adjusts the

moximum

domestic hot woter temperoture. If odjusting thecontrol upwords

oppeorstohoveno effect on thetemperoture, thentheboiler isolreody operoting ot full output for the selected

flow role.If hotter water isrequired,the flow rote should bereduced byportiolly dosing thehot woter top.

789

~5:8

3 2 1
