Installation and maintenance instructions

recoVAIR

VAR 260/4 (E), VAR 360/4 (E)

AT, CH (de), DE

Publisher/manufacturer

Vaillant GmbH

Berghauser Str. 40 D-42859 Remscheid

Tel. +49 21 91 18‑0 Fax +49 21 91 18‑2810

[email protected] www.vaillant.de

Contents

2Installation and maintenance instructions recoVAIR 0020159949_07

Contents

1 Safety.................................................................... 3

1.1 Action-related warnings ......................................... 3

1.2 Intended use.......................................................... 3

1.3 General safety information .................................... 3

1.4 Regulations (directives, laws, standards).............. 4

2 Notes on the documentation .............................. 5

2.1 Observing other applicable documents ................. 5

2.2 Storing documents................................................. 5

2.3 Validity of the instructions...................................... 5

3 Product description............................................. 5

3.1 Symbols on the product......................................... 5

3.2 Product design....................................................... 5

3.3 Information on the identification plate.................... 6

3.4 CE label ................................................................. 6

4 Set-up.................................................................... 6

4.1 Checking the scope of delivery.............................. 6

4.2 Dimensions............................................................ 6

4.3 Observing the requirements for the installation

site ......................................................................... 7

4.4 Installing the product on the wall ........................... 8

4.5 Connecting the condensate siphon/dry siphon

and condensate drain pipework............................. 8

4.6 Connecting the pipelines ....................................... 9

4.7 Opening/closing the product................................ 10

5 Electrical installation......................................... 10

5.1 Connecting external components in the

product's connection area.................................... 10

5.2 Connecting the VR 32 bus coupler...................... 11

5.3 Connecting the product to the power supply in

a fixed installation ................................................ 12

6 Operation............................................................ 12

6.1 Operating concept ............................................... 12

6.2 Calling up the installer level................................. 12

7 Start-up............................................................... 12

7.1 Switching on the product ..................................... 12

7.2 Installation assistant ............................................ 12

8 Product adjustment........................................... 13

8.1 System efficiency................................................. 14

9 Handing the product over to the operator ...... 14

10 Inspection, maintenance and repair ................ 14

10.1 Procuring spare parts .......................................... 14

10.2 Replacing the mains connection line ................... 15

10.3 Carrying out maintenance work........................... 15

11 Detecting and rectifying faults, fault

messages and limp home mode messages .... 16

12 Customer service............................................... 16

13 Decommissioning.............................................. 17

13.1 Temporarily decommissioning the product.......... 17

13.2 Permanently decommissioning the product......... 17

14 Recycling and disposal..................................... 17

Appendix ............................................................................ 18

A Installer level –Overview .................................. 18

B Fault messages –Overview.............................. 20

C Limp home mode messages –Overview......... 21

D Troubleshooting ................................................ 21

E Check programmes –Overview ....................... 23

F Maintenance messages –Overview................. 23

G Technical data.................................................... 23

Safety 1

0020159949_07 recoVAIR Installation and maintenance instructions 3

1 Safety

1.1 Action-related warnings

Classification of action-related warnings

The action-related warnings are classified in

accordance with the severity of the possible

danger using the following warning signs and

signal words:

Warning symbols and signal words

Danger!

Imminent danger to life or risk of

severe personal injury

Danger!

Risk of death from electric shock

Warning.

Risk of minor personal injury

Caution.

Risk of material or environmental

damage

1.2 Intended use

There is a risk of injury or death to the user or

others, or of damage to the product and other

property in the event of improper use or use

for which it is not intended.

The product is only intended for aerating and

ventilating living areas. If the product is oper-

ated with a heat production source, the heat

production source must be room-sealed. The

remote control must only be used to control

the product. The product must only be oper-

ated when the filters are inserted.

The product is not suitable for aerating and

ventilating swimming pool systems. Due to

the high level of exposure to dust, the product

must not be operated during the construction

phase.

Intended use includes the following:

–observance of accompanying operating,

installation and servicing instructions for

the product and any other system compon-

ents

–compliance with all inspection and main-

tenance conditions listed in the instruc-

tions.

Any other use that is not specified in these

instructions, or use beyond that specified in

this document shall be considered improper

use. Any direct commercial or industrial use

is also deemed to be improper.

Caution.

Improper use of any kind is prohibited.

1.3 General safety information

1.3.1 Risk caused by inadequate

qualifications

The following work must only be carried out

by competent persons who are sufficiently

qualified to do so:

–Assembly

–Disassembly

–Installation

–Start-up

–Maintenance (Excluding the work that is

listed in the operating instructions.)

–Repair

–Decommissioning

▶Observe all instructions that are included

with the product.

▶Proceed in accordance with the current

state of technology.

▶Observe all applicable directives, stand-

ards, laws and other regulations.

1.3.2 Risk of poisoning caused by

simultaneous operation with a heat

production source

If the product is operated at the same time as

a heat production source, life-threatening flue

gas may escape into the rooms from the heat

production source.

▶Install a suitable safety device on-site

which monitors the pressure difference

between the living room and the flue

system and switches the product off if the

pressure difference is too large.

▶Have the installed safety device approved

by a chimney sweep.

▶Observe the instructions for the heat pro-

duction source and the heat production

source ordinance as well as any other rel-

evant laws and standards.

1.3.3 Risk of injury due to the heavy

weight of the product

▶Make sure that the product is transported

by at least two people.

1 Safety

4Installation and maintenance instructions recoVAIR 0020159949_07

1.3.4 Access to the mains plug/circuit

breaker must be guaranteed

▶Ensure that the mains plug/circuit breaker

(depending on the country) is always ac-

cessible after the installation.

1.4 Regulations (directives, laws,

standards)

▶Observe the national regulations, stand-

ards, guidelines and laws.

Notes on the documentation 2

0020159949_07 recoVAIR Installation and maintenance instructions 5

2 Notes on the documentation

2.1 Observing other applicable documents

▶You must observe all the operating and installation in-

structions included with the system components.

2.2 Storing documents

▶Pass these instructions and all other applicable docu-

ments on to the system operator.

2.3 Validity of the instructions

These instructions apply only to:

Product article number

Applicability: Switzerland

Switzerland

VAR 260/4 0010016042

VAR 260/4 E 0010016350

VAR 360/4 0010016041

VAR 360/4 E 0010016351

Product article number

Applicability: Germany

Germany

VAR 260/4 0010016040

VAR 260/4 E 0010016348

VAR 360/4 0010015166

VAR 360/4 E 0010016349

Product article number

Applicability: Austria

Austria

VAR 260/4 0010016040

VAR 260/4 E 0010016348

VAR 360/4 0010015166

VAR 360/4 E 0010016349

3 Product description

This product is a domestic ventilation unit.

3.1 Symbols on the product

Symbol Meaning

Opening for the outdoor-air filter

Opening for the exhaust air filter

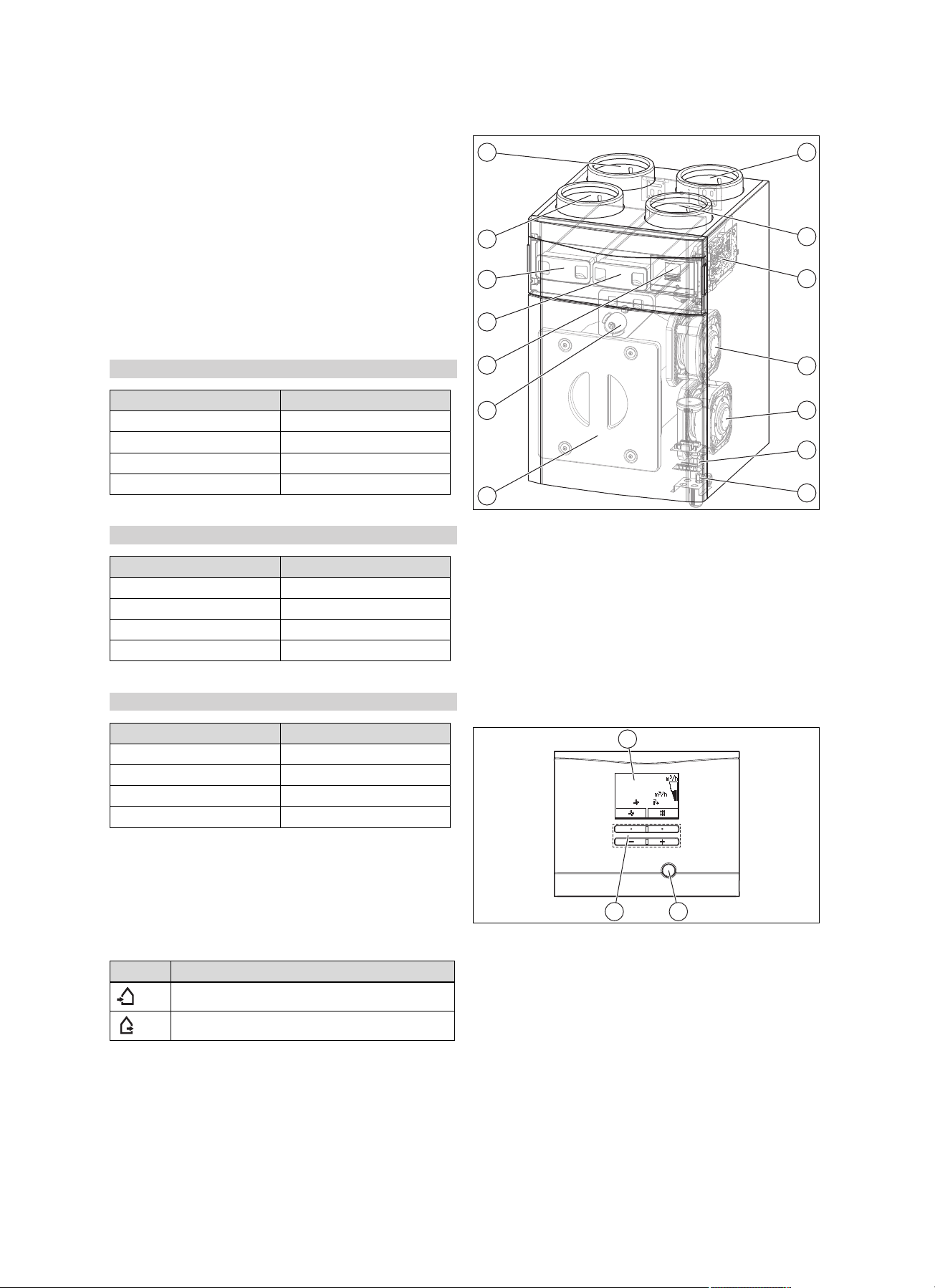

3.2 Product design

1 Exit air connection

2 Supply air connection

3 Printed circuit board

4 Supply-air fan

5 Exit-air fan

6 Condensate discharge

spigot

7 Connection area for

external components

8 Cover for heat ex-

changer

9 Bypass (heat recovery

diversion)

10 Operator control panel

11 Exhaust air filter

12 Outdoor air filter

13 Exhaust air connection

14 Outside air connection

3.2.1 Overview of the operator control elements

278

1 Fault clearance key

2 Operating buttons

3 Display

4 Set-up

6Installation and maintenance instructions recoVAIR 0020159949_07

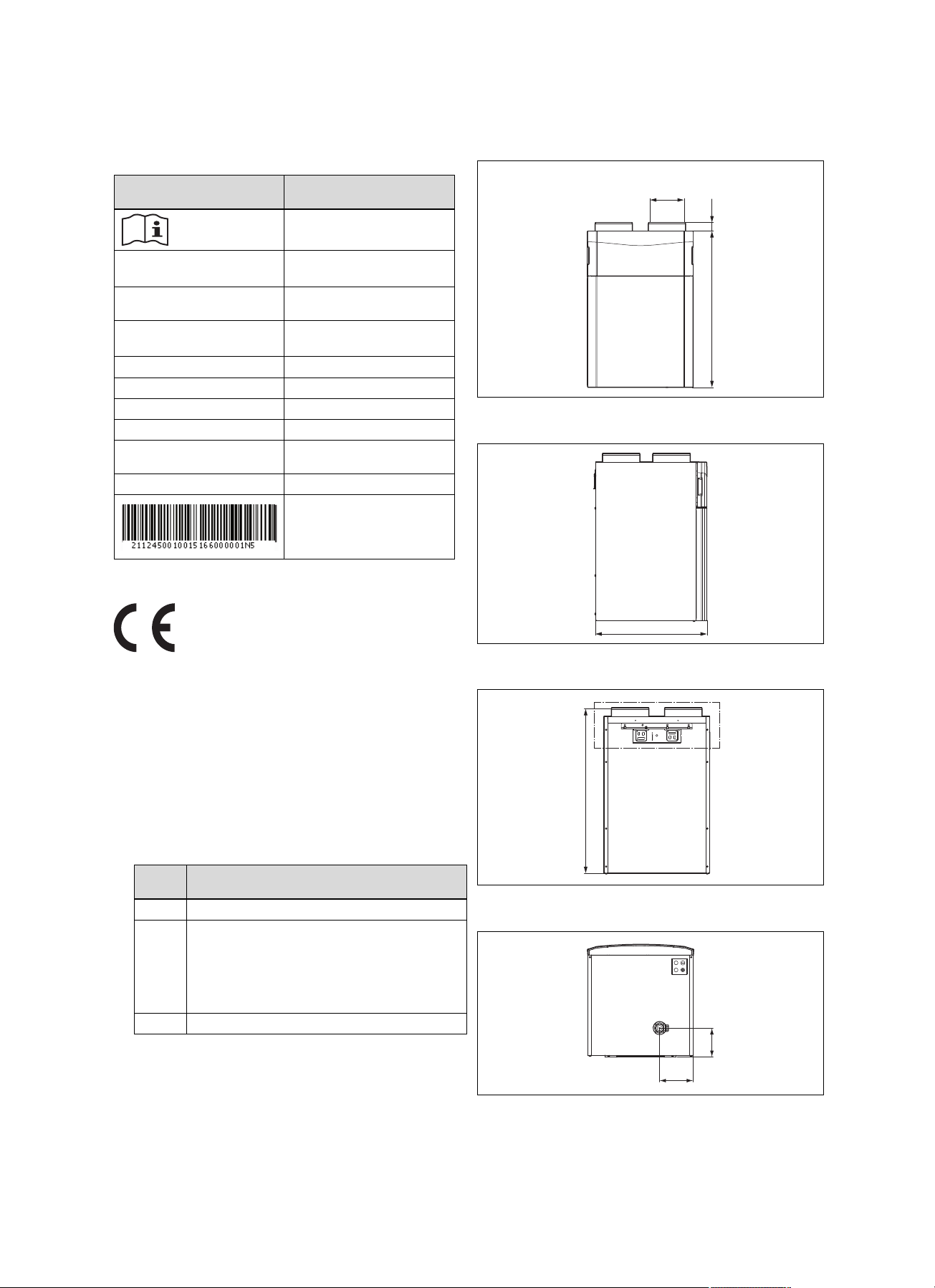

3.3 Information on the identification plate

The identification plate is mounted on the underside of the

product.

Information on the identific-

ation plate

Meaning

Read the installation and

maintenance instructions.

VAR 260/4 (E)

VAR 360/4 (E) Type designation

VAR Vaillant ventilation unit with

heat recovery

260

360 Max. air volume flow in m3/h

/4 Unit generation

E Enthalpy

PMAX Max. power consumption

VMAX Max. air volume flow

dPMAX

Delivery pressure at max. air

volume flow

TMAX Max. operating temperature

Bar code with serial number,

The 7th to 16th digits of the

serial number form the article

number

3.4 CE label

The CE label shows that the products comply with the basic

requirements of the applicable directives as stated on the

identification plate.

The declaration of conformity can be viewed at the manufac-

turer's site.

4 Set-up

4.1 Checking the scope of delivery

▶Check that the scope of delivery is complete.

Quant-

ity

Description

1 Domestic ventilation unit

1 Installation set:

–Fixing brackets (1 pc)

–Washers (2 pcs)

–Fixing screws (2 pcs)

–Rawl plugs (2 pcs)

1 Enclosed documentation

4.2 Dimensions

4.2.1 Front view

Ø 180

(4x)

885 48

4.2.2 Side view

631

4.2.3 Rear view

935

4.2.4 View from below

190

156

Set-up 4

0020159949_07 recoVAIR Installation and maintenance instructions 7

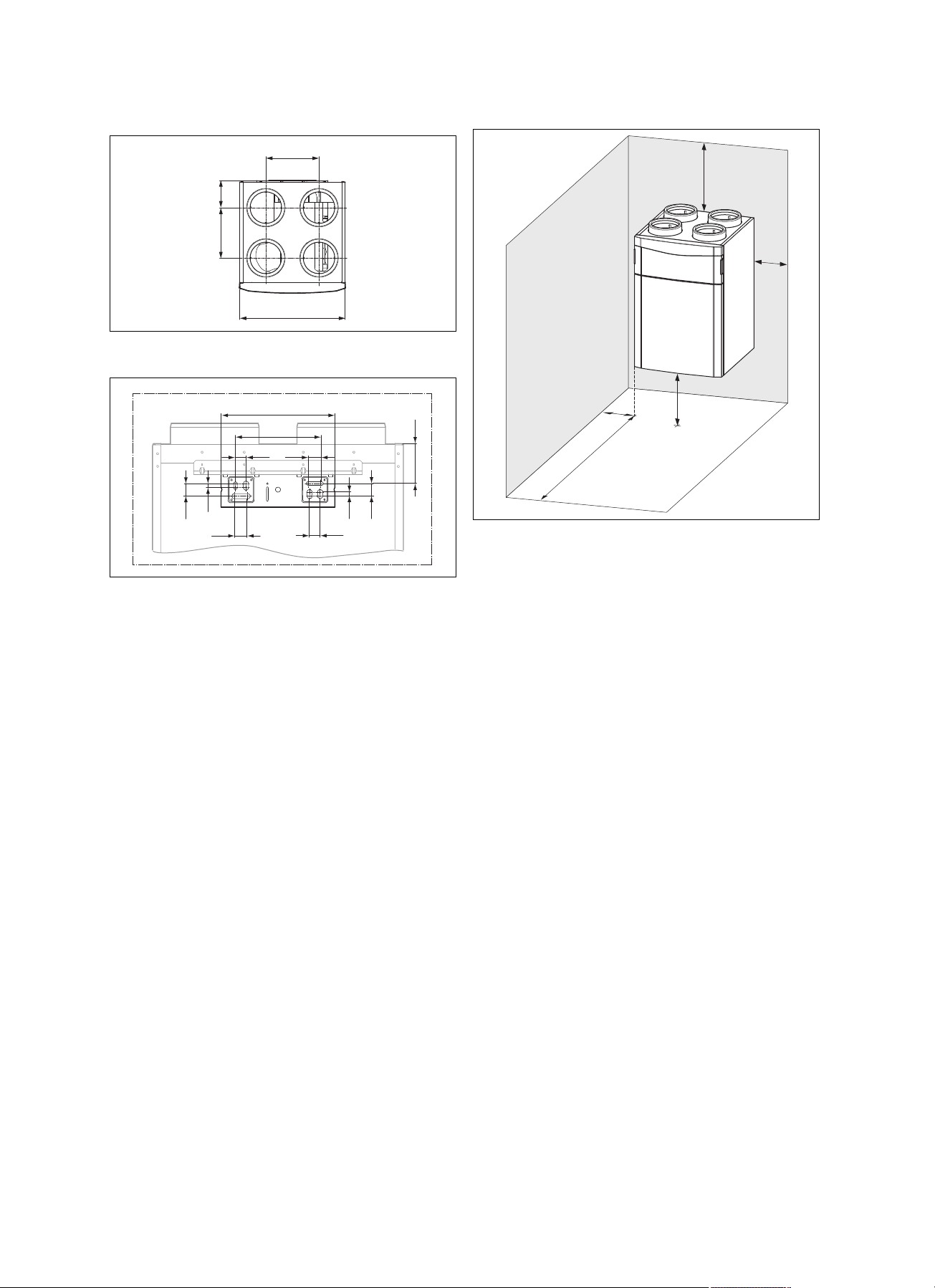

4.2.5 View from above

595

300

154284

4.2.6 Dimensions, fixing bracket

3225

32 25

204

270

4.3 Observing the requirements for the

installation site

4.3.1 Observing the requirements for the

product's installation site

The product can be installed in dwellings, cellar spaces, stor-

age or utility rooms, and in attics. The product is wall-moun-

ted only.

▶Observe the current applicable national construction reg-

ulations.

▶Ensure that the installation site is dry and is frost-proof

throughout.

▶Ensure that the installation site is aerated and ventilated.

▶Install the supply air pipeline so that there is sufficient

distance to the exit air pipeline, exhaust air pipeline and

outflow purging.

▶Check the load-bearing capacity of the wall.

–Load-bearing capacity: ≥41 kg

▶Check whether the supplied fixing elements are sufficient

for the selected installation site.

▶Ensure that the installation site is not located higher than

max. 2000 metres above sea level.

Minimum clearances and installation clearances

400

300

400

▶Observe the minimum clearances and installation clear-

ances.

▶Plan sufficient space for installing the ventilation system.

▶In order to minimise pressure losses, ensure that the dis-

tances between the header line of the ventilation system

and the product are as short as possible.

▶After installation, ensure that the pipelines and the ventil-

ation system are easily accessible.

▶Ensure that the mains plug/circuit breaker (depending on

the country) is always accessible after the installation.

▶Ensure that there is sufficient space to install the con-

densate siphon and condensate drain pipework.

4.3.2 Observing the requirements for the

installation site of the remote control (step

switch/control)

▶Ensure that the remote control is always accessible at

the installation site.

▶Ensure that there is sufficient space to install and operate

the remote control.

4.3.3 Observe the requirements for silencers and

for installing ducts and the product

If the opening for the exit air pipeline is too close to the inlet

opening of the outside air pipeline, the exit air can recircu-

late.

▶Prevent exit air from being sucked in through the outside

air opening, supply air from being sucked in through the

exhaust air opening, and transfer air from being sucked

in directly through leaks/cable feedthroughs.

▶If required, connect the product to the pipelines using a

sound-absorbing hose in order to minimise noise pollu-

tion caused by structure-borne noise.

▶Install silencers in order to minimise noise pollution via

the duct system.

▶If you install the product in an attic, select an installation

site that is not above living spaces.

4 Set-up

8Installation and maintenance instructions recoVAIR 0020159949_07

▶If particular acoustic requirements are in place at the

installation site, you should take corresponding on-site

measures to prevent noise.

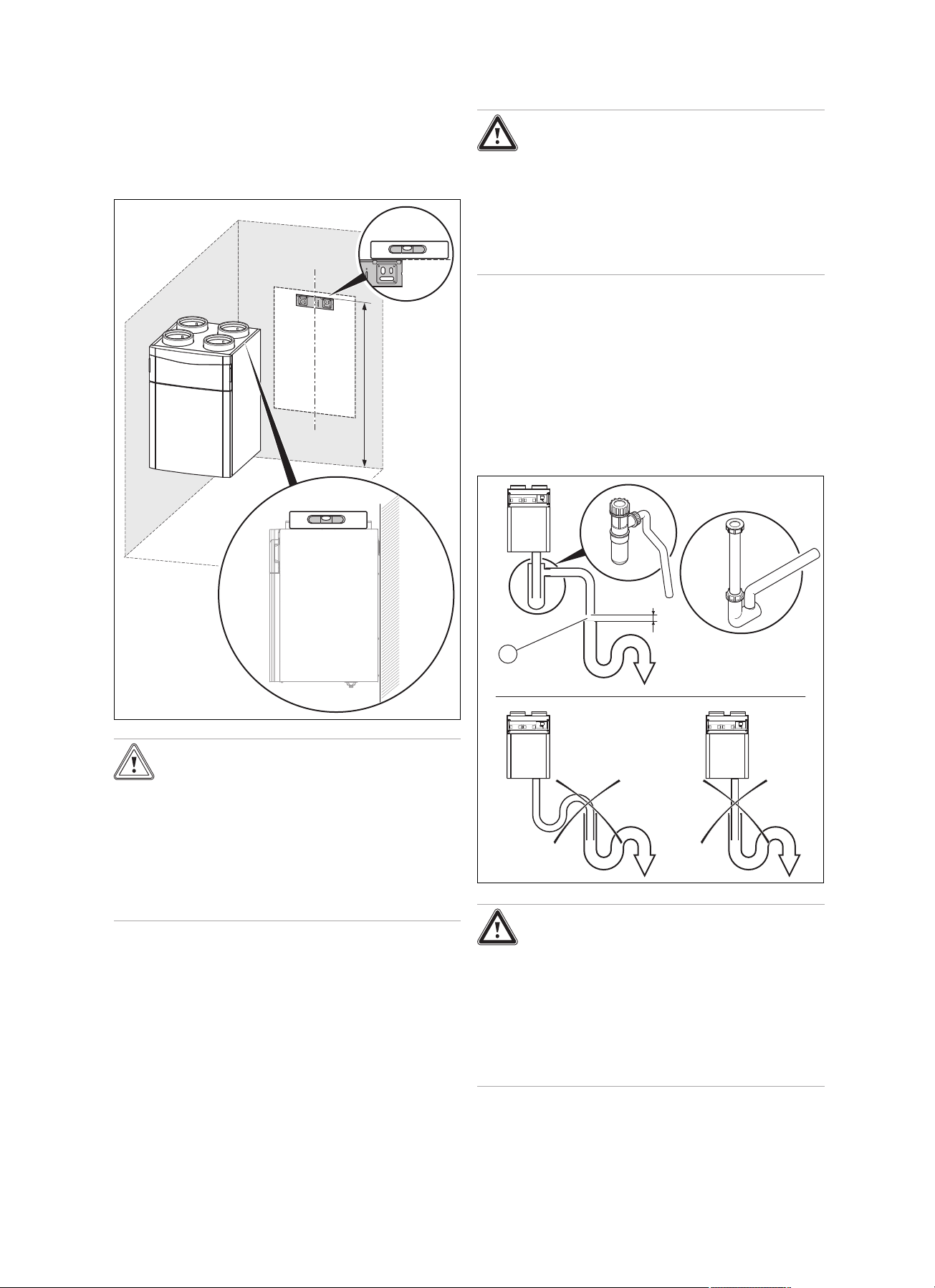

4.4 Installing the product on the wall

min. 1120

Caution.

Risk of material damage caused by con-

densate.

If the condensate cannot drain from the

product, this may damage the product and

condensate may leak out of the product and

onto the floor.

▶Install the fixing bracket with the correct

horizontal and vertical alignment.

1. Drill the holes for the fixing screws.

–Installation height of the fixing bracket: ≥1,120 mm

2. Insert the rawl plugs into the drilled holes.

3. Screw the fixing bracket to the wall, tared.

–Installation position: Horizontal

–Taring the fixing bracket: Using the slotted holes in

the fixing bracket

–Spirit level

Danger!

Risk of injury caused by a heavy weight

when mounting the product.

The product weighs 41 kg. If you are mount-

ing the product, the product may easily slide

out of your hands and cause injuries.

▶Make sure that the product is mounted by

at least two people.

4. Position the product on the fixing bracket and mount the

product.

4.5 Connecting the condensate siphon/dry

siphon and condensate drain pipework

1. Connect the condensate siphon/dry siphon to the

product (→Installation instructions for the condensate

siphon/dry siphon, accessories).

–Condensate discharge pipe downward gradient

(descending from the product): > 5°

min. 20

Danger!

Risk of damage to health caused by incor-

rectly connected condensate drain pipe-

work!

In the interests of hygiene, the condensate

drain pipework must not be directly connec-

ted to the waste-water piping.

▶Connect the condensate discharge to the

second siphon.

Set-up 4

0020159949_07 recoVAIR Installation and maintenance instructions 9

Caution.

Risk of material damage caused by con-

densate.

If a condensate discharge pipe has been con-

nected incorrectly, a build-up of condensate

and uncontrolled condensate drainage may

damage the product. Furthermore, the con-

densate may leak out of the product and onto

the floor.

▶Install a drip distance of min. 20 mm

between the outlet for the condensate

drain pipework and the second siphon.

▶Note the downward gradient for the con-

densate discharge pipe (> 5°).

2. Connect the condensate drain pipework to the second

siphon while taking into consideration the drip distance

(1).

–Drip distance: ≥20 mm

3. Fill the condensate siphon/dry siphon with water.

4.6 Connecting the pipelines

1. Check the pipelines for coarse dirt.

Coarse dirt: Available

▶Clean the pipelines.

2. Route the pipelines in accordance with the manufac-

turer's specifications and applicable regulations for the

product.

–Diameter of pipelines: ≥150 mm

–Exit air lines: Continuous downward gradient to the

unit/Using the condensate drain pipework, if neces-

sary

3. Install the silencer in the supply, exit and outside air

lines.

4. Insulate all of the pipelines in accordance with the ap-

plicable regulations.

Note

Supply and exhaust air lines too, when rout-

ing through unheated rooms.

5. Seal the outside and exit air lines so that they are va-

pour-diffusion-tight.

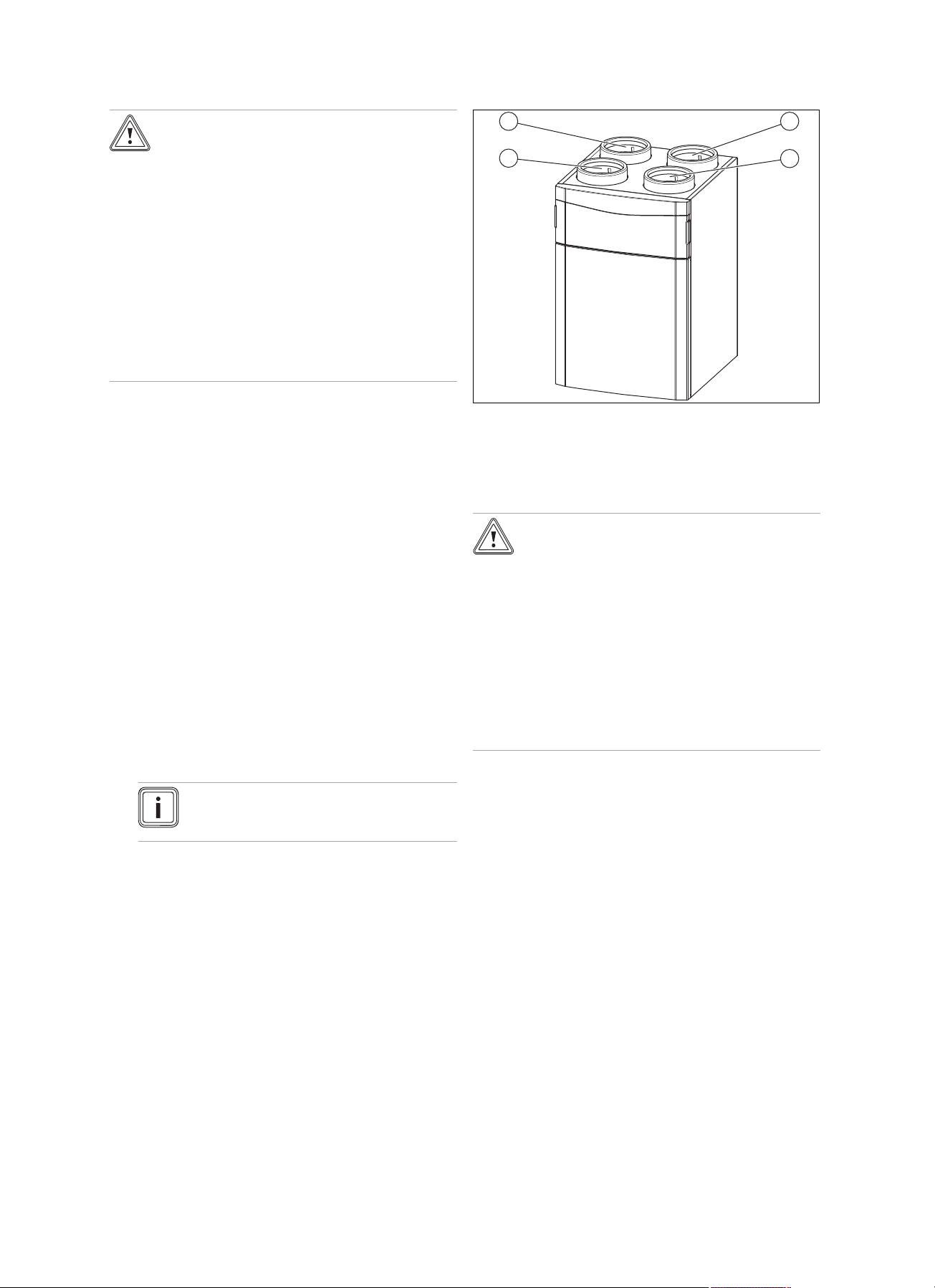

1 Exit air connection

2 Supply air connection

3 Exhaust air connection

4 Outside air connection

6. Remove the sealing caps from the product connections.

7. Connect the pipelines to the product.

Caution.

Risk of material damage caused by a

missing seal.

If the pipelines are not connected to the

product in way that is vapour-diffusion-tight,

condensate may form and damage the

product.

▶Seal all of the connections for the

pipelines to each other and on the

product, so that they are vapour-diffusion-

tight.

▶Use suitable accessories and sealant.

8. Seal all of the product connections so that they are va-

pour-diffusion-tight.

–Suitable vapour-diffusion-tight adhesive tape

5 Electrical installation

10 Installation and maintenance instructions recoVAIR 0020159949_07

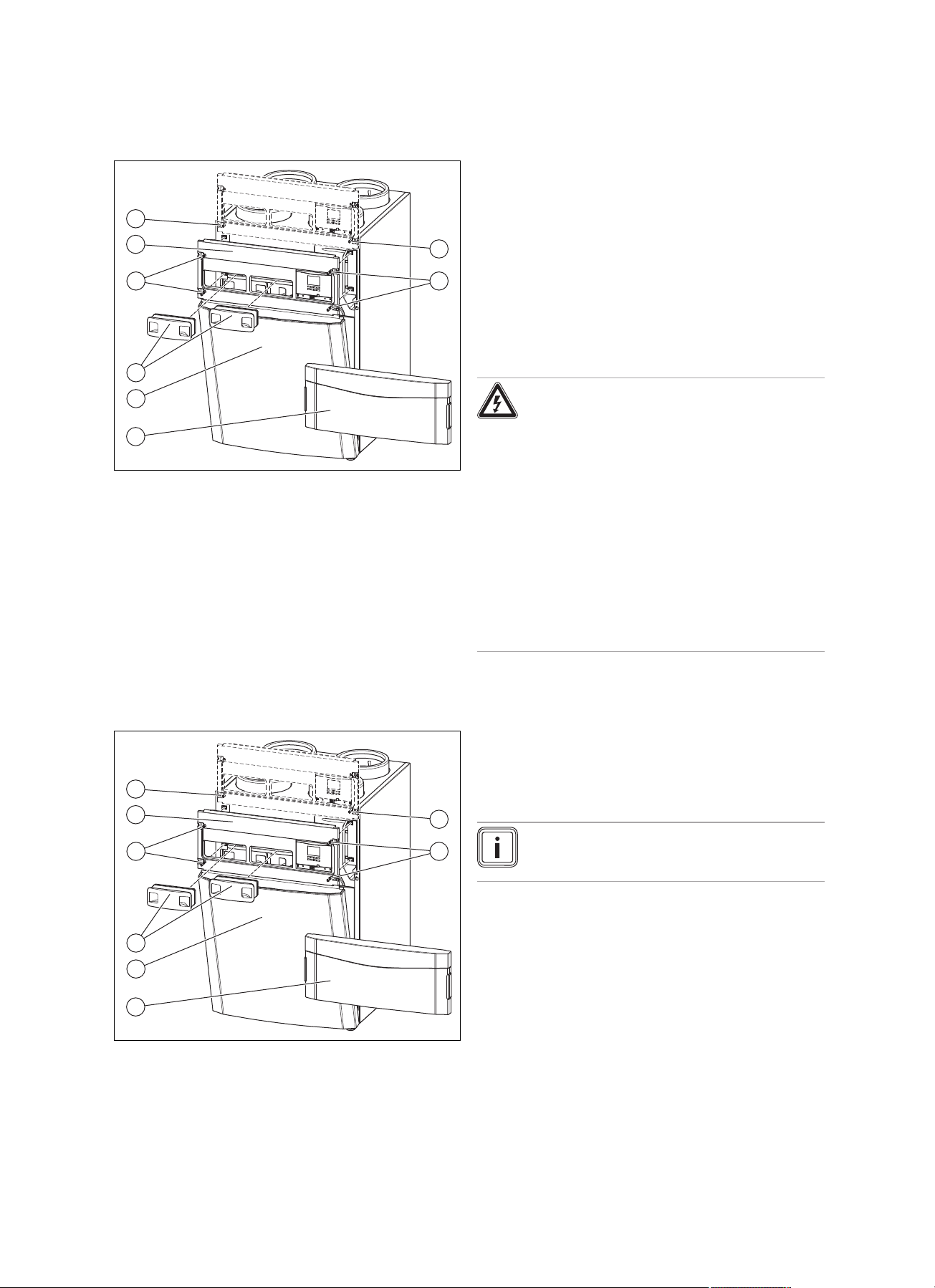

4.7 Opening/closing the product

4.7.1 Opening the product

4 4

1. Remove the front flap (1) by pushing the recessed

handle.

2. Pull out both of the filter plugs (3).

3. Open all of the twist locks (4) on the control panel fascia

(5).

–Quarter turn

4. Secure the control panel fascia in the maintenance pos-

ition.

5. Close the lower twist locks (6) on the control panel fas-

cia.

–Quarter turn

6. Remove the front plate (2).

4.7.2 Closing the product

4 4

1. Attach the front plate (2) to the product.

2. Open the lower twist locks (6) on the control panel fas-

cia (5).

–Quarter turn

3. Remove the operator control screen from the mainten-

ance position.

4. Attach the operator control screen to the product.

5. Close all of the twist locks (4) on the control panel fas-

cia.

–Quarter turn

6. Push in both filter plugs (3).

7. Secure the front flap (1).

5 Electrical installation

Only qualified electricians may carry out the electrical install-

ation.

Danger!

Risk of death from live connections

(230 V)!

Risk of death from electric shock when work-

ing on live connections (230 V).

▶Before carrying out any work on the

product, pull the product's mains plug

out of the earthed plug socket or use the

circuit breaker (depending on the country)

to switch off the product's power supply.

▶Secure the power supply against being

switched on again.

▶Check that there is no voltage in the con-

nections.

5.1 Connecting external components in the

product's connection area

1. Always open the product before you connect external

components. (→Page 10)

2. Always connect the product after connecting external

components. (→Page 10)

5.1.1 Connecting the stage switch

Note

If a Vaillant controller is connected, the step

switch will not work.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vaillant Chaudière

Vaillant

Vaillant ecoTEC plus VU Series Manuel utilisateur

Vaillant

Vaillant atmoTEC exclusive Manuel utilisateur

Vaillant

Vaillant ecoTEC SERIES Manuel utilisateur

Vaillant

Vaillant atmocraft Manuel utilisateur

Vaillant

Vaillant ecoCRAFT VKK GB 806/2-E-H Manuel utilisateur

Vaillant

Vaillant ecoTEC plus SERIES Manuel

Vaillant

Vaillant ecoTEC exclusive 620 Manuel utilisateur

Vaillant

Vaillant ecoMAX 665 Manuel

Vaillant

Vaillant ecoMAX pro SERIES Manuel d'utilisation

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Vaillant

Vaillant ecoTEC pro 24 Guide de l'utilisateur

Vaillant

Vaillant uniSTOR VIH GB 3 BES Series Manuel utilisateur

Vaillant

Vaillant ecoMAX 618/2 E Manuel utilisateur

Vaillant

Vaillant TURBOmax Plus 824/2 E Manuel utilisateur

Vaillant

Vaillant ecoMAX pro SERIES Manuel d'utilisation

Vaillant

Vaillant ecoTEC SERIES Guide de l'utilisateur

Vaillant

Vaillant TURBOmax VUW 242 E Guide de l'utilisateur

Vaillant

Vaillant MAG AT 11-0/1 GX H Manuel utilisateur

Vaillant

Vaillant COMBlcompact VCW 242E Manuel utilisateur

Vaillant

Vaillant VIH R /3 R Series Manuel utilisateur

Vaillant

Vaillant ecoTEC VU 656/4 Manuel utilisateur

Vaillant

Vaillant ecoMAX 635 Guide de l'utilisateur

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Vaillant

Vaillant ecoTEC exclusive 835 Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur

Radiant

Radiant R2K 55 Manuel

Vaillant recoVAIR VAR 260/4 Manuel utilisateur

Manuels Chaudière populaires d'autres marques
