US Water Systems Fusion Manuel utilisateur
Owners Manual
US Water Systems Corporate Office
1209 Country Club Road
Indianapolis, IN 46234
info@uswatersystems.com
www.uswatersystems.com
1-800-608-8792
Visit us online at
www.uswatersystems.com
REVISION # 1.1
REVISION DATE June 27, 2017
US Water Systems 1” Fusion NLT Water
Softener
2
Safety Guide
For general safety, the information in this manual must be followed to minimize the risk of
electric shock, property damage or personal injury.
Check and comply with the provincial /
state and local codes. These guidelines
must be followed.
Use care when handling the softener tank.
Do not turn upside down, drop, drag or set
on sharp protrusions.
The system works on 12 volt-60 Hz electri-
cal power only. Be sure to use only the in-
cluded transformer.
Transformer must be plugged into an in-
door 120 volt, grounded outlet only.
Use 99.8% pure Solar Salt. Extra-coarse
grade or crystals are best but pellets will
work too.
Potassium Chloride my be used in lieu of
Sodium Chloride but be sure no one in the
household has a medical problem that
could be aggravated by a potassium in-
take.
WARNING: This system is not intend-
ed for treating water that is microbiologi-
cally unsafe or of unknown quality without
adequate disinfection before or after the
system.
Be sure to check the entire unit for any shipping damage or missing parts. Also note damage
to the shipping cartons. Contact US Water Systems at 1-800-608-8792 for all damage and
loss claims. A damage claim must be made within 24 hours of receipt of the unit or the claim
may not be honored.
Small parts, needed to install the softener, are in a parts bag. To avoid loss of the small
parts, keep them in the parts bag until they are ready to be used.
Unpacking / Inspection
PAGE
Unpacking / Inspection 2
Safety Guide 2
Proper Installation 3
Specification 4
Before Starting Installation 4
Tank Preparation 6
Installation Instructions 8
Programming 19
Manual Regeneration Steps 21
System Start Up 22
Maintenance 23
Main Repair Parts 24
Warranty 28
Table of Contents
Installation, Operation and Maintenance Manual
3
Proper Installation
Installation, Operation and Maintenance Manual
This water softening system must be properly installed and located in accordance with the
Installation Instructions before it is used or the warranty will be void.
Do not install or store where it will be
exposed to temperatures below freezing or
exposed to any type of weather. Water
freezing in the system will break it. Do not
attempt to treat water over 100°F.
Do not install in direct sunlight. Exces-
sive sun or heat may cause distortion or
other damage to non-metallic parts.
Properly ground to conform with all gov-
erning codes and ordinances.
Use only lead-free solder and flux for all
sweat-solder connections, as required by
state and federal codes.
Maximum allowable inlet water pressure is
125 psi. If daytime pressure is over 80 psi,
night time pressure may exceed the maxi-
mum. Use a pressure reducing valve to
reduce the pressure.
Softener resins may degrade in the pres-
ence of chlorine or chloramines above 2
ppm. If you have chlorine or chloramines
in excess of this amount, you may experi-
ence reduced life of the resin. In these
conditions, you may wish to consider pur-
chasing a whole house carbon filter soften-
er system with a chlorine reducing media.
Contact US Water Systems for Chlorine
and Chloramine removal equipment.
WARNING: Discard all unused parts
and packaging material after installation.
Small parts remaining after the installation
could be a choke hazard.
4
Specifications
Installation, Operation and Maintenance Manual
Before Starting Installation
Tools, Pipe, and Fittings, Other Materials
Channel Locks
Screwdriver
Teflon tape
Razor knife
Two adjustable wrenches
Additional tools may be required if modifi-
cation to home plumbing is required.
Plastic inlet and outlet fittings are included
with the softener. To maintain full valve
flow, 1” pipes to and from the softener fit-
tings are recommended. You should main-
tain the same, or larger, pipe size as the
water supply pipe, up to the softener inlet
and outlet.
Use copper, brass, or PEX pipe and fit-
tings.
Some codes may also allow PVC plastic
pipe.
ALWAYS install the included bypass valve,
or 3 shut-off valves. Bypass valves let you
turn off water to the softener for repairs if
needed, but still have water in the house
pipes.
5/8” OD drain line is needed for the valve
drain.
A length of 5/8” OD drain line tubing is
needed for the brine tank over flow fitting
(optional).
Extra Course Grade or Crystal water sof-
tener
Continuous operation at flow rates greater than the ser-
vice flow rate may affect capacity and efficiency perfor-
mance.
The manufacturer reserves the right to make product
improvements which may deviate from the specifications
and descriptions stated herein, without obligation to
change previously manufactured products or to note the
change.
Peak flow rates are intended for intermittent use only and
are for residential application only
At the stated service flow rates, the service pressure
drop through these devices should not exceed 15 psig
5
How the Softener Works
The principle behind water softening is simple chemistry. A water softener contains resin
beads which hold electrically charged ions. When hard water passes through the softener,
calcium and magnesium ions are attracted to the charged resin beads. The result is remov-
al of calcium and magnesium ions which produces soft water.
This system is controlled with simple, user-friendly electronics displayed on a LCD screen.
The main page displays the current time and the remaining gallons in meter mode or the re-
maining days in calendar clock mode. The system will also scroll through other pertinent
information.
Installation, Operation and Maintenance Manual
Where To Install The Softener
Place the softener as close as possible to
the pressure tank (well system) or water
meter (city water).
Place the softener as close as possible to
a floor drain, or other acceptable drain
point (laundry tub, sump, standpipe, etc.).
Connect the softener to the main water
supply pipe BEFORE the water heater.
DO NOT RUN HOT WATER THROUGH
THE SOFTENER. Temperature of water
passing through the softener must be less
than 100 deg. F.
Outside faucets and irrigation systems
should be supplied with hard water prior to
the water softener.
Do not install the softener in a place where
it could freeze. Damage caused by freez-
ing is not covered by the warranty.
Put the softener in a place water damage
is least likely to occur if a leak develops.
The manufacturer will not repair or pay for
water damage.
A 120 volt electric outlet is needed within 6
feet of the softener. The transformer has
an attached 6 foot power cable. Be sure
the electric outlet and transformer are
in an inside location, to protect from
wet weather.
If installing in an outside location, you must
take the steps necessary to assure the sof-
tener, installation plumbing, wiring, etc. are
protected from the elements and contami-
nation sources.
Keep the softener out of direct sunlight.
The sun’s heat may soften and distort
plastic parts.
6
1. Remove the tank from carton.
2. Verify the distributor tube is centered
in the bottom of the tank. A flashlight
may be necessary. There is a small
indentation in the bottom of the tank
that will allow the distributor tube to
drop in place. The top of the distribu-
tor tube will be flush with the top of the
tank when it is installed correctly.
Fusion NLT Softener Tank Preparation
WATER PRESSURE: A minimum of 30 pounds of water pressure is required for regeneration valve to
operate effectively.
ELECTRICAL FACILITIES: An uninterrupted alternating current (A/C) supply is required. Note: Other
voltages are available. Please make sure the voltage supply is compatible with the unit before instal-
lation.
EXISTING PLUMBING: Condition of existing plumbing should be free from lime and iron buildup. Pip-
ing that is built up heavily with lime and/or iron should be replaced.
LOCATION OF FUSION TANK AND DRAIN: The Fusion tank should be located close to a drain to pre-
vent air breaks and back flow.
BY-PASS VALVES: Always provide for the installation of a by-pass valve if unit is not equipped with
one.
CAUTION: Water pressure is not to exceed 80 psi, water temperature is not to exceed 110°F (43°C),
and the unit cannot be subjected to freezing conditions.
Installation, Operation and Maintenance Manual
7
3. Place a piece of duct tape over the distributor tube so no gravel or media enters the
opening while filling.
4. Use the Blue Funnel provided, to pour the RESIN in the tank. Pour resin evenly around
the hole to ensure it is well distributed in the tank. Pour it slow enough, to prevent the
funnel from plugging. A helper may be needed to hold the funnel during the filling pro-
cess. It is recommended that a dust mask and safety goggles be worn to prevent possi-
ble injury. A shop vacuum can be held in the area to help control the dust created by the
filling process. Pour all the resin that was shipped in the tank. US Water Systems
DOES NOT ship extra resin.
5. When the resin is installed move tank side to side to settle the media. Remove the fun-
nel and tape from the distributor tube. It is a good practice to fill the tank with water and
allow the media to saturate.
Installation, Operation and Maintenance Manual
8
6. Lubricate the distributor O-ring and the tank O-ring on the bottom of the control valve.
Then install the upper basket on the bottom of the valve by lining up the tabs then turning
the basket clockwise to lock it in place. Place the upper basket over the distributor tube
and push the valve on the tank. Thread the valve on the tank by turning it clockwise. Be
sure not to cross-thread the valve on the tank. Tighten the valve hand tight, then snug
it further by tapping it with the palm of the hand on the pipe connection side of the valve.
DO NOT use tools to tighten the valve or damage could occur.
Installation, Operation and Maintenance Manual
9

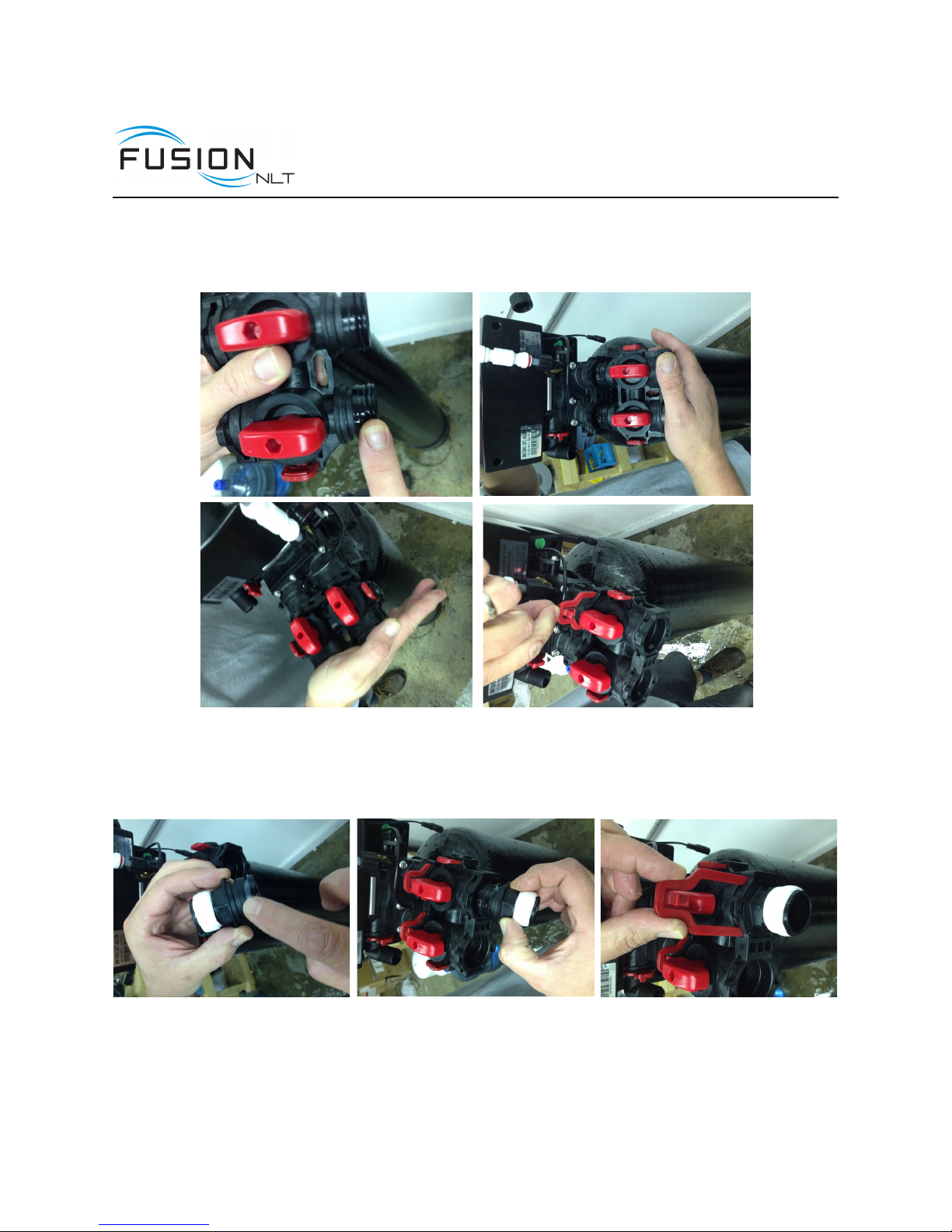

7. Lubricate the O-rings on the bypass valve and 1” threaded connectors. Remove the red
clips and install the bypass on the control valve. Re-install the red clips once the bypass
is in place. Put the bypass valves in the bypass position (picture shows “Service Posi-
tion”, see page 18 for valve position)
8. Apply Teflon tape to the 1” connectors. Remove the red clips from the previously in-
stalled bypass and install the 1” connectors in the bypass valve. Re-install the red clips
for the 1” connectors.
Installation, Operation and Maintenance Manual
10
Note: As the picture shows, connect the inlet and outlet according to
the arrow direction which can be seen from the top view of the control
valve.
The installation of 1“ integrated bypass valve：
If the 1” integrated bypass is used instead of a three manual valve, the instal-
lation method is shown in the picture below.
Installation, Operation and Maintenance Manual
Autres manuels pour Fusion
1
Table des matières
Autres manuels US Water Systems Distributeur d'eau
US Water Systems
US Water Systems Pulsar Bodyguard 390-PWFMS1-A Manuel utilisateur
US Water Systems
US Water Systems Matrixx inFusion 081-IF Series Manuel utilisateur
US Water Systems
US Water Systems 200-RODI4 series Manuel
US Water Systems
US Water Systems 076-AQT-075 Manuel utilisateur
US Water Systems
US Water Systems FSF-150 Manuel utilisateur
US Water Systems
US Water Systems 225-CSRO-M Manuel utilisateur
US Water Systems
US Water Systems 169-ISF-1 Manuel utilisateur
US Water Systems
US Water Systems Escort 091-EPWS-1 Manuel utilisateur
US Water Systems
US Water Systems Aquatrol 075-AQF-CX Manuel utilisateur
US Water Systems
US Water Systems Pulsar Bodyguard 117-PBG-12 Manuel utilisateur
US Water Systems
US Water Systems 080-FSC-075 Manuel utilisateur
US Water Systems
US Water Systems Ultimate Dual Superfilter FSF-250 Manuel utilisateur
US Water Systems
US Water Systems FNLT-100-HY Manuel utilisateur
US Water Systems
US Water Systems Flex ECS-20 Manuel utilisateur
US Water Systems
US Water Systems Waterlogix WLS-075 Manuel utilisateur
