POWER SUPPLY REF. NO. 1752/20D

GENERAL INFORMATIONS / USER MANUAL

VIDEO POWER SUPPLY REF. NO 1752/20D

GENERAL INFORMATIONS

Video Power Supply Ref. no. 1752 / 20D is

designed for installations of MATIBUS SE system

with the video.

The main features include:

• Ensuring energy efficiency for video installations,

• Commutation main bus data connections

and the secondary bus data for rise I and II.

• The ability to integrate video amplifier regulated

to the risers.

• The ability to quickly connect up to 3 panels

keyboard input, additional or principal.

In addition, the power supply has a green LED

indicating connection status to the mains.

CONSTRUCTION

DESCRIPTION OF TERMINAL BOARD

~0V

Input voltage ~0V

~230V

Input voltage ~230V

Camera power positive output 18,3 VDC

Camera power ground

LU1

RJ12 connector for riser LU1

LU2

RJ12 connector for riser LU2

RJ45 connector – input panel no.1

RJ45 connector – input panel no.2

RJ45 connector – input panel no.3

MAG GL

RJ45 connector – input of main bus data

MAG GL

RJ45 connector – output of main bus

OUT

data

RJ45 connector – input of secondary

DOD

bus data from power supply

ref. no. 1052/31R…33R

RJ45 connector – input of main bus

data from power supply

ref. no. 1052/31R…33R

USER MANUAL

JUMPERS P1, P2, P3, TER i AMP

In the power supply 1752 / 20D panels can be easily change

from the main bus data to secondary bus data and vice

versa.

To do this, attach a suitable jumper P1, P2 and P3,

respectively, for the panel 1, 2 and 3.Then the data line,

audio and video signal will be automatically redirected to

the correct bus data.

• No jumper means panel working on the secondary bus

data,

• Established jumper means panel working on the main bus

data

The jumper marked TER is permanently turn on termination

video signal in the main bus data.

The jumper labeled as AMP permanently turn on video

amplifier to both divisions.

VIDEO AMPLIFIER

The amplifier can increase the range of video transmission

in the risers 1 and 2. At longer distances, switching

amplifier improves the quality of the video signal.

Switching amplifier is performed by setting jumper AMP

TECHNICAL DATA

Supply: 230 VAC

Power: 60VA

Output voltage of R2, R1: 18,3V / 2,5A

Working temperature: -5

+45

Power security: thermal

Dimensions:

Length 180 mm

Width 90 mm

Thickness 75 mm

Weight: 0,45kg

The length matches to 10 DIN modules.

POWER SUPPLY REF. NO. 1752/20D

ASSEMBLY AND CONNECTIONS

INSTRUCTIONS FOR CONNECTIONS

RJ45 connectors on the both sides of wires should be

installed on T-568 standard. The list of wires colors and

their corresponding pin standard T-568 shown in the figure

below:

No. Color

1 Orange-white

2 Orange

3 Green-white

4 Blue

5 Blue-white

6 Green

7 Brown-white

8 Brown

For connecting the risers with Dys-Dek 1052/54RM use

RJ12 connectors plug (6P6C). The list of wires colors and

their corresponding pins shown in the table below:

No. Color

1 Green-white

2 Orange-white

3 Blue

4 Blue-white

5 Orange

6 Green

A pair of brown color-coded wires should be connected to

terminals:

R1 – Brown-white

R2 – Brown.

The list of connectors, wires colors and their

corresponding pins shown in the table below:

Connectors LU1 i LU2 (RJ12).

No. Color Designation

Description

1 Green-white 0L Ground line of

doorphones

2 Orange-white VB

Video signal.

Line B twisted

pair

3 Blue R2

Positive (+)

video power

supply (+18V

DC)

4 Blue-white R1 Ground video

power supply

5 Orange VA

Video signal.

Line A twisted

pair

6 Green LU Line of

doorphones

On the second end of this wire should be installed

plug RJ45 using T-568 standard. Plug with RJ45

connect to Dys-Dek ref. No. 1052/54RM.

Connectors WE DOD (RJ45).

No. Color Designation

Description

1 Orange-white 0L

Ground line of

doorphones

LU1

2 Orange LU1

Line of

doorphones

LU1

3 Green-white 0L Ground line of

sound

4 Blue DD+

Data line of

secondary bus

data DG+

5 Blue-white DD-

Data line of

secondary bus

data DG-

6 Green LD

Line of sound

for secondary

bus data

7 Brown-white 0L

Ground line of

doorphones

LU2

8 Brown LU2

Line of

doorphones

LU2

The second end of this wire should be connected to

power supply ref. No. 1052/31R…33R.

POWER SUPPLY REF. NO. 1752/20D

ASSEMBLY AND CONNECTIONS

Connectors WE GL (RJ45).

No. Color Designation

Description

1 Orange-white - Not connected

2 Orange - Not connected

3 Green-white 0L Ground line of

doorphones

4 Blue DG+

Data line of

main bus data

DG+

5 Blue-white DG-

Data line of

main bus data

DG-

6 Green LG

Line of sound

for main bus

data

7 Brown-white EO

Switching the

video signal

from the main

bus data to the

riser

8 Brown - Not connected

The second end of this wire should be connected to

power supply ref. No. 1052/31R…33R.

Connectors MAG GL (RJ45).

No. Color Designation

Description

1 Orange-white VB

Video signal.

Line B twisted

pair

2 Orange VA

Video signal.

Line A twisted

pair

3 Green-white 0L Ground line of

sound

4 Blue DG+

Data line of

main bus data

DG+

5 Blue-white DG-

Data line of

main bus data

DG-

6 Green LG

Line of sound

for main bus

data

7 Brown-white R1 Ground video

power supply

8 Brown R1 Ground video

power supply

The second end of this wire should be connected to next

power supply ref. No. 1752/20D.

Connectors P1, P2 i P3 (RJ45).

No. Color Designation

Description

1 Orange-white VB

Video signal.

Line B twisted

pair

2 Orange VA

Video signal.

Line A twisted

pair

3 Green-white 0L Ground line of

sound

4 Blue DG+ Data line of

bus data DG+

5 Blue-white DG- Data line of

bus data DG-

6 Green LG Line of sound

7 Brown-white R1/GND Ground video

power supply

8 Brown R Switching

camera

The second end of this wire should be connected to

panel with camera module for ex. 1752/141D.

WAY TRANSMISION OF SIGNAL

VIDEO IN THE SYSTEM

In the complex video installations, it is

recommended that the video signal from the panels

pinned in the main bus leading distribute from the

space located in the middle of the system, so that

the video signal has unidirectional character. This

method is illustrated on Fig. 4a.

Suppose that the total length of the bus data video

denoted as S, then:

S = A1 + A2 + … + An + B1 + B2 + … + Bn + C1

lub;

S = A1 + A2 + … + An + B1 + B2 + … + Bn + C2

lub;

S = A1 + A2 + … + An + B1 + B2 + … + Bn +

Cn.

In the case where the video bus data length S

exceeds 250m use the video distributor Ref.

955/40. How to connect the distributor Ref. 955/40

is shown in Fig. 4b.

MONTAGE

The power supply is mounted on a DIN rail

or screwed to the substrate using two screws or

bolts minimum dimensions Ø4 / 50mm Fig. 3. The

method of mounting the power supply is shown in

Figure 1a and 1b. To mount the power supply for

DIN rail use a flat screwdriver to pull the pin

locking, then put the power supply on a DIN rail,

then release the pin. After mounting the power

supply on the rail, you can protect it against

dismantling by fusing the pin with the casing using

bolt and nut dimensions Ø4 / 36mm. The

protection method shown in Figure 2.

POWER SUPPLY REF. NO. 1752/20D

ASSEMBLY AND CONNECTIONS

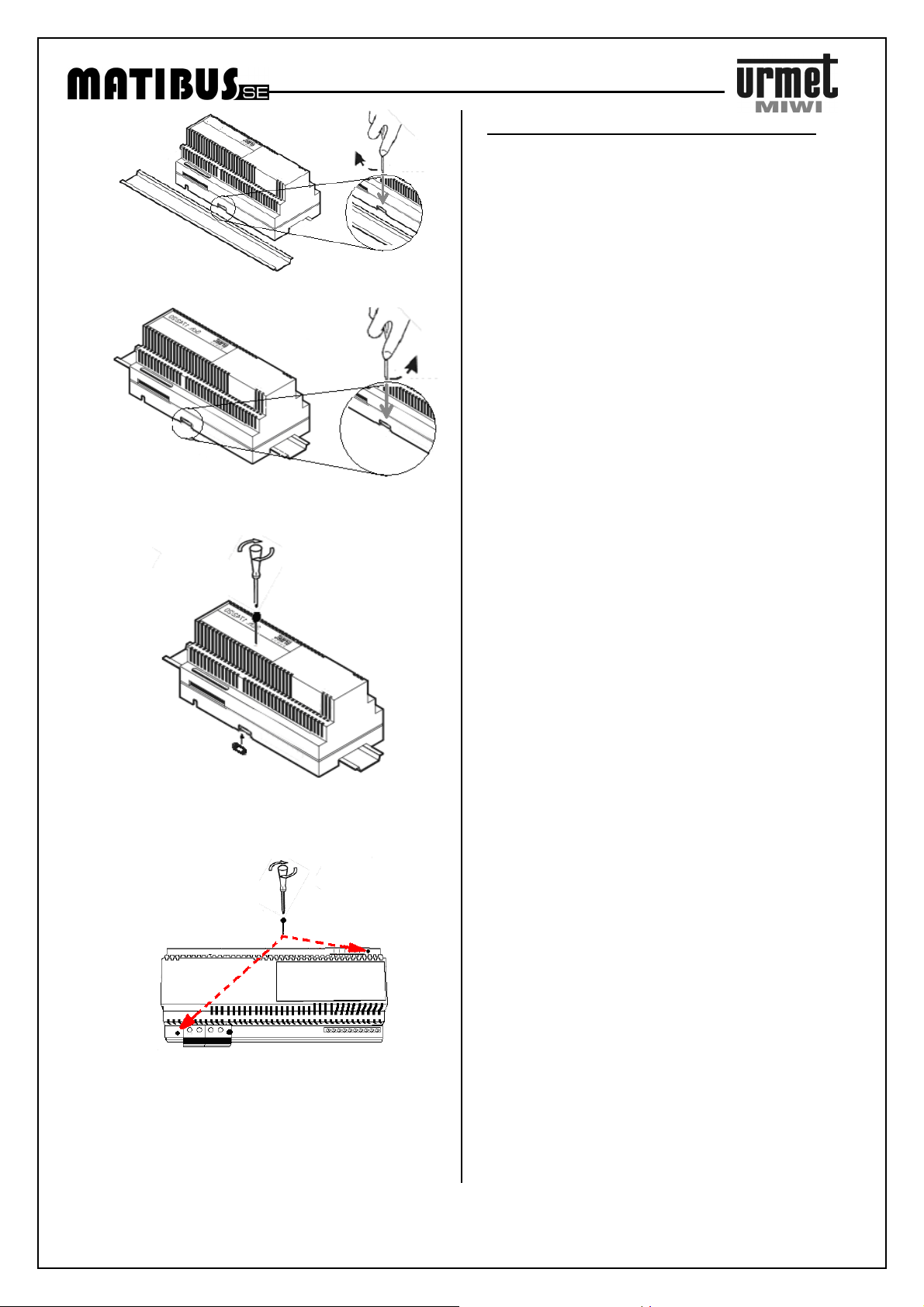

Fig. 1a The method of mounting the power supply

on rail (pull the pin).

Rys. 1b The method of mounting the power supply

on rail (release the pin).

Rys. 2 Protect against dismantling by fusing the pin

with the casing

Rys.3 Screwing to the substrate using two screws or

bolts

ELECTRICAL CONNECTIONS

Electrical connections should be performed

by a person with knowledge of the basic issues of

electrical engineering. All connections should be

made in accordance with the attached schedule,

and with disconnected power supply.

The building installation should include, multi-

pole connector adapter with at least 3 mm spacing

between all poles. The supply voltage must be

accompanied only after all connections and the

protective cover after screwing supply terminals.

POWER SUPPLY REF. NO. 1752/20D

DOORPHONE SYSTEM IN MASTER / SLAVE CONNECTION

WITH POWER SUPPLY 1752/20D

~230

OC1

OC2

AC1

AC2

+20

DD+

LU2

LU1

~230

~12

+20

AC1

AC2

D (D+)

GND

ELEKTROZACZEP

+CL

-CL

GND

EXI

DODATKOWE STEROWANIE

NP. BRAMY AUTOMATYCZNEJ

GND

5 6

2 3

Błędy kasuj przyciskiem......

Aby otworzyć drzwi

wciśnij.................... .............

oraz

wprowadź kod otwarcia

i zatwierdź przyciskiem........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyciskiem... #

D-

DD-

P1 P2 P3

DOD

GŁ

MAG

GŁ MAG

GŁ

LU1 LU2

~0 ~230

DG+

DG-

KAMERA

SKR

AGND

AVDD

SPK

red

black

AC1

AC2

D (D+)

GND

ELEKTROZACZEP

+CL

-CL

GND

EXI

DODATKOWE STEROWANIE

NP. BRAMY AUTOMATYCZNEJ

GND

5 6

2 3

Błędy kasuj przycis kiem......

Aby otworzyć drzwi

wciśnij........... ......................

oraz

wprowadź kod otwarcia

i zatwierdź przyciski em........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyc iskiem... #

D-

KAMERA

SKR

AGND

AVDD

SPK

red

black

UTP KAT 6

UTP KAT 5E

UTP KAT 5E RISER IN

RISER OUT

UTP KAT 5E UTP KAT 5E

OUT DOUT C

OUT

OUT 3DD

GND

3DC

GND

3DA

GND

3DB

GND

PRZYCISK DZWONKA LOKALNEGO

UTP KAT 5E

UTP KAT 5E RISER IN IN

RISER OUT

UTP KAT 5E UTP KAT 5E

OUT DOUT C

OUT

OUT 3DD

GND

3DC

GND

GNDGND

PRZYCISK DZWONKA LOKALNEGO

OUT AOUT B

3DA3DB

OUT AOUT B

4k7

NIEBIESKI

BRĄZOWO-BIAŁY

BRĄZOWY

NIEBIESKO-BIAŁY

4k7

NIEBIESKI

BRĄZOWO-BIAŁY

BRĄZOWY

NIEBIESKO-BIAŁY

UTP KAT 6 UTP KAT 6

UTP (4x2x0.5 kat.5e)

UTP kat.6

do następnych Dysdeków

do następnego

zasilacza

1752/20D

do następnego

zasilacza

1752/20D

UTP (4x2x0.5 kat.5e

lub UTP 6)

UTP (4x2x0.5 kat.5e

lub UTP 6)

UTP (4x2x0.5 kat.5e

lub UTP 6)

(RJ45)

UTP (4x2x0.5 kat.5e

lub UTP 6)

(RJ45) (RJ45)

(RJ45)

(RJ45) (RJ12) (RJ12) (RJ45)

R1 R2

(RJ45)

OFF

do następnego

panela

1752/141D

(RJ45)

ZASILACZ NR REF. 1752/20D

WAY TRANSMISION OF SIGNAL VIDEO IN THE SYSTEM

5 6

2 3

Błędy kasuj przyciskiem......

Aby otworzyć drzwi

wciśnij.................................

oraz

wprowadź kod otwarcia

i zatwierdź przyciskiem........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyciskiem...

5 6

2 3

Błędy kasuj przyciskiem......

Aby otworzyć drzwi

wciśnij.................................

oraz

wprowadź kod otwarcia

i zatwierdź przyciskiem........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyciskiem...

5 6

2 3

Błędy kasuj przyciskiem......

Aby otworzyć drzwi

wciśnij.................................

oraz

wprowadź kod otwarcia

i zatwierdź przyciskiem........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyciskiem...

5 6

2 3

Błędy kasuj przyciskiem......

Aby otworzyć drzwi

wciśnij.................................

oraz

wprowadź kod otwarcia

i zatwierdź przyciskiem........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyciskiem...

5 6

2 3

Błędy kasuj przyciskiem......

Aby otworzyć drzwi

wciśnij.................................

oraz

wprowadź kod otwarcia

i zatwierdź przyciskiem........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyciskiem...

5 6

2 3

Błędy kasuj przyciskiem......

Aby otworzyć drzwi

wciśnij.................................

oraz

wprowadź kod otwarcia

i zatwierdź przyciskiem........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyciskiem...

5 6

2 3

Błędy kasuj przyciskiem......

Aby otworzyć drzwi

wciśnij.................................

oraz

wprowadź kod otwarcia

i zatwierdź przyciskiem........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyciskiem...

5 6

2 3

Błędy kasuj przyciskiem......

Aby otworzyć drzwi

wciśnij.................................

oraz

wprowadź kod otwarcia

i zatwierdź przyciskiem........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyciskiem...

5 6

2 3

Błędy kasuj przyciskiem......

Aby otworzyć drzwi

wciśnij.................................

oraz

wprowadź kod otwarcia

i zatwierdź przyciskiem........

Wybierz numer lokalu

i poczekaj na połączenie

lub zatwierdź przyciskiem...

Fig.4a

5 6

2 3

5 6

2 3

5 6

2 3

5 6

2 3

5 6

2 3

5 6

2 3

5 6

2 3

5 6

2 3

5 6

2 3

R1 R2 A B

OUT

R1 R2

MAG GL

OUT

DO NASTĘPNEGO

ZASILACZA 1752/20D

DO NASTĘPNEGO

ZASILACZA 1752/20D

OUT

III

OUT

R1 R1

TER

2 x

82?

2 x

82?

Fig. 4b

MIWI-URMET sp. z o. o.

ul. Pojezierska 90A

91-341 Łódź

tel: (0-42) 616-21-00

fax: (0-42) 616-21-13

e-mail: miwi@miwiurmet.com.pl

http:/www.miwiurmet.pl

Table des matières

Autres manuels urmet domus Système d'interphone

urmet domus

urmet domus IPerCom VOG 7 1761 Series Manuel d'installation et d'exploitation

urmet domus

urmet domus IPerCom VOG 5 1761 Manuel d'installation et d'exploitation

urmet domus

urmet domus Mini Note + 1722 Manuel d'instructions

urmet domus

urmet domus IPerCom VOG 7 1761 Series Manuel utilisateur

urmet domus

urmet domus Alpha 1168 Manuel d'installation et d'exploitation

urmet domus

urmet domus Sinthesi 1083/77 Manuel utilisateur

urmet domus

urmet domus 9854 Series Manuel utilisateur

urmet domus

urmet domus 1741/3 Manuel du système

urmet domus

urmet domus miro 1183 Manuel utilisateur

urmet domus

urmet domus GROTHE vidoora Manuel utilisateur

urmet domus

urmet domus 2VOICE VOG7 1760 Manuel utilisateur

urmet domus

urmet domus 1168/46G Manuel utilisateur

urmet domus

urmet domus VOG 5 Manuel d'installation et d'exploitation

urmet domus

urmet domus 1083/9 Manuel utilisateur

urmet domus

urmet domus IPerCom 1741 Manuel du système

urmet domus

urmet domus 1722 Manuel utilisateur

urmet domus

urmet domus 1722 Manuel utilisateur

urmet domus

urmet domus 1033/470 Manuel utilisateur

urmet domus

urmet domus AIKO SLAVE Manuel utilisateur

urmet domus

urmet domus CallMe SET 1083 Manuel d'installation et d'exploitation

urmet domus

urmet domus 2 Voice Mikra Digital 1784 Guide de démarrage rapide

urmet domus

urmet domus 1083 Manuel utilisateur

urmet domus

urmet domus 1723 Manuel utilisateur

urmet domus

urmet domus Note 2 1723 Series Manuel d'installation et d'exploitation

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur

urmet domus MATIBUS 1752/20D Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques
