INSTRUCTION SHEET

RADIANT HEATING

SYSTEMS

PROGRAMMABLE

THERMOSTAT

SetPoint 521 Programmable

Thermostat with Floor Sensor

Refer to the following instructions to properly install and set up the Uponor

SetPoint 521 Programmable Thermostat with Floor Sensor (A3040521).

Remove the Mounting Base

Wall

Thermostat

Front

Thermostat

Base

Install on a Wall

Choose the Proper Location

Exterior

Wall

Interior

Wall

5 feet

1.5 m

Behind

Door

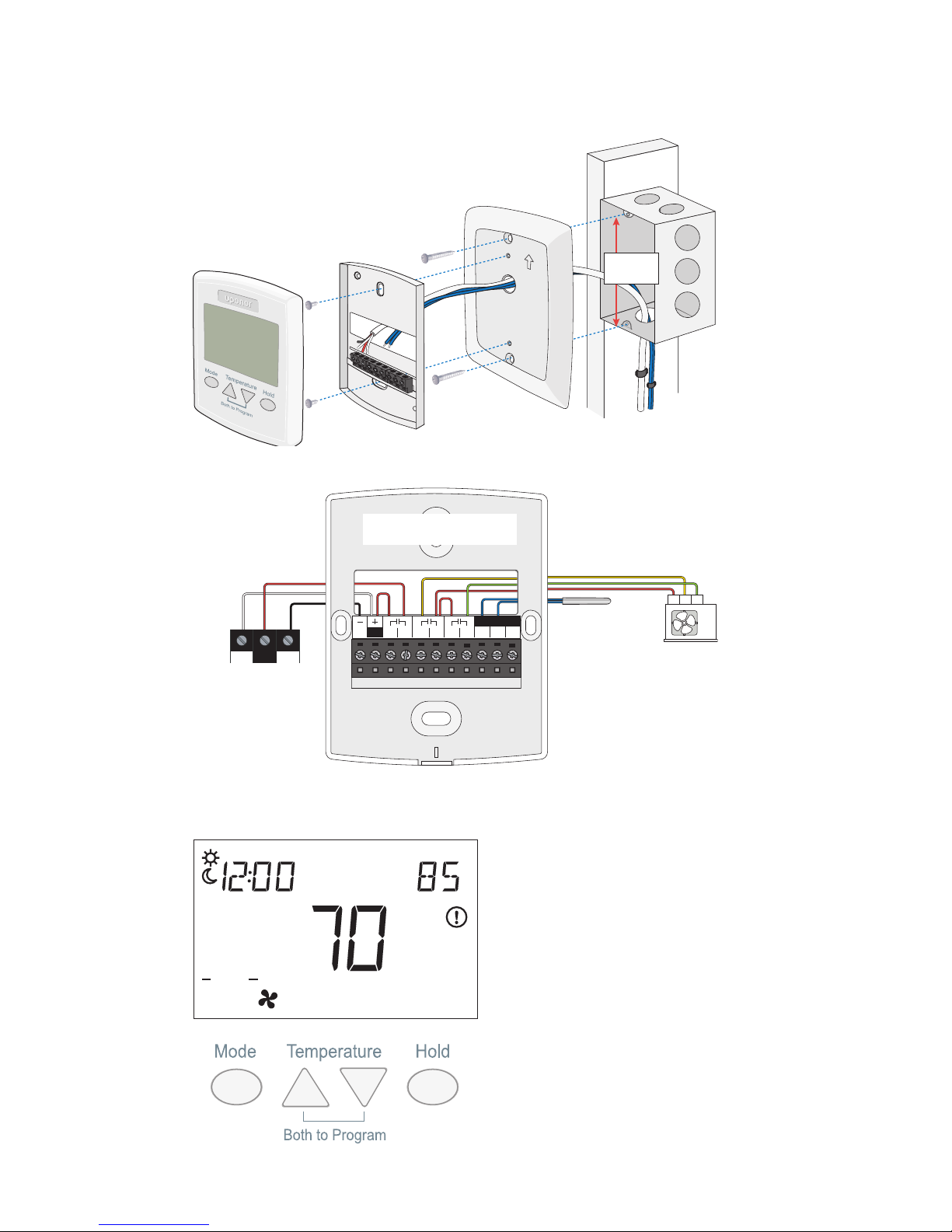

Install to a Gang Box

3 1/4"

(83 mm)

Stud

Gang

Box

Thermostat

Front

Thermostat

Base

Adapter Plate

(A3040012)

Wiring

R Y G

Y/ W2

Rc GGRh W1 S1 S2Com

No Power

Air

Conditioner

Slab

Sensor

A3040079

Zone Control Module

A3031003/A3031004

Install field jumper wire

R to Rh

User Interface

Floo

MIN

Heat On Cool On

Room Floor

Heat Cool

Off

MAX

MODE

FrThWeTuMoSu

Switch Position Action

Lock Access Level

Thermostat is locked and the access level cannot be changed. Set

to Lock when installation has been completed.

OFF

Unlock Access Level

Thermostat is unlocked and the access level may be changed.

Go to the Setup menu to change the access level. Set to Unlock

during the installation process.

H/C/F

Thermostat is configured to operate one stage heating, one stage

cooling and fan.

OFF

1H or 2H

Thermostat is configured to operate one or two stage heating

with a fan.

Switch Settings

OFF

Critical Settings

Press and hold down both the and buttons together to enter the

Programming Menus.

While in the Programming Menus, the MODE button changes function to become

the MENU button. Press the MENU button to change from one menu to the next.

While in the Programming Menus, the HOLD button changes function to become

the PRGM (program) button. Press the PRGM button to enter the menu.

While inside a menu, the HOLD button changes to become the ITEM button.

Press the ITEM button to change from one setting to the next.

For a full list of settings and operational details, please refer to the SetPoint

521 Programmable Thermostat Installation and Operation Manual available

uponorpro.com

Setting Display

Access

Selects the access level of the thermostat, which

determines which menus and items are available.

Sensor 1

Select the type of auxiliary sensor 1.

Sensor 2

Select the type of auxiliary sensor 2.

Room Sensor

Select if the built-in room temperature sensor is on or off.

Room

W2 Relay

Select if a second stage heat is available.

W2 Delay

Select the time delay of that the second stage must wait

before turning on.

W2 Differential

Select the differential below the Set Heat setpoint at which

the second stage heat can turn on.

Fan Mode

Select how the fan should operate together with the

W1, W2 or Y relays.

Uponor, Inc.

5925 148th Street West

Apple Valley, MN 55124 USA

Tel: 800.321.4739

Fax: 952.891.2008

Uponor Ltd.

2000 Argentia Rd., Plaza 1, Ste. 200

Mississauga, ON L5N 1W1 CANADA

Tel: 888.994.7726

Fax: 800.638.9517 uponorpro.com
