Uponor Climate Control Mode d'emploi

RADIANT HEATING SYSTEMS

UPONOR CLIMATE

C O

˘NTROL™ NETWORK

SYSTEM THERMOSTAT

Uponor Climate Co˘ntrol™ Network System

Thermostat Installation and Operation Guide

INSTALLATION AND

OPERATION GUIDE

www.uponor-usa.com • www.uponor.ca

Uponor Climate Co˘ntrol Network™ System

Thermostat Installation and Operation Guide

Published by Uponor

5925 148th Street West

Apple Valley, MN 55124 USA

Phone: (800) 321-4739

Fax: (952) 891-1409

Uponor, Ltd.

655 Park Street

Regina, SK S4N 5N1 CANADA

Phone: (888) 994-7726

Fax: (800) 638-9517

www.uponor-usa.com

www.uponor.ca

First Edition

First Printing, May 2008

Printed in the United States of America

Uponor Climate Co˘ntrol™ Network System Thermostat Installation and Operation Guide 3

Table of Contents

Section 1 — Uponor Climate Co˘ntrol™

Network System Thermostat Overview . . . . . . . . . . . . . . 5

Getting Ready. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Section 2 — Installation Methods . . . . . . . . . . . . . . . . 7

Mounting Thermostat . . . . . . . . . . . . . . . . . . . . . . . . .7

Surface Mount . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Flush Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Wiring Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Power and Data Wiring. . . . . . . . . . . . . . . . . . . . . . . 9

Placing the Slab Sensor . . . . . . . . . . . . . . . . . . . . . . . .9

Wiring the Slab Sensor . . . . . . . . . . . . . . . . . . . . . . . 9

Section 3 — Operation. . . . . . . . . . . . . . . . . . . . . . . . . 11

Setting the Zone Number . . . . . . . . . . . . . . . . . . . . . . 11

Setting the Primary Heating Method . . . . . . . . . . . . . . . . . . 11

Setting the Secondary Heating Method . . . . . . . . . . . . . . . . . 11

Setting the Radiant Heating Water Temperature Channel . . . . . . . . . . 12

Setting Which Zone Pump the Thermostat is Controlling . . . . . . . . . . 12

Setting Which Zone Valve the Thermostat is Controlling . . . . . . . . . . 12

Setting the Air Zone . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting the Air Water Temperatures . . . . . . . . . . . . . . . . . . 12

Setting the Air Water Zone Pump . . . . . . . . . . . . . . . . . . . 13

Setting the Air Water Zone Valve . . . . . . . . . . . . . . . . . . . 13

Setting the Air Damper Number . . . . . . . . . . . . . . . . . . . . 13

Setting the Air Handler Number . . . . . . . . . . . . . . . . . . . . 13

Setting the Heat Recovery Ventiliator (HRV) Number . . . . . . . . . . . 14

Setting the Supplementary Water Temperature Channel Number . . . . . . . 14

Setting the Supplementary Zone Pump . . . . . . . . . . . . . . . . . 14

Setting the Supplementary Zone Valve . . . . . . . . . . . . . . . . . 14

Setting the Auto Schedule Number . . . . . . . . . . . . . . . . . . 14

Setting the Temperature Offset . . . . . . . . . . . . . . . . . . . . 15

Viewing the Thermostat Software Revision . . . . . . . . . . . . . . . 15

Section 4 — Wiring Diagram . . . . . . . . . . . . . . . . . . . . 17

www.uponor-usa.com • www.uponor.ca

Uponor Climate Co˘ntrol™ Network System Thermostat Installation and Operation Guide 5

The Uponor Climate C˘ontrol™ Net-

work System Thermostat is

designed specically to function

within the network control system.

The thermostat is available in two

models — vertical and horizontal —

and displays air, slab, humidity and

outdoor temperatures. The thermostat

controls two stages of heat, two

stages of cooling and supplemental

heat all via a single pair of thermostat

wires (18-22 AWG).

The user can change the display,

modes, temperature setpoint, humid-

ity setpoint, fan and heat recovery

ventilator (HRV) from any thermostat

in the control system. The thermostat

also offers an optional feature called

master passing. This is an optional

feature that changes HVAC control

of a room to the current thermostat

being manually adjusted.

This manual provides standard

installation and operation procedures

for the thermostat. A list of terms

commonly used in this manual is

provided below.

Getting Ready

Check the contents of the thermostat

package (see Table 1-1). If any of

the contents are missing or damaged,

contact your Uponor sales representative

or distributor for assistance.

Section 1 —

Uponor Climate Co˘ntrol™ Network System

Thermostat Overview

Thermostat Style Package Contents

Surface Mount

(A9010510)

• One thermostat

• One case front

• One case back

• Two #4 screws (for attaching the case to the case back)

• User manual

Flush Mount Vertical

(A9010520)

Flush Mount Horizontal

(A9010530)

• One thermostat

• Flush-mount skin

• Mounting wings

• #4 screws (for attaching the mounting wings to the case)

• User manual

Term Denition

Draft barrier A material that blocks or is intended to

block air passage

DZCM Digital Zone Control Module

HRV Abbreviation for heating recovery ventilator

HVAC Heating, ventilation and air conditioning

Master passing An optional feature that changes HVAC

control of a room to the current thermostat

being manually adjusted

PEX Abbreviation for crosslinked polyethylene.

Setpoint This refers to the desired thermostat setting.

The room setpoint temperature is the target

temperature for the room.

Slab This refers to a concrete slab under which

radiant heating has been installed.

Temperature Offset Setpoint that serves to counterbalance the

primary setpoint for the target temperature

Zone An area of a radiant panel served by one

or more loops and individually controlled

through a thermostat

Table 1-1: Thermostat Package Contents

www.uponor-usa.com • www.uponor.ca

Uponor Climate Co˘ntrol™ Network System Thermostat Installation and Operation Guide 7

Mounting the

Thermostat

Install the thermostat on an

interior wall of the desired zone,

approximately 5 feet (1.5 meters)

above the oor. Do not mount the

thermostat in a location that may

be affected by heat sources or cold

drafts. If necessary, install a draft

barrier behind the control to prevent

air from blowing through the wiring

hole and affecting the control’s

built-in sensor.

Avoid mounting the thermostat

in the following locations:

• Near or around windows

• On outside walls

• Near replaces

• In the corner of a room

• Behind doors

• Near dimming switches

• On interior walls susceptible

to solar gains

• Near stoves, lamps, televisions,

computer monitors, etc.

• In damp or humid areas

Surface Mount

The following steps outline how to

mount the surface-mount thermostat.

1. Locate an area to mount the

thermostat.

2. Place case back on the wall and

mark areas for the screw and

connector holes with a pencil.

Figure 2-1: Case back of

thermostat being mounted

on wall

3. Insert drywall anchors into the

wall at the marked locations

and cut out a hole in the wall to

receive the main connector.

Figure 2-2: Inserting

drywall anchors

4. Using appropriate screws (not

included), attach the case back

to the drywall anchors.

Figure 2-3: Case back of

thermostat procedure

5. Wire the thermostat. Refer to

Section 2: Wiring the Thermostat

and Section 4: Wiring Diagram.

Figure 2-4: Wiring

thermostat procedure

6. Use the supplied #4 screws to

mount the thermostat into the

case back.

Figure 2-5: Mount

thermostat procedure

7. Snap the case front into place

on the case back.

Figure 2-6: Mount

thermostat procedure

Section 2 –

Installation Methods

www.uponor-usa.com • www.uponor.ca

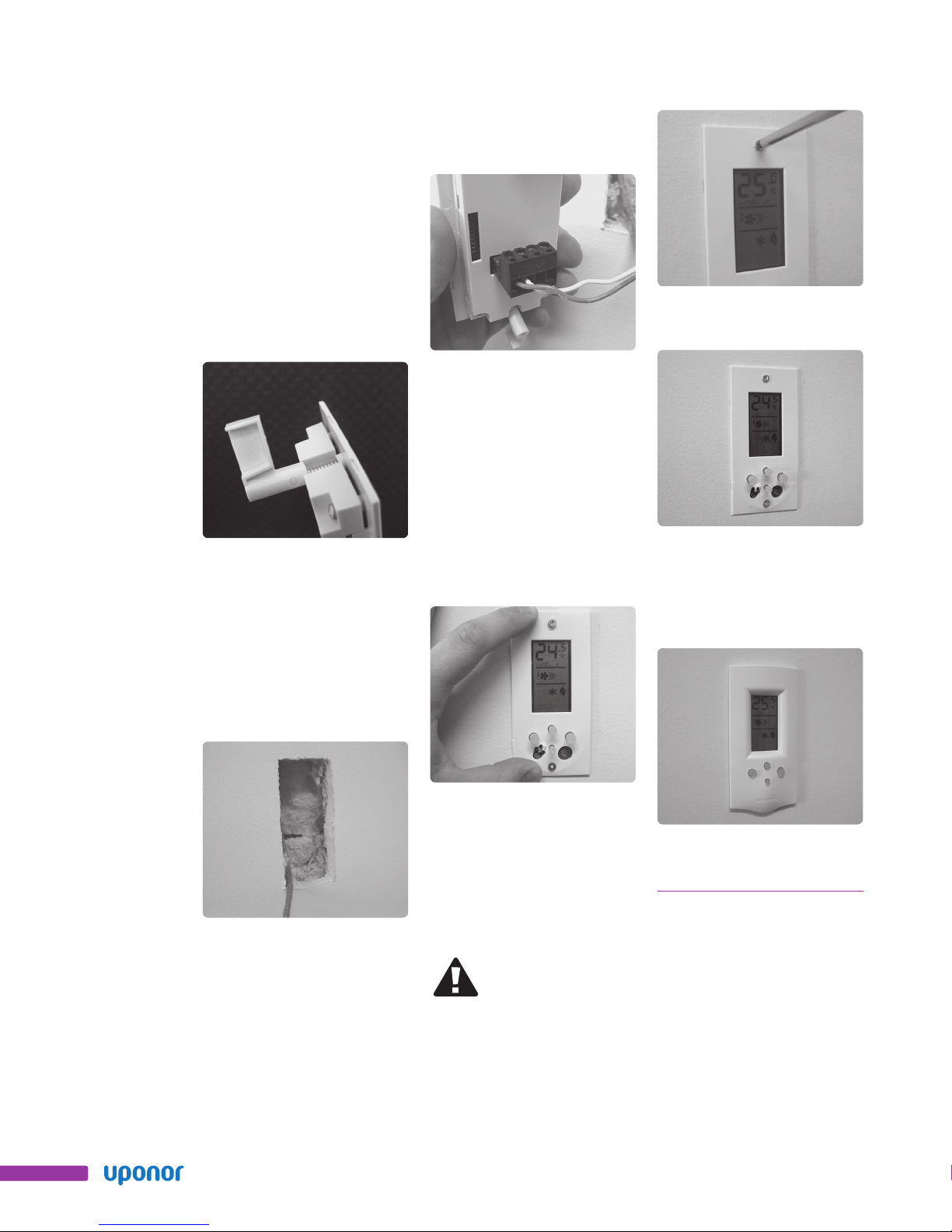

Flush Mount

The following steps outline how to

mount the ush-mount thermostat.

Note: The ush-mount thermostat

is designed for mounting in ½-

inch drywall.

1. Loosely attach the wings into

the back of the thermostat with

the supplied hardware as shown

in Figure 2-7. (Only tighten

the screws one or two turns

into the wings.)

Figure 2-7: Flush

mount thermostat

2. Use the template provided to

mark the cutout in the drywall

for the thermostat. Use a level

to ensure the cutout is straight.

3. Cut around your marking with

a drywall saw or utility knife.

Figure 2-8: Flush

mount thermostat

4. Wire the thermostat. Refer to

Section 2: Wiring the Thermostat

and Section 4: Wiring Diagram.

Figure 2-9: Flush

mount thermostat

5. Push in any insulation and cut

away any excess drywall or paper

to ensure nothing interferes with

the action on the wings. The

thermostat will not mount correctly

if there is any interference.

6. Place the thermostat in the hole

in the drywall and hold it tight

against the wall.

Figure 2-10: Flush

mount thermostat

7. Turn the wing screws slowly.

Initially, the wings will turn 90

degrees behind the drywall. As

you continue tightening, they will

secure the thermostat in place.

Important: Do not overly

tighten the wings.

Figure 2-11: Flush

mount thermostat

Figure 2-12: Flush

mount thermostat

8. Snap the ush-mount thermostat

skin into place on the thermostat.

Figure 2-13: Flush

mount thermostat

Uponor Climate Co˘ntrol™ Network System Thermostat Installation and Operation Guide 9

Wiring the

Thermostat

The following steps outline how

to wire the thermostat.

Note: All wiring must comply

with local electrical codes

and specications. Uponor

recommends 18 AWG LVT or

similar wire for all thermostat

connections. Strip all wires to

¼” (6.3 mm) to ensure proper

connection to thermostat

terminal blocks. If an optional

sensor is used (e.g., a slab

sensor), run a single-pair,

18 AWG wire from the sensor

to the control.

Tools Required

• Small, at-head screwdriver

• Phillips screwdriver

• Wire cutter and stripper

Caution: To prevent

damage to the thermostat,

do not connect it to 24-volt

control systems or devices

other than the Digital Zone

Control Module (DZCM).

Power and Data Wiring

1. Refer to the DZCM Installation

Guide for wiring to the DZCM.

2. Run a single-pair, 18 AWG LVT

wire from the DZCM to the

thermostat.

3. Attach the wires to the Pwr/

Comm terminals shown in

Figure 2-14.

Note: Be sure to observe the

thermostat’s polarity and wire

color. Use the red wire to

connect the positive terminal on

the thermostat to the positive

terminal on the controller.

Placing the

Slab Sensor

The following steps outline how to

install a slab sensor.

1. Place the slab sensor between

two PEX tubes in the oor.

2. If the oor is wood construction,

place the sensor as close to

the oor surface as possible.

If the oor is concrete or like

construction, place the sensor

no deeper than the mid-point

of the slab.

3. Uponor recommends placing

the sensor wire in a conduit

for easy replacement. Ensure

the sensor is in direct contact

with the oor material (wood,

concrete, gypcrete, etc.).

Wiring the Slab Sensor

Connect the two wires from the

sensor to the slab sensor terminals

on the thermostat as shown in

Figure 2-15. In this case, polarity

does not matter.

Figure 2-15 Wiring

the slab sensor

Figure 2-14 Power

and data wiring

www.uponor-usa.com • www.uponor.ca

Autres manuels pour Climate Control

Table des matières

Autres manuels Uponor Thermostat

Uponor

Uponor 1121082 Instructions d'installation

Uponor

Uponor T-27 Manuel utilisateur

Uponor

Uponor Climate Control Zoning System II Manuel utilisateur

Uponor

Uponor T-26 230 V Manuel utilisateur

Uponor

Uponor A3030101 Manuel utilisateur

Uponor

Uponor Comfort-E Manuel utilisateur

Uponor

Uponor Ecoflex Supra Standard ETN4 Manuel utilisateur

Uponor

Uponor SetPoint 521 Manuel utilisateur

Uponor

Uponor Comfort E T-87IF Manuel

Uponor

Uponor T-54 Manuel utilisateur

Uponor

Uponor Smatrix Move Manuel utilisateur

Uponor

Uponor Heat-only Thermostat Manuel utilisateur

Uponor

Uponor A3030102 Manuel utilisateur

Uponor

Uponor T-87IF Manuel

Uponor

Uponor Smatrix Wave X-165 Manuel utilisateur

Uponor

Uponor Comfort E T-87IF Manuel

Uponor

Uponor A3040654 Manuel utilisateur

Uponor

Uponor Comfort E T-87IF Manuel utilisateur

Uponor

Uponor T-23 Manuel utilisateur

Uponor

Uponor T-26 Manuel utilisateur

Uponor

Uponor Climate Control Manuel utilisateur

Uponor

Uponor Smatrix Move PLUS Manuel utilisateur

Uponor

Uponor T-26 Manuel utilisateur

Uponor

Uponor T-85 Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
