Congratulations!

Thank you for purchasing the Total

Control TRC-1280 universal remote

control. This unit can control every

connected device in your home

using the Total Control Advanced

System Controller. You can also

control devices located in different

rooms via Wi-Fi. Controlling your

home is simple with the TRC-1280

remote.

Two-way Instant-Wi-Fi controller with dazzling 2.8”

color touch screen interface

Receive two-way feedback for the rooms and music sources that can be

controlled. Turn On/Off music while also viewing the current selections

artist name, album and song title.

Vibrating Haptic Technology confirms button presses

The TRC-1280 has an Active Matrix color TFT display with vibrating

Haptic feedback technology. When touching of an LCD button, the

screen vibrates to confirm the button press.

Includes rechargeable Lithium Polymer Batteries and charger base

The TRC-1280 comes equipped with a Lithium Polymer battery that is

rechargeable with the 6V charging base. You no longer need to waste

money on disposable batteries or trying to locate misplaced batteries.

Requires MRX-10 or compatible URC Advanced System

Controller

In combination with an MRX-10 or compatible URC Advanced

System Controller, the TRC-1280 can control your system without

being in line-of-sight of the equipment by sending the commands

over your home network.

Programmable only by URC certified professional programmer

on-premises or off-premises via the Internet

To fully automate your audio/video system, the programmer must

have detailed knowledge of each component, LAN configuration,

Wi-Fi optimization and how the system is connected and operated.

With the ability to connect the TRC-1280 to an MRX-10 or

compatible URC Advanced Controller, your installer can program the

remote, with your permission, from his office should the need arise.

Only a trained and certified professional audio/video installer can

install a TRC-1280 remote control in a timely and efficient manner.

Page 2

TRC-1280 TOUCH SCREEN

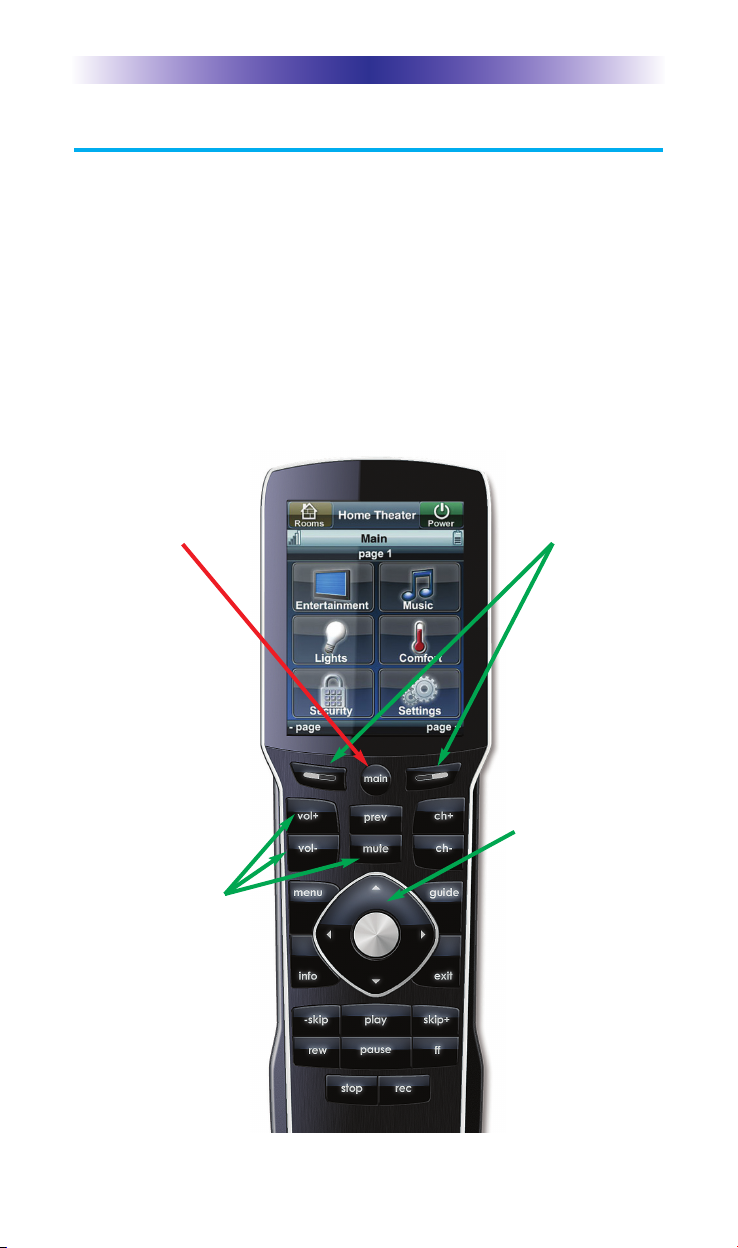

The 5-way cursor

buttons enables you

to both scroll lists of

artists, albums or

songs from your

Music Server on the

TRC-1280 touch

screen or to navi-

gate TV guides and

menus with ease.

The Main button

always displays the

Main menu pages.

The Page buttons

display additional

pages of controls.

The Volume and

Mute buttons are

always available

regardless of what

screen is displayed.

Using the TRC-1280

The TRC-1280's Main Menu pages display the activities and devices

in your system. Press the Main page button to see what your choices

are. Large systems may have more than one page. Press either of the

Page buttons to see further options.

Gently press any screen button with your finger to select an activity

or a device. The screen will change to display the buttons you need

for that activity/device. The Page buttons may reveal additional buttons

for some devices and activities.

When you would like to control another device, press the Main or

Page buttons and select a new device from the Main page.

TRC-1280 TOUCH SCREEN

Connecting the Battery Pack

Unlock the rear cover by pressing down on the spring lock at the

top of the cover. Remove the cover. For shipment from the factory,

the battery is left out of the TRC-1280. Place the battery into the

battery compartment, making sure you align the contacts on the

battery to the contacts on the TRC-1280. The battery will snap into

place when aligned properly. Replace the cover and snap it into

place.

Using the Charging Base

Plug the 6V DC adapter into a power outlet

and into the back of the charging base.

Gently place the TRC-1280 into the cradle

of the charging base. It automatically aligns

itself to the contacts on the charging base.

The Status light should immediately light.

Red indicates that it is charging. Blue shows

that it is fully charged. There is no harm in

leaving the TRC-1280 on its charging base

whenever it is not in use.

Two-Way via Wi-Fi

To use the TRC-1280 with any two-way companion product, the

TRC-1280 must be configured by your installer to be part of a LAN

(local area network) via a Wi-Fi b/g access point or router. This is not

user configurable. If you have any questions, consult your custom installer.

Page 3

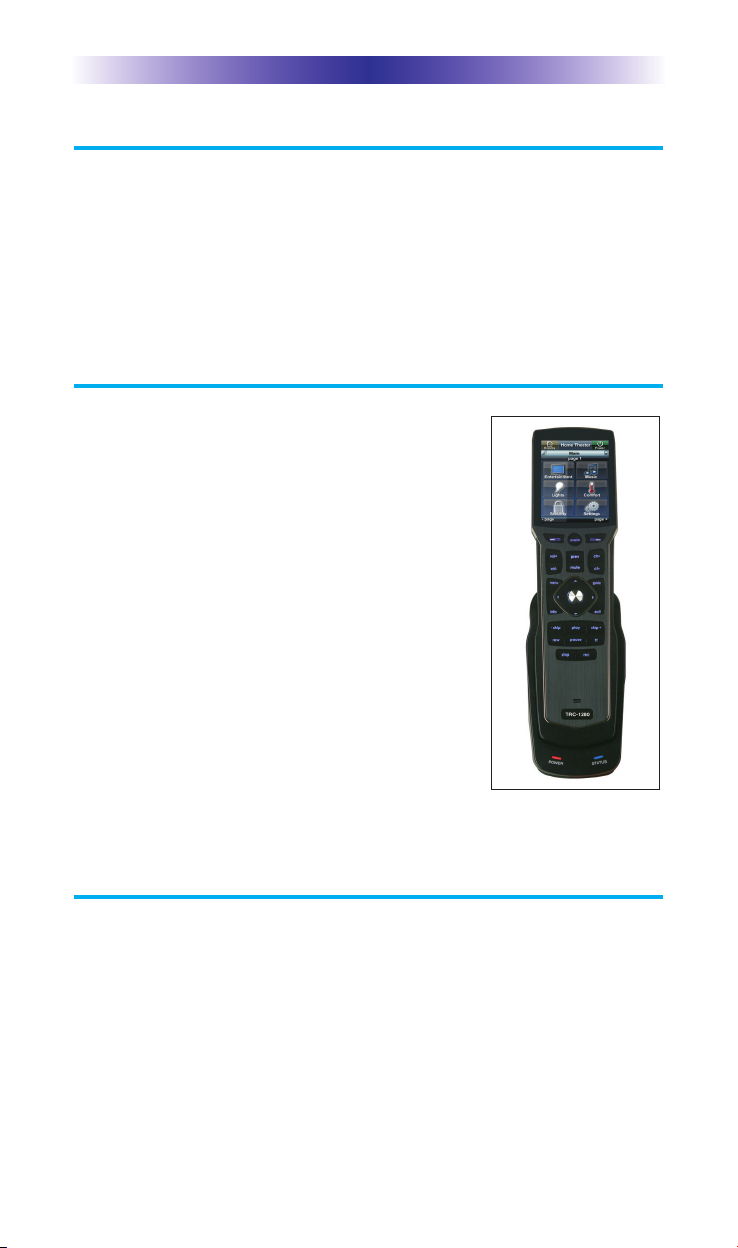

Red indicates charging, Blue

that the remote is fully charged.

Page 4

Displaying the Settings Screen

You can enter the Settings menu by pressing and holding the

MAIN and OK button for three seconds. Once there, if you do not

press any button on the Settings screen, the TRC-1280 will timeout

after 60 seconds and return to the previous setting or Main screen.

There are two pages of Settings screens. To access the other page,

press either of the Page buttons. To select a setting, press the buton on

the LCD screen. To go back a step or to get out of the settings screen,

press the MAIN button.

There are two pages of Settings screen. To access the other page, press

either of the Page buttons.

TRC-1280 TOUCH SCREEN

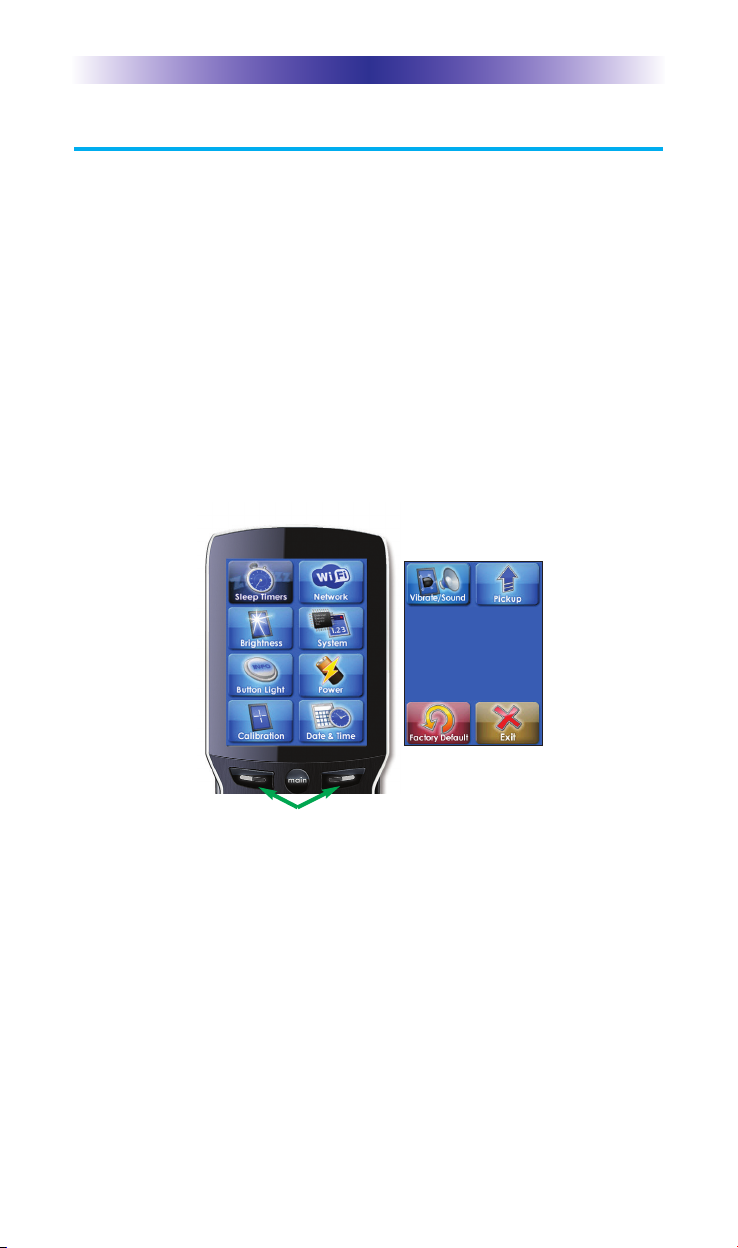

Page buttons reveal the

rest of the settings.

Page 2 of the Settings

Screen

Page 5

TRC-1280 TOUCH SCREEN

Sleep Settings

Wi-Fi and backlighting can be separately adjusted

to conserve battery life. Note that when the

backlight is set to turn off, the remote is not connected

to the network. Picking up or waking the TRC-1280 will

reconnect it to the Wi-Fi network.

Wireless Network Settings

WARNING! Only use this button when instructed

to by Technical Support. The screen displays network

information about your TRC-1280 and the wireless

network it is connected to. Do not make any changes

on this screen!

Brightness

Adjust the screen brightness by moving the slider.

Min (minimum) is the dimmest setting and Max

(maximum) is the brightest setting.

System

The System Information screen displays data about

your TRC-1280's Operating System, Memory etc.

Page 6

TRC-1280 TOUCH SCREEN

Button Light

You can adjust the brightness of the LEDs that

backlight the buttons of the TRC-1280. Move

the slider left to dim the backlighting and move

it right to brighten the backlighting.

Power

You can display the remaining charge by selecting

Power. You can also adjust when the Low Battery

warning screen will appear.

Calibration

To calibrate button presses, adjust the onscreen “tap” location with a

pen top or PDA stylus. Using your fingers to calibrate the screen may

result in inconsistent button presses.

Date and Time

Your TRC-1280 may have been programmed to

display the time or date on the touch screen. If

you need to, you can adjust the time displayed

by changing the settings on this screen.

TRC-1280 TOUCH SCREEN

Page 7

Sound & Vibration

Adjust the volume and vibration levels by touching

and dragging the slider to your desired Min/Max levels.

Pickup

You can set your TRC-1280 to only turn on when

touched, or every time you move it. Simply select

On or Off. Also you can adjust the pickup sensitivity

with the slide bar.

Factory Default

WARNING! Only use this button when instructed to by Technical

Support. It resets the memory of the TRC-1280 to the factory settings.

All your programming will be lost!

Exit

When you have finished adjusting Settings, simply tap the Exit button to

return to normal operation.

Autres manuels pour Total Control TRC-1280

Table des matières

Autres manuels Universal Remote Control Télécommande

Universal Remote Control

Universal Remote Control UR4U-MDVR2 Manuel utilisateur

Universal Remote Control

Universal Remote Control MX-800 Manuel utilisateur

Universal Remote Control

Universal Remote Control MX-980 Manuel utilisateur

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manuel utilisateur

Universal Remote Control

Universal Remote Control BENDER Manuel utilisateur

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manuel utilisateur

Universal Remote Control

Universal Remote Control Complete Control MX-880 Manuel utilisateur

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Manuel utilisateur

Universal Remote Control

Universal Remote Control UR4-DSR - MOTOROLA DSR400 Manuel utilisateur

Universal Remote Control

Universal Remote Control PHAZR-5 series Manuel utilisateur

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manuel utilisateur

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Manuel utilisateur

Universal Remote Control

Universal Remote Control R7 - SPECS SHEET Manuel utilisateur

Universal Remote Control

Universal Remote Control 8 IN 1 Manuel utilisateur

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Manuel utilisateur

Universal Remote Control

Universal Remote Control PHAZR-5 UR5U-9000L Manuel utilisateur

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manuel utilisateur

Universal Remote Control

Universal Remote Control URC-A6 Manuel utilisateur

Universal Remote Control

Universal Remote Control UR4-EXP Manuel utilisateur

Universal Remote Control

Universal Remote Control MX-5000 Network Wand Manuel utilisateur

Universal Remote Control

Universal Remote Control Complete Control MX-900i Manuel utilisateur

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manuel utilisateur

Universal Remote Control

Universal Remote Control URC-A6 Manuel utilisateur

Universal Remote Control

Universal Remote Control ONE FOR ALL 3050CODES Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
