MX-5000 TWO WAY TOUCH SCREEN
Table of Contents
Congratulations 1
Connecting the Battery Pack 2
Using the Charging Base 2
Two Way via Wi-Fi 2
Optional RF “No Rules” Operation 3
Operating Your System 4
Using Two Way Personal Server Features 5
Revolutionary New iPod Controls 6
Displaying the Settings Screen 9
Sleep Settings 9
Network 9
Brightness 10
System 10
Button Light 10
Power Settings 10
Calibration 11
Date and Time 11
Sound 11
Pickup Settings 11
Factory Default 11
Exit 11
Maintaining Your MX-5000 12
Limited Warranty Statement 13
End User Agreement 15
Specifications 16
Federal Communication Commission
Interference Statement 17
Precautions and Information Concerning
Rechargeable Lithium-lon Batteries 18
Page 1
MX-5000 TWO WAY TOUCH SCREEN
Congratulations
You’ve purchased a unique synthesis
of hardware and software engineer-
ing, the Complete Control MX-5000.
The twin goals of the design team
were to improve the elegance and
usability of touch screens through the
physical design while providing a
new standard in brightness, clarity
and animation for the touch screen
itself.
Easy Operation
By assigning the important home theater operational buttons to the
natural resting place of the end users thumbs, the MX-5000
achieves a new standard in use and comfort.
Automatic Backlighting
The integral motion sensor detects any movement of the touch screen
and automatically backlights the screen. You do not have to press any
button to display the screen. Any movement of the MX-5000 renews
the backlighting. To adjust the backlighting, see page 9.
Programming the MX-5000
To fully automate an audio/video system and integrate two way
automation of servers etc. the programmer must have a detailed
knowledge of each component, LAN configuration, Wi-Fi optimiza-
tion and how the system is connected and operated. Only a trained
and certified professional audio/video installer can install an MX-
5000 automation system in a timely and efficient manner.
How do I reset the MX-5000
Normally, resetting the MX-5000 is not necessary. However, if the
MX-5000's
touch screen freezes or if you notice unusual behavior,
you should press the MAIN and EXIT buttons simultaneously for
3 seconds. It will restart the MX-5000.
Page 2
MX-5000 TWO WAY TOUCH SCREEN
Connecting the Battery Pack
Unlock the rear cover by pressing down on the spring lock at the
top of the cover.
Remove the cover. For shipment from the factory, the battery is left
out of the MX-5000. Place the battery into the battery compart-
ment, making sure you align the contacts on the battery to the con-
tacts on the MX-5000. The battery will snap into place when
aligned properly.
Replace the cover and snap it into place.
Using the Charging Base
Plug the 6V DC adapter into a power outlet
and into the back of the charging base.
Gently place the MX-5000 into the cradle of
the charging base. It automatically aligns
itself to the contacts on the charging base.
The status indicator should immediately light.
Red indicates that it is charging. Blue shows
that it is fully charged. There is no harm in
leaving the MX-5000 on its charging base
whenever it is not in use.
Two Way via Wi-Fi
To use the MX-5000 with any two way companion product, the
MX-5000 must be configured by your installer to be part of a LAN
(local area network) via a Wi-Fi b/g access point or router. This is
not user configurable. If you have any questions, consult with your
custom installer.
Red indicates charging, Blue that
the remote is fully charged.
Page 3
MX-5000 TWO WAY TOUCH SCREEN
4. Self-adhesive “Flashers” affix to the
Infrared sensors on the front panels of
your components. Uniquely, all
Complete Control base stations can also
connect to components with rear panel
IR Inputs via adjustable IR Line Outputs.
The MSC-400 offers RS-232 control via
rear panel connections as well.
3. The MSC-400 can control IR, RS232 and Relay con-
trolled devices.
1. The MX-5000 sends radio
waves in every direction, so
you don’t have to point the
remote anymore!
2. The RFX-250 RF Sensor can be
freely positioned for optimal recep-
tion.
Optional RF “No Rules” Operation
In combination with an MSC-400 Master System Controller, or an
RF Base Station, the MX-5000 can control your system without
being in line-of-sight of the equipment.
The MSC-400 enhances the capabilities of the MX-5000 by storing
and issuing Smart Macros to your main system components. It is
triggered by RF Smart Macro commands via RF (radio frequency). In
addition, your MX-5000 can control components in secondary
rooms and systems via MRF-350 or MRF-260 RF base stations.
Page 4
MX-5000 TWO WAY TOUCH SCREEN
Operating Your System
The MX-5000’s main pages display the activities and devices in
your system. Press the main page button to see what your choices
are. Large systems may have more than one page. Press either of
the Page buttons if you don’t see all your devices.
Gently press any screen button with your finger to select an activity
or a device. The screen will change to a display of the buttons you
need for that activity/device. The Page buttons may reveal addition-
al buttons for some devices and activities.
When you would like to control another device, press the main
page button and select a new device from the main page.
The Volume and
Mute buttons are
always available
regardless of what
screen is displayed.
The Page buttons
display additional
pages of controls.
The 4 way cursor
buttons enable you
to both scroll lists of
artists, albums or
songs from your
Music Server on the
MX-5000 touch
screen or to navi-
gate TV guides and
menus with ease.
The main button
always displays the
main menu pages.
Page 5
MX-5000 TWO WAY TOUCH SCREEN
Using Two Way Personal Server Features
Step 1 – Insert an iPod into the PSX. The Universal
Remote Control screen appears on the iPod. This
means it’s connected to the dock and ready for use
with the MX-5000 remote control.
Step 2 – Select the dock you want to listen to from the Main page of
your MX-5000.
Step 3 – If the system has just been turned on, you may see the mes-
sage, “Connecting to iPod Dock”. Once the MX-5000 has connected
to the iPod Dock, the iPod menu screen appears. If the iPod is
already playing, the “Now playing screen” appears.
Step 4 – When you browse for new content, press the Menu button.
The browse screen appears.
On the MX-5000, you can navigate lists on the screen in two ways. Either flick
the list by touching the screen or place your thumb on the Up, Down arrow but-
tons. When you see the item you want, you can either touch it on the MX-5000
screen, or you can press the “OK” button. The Now Playing Screen appears after
a selection is made.

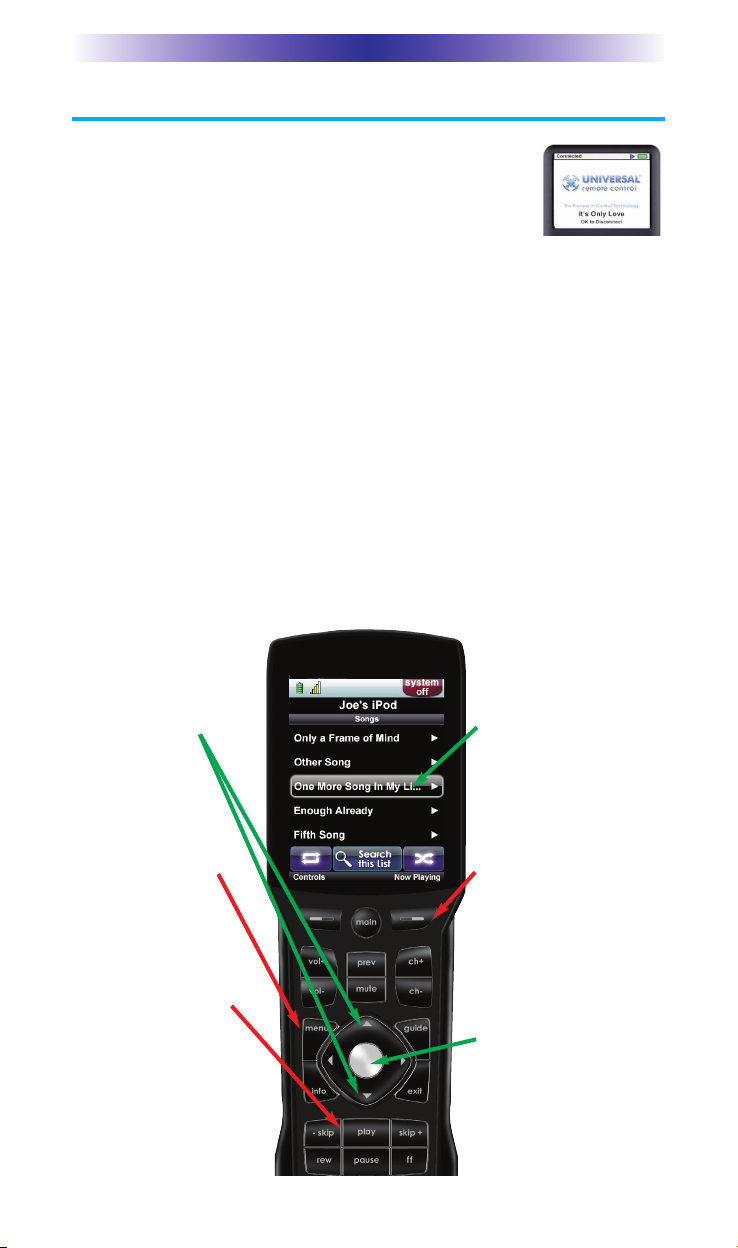

Press the Cursor
Up and Down but-
tons to make the
list scroll.
Transport Controls
enable you to play,
pause, skip tracks
or fast forward and
rewind whatever is
playing.
Press the OK button
to select the item you
want.
Touch the item you
want on the touch
screen.
The Right Page but-
ton, labeled Now
Playing returns the
screen to the now
playing screen.
The Menu Button
reveals the last menu
list you accessed.
Operates like the iPod.
Page 6
MX-5000 TWO WAY TOUCH SCREEN
Shortcuts:
The “Shortcuts”
screen makes navi-
gating your iPod eas-
ier than ever before.
Touch any button to
jump directly to that
menu. Example:
Touch the “Artists”
button to jump
directly to the Artists
menu.
Revolutionary New iPod Controls
The heart of your new personal server
experience is found on your MX-5000 by
pressing the Controls button. This reveals
the unique personal server features only
found on the MX-5000.
Once the Controls screen appears, simply
tap the feature you want:
Shortcuts to find-
ing playlists,
albums, artists,
etc. without using
the Menu button.
The Page button is now labeled Controls
and always accesses the unique iPod
Controls screen.
Shuffle exactly
what you want
(this album, this
artist, this genre,
etc.)
More from this
artist, this album,
this genre, even
this composer...
Music Search
enables you to
alphabetically
search for any
artist, album, song
or playlist.
Jukebox lets you
build and manage
your own playlist
without accessing
your PC.
Use the Up and
Down Cursor but-
tons to reveal
more shortcuis.
Touch the item
you want or use
the OK button.
Page 7
MX-5000 TWO WAY TOUCH SCREEN
Shuffle:
The “Shuffle” screen enables you to easily shuffle
just what you want. The currently playing album,
artist, genre or playlist, or scroll the list to reveal
new revolutionary shuffle options. You can choose
to shuffle any artist, any album, any genre, or
even any composer.
For example, at the bottom of the list, select
Another Genre, then select Jazz to Shuffle just
your Jazz music.
Play More From:
The ”Play More From” button enables you to play
more from the currently playing artist, album,
genre or composer.
Imagine how powerful this is when you are
exploring your music using shuffle play. Anytime
you hear someone you are curious about, touch
the Play More From button and explore their
work.
Jukebox:
The “Jukebox” button opens a menu of choices
allowing you to create a jukebox playlist anytime,
right on your MX-5000. Touch the “add song to
Jukebox” icon or “add album to jukebox” to add
the currently playing song or album to the juke-
box. To play the jukebox, touch the “play juke-
box” icon.
To edit the jukebox, touch the “view jukebox”
icon.
Note: the Jukebox playlist is not cleared if you remove and replace
the same iPod. However, it will be erased, if you replace the iPod
with a different one, or in the event of a power failure.
Edit Jukebox:
Songs can be moved up, down or deleted from
the jukebox list by using the control keys on the
bottom of the “view jukebox” screen.
To exit from the “View Jukebox” screen, touch
either the Left Page button (labeled ”Go Back”)
or the Right Page button (labeled “Now Playing”).
Autres manuels pour MX-5000 Network Wand
3
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Universal Remote Control Télécommande
Universal Remote Control
Universal Remote Control Easy Clicker UR3-SR3-DTA Manuel utilisateur
Universal Remote Control
Universal Remote Control UR3-SR Manuel utilisateur
Universal Remote Control
Universal Remote Control Easy Clicker UR3L-SR4 Manuel utilisateur
Universal Remote Control
Universal Remote Control ONE FOR ALL 6200CMN Manuel utilisateur
Universal Remote Control
Universal Remote Control ZC800 Manuel utilisateur
Universal Remote Control
Universal Remote Control Star Light SL-7000 Manuel utilisateur
Universal Remote Control
Universal Remote Control UR5-8400A Manuel utilisateur
Universal Remote Control
Universal Remote Control UR4-A803 Manuel utilisateur
Universal Remote Control
Universal Remote Control CLIKR-5 UR5U-8500 Manuel utilisateur
Universal Remote Control
Universal Remote Control ONE FOR ALL 3050CODES Manuel utilisateur
Universal Remote Control
Universal Remote Control MX600 Manuel utilisateur
Universal Remote Control
Universal Remote Control Easy Clicker UR3-SR3 Manuel utilisateur
Universal Remote Control
Universal Remote Control Complete Control MX-810I Manuel utilisateur
Universal Remote Control
Universal Remote Control COMPLETE CONTROL MXW-920 Manuel utilisateur
Universal Remote Control
Universal Remote Control Easy Clicker UR2-211 Manuel utilisateur
Universal Remote Control
Universal Remote Control MX-500TM Manuel utilisateur
Universal Remote Control
Universal Remote Control 8 IN 1 Manuel utilisateur
Universal Remote Control
Universal Remote Control ONE FOR ALL 8800CMN Manuel utilisateur
Universal Remote Control
Universal Remote Control UR4-EXP Manuel utilisateur
Universal Remote Control
Universal Remote Control Complete Control MX-980 Manuel du propriétaire
Universal Remote Control
Universal Remote Control CLIKR-5 UR5U-8500 Manuel utilisateur
Universal Remote Control
Universal Remote Control Easy Clicker UR2-211 Manuel utilisateur
Universal Remote Control
Universal Remote Control Easy Clicker UR2-211 Manuel utilisateur
Universal Remote Control
Universal Remote Control PHAZR-5 - SPECS SHEET Manuel utilisateur
Manuels Télécommande populaires d'autres marques
Panasonic
Panasonic EUR7622KB0 Manuel utilisateur
Bang & Olufsen
Bang & Olufsen Beo4 Manuel utilisateur
Sunwave Tech.
Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur
Multiplex
Multiplex PROFI TX 9 Manuel utilisateur
One Remote
One Remote RMB4 Manuel utilisateur
FUTABA
FUTABA 9ZAP - PART2 Manuel utilisateur
